INTERCOOLER of Ferrari Ferrari Portofino M Europe RH

View All

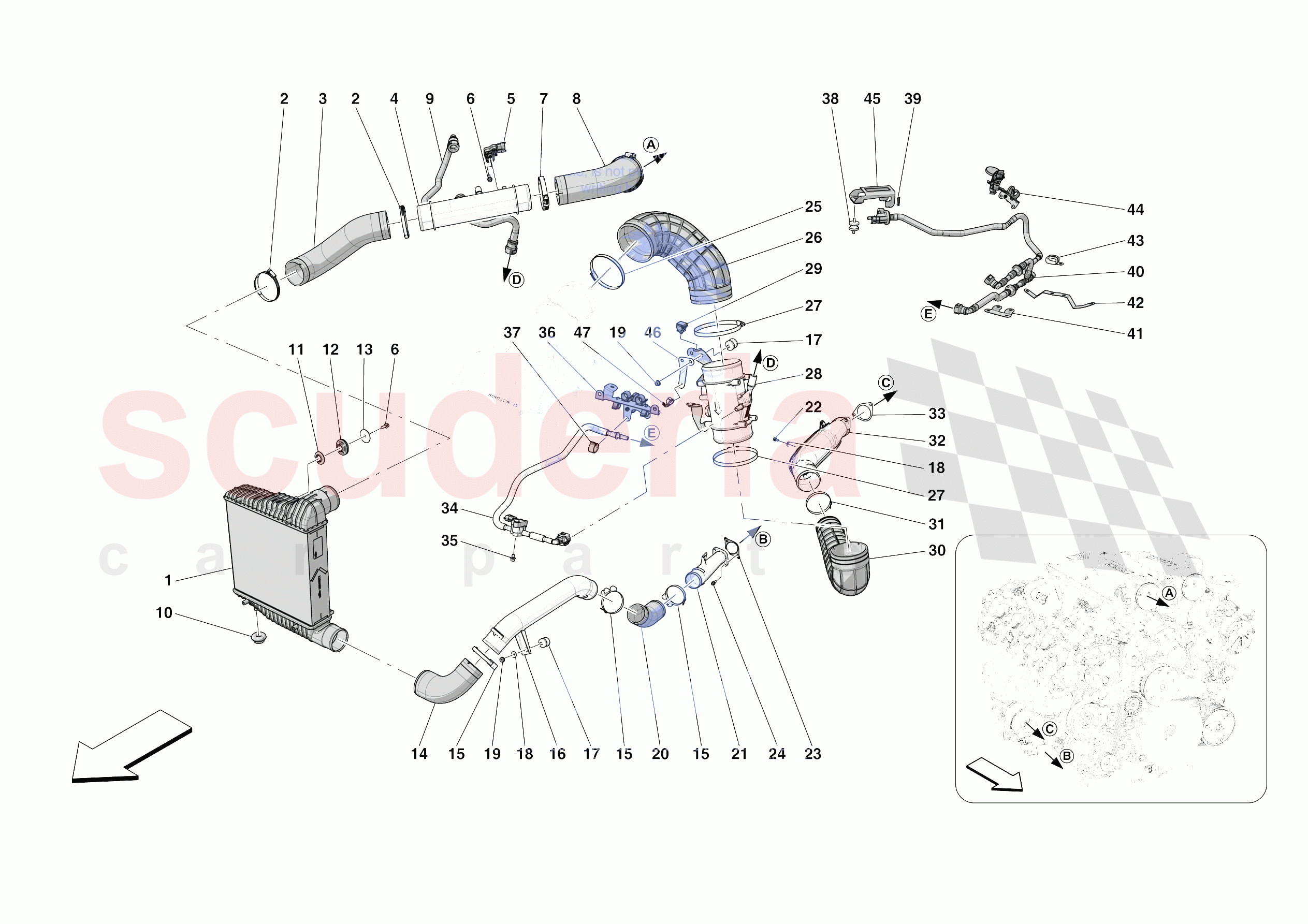

Ferrari Portofino M Europe RH - INTERCOOLER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	340704	RH INTERCOOLER	Enquire	To Order
	340705	LH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	780895	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327937	RH INTERCOOLER OUTLET HOSE	Enquire	To Order
	327938	LH INTERCOOLER OUTLET HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	786970	INTERMEDIATE PIPE BETWEEN INTERCOOLER AND THROTTLE BODY HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272880	PRESSURE AND TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311609	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332708	COMPL. RH THROTTLE BODY COLLAR HOSE UNION	Enquire	To Order
	332709	COMPL. LH THROTTLE BODY COLLAR HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	747660	PIPE FROM INTAKE TO RH VENTURI	Enquire	To Order
	747661	PIPE FROM INTAKE TO LH VENTURI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	782582	BUSH - INTERCOOLER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338492	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290938	INTERCOOLER FASTENER RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66121400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332707	INTERCOOLER INLET HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297483	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339351	RH PIPE FROM ENGINE TO INTERCOOLER	Enquire	To Order
	339352	LH PIPE FROM ENGINE TO INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285553	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	113113	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	813624	HOSE CONNECTION FROM TURBO TO INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	813619	RH COMPRESSOR FLANGED OUTLET PIPE	Enquire	To Order
	813620	LH COMPRESSOR FLANGED OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	323665	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308862	COMPRESSOR OUTLET GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13001190	COLLAR	Enquire	To Order
	13001190	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340923	RH INTAKE DUCT CONNECTOR	Enquire	To Order
	340924	LH INTAKE DUCT CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900284	SCREW COLLAR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	875742	COMPL. RH ANCILLARIES PIPE	Enquire	To Order
	875742	COMPL. RH ANCILLARIES PIPE	Enquire	To Order
	945330	COMPL. RH ANCILLARIES PIPE	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	257273	CLIP	Enquire	To Order
	257273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	974284	TURBO INLET DUCT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308759	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769698	RH COMPRESSOR INLET PIPE	Enquire	To Order
	769699	LH COMPRESSOR INLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330933	COMPRESSOR INTAKE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	875746	COMPL. RH PIPE	Enquire	To Order
	875747	COMPL. LH PIPE	Enquire	To Order
	898692	COMPL. LH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	828057	COMPL. FLUSH PIPE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	897379	RUBBER BUSHING	Enquire	To Order
	897379	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86705100	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878601	COMPL. RH PIPE	Enquire	To Order
	878602	COMPL. LH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303697	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329520	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253512	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	878603	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340995	FLUSH VALVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	949011	BLOW-BY PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	340704	RH INTERCOOLER	340704 RH INTERCOOLER	-	1	Enquire
0001	340705	LH INTERCOOLER	340705 LH INTERCOOLER	-	1	Enquire
0002	780895	COLLAR	780895 COLLAR	-	6	Enquire
0003	327937	RH INTERCOOLER OUTLET HOSE	327937 RH INTERCOOLER OUTLET HOSE	-	1	Enquire
0003	327938	LH INTERCOOLER OUTLET HOSE	327938 LH INTERCOOLER OUTLET HOSE	-	1	Enquire
0004	786970	INTERMEDIATE PIPE BETWEEN INTERCOOLER AND THROTTLE BODY HOSE	786970 INTERMEDIATE PIPE BETWEEN INTERCOOLER AND THROTTLE BODY HOSE	-	2	Enquire
0005	272880	PRESSURE AND TEMPERATURE SENSOR	272880 PRESSURE AND TEMPERATURE SENSOR	-	2	Enquire
0006	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
0007	311609	COLLAR	311609 COLLAR	-	2	Enquire
0008	332708	COMPL. RH THROTTLE BODY COLLAR HOSE UNION	332708 COMPL. RH THROTTLE BODY COLLAR HOSE UNION	-	1	Enquire
0008	332709	COMPL. LH THROTTLE BODY COLLAR HOSE	332709 COMPL. LH THROTTLE BODY COLLAR HOSE	-	1	Enquire
0009	747660	PIPE FROM INTAKE TO RH VENTURI	747660 PIPE FROM INTAKE TO RH VENTURI	-	1	Enquire
0009	747661	PIPE FROM INTAKE TO LH VENTURI	747661 PIPE FROM INTAKE TO LH VENTURI	-	1	Enquire
0010	782582	BUSH - INTERCOOLER SUPPORT	782582 BUSH - INTERCOOLER SUPPORT	-	4	Enquire
0011	338492	SPACER	338492 SPACER	-	2	Enquire
0012	290938	INTERCOOLER FASTENER RUBBER BUSH	290938 INTERCOOLER FASTENER RUBBER BUSH	-	2	Enquire
0013	66121400	WASHER	66121400 WASHER	-	2	Enquire
0014	332707	INTERCOOLER INLET HOSE	332707 INTERCOOLER INLET HOSE	-	2	Enquire
0015	297483	COLLAR	297483 COLLAR	-	6	Enquire
0016	339351	RH PIPE FROM ENGINE TO INTERCOOLER	339351 RH PIPE FROM ENGINE TO INTERCOOLER	-	1	Enquire
0016	339352	LH PIPE FROM ENGINE TO INTERCOOLER	339352 LH PIPE FROM ENGINE TO INTERCOOLER	-	1	Enquire
0017	285553	VIBRATION DAMPER	285553 VIBRATION DAMPER	-	6	Enquire
0018	113113	WASHER	113113 WASHER D. 6.45-16 X 2	-	4	Enquire
0019	14040614	NUT	14040614 NUT	-	8	Enquire
0020	813624	HOSE CONNECTION FROM TURBO TO INTERCOOLER	813624 HOSE CONNECTION FROM TURBO TO INTERCOOLER	-	2	Enquire
0021	813619	RH COMPRESSOR FLANGED OUTLET PIPE	813619 RH COMPRESSOR FLANGED OUTLET PIPE	-	1	Enquire
0021	813620	LH COMPRESSOR FLANGED OUTLET PIPE	813620 LH COMPRESSOR FLANGED OUTLET PIPE	-	1	Enquire
0022	323665	SCREW	323665 SCREW M6 X 14	-	2	Enquire
0023	308862	COMPRESSOR OUTLET GASKET	308862 COMPRESSOR OUTLET GASKET	-	2	Enquire
0024	231620	SCREW	231620 SCREW M6 X 25	-	8	Enquire
0025	13001190	COLLAR	13001190 COLLAR	-	1	Enquire
0025	13001190	COLLAR	13001190 COLLAR	-	1	Enquire
0026	340923	RH INTAKE DUCT CONNECTOR	340923 RH INTAKE DUCT CONNECTOR	-	1	Enquire
0026	340924	LH INTAKE DUCT CONNECTOR	340924 LH INTAKE DUCT CONNECTOR	-	1	Enquire
0027	900284	SCREW COLLAR ARRIVING SOON	900284 SCREW COLLAR ARRIVING SOON	-	4	Enquire
0028	875742	COMPL. RH ANCILLARIES PIPE	875742 COMPL. RH ANCILLARIES PIPE Applicable up to MY 22	-	1	Enquire
0028	875742	COMPL. RH ANCILLARIES PIPE	875742 COMPL. RH ANCILLARIES PIPE	-	1	Enquire
0028	945330	COMPL. RH ANCILLARIES PIPE	945330 COMPL. RH ANCILLARIES PIPE Applicable from MY 23	-	1	Enquire
0028	843953	COMPL. LH ANCILLARIES PIPE	843953 COMPL. LH ANCILLARIES PIPE	-	1	Enquire
0028	342016	COMPL. LH ANCILLARIES PIPE	342016 COMPL. LH ANCILLARIES PIPE	-	1	Enquire
0029	257273	CLIP	257273 CLIP	-	1	Enquire
0029	257273	CLIP	257273 CLIP	-	1	Enquire
0030	974284	TURBO INLET DUCT HOSE	974284 TURBO INLET DUCT HOSE	-	2	Enquire
0031	308759	COLLAR	308759 COLLAR	-	2	Enquire
0032	769698	RH COMPRESSOR INLET PIPE	769698 RH COMPRESSOR INLET PIPE	-	1	Enquire
0032	769699	LH COMPRESSOR INLET PIPE	769699 LH COMPRESSOR INLET PIPE	-	1	Enquire
0033	330933	COMPRESSOR INTAKE GASKET	330933 COMPRESSOR INTAKE GASKET	-	2	Enquire
0034	875746	COMPL. RH PIPE	875746 COMPL. RH PIPE	-	1	Enquire
0034	875747	COMPL. LH PIPE	875747 COMPL. LH PIPE	-	1	Enquire
0034	898692	COMPL. LH PIPE	898692 COMPL. LH PIPE	-	1	Enquire
0035	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	2	Enquire
0036	828057	COMPL. FLUSH PIPE BRACKET	828057 COMPL. FLUSH PIPE BRACKET	-	1	Enquire
0037	198253	CLIP	198253 CLIP	-	4	Enquire
0038	897379	RUBBER BUSHING	897379 RUBBER BUSHING	-	2	Enquire
0038	897379	RUBBER BUSHING	897379 RUBBER BUSHING	-	2	Enquire
0039	86705100	CLIP	86705100 CLIP	-	2	Enquire
0040	878601	COMPL. RH PIPE	878601 COMPL. RH PIPE	-	1	Enquire
0040	878602	COMPL. LH PIPE	878602 COMPL. LH PIPE	-	1	Enquire
0041	303697	BRACKET	303697 BRACKET	-	1	Enquire
0042	329520	BRACKET	329520 BRACKET	-	1	Enquire
0043	253512	BRACKET	253512 BRACKET	-	1	Enquire
0044	878603	COMPL. BRACKET	878603 COMPL. BRACKET	-	1	Enquire
0045	340995	FLUSH VALVE MOUNTING BRACKET	340995 FLUSH VALVE MOUNTING BRACKET	-	1	Enquire
0046	949011	BLOW-BY PIPE MOUNTING BRACKET	949011 BLOW-BY PIPE MOUNTING BRACKET Applicable for MY 23	-	1	Enquire
0047	248061	CLIP	248061 CLIP	-	1	Enquire
