ENGINE ELECTRICAL SYSTEM of Ferrari Ferrari Portofino M Europe RH

View All

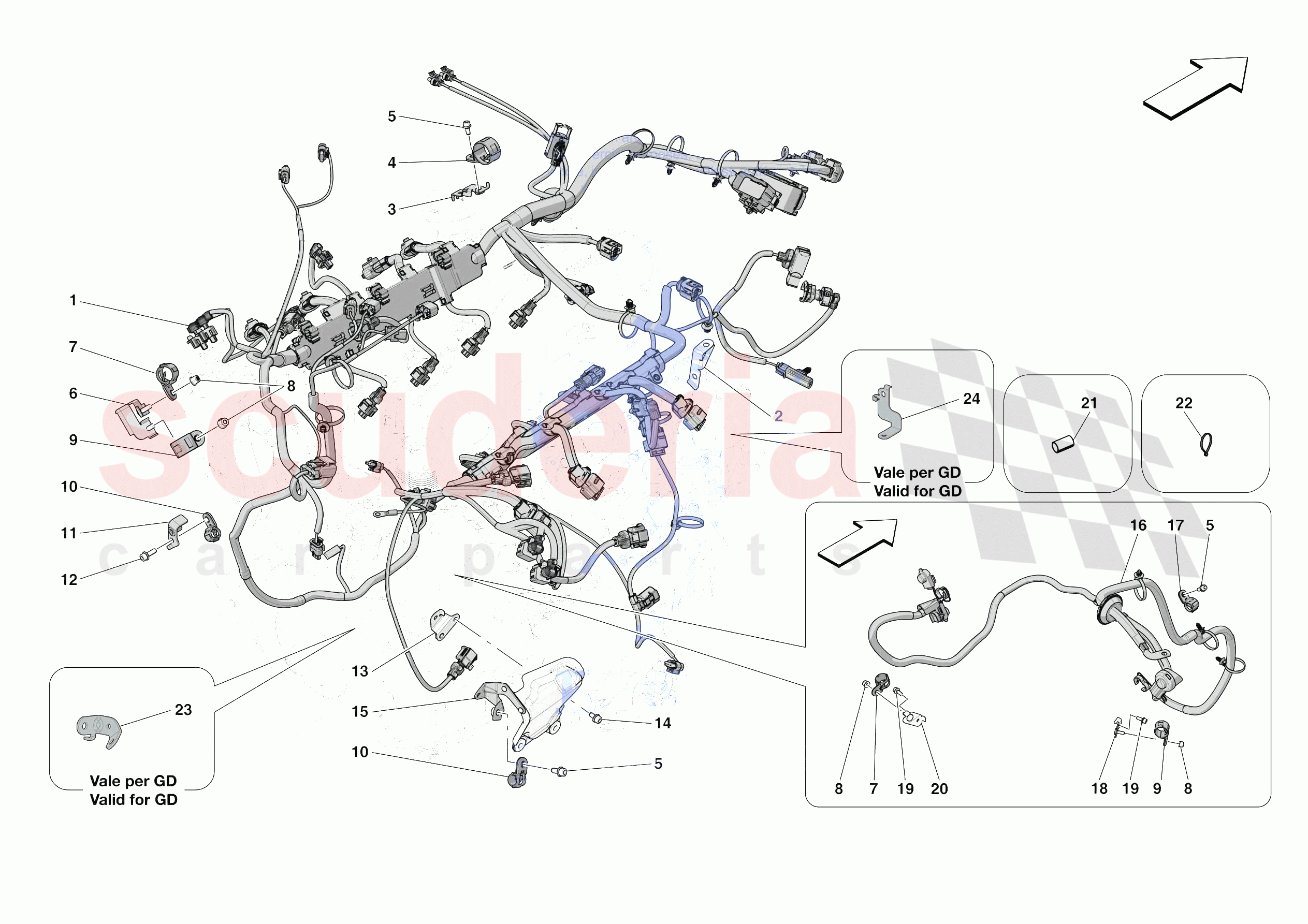

Ferrari Portofino M Europe RH - ENGINE ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	927694	INJECTION CABLE	Enquire	To Order
	927695	INJECTION CABLE	Enquire	To Order
	927695	INJECTION CABLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	340740	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769597	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320601	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295730	CABLE RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320599	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320597	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	892690	GPF PIPE MOUNT COUNTERBRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	279626	SHIELD MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291662	SOLENOID VALVE HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	820264	ENGINE SERVICES CABLE	Enquire	To Order
	819376	ENGINE SERVICES CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320598	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329905	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329906	WIRING HARNESS MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303138	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	820917	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	794721	BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	927694	INJECTION CABLE	927694 INJECTION CABLE	-	1	Enquire
0001	927695	INJECTION CABLE	927695 INJECTION CABLE Applicable up to MY 22	-	1	Enquire
0001	927695	INJECTION CABLE	927695 INJECTION CABLE	-	1	Enquire
0001	946471	INJECTION CABLE	946471 INJECTION CABLE Applicable from MY 23	-	1	Enquire
0002	340740	RH BRACKET	340740 RH BRACKET	-	1	Enquire
0003	769597	BRACKET	769597 BRACKET	-	1	Enquire
0004	320601	CLIP	320601 CLIP	-	1	Enquire
0005	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	8	Enquire
0006	295730	CABLE RETAINER BRACKET	295730 CABLE RETAINER BRACKET	-	1	Enquire
0007	320599	CLIP	320599 CLIP	-	7	Enquire
0008	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
0009	320600	CLIP	320600 CLIP	-	4	Enquire
0010	320597	CLIP	320597 CLIP	-	6	Enquire
0011	892690	GPF PIPE MOUNT COUNTERBRACKET	892690 GPF PIPE MOUNT COUNTERBRACKET	-	2	Enquire
0012	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
0013	279626	SHIELD MOUNTING BRACKET	279626 SHIELD MOUNTING BRACKET	-	1	Enquire
0014	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 12	-	3	Enquire
0015	291662	SOLENOID VALVE HEAT SHIELD	291662 SOLENOID VALVE HEAT SHIELD	-	1	Enquire
0016	820264	ENGINE SERVICES CABLE	820264 ENGINE SERVICES CABLE	-	1	Enquire
0016	819376	ENGINE SERVICES CABLE	819376 ENGINE SERVICES CABLE	-	1	Enquire
0017	320598	CLIP	320598 CLIP	-	1	Enquire
0018	329905	COMPL. BRACKET	329905 COMPL. BRACKET	-	1	Enquire
0019	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	8	Enquire
0020	329906	WIRING HARNESS MOUNTING BRACKET	329906 WIRING HARNESS MOUNTING BRACKET	-	1	Enquire
0021	303138	HEAT SHIELD	303138 HEAT SHIELD	-	1	Enquire
0022	206739	CLAMP	206739 CLAMP	-	1	Enquire
0023	820917	BRACKET	820917 BRACKET	-	1	Enquire
0024	794721	BRACKET	794721 BRACKET	-	1	Enquire
