ANTI-THEFT SYSTEM of Ferrari Ferrari Monza SPA1 Europe

View All

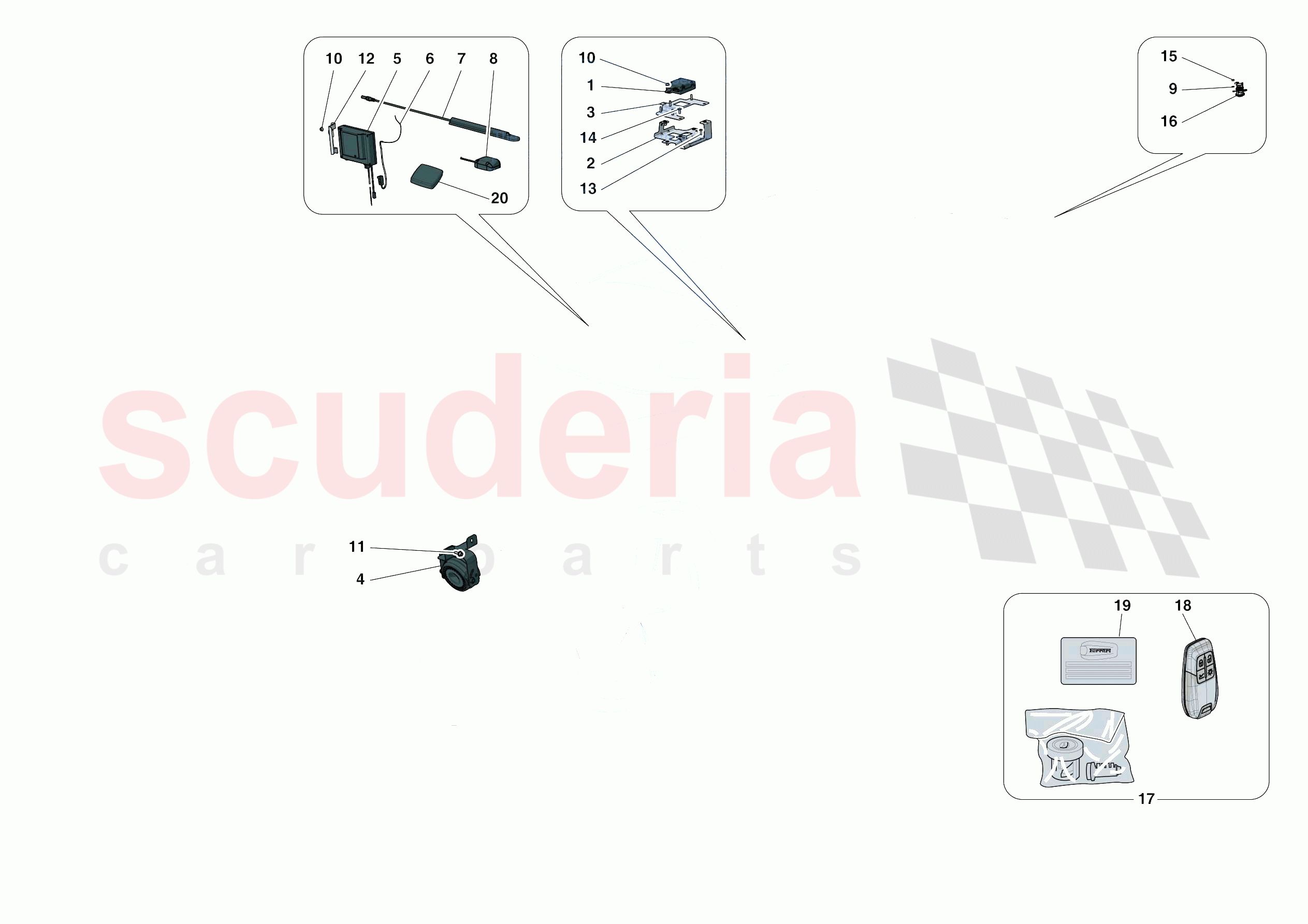

Ferrari Monza SPA1 Europe - ANTI-THEFT SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	293416	ANTI-LIFT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847642	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	847647	UPPER BRACKET	Enquire	To Order
	961651	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330072	COMPL. ANTI-THEFT SYSTEM SIREN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316923	ADR10 SATELLITE ALARM SYSTEM ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307605	ADR10 ANTI-THEFT SYSTEM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274465	GSM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	274464	GPS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13579078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	931306346	NAVTRACK FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899480	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	904234	LUGGAGE COMPARTMENT LID RELEASE BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	866260	KEY AND BLOCK KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328403	KEYLESS KEY KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6326163	SECRET CARD LABEL FOR KEYS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307604	DRIVER CARD FOR NAVTRACK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	293416	ANTI-LIFT SENSOR	293416 ANTI-LIFT SENSOR	-	1	Enquire
0002	847642	LOWER BRACKET	847642 LOWER BRACKET	-	1	Enquire
0003	847647	UPPER BRACKET	847647 UPPER BRACKET Applies until depletion	-	1	Enquire
0003	961651	UPPER BRACKET	961651 UPPER BRACKET Applicable after depletion of 847647	-	1	Enquire
0004	330072	COMPL. ANTI-THEFT SYSTEM SIREN	330072 COMPL. ANTI-THEFT SYSTEM SIREN	-	1	Enquire
0005	316923	ADR10 SATELLITE ALARM SYSTEM ECU	316923 ADR10 SATELLITE ALARM SYSTEM ECU	-	1	Enquire
0006	307605	ADR10 ANTI-THEFT SYSTEM ANTENNA	307605 ADR10 ANTI-THEFT SYSTEM ANTENNA	-	1	Enquire
0007	274465	GSM ANTENNA	274465 GSM ANTENNA	-	1	Enquire
0008	274464	GPS ANTENNA	274464 GPS ANTENNA	-	1	Enquire
0009	13579078	WASHER	13579078 WASHER	-	2	Enquire
0010	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
0011	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
0012	931306346	NAVTRACK FASTENER BRACKET	931306346 NAVTRACK FASTENER BRACKET	-	1	Enquire
0013	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 15	-	3	Enquire
0013	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	3	Enquire
0014	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
0015	899480	NUT	899480 NUT M4 X 3,2	-	2	Enquire
0016	904234	LUGGAGE COMPARTMENT LID RELEASE BLOCK	904234 LUGGAGE COMPARTMENT LID RELEASE BLOCK	-	1	Enquire
0017	866260	KEY AND BLOCK KIT	866260 KEY AND BLOCK KIT Contains 2 keys, 3 barrels, 1 secret card and 2 keyless key fobs	-	1	Enquire
0018	328403	KEYLESS KEY KIT	328403 KEYLESS KEY KIT	-	1	Enquire
0019	6326163	SECRET CARD LABEL FOR KEYS	6326163 SECRET CARD LABEL FOR KEYS	-	1	Enquire
0020	307604	DRIVER CARD FOR NAVTRACK	307604 DRIVER CARD FOR NAVTRACK Version with satellite alarm system with card - Request ASM authorisation	-	1	Enquire
