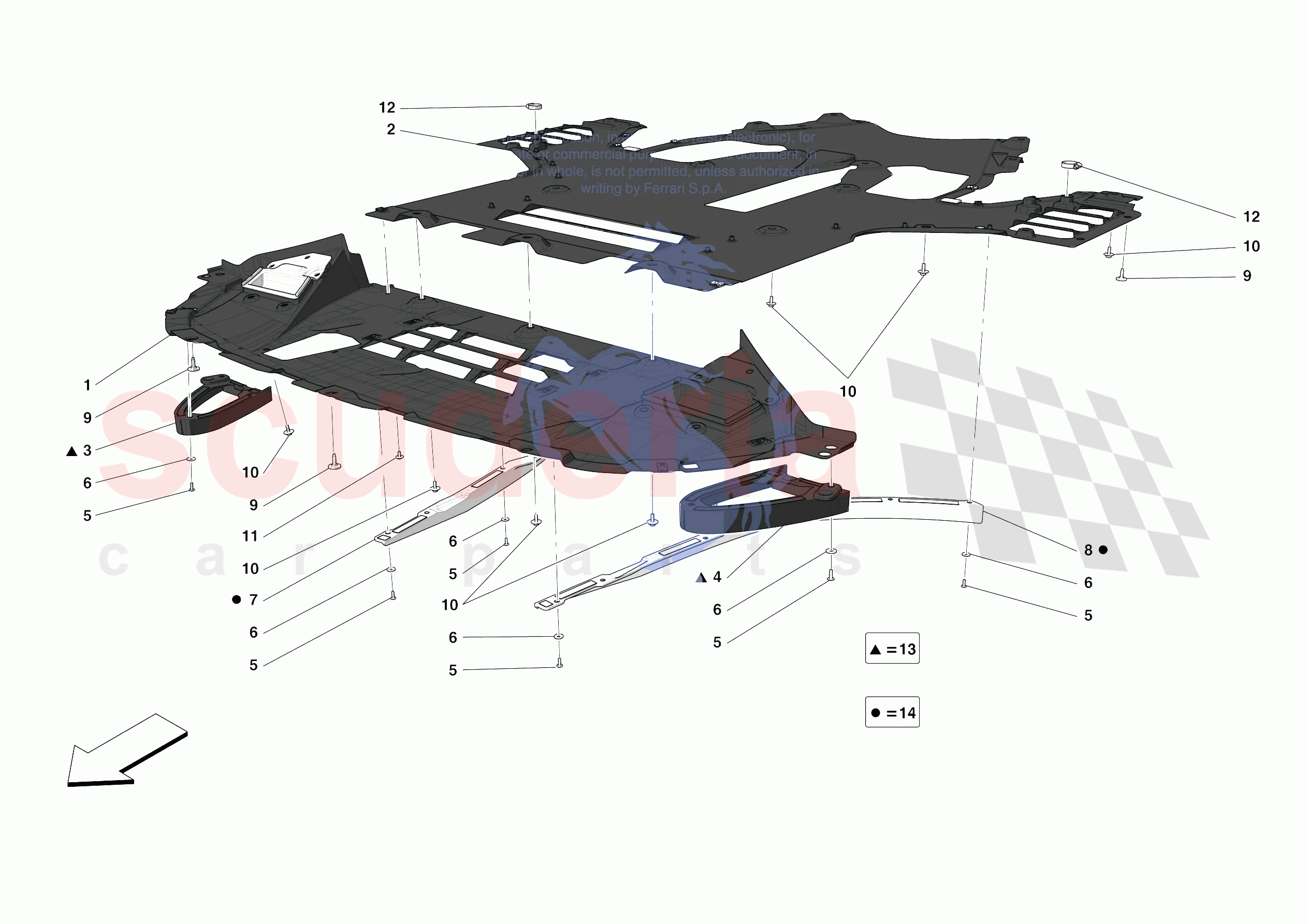

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	837660	COMPL. FRONT FLAT UNDERTRAY SECTION-BUMPER CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88080100	COMPL. FRONT FLAT UNDERTRAY SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88081700	RH CENTRAL FRONT DAM, FRONT PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88081600	LH CENTRAL FRONT DAM, FRONT PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82115900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178053	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	940000	FRONT DAM KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	940001	KIT, FRONT PART OF CENTRE FRONT DAM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	837660	COMPL. FRONT FLAT UNDERTRAY SECTION-BUMPER CONNECTOR	837660 COMPL. FRONT FLAT UNDERTRAY SECTION-BUMPER CONNECTOR	-	1	Enquire
0002	88080100	COMPL. FRONT FLAT UNDERTRAY SECTION	88080100 COMPL. FRONT FLAT UNDERTRAY SECTION	-	1	Enquire
0005	85833700	SCREW	85833700 SCREW M5 X 16	-	20	Enquire
0006	12643724	WASHER	12643724 WASHER	-	20	Enquire
0007	88081700	RH CENTRAL FRONT DAM, FRONT PART	88081700 RH CENTRAL FRONT DAM, FRONT PART Applies until depletion	-	1	Enquire
0008	88081600	LH CENTRAL FRONT DAM, FRONT PART	88081600 LH CENTRAL FRONT DAM, FRONT PART Applies until depletion	-	1	Enquire
0009	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	9	Enquire
0010	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	-	27	Enquire
0011	82115900	SCREW	82115900 SCREW M6 X 14	-	2	Enquire
0012	178053	CLAMP	178053 CLAMP	-	2	Enquire
0013	940000	FRONT DAM KIT	940000 FRONT DAM KIT Consisting of 88080600 and 88080500	-	1	Enquire
0014	940001	KIT, FRONT PART OF CENTRE FRONT DAM	940001 KIT, FRONT PART OF CENTRE FRONT DAM Applicable after depletion of 88081600 and 88081700 - Consisting of 88081600 and 88081700	-	1	Enquire
