LUBRICATION SYSTEM AND OIL VAPOUR RECOVERY SYSTEM

Find Your Part

Ferrari LaFerrari Aperta - LUBRICATION SYSTEM AND OIL VAPOUR RECOVERY SYSTEM

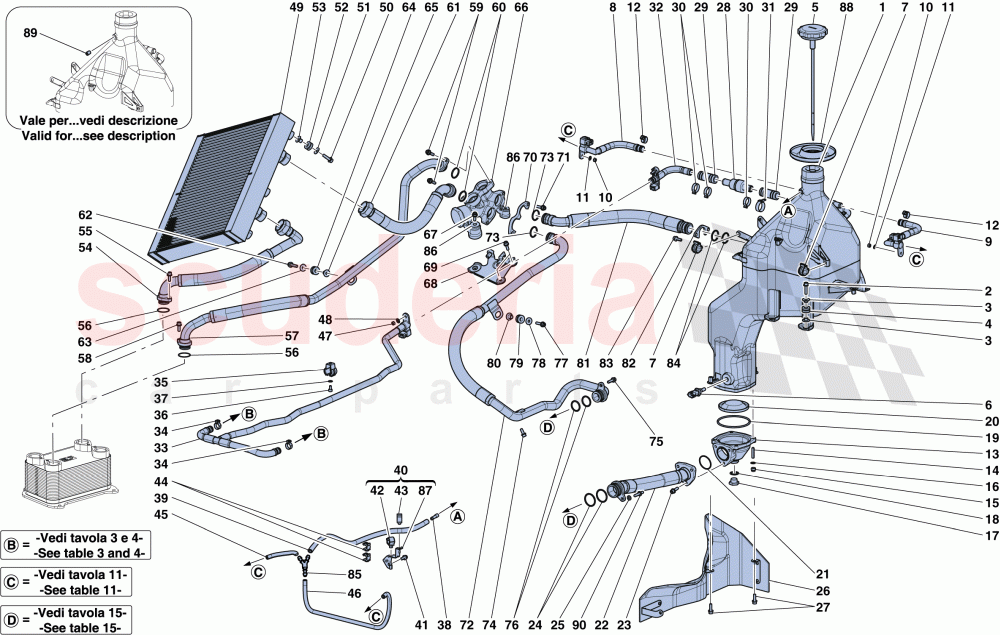

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
298381 COMPL. TANK $4,082.08 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $14.75 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.33 To Order
Photo Part No Description Price (each) Stock
301598 CAP COMPLETE WITH DIPSTICK $401.34 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $30.23 To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.77 To Order
Photo Part No Description Price (each) Stock
297612 RH BLOW-BY PIPE $104.62 To Order
Photo Part No Description Price (each) Stock
297614 LH BLOW-BY PIPE $104.62 To Order
Photo Part No Description Price (each) Stock
15896477 NUT $1.26 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
13432270 HOSE COLLAR $0.96 To Order
Photo Part No Description Price (each) Stock
290848 OIL TANK PICKUP $372.69 To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.39 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
293107 THREADED PLUG $90.10 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.36 To Order
Photo Part No Description Price (each) Stock
125521 O-RING $11.20 To Order
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $20.65 To Order
Photo Part No Description Price (each) Stock
862084 GASKET $5.61 To Order
Photo Part No Description Price (each) Stock
290509 OIL PIPE FROM TANK PICKUP TO PUMP $817.05 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
104212 O-RING $0.70 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
302113 HEAT SHIELD FOR TANK AND OIL PIPE $286.67 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
294255 CHECK VALVE $336.75 To Order
Photo Part No Description Price (each) Stock
257673 RUBBER PIPE $120.33 To Order
Photo Part No Description Price (each) Stock
13432870 COLLAR FOR HOSE UNION $12.30 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.60 To Order
Photo Part No Description Price (each) Stock
290579 REAR HEAD VAPOUR PIPE $706.01 To Order
Photo Part No Description Price (each) Stock
304129 FRONT HEAD VAPOUR PIPE $240.67 To Order
Photo Part No Description Price (each) Stock
13432270 HOSE COLLAR $0.96 To Order
Photo Part No Description Price (each) Stock
285268 BRACKET WITH SHEATH $70.59 To Order
Photo Part No Description Price (each) Stock
11566227 SCREW $1.31 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
291502 CONNECTOR $72.19 To Order
Photo Part No Description Price (each) Stock
303408 RUBBER PIPE $208.58 To Order
Photo Part No Description Price (each) Stock
303343 COMPLETE HEADER TANK BREATHER PIPE BRACKET $46.52 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
198253 CLIP $3.71 To Order
Photo Part No Description Price (each) Stock
14574287 CLIP $8.41 To Order
Photo Part No Description Price (each) Stock
145543 CLIP $0.21 To Order
Photo Part No Description Price (each) Stock
303406 RUBBER PIPE $51.59 To Order
Photo Part No Description Price (each) Stock
303407 RUBBER PIPE $141.19 To Order
Photo Part No Description Price (each) Stock
15896477 NUT $1.26 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
297420 ENGINE OIL RADIATOR $2,816.05 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
296423 ENGINE OIL DELIVERY PIPE FROM RADIATOR TO HEAT EXCHANGER $754.15 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
122791 O-RING $2.25 To Order
Photo Part No Description Price (each) Stock
300471 OIL RETURN PIPE FROM HEAT EXCHANGER TO THERMOSTAT $914.60 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
122791 O-RING $2.25 To Order
Photo Part No Description Price (each) Stock
296421 ENGINE OIL DELIVERY PIPE FROM THERMOSTAT TO RADIATOR $529.50 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
304797 COMPL. OIL THERMOSTAT $788.38 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
304399 THERMOSTAT FASTENER BRACKET $104.28 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
315166 OIL DELIVERY PIPE FROM ENGINE TO THERMOSTAT $1,042.97 To Order
Photo Part No Description Price (each) Stock
122791 O-RING $2.25 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
121903 GASKET $0.81 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
290508 OIL RETURN PIPE FROM THERMOSTAT TO TANK $530.36 To Order
Photo Part No Description Price (each) Stock
283147 RETAINER FORK $59.35 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
121903 GASKET $0.81 To Order
Photo Part No Description Price (each) Stock
295432 3-WAY CONNECTOR $258.00 To Order
Photo Part No Description Price (each) Stock
267300 DAMPED MOUNT $12.33 To Order
Photo Part No Description Price (each) Stock
303343 COMPLETE HEADER TANK BREATHER PIPE BRACKET $46.52 To Order
Photo Part No Description Price (each) Stock
294022 RING FOR ENGINE OIL TANK $56.14 To Order
Photo Part No Description Price (each) Stock
14326101 THREADED PLUG $1.26 To Order
Photo Part No Description Price (each) Stock
204102 STUD BOLT $17.18 To Order
View All
LUBRICATION SYSTEM AND OIL VAPOUR RECOVERY SYSTEM of Ferrari Ferrari LaFerrari Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 298381
COMPL. TANK 		$4,082.08 1
2 231620
SCREW
M6 X 25 		$0.32 (8.6% off) 4
3 819489
FLANGED BUSHING 		$14.75 8
4 177576
CABLE GROMMET 		$2.33 4
5 301598
CAP COMPLETE WITH DIPSTICK 		$401.34 1
6 180137
TEMPERATURE SENSOR 		$30.23 (8.4% off) 1
7 198273
CLIP 		$1.77 2
8 297612
RH BLOW-BY PIPE 		$104.62 1
9 297614
LH BLOW-BY PIPE 		$104.62 1
10 15896477
NUT 		$1.26 2
11 12604178
Washer 		- 2 Enquire
12 13432270
HOSE COLLAR 		$0.96 2
13 290848
OIL TANK PICKUP 		$372.69 1
14 11500524
STUD BOLT 		$0.39 (61% off) 4
15 14059290
FLANGED NUT M6 		$1.51 4
16 11197774
WASHER 		$0.06 (80% off) 4
17 293107
THREADED PLUG 		$90.10 1
18 10261460
COPPER WASHER 16 X 24 X 1.5 		$0.36 (64% off) 1
19 125521
O-RING 		$11.20 1
20 100332
OIL PICKUP FILTER 		$20.65 1
21 862084
GASKET 		$5.61 1
22 290509
OIL PIPE FROM TANK PICKUP TO PUMP 		$817.05 1
23 231619
SCREW
M6 X 20 		$0.31 3
24 104212
O-RING 		$0.70 (30% off) 2
25 11197774
WASHER 		$0.06 (80% off) 1
26 302113
HEAT SHIELD FOR TANK AND OIL PIPE 		$286.67 1
27 231619
SCREW
M6 X 20 		$0.31 2
28 294255
CHECK VALVE 		$336.75 1
29 257673
RUBBER PIPE 		$120.33 2
30 13432870
COLLAR FOR HOSE UNION 		$12.30 3
31 262111
JUBILEE CLAMP 		$1.60 1
32 290579
REAR HEAD VAPOUR PIPE 		$706.01 1
33 304129
FRONT HEAD VAPOUR PIPE 		$240.67 1
34 13432270
HOSE COLLAR 		$0.96 2
35 285268
BRACKET WITH SHEATH 		$70.59 1
36 11566227
SCREW
M5 X 10 		$1.31 1
37 12604178
Washer 		- 1 Enquire
38 291502
CONNECTOR
Not for USA, CDN, USA LIGHT 		$72.19 1
39 303408
RUBBER PIPE
Not for USA, CDN, USA LIGHT 		$208.58 1
40 303343
COMPLETE HEADER TANK BREATHER PIPE BRACKET
Not for USA, CDN, USA LIGHT 		$46.52 1
41 248334
SCREW
Not for USA, CDN, USA LIGHT 		$0.68 1
42 198253
CLIP
Not for USA, CDN, USA LIGHT 		$3.71 (3.6% off) 1
43 14574287
CLIP
Not for USA, CDN, USA LIGHT 		$8.41 (11.5% off) 1
44 145543
CLIP
Not for USA, CDN, USA LIGHT 		$0.21 (72% off) 2
45 303406
RUBBER PIPE
Not for USA, CDN, USA LIGHT 		$51.59 1
46 303407
RUBBER PIPE
Not for USA, CDN, USA LIGHT 		$141.19 1
47 15896477
NUT 		$1.26 1
48 12604178
Washer 		- 1 Enquire
49 297420
ENGINE OIL RADIATOR 		$2,816.05 1
50 231619
SCREW
M6 X 22 		$0.31 6
51 12643724
WASHER 		$0.06 (88% off) 6
52 812273
CABLE GROMMET 		$1.65 6
53 149707
SPACER 		$1.17 (33.1% off) 6
54 296423
ENGINE OIL DELIVERY PIPE FROM RADIATOR TO HEAT EXCHANGER 		$754.15 1
55 231619
SCREW
M6 X 18 		$0.31 1
56 122791
O-RING 		$2.25 2
57 300471
OIL RETURN PIPE FROM HEAT EXCHANGER TO THERMOSTAT 		$914.60 1
58 231619
SCREW
M6 X 18 		$0.31 1
59 231620
SCREW
M6 X 25 		$0.32 (8.6% off) 2
60 122791
O-RING 		$2.25 2
61 296421
ENGINE OIL DELIVERY PIPE FROM THERMOSTAT TO RADIATOR 		$529.50 1
62 231620
SCREW
M6 X 30 		$0.32 (8.6% off) 1
63 12643724
WASHER 		$0.06 (88% off) 1
64 812273
CABLE GROMMET 		$1.65 1
65 149707
SPACER 		$1.17 (33.1% off) 1
66 304797
COMPL. OIL THERMOSTAT 		$788.38 (20.5% off) 1
67 231625
SCREW
M6 X 40 		$0.65 3
68 304399
THERMOSTAT FASTENER BRACKET 		$104.28 1
69 231619
SCREW
M6 X 20 		$0.31 2
70 258945
PIPE RETAINER FORK 		$25.66 1
71 231620
SCREW
M6 X 25 		$0.32 (8.6% off) 2
72 315166
OIL DELIVERY PIPE FROM ENGINE TO THERMOSTAT 		$1,042.97 1
73 122791
O-RING 		$2.25 2
74 248334
SCREW 		$0.68 1
75 231619
SCREW
M6 X 22 		$0.31 1
76 121903
GASKET 		$0.81 (58.5% off) 2
77 231620
SCREW
M6 X 30 		$0.32 (8.6% off) 1
78 12643724
WASHER 		$0.06 (88% off) 1
79 812273
CABLE GROMMET 		$1.65 1
80 149707
SPACER 		$1.17 (33.1% off) 1
81 290508
OIL RETURN PIPE FROM THERMOSTAT TO TANK 		$530.36 1
82 283147
RETAINER FORK 		$59.35 1
83 231619
SCREW
M6 X 18 		$0.31 2
84 121903
GASKET 		$0.81 (58.5% off) 2
85 295432
3-WAY CONNECTOR
Not for GOLFO 		$258.00 1
86 267300
DAMPED MOUNT 		$12.33 3
87 303343
COMPLETE HEADER TANK BREATHER PIPE BRACKET
After depletion, order compl.; Not for USA, CDN, USA LIGHT; Applicable until depletion 		$46.52 1
88 294022
RING FOR ENGINE OIL TANK 		$56.14 1
89 14326101
THREADED PLUG
Applicable for USA, CDN, USA LIGHT 		$1.26 (23.6% off) 1
90 204102
STUD BOLT 		$17.18 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
