Name: REAR SUBCHASSIS
Rating: 4.4 (1 reviews)

View All

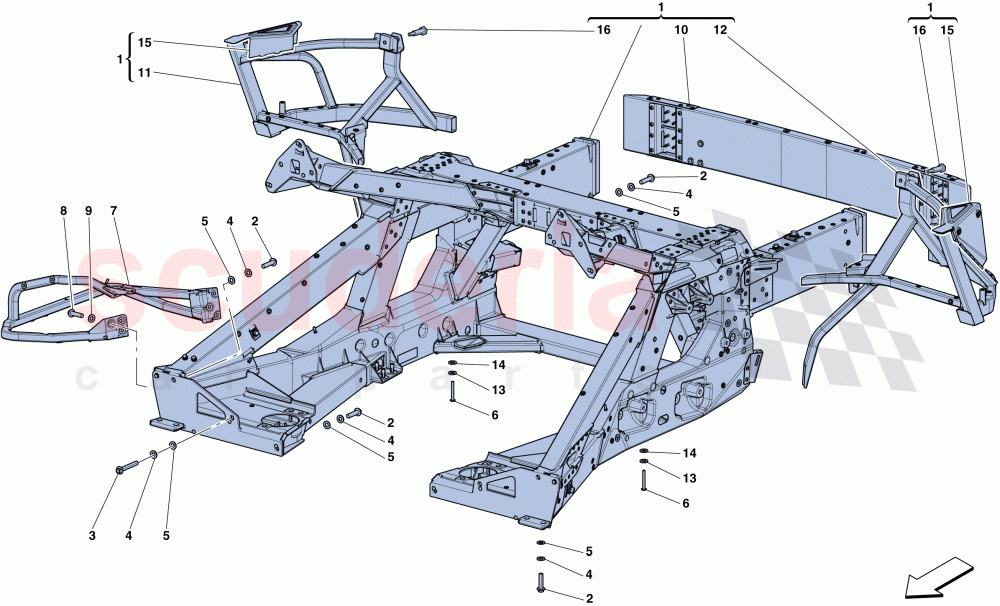

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329871	COMPL. REAR CHASSIS	$34,739.54	To Order

Photo	Part No	Description	Price (each)	Stock
	332827	SCREW	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	332832	SCREW	$11.73	To Order

Photo	Part No	Description	Price (each)	Stock
	308667	WASHER	$13.31	To Order

Photo	Part No	Description	Price (each)	Stock
	308666	WASHER	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	14305974	SCREW	$0.24	To Order

Photo	Part No	Description	Price (each)	Stock
	85208100	CANISTER MOUNTING FRAME	$516.03	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	298981	COMPL. REAR BUMPER CROSS MEMBER	$994.83	To Order

Photo	Part No	Description	Price (each)	Stock
	85592500	COMPL. RH REAR TRELLIS	$722.05	To Order

Photo	Part No	Description	Price (each)	Stock
	85592400	COMPL. LH REAR TRELLIS	$754.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	86174900	WASHER	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	86011400	LH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	$50.15	To Order
	86012000	RH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	85269200	STRIKER PLATE	$28.66	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	329871	COMPL. REAR CHASSIS	329871 COMPL. REAR CHASSIS	$34,739.54	1
2	332827	SCREW	332827 SCREW	$6.18	18
3	332832	SCREW	332832 SCREW	$11.73	2
4	308667	WASHER	308667 WASHER	$13.31	20
5	308666	WASHER	308666 WASHER	$1.94	20
6	14305974	SCREW	14305974 SCREW	$0.24 MSRP: ~~0.59~~ (59.3% off)	22
7	85208100	CANISTER MOUNTING FRAME	85208100 CANISTER MOUNTING FRAME	$516.03	1
8	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20	$0.62	8
9	13550224	WASHER	13550224 WASHER	$1.43	8
10	298981	COMPL. REAR BUMPER CROSS MEMBER	298981 COMPL. REAR BUMPER CROSS MEMBER	$994.83	1
11	85592500	COMPL. RH REAR TRELLIS	85592500 COMPL. RH REAR TRELLIS	$722.05	1
12	85592400	COMPL. LH REAR TRELLIS	85592400 COMPL. LH REAR TRELLIS	$754.15	1
13	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	22
14	86174900	WASHER	86174900 WASHER	$2.25	22
15	86011400	LH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	86011400 LH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	$50.15	1
15	86012000	RH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	86012000 RH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	$50.15	1
16	85269200	STRIKER PLATE	85269200 STRIKER PLATE	$28.66	2
