DOORS - POWER WINDOW AND REAR VIEW MIRROR of Ferrari Ferrari LaFerrari Aperta

View All

Ferrari LaFerrari Aperta - DOORS - POWER WINDOW AND REAR VIEW MIRROR

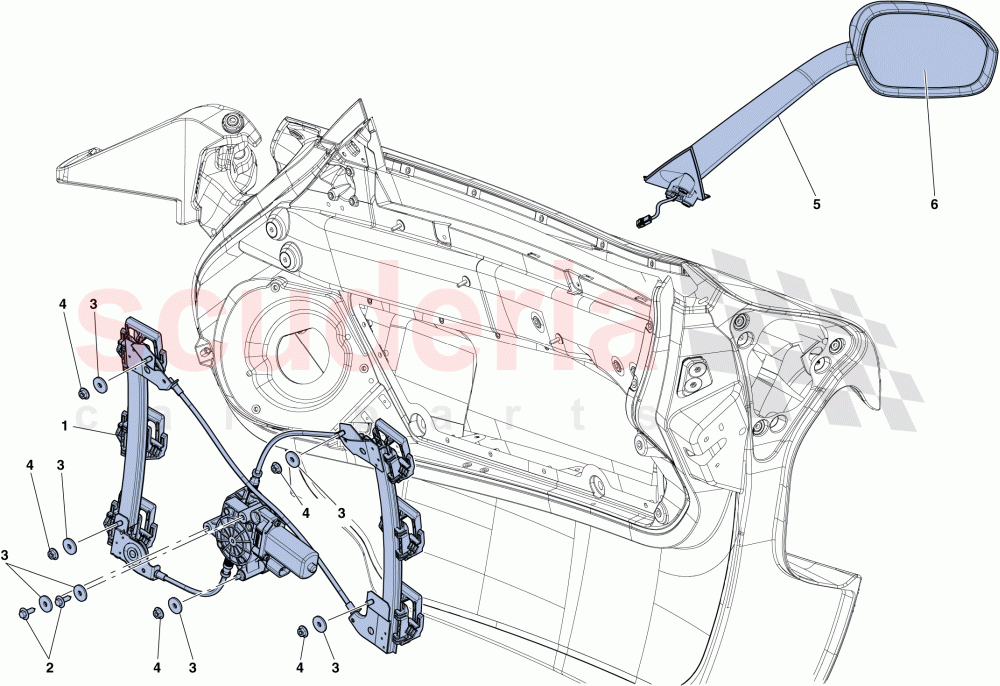

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87969900	LH WINDOW LIFT	Enquire	To Order
	87969800	RH WINDOW LIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15699804	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046112	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88910400	LH EXTERNAL REAR VIEW MIRROR	Enquire	To Order
	88910210	LH EXTERNAL REAR VIEW MIRROR	Enquire	To Order
	88910300	RH EXTERNAL REAR VIEW MIRROR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86290100	Complete RH Reflector	Enquire	To Order
	86290200	COMPL. LH REFLECTOR	Enquire	To Order
	86290400	COMPL. LH REFLECTOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87969900	LH WINDOW LIFT	87969900 LH WINDOW LIFT	-	1	Enquire
1	87969800	RH WINDOW LIFT	87969800 RH WINDOW LIFT	-	1	Enquire
2	15699804	SCREW	15699804 SCREW	-	4	Enquire
3	12648925	WASHER	12648925 WASHER	-	14	Enquire
4	13046112	NUT	13046112 NUT	-	10	Enquire
5	88910400	LH EXTERNAL REAR VIEW MIRROR	88910400 LH EXTERNAL REAR VIEW MIRROR Completely in gloss carbon; Reflector ordered separately	-	1	Enquire
5	88910210	LH EXTERNAL REAR VIEW MIRROR	88910210 LH EXTERNAL REAR VIEW MIRROR Black mount and shell in body colour; Reflector ordered separately	-	1	Enquire
5	88910300	RH EXTERNAL REAR VIEW MIRROR	88910300 RH EXTERNAL REAR VIEW MIRROR Completely in gloss carbon; Reflector ordered separately	-	1	Enquire
5	88909910	RH EXTERNAL REAR VIEW MIRROR	88909910 RH EXTERNAL REAR VIEW MIRROR Black mount and shell in body colour; Reflector ordered separately	-	1	Enquire

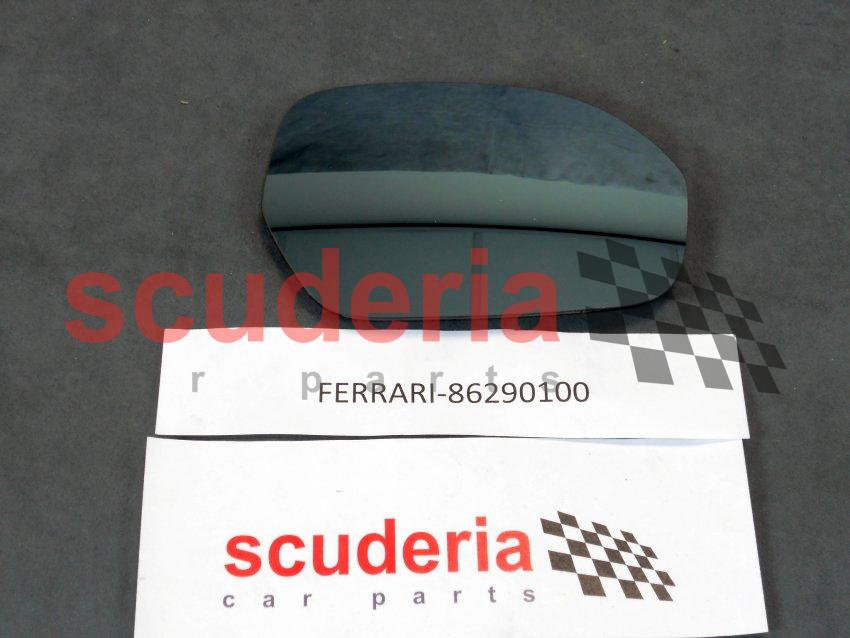

6	86290100	Complete RH Reflector	86290100 Complete RH Reflector Not for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
6	86290200	COMPL. LH REFLECTOR	86290200 COMPL. LH REFLECTOR Applicable for USA, CDN, USA LIGHT	-	1	Enquire
6	86290400	COMPL. LH REFLECTOR	86290400 COMPL. LH REFLECTOR Applicable for GOLFO	-	1	Enquire
6	86290000	COMPL. LH REFLECTOR	86290000 COMPL. LH REFLECTOR Not for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
6	86290300	COMPL. RH REFLECTOR	86290300 COMPL. RH REFLECTOR Applicable for USA, CDN, USA LIGHT	-	1	Enquire
6	86290500	COMPL. RH REFLECTOR	86290500 COMPL. RH REFLECTOR Applicable for GOLFO	-	1	Enquire
