Name: REAR SUBCHASSIS
Rating: 5.0 (1 reviews)

Find Your Part

View All

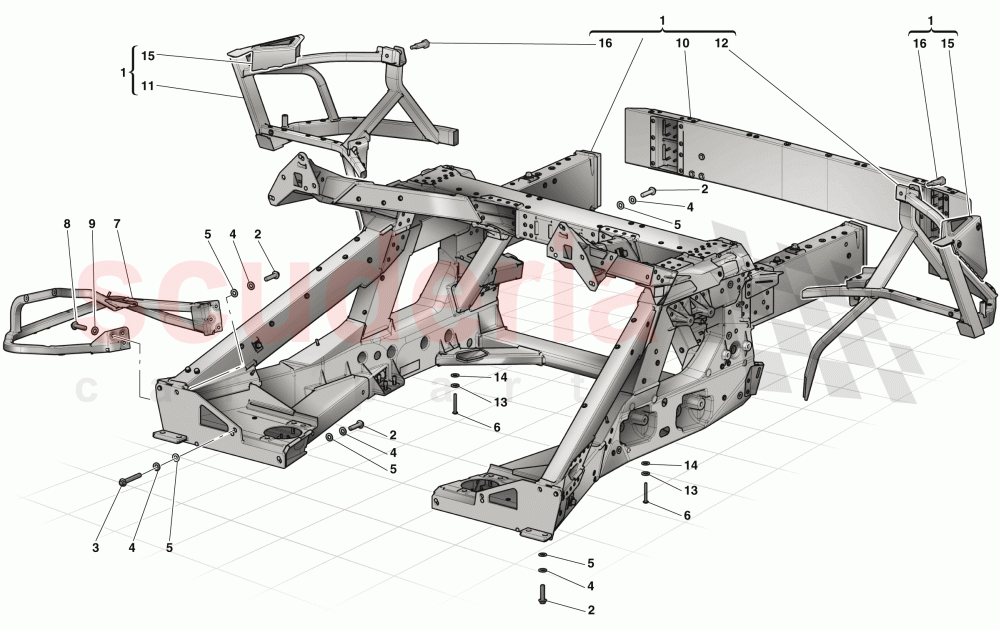

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	299636	COMPL. REAR CHASSIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298806	TITANIUM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300135	TITANIUM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308667	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308666	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305974	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85208100	CANISTER MOUNTING FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298981	COMPL. REAR BUMPER CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85592500	COMPL. RH REAR TRELLIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85592400	COMPL. LH REAR TRELLIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86174900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86011400	LH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	Enquire	To Order
	86012000	RH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85269200	STRIKER PLATE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	299636	COMPL. REAR CHASSIS	299636 COMPL. REAR CHASSIS	-	1	Enquire
2	298806	TITANIUM SCREW	298806 TITANIUM SCREW M10 X 1.25 X 40	-	18	Enquire
3	300135	TITANIUM SCREW	300135 TITANIUM SCREW M10 X 1.25 X 70	-	2	Enquire
4	308667	WASHER	308667 WASHER	-	20	Enquire
5	308666	WASHER	308666 WASHER	-	20	Enquire
6	14305974	SCREW	14305974 SCREW	-	22	Enquire
7	85208100	CANISTER MOUNTING FRAME	85208100 CANISTER MOUNTING FRAME	-	1	Enquire
8	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20	-	8	Enquire
9	13550224	WASHER	13550224 WASHER	-	8	Enquire
10	298981	COMPL. REAR BUMPER CROSS MEMBER	298981 COMPL. REAR BUMPER CROSS MEMBER	-	1	Enquire
11	85592500	COMPL. RH REAR TRELLIS	85592500 COMPL. RH REAR TRELLIS	-	1	Enquire
12	85592400	COMPL. LH REAR TRELLIS	85592400 COMPL. LH REAR TRELLIS	-	1	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	22	Enquire
13	85882500	WASHER	85882500 WASHER No longer supplied; Replaced by 11197774	-	22	Enquire
14	86174900	WASHER	86174900 WASHER	-	22	Enquire
15	86011400	LH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	86011400 LH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	-	1	Enquire
15	86012000	RH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	86012000 RH CONNECTOR BRACKET FOR EXTERNAL EXTRUDED ELEMENTS	-	1	Enquire
16	85269200	STRIKER PLATE	85269200 STRIKER PLATE	-	2	Enquire
