Ferrari GTC4Lusso - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247795 SECONDARY AIR SYSTEM PUMP $754.15 IN STOCK
Photo Part No Description Price (each) Stock
269285 PUMP MOUNTING BRACKET $107.49 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
11194674 WASHER $0.45 IN STOCK
Photo Part No Description Price (each) Stock
291283 CLIP $0.55 IN STOCK
Photo Part No Description Price (each) Stock
198253 CLIP $3.57 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
274980 ALUMINIUM PIPE $320.90 To Order
Photo Part No Description Price (each) Stock
276428 HEAT REFLECTIVE SLEEVE $59.35 To Order
276435 SELF-ADHESIVE ALUMINIUM STRIP $6.53 To Order
Photo Part No Description Price (each) Stock
257691 3-WAY CONNECTOR $1.47 To Order
Photo Part No Description Price (each) Stock
282849 PRESSURE SENSOR $36.89 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
267082 CONNECTOR PIPE $36.89 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
261051 CONNECTOR PIPE $68.98 To Order
Photo Part No Description Price (each) Stock
323279 PUMP SIDE SECONDARY AIR SYSTEM PIPE $81.82 To Order
Photo Part No Description Price (each) Stock
267133 BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
198339 VACUUM ACCUMULATOR TANK $48.12 To Order
Photo Part No Description Price (each) Stock
225098 PLUG $1.43 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
178309 SOLENOID VALVE $102.68 ARRIVING SOON
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
291408 CLIP $0.18 To Order
Photo Part No Description Price (each) Stock
324519 RIGID BYPASS PIPE ON FIREWALL $62.56 To Order
Photo Part No Description Price (each) Stock
261684 RUBBER PIPE $3.52 To Order
Photo Part No Description Price (each) Stock
316035 RUBBER PIPE $6.40 To Order
Photo Part No Description Price (each) Stock
315760 RIGID PIPE $86.63 To Order
Photo Part No Description Price (each) Stock
234285 CLIP $0.68 IN STOCK
234284 CLIP $0.60 IN STOCK
Photo Part No Description Price (each) Stock
121828 RUBBER PIPE $4.96 To Order
294268 RUBBER PIPE $20.29 To Order
313274 RUBBER PIPE $33.68 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
199691 RUBBER PIPE $5.49 To Order
Photo Part No Description Price (each) Stock
328388 RH RIGID PIPE $48.12 To Order
Photo Part No Description Price (each) Stock
269073 RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES $56.14 To Order
Photo Part No Description Price (each) Stock
148204 RUBBER PIPE $22.45 IN STOCK
340098 RUBBER PIPE $24.05 To Order
Photo Part No Description Price (each) Stock
257255 RH SECONDARY AIR INLET PIPE $224.63 To Order
Photo Part No Description Price (each) Stock
257256 LH SECONDARY AIR INLET PIPE $240.67 To Order
Photo Part No Description Price (each) Stock
257257 RH BRACKET $13.14 To Order
Photo Part No Description Price (each) Stock
257258 LH BRACKET $13.14 To Order
Photo Part No Description Price (each) Stock
186781 GASKET $5.28 IN STOCK
Photo Part No Description Price (each) Stock
284235 SECONDARY AIR SYSTEM VALVE $256.72 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
231625 SCREW $0.66 IN STOCK
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
264020 SPACER ASSEMBLY $67.38 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.20 IN STOCK
Photo Part No Description Price (each) Stock
819489 FLANGED BUSHING $14.75 To Order
Photo Part No Description Price (each) Stock
202980 GASKET $3.03 IN STOCK
Photo Part No Description Price (each) Stock
115002 RUBBER PIPE $11.38 To Order
Photo Part No Description Price (each) Stock
329928 RUBBER PIPE $41.70 To Order
Photo Part No Description Price (each) Stock
269072 RIGID PIPE $56.14 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
302972 METAL TWO-WAY FITTING $32.08 To Order
Photo Part No Description Price (each) Stock
14304424 SCREW $0.19 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
168248 RUBBER PIPE $35.28 To Order
Photo Part No Description Price (each) Stock
250318 SNAP CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
249483 COUPLING $3.36 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
340099 RUBBER PIPE $33.68 To Order
Photo Part No Description Price (each) Stock
159539 RUBBER PIPE $4.47 To Order
Photo Part No Description Price (each) Stock
234286 CLIP $1.57 To Order
Photo Part No Description Price (each) Stock
294259 SOLENOID VALVE MOUNTING BRACKET $19.24 To Order
Photo Part No Description Price (each) Stock
294260 SOLENOID VALVE MOUNTING BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
223532 VACUUM PUMP $1,020.96 To Order
Photo Part No Description Price (each) Stock
320069 PUMP MOUNTING BRACKET $67.38 To Order
Photo Part No Description Price (each) Stock
199589 CLIP $1.57 To Order
Photo Part No Description Price (each) Stock
67063200 CLIP $1.17 To Order
Photo Part No Description Price (each) Stock
295441 RUBBER PIPE $19.24 To Order
Photo Part No Description Price (each) Stock
295349 VACUUM RETAINER VALVE $46.52 To Order
Photo Part No Description Price (each) Stock
295677 RUBBER PIPE $22.45 To Order
Photo Part No Description Price (each) Stock
268394 EMISSION CONTROL SYSTEM PIPE, REAR UNDERBODY SECTION $94.66 To Order
Photo Part No Description Price (each) Stock
268875 CONNECTOR $37.65 To Order
291069 T UNION $22.79 To Order
Photo Part No Description Price (each) Stock
268875 CONNECTOR $37.65 To Order
View All

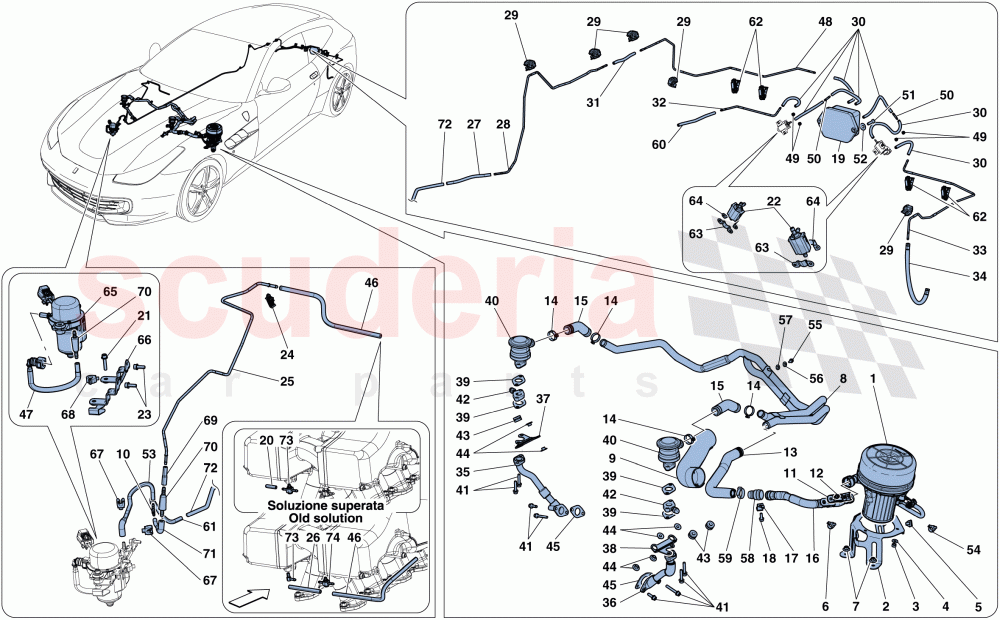

SECONDARY AIR SYSTEM of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 247795
SECONDARY AIR SYSTEM PUMP
IN STOCK 		$754.15 (28.5% off) 1
2 269285
PUMP MOUNTING BRACKET 		$107.49 1
3 14059290
FLANGED NUT M6
IN STOCK 		$1.43 3
4 11194674
WASHER
IN STOCK 		$0.45 3
5 291283
CLIP
IN STOCK 		$0.55 1
6 198253
CLIP
No longer supplied 		$3.57 (7.3% off) 1
7 14059290
FLANGED NUT M6
IN STOCK 		$1.43 3
8 274980
ALUMINIUM PIPE 		$320.90 1
9 276428
HEAT REFLECTIVE SLEEVE 		$59.35 1
9 276435
SELF-ADHESIVE ALUMINIUM STRIP 		$6.53 1
10 257691
3-WAY CONNECTOR 		$1.47 1
11 282849
PRESSURE SENSOR 		$36.89 1
12 248334
SCREW 		$0.68 1
13 267082
CONNECTOR PIPE 		$36.89 1
14 262111
JUBILEE CLAMP
IN STOCK 		$1.64 5
15 261051
CONNECTOR PIPE 		$68.98 2
16 323279
PUMP SIDE SECONDARY AIR SYSTEM PIPE 		$81.82 1
17 267133
BRACKET 		$24.05 1
18 231619
SCREW
M6 X 18
IN STOCK 		$0.31 1
19 198339
VACUUM ACCUMULATOR TANK 		$48.12 1
20 225098
PLUG
Applicable up to engine No. 327255
IN STOCK 		$1.43 1
21 231620
SCREW
IN STOCK 		$0.32 (8.6% off) 2
22 178309
SOLENOID VALVE
ARRIVING SOON 		$102.68 (26.1% off) 2
23 231619
SCREW
M6 X 18
IN STOCK 		$0.31 2
24 291408
CLIP 		$0.18 1
25 324519
RIGID BYPASS PIPE ON FIREWALL 		$62.56 1
26 261684
RUBBER PIPE
D. 3.5-8 X 95 		$3.52 1
27 316035
RUBBER PIPE
D. 3.5-8 X 115 		$6.40 1
28 315760
RIGID PIPE 		$86.63 1
29 234285
CLIP
2 compartments
IN STOCK 		$0.68 3
29 234284
CLIP
1 compartment
IN STOCK 		$0.60 2
30 121828
RUBBER PIPE
D. 3.5 X 100 		$4.96 1
30 294268
RUBBER PIPE
D. 3.5 X 100 		$20.29 3
30 313274
RUBBER PIPE
D. 3.5 X 70 		$33.68 1
30 255096
RUBBER PIPE
D. 3.5 X 140 		$10.10 2
31 199691
RUBBER PIPE
D. 3.5 X 120 		$5.49 1
32 328388
RH RIGID PIPE 		$48.12 1
33 269073
RIGID PIPE BETWEEN LH BYPASS FLEXIBLE HOSES 		$56.14 1
34 148204
RUBBER PIPE
No longer supplied; Replaced by 340098
IN STOCK 		$22.45 1
34 340098
RUBBER PIPE 		$24.05 1
35 257255
RH SECONDARY AIR INLET PIPE 		$224.63 1
36 257256
LH SECONDARY AIR INLET PIPE 		$240.67 1
37 257257
RH BRACKET 		$13.14 1
38 257258
LH BRACKET 		$13.14 1
39 186781
GASKET
Also comes with engine gasket set
IN STOCK 		$5.28 (16.9% off) 4
40 284235
SECONDARY AIR SYSTEM VALVE 		$256.72 2
41 231619
SCREW
M6 X 20
IN STOCK 		$0.31 2
41 231625
SCREW
M6 X 40
IN STOCK 		$0.66 2
41 231620
SCREW
IN STOCK 		$0.32 (8.6% off) 4
42 264020
SPACER ASSEMBLY 		$67.38 2
43 177576
CABLE GROMMET
IN STOCK 		$2.20 4
44 819489
FLANGED BUSHING 		$14.75 8
45 202980
GASKET
Also comes with engine gasket set
IN STOCK 		$3.03 (19% off) 2
46 115002
RUBBER PIPE 		$11.38 1
47 329928
RUBBER PIPE 		$41.70 1
48 269072
RIGID PIPE 		$56.14 1
49 14059290
FLANGED NUT M6
IN STOCK 		$1.43 4
50 302972
METAL TWO-WAY FITTING 		$32.08 2
51 14304424
SCREW 		$0.19 2
52 11181574
WASHER
IN STOCK 		$0.02 2
53 168248
RUBBER PIPE 		$35.28 1
54 250318
SNAP CLIP
IN STOCK 		$0.26 2
55 248334
SCREW 		$0.68 1
56 11197774
WASHER
No longer supplied
IN STOCK 		$0.06 (80% off) 1
57 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
58 249483
COUPLING 		$3.36 1
59 262111
JUBILEE CLAMP
IN STOCK 		$1.64 1
60 340099
RUBBER PIPE
D. 3.5-8 X 320 		$33.68 1
61 159539
RUBBER PIPE 		$4.47 1
62 234286
CLIP
4 compartments 		$1.57 4
63 294259
SOLENOID VALVE MOUNTING BRACKET 		$19.24 2
64 294260
SOLENOID VALVE MOUNTING BRACKET 		$24.05 2
65 223532
VACUUM PUMP 		$1,020.96 1
66 320069
PUMP MOUNTING BRACKET 		$67.38 1
67 199589
CLIP 		$1.57 2
68 67063200
CLIP 		$1.17 1
69 295441
RUBBER PIPE 		$19.24 1
70 295349
VACUUM RETAINER VALVE 		$46.52 2
71 295677
RUBBER PIPE 		$22.45 1
72 268394
EMISSION CONTROL SYSTEM PIPE, REAR UNDERBODY SECTION 		$94.66 1
73 268875
CONNECTOR
Applicable for USA, CDN, USA LIGHT; Applicable from engine No. 327256 		$37.65 1
73 291069
T UNION
Applicable for USA, CDN, USA LIGHT; Applicable up to engine No. 327255 		$22.79 1
74 268875
CONNECTOR 		$37.65 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
