Ferrari FF - GEARBOX HOUSING

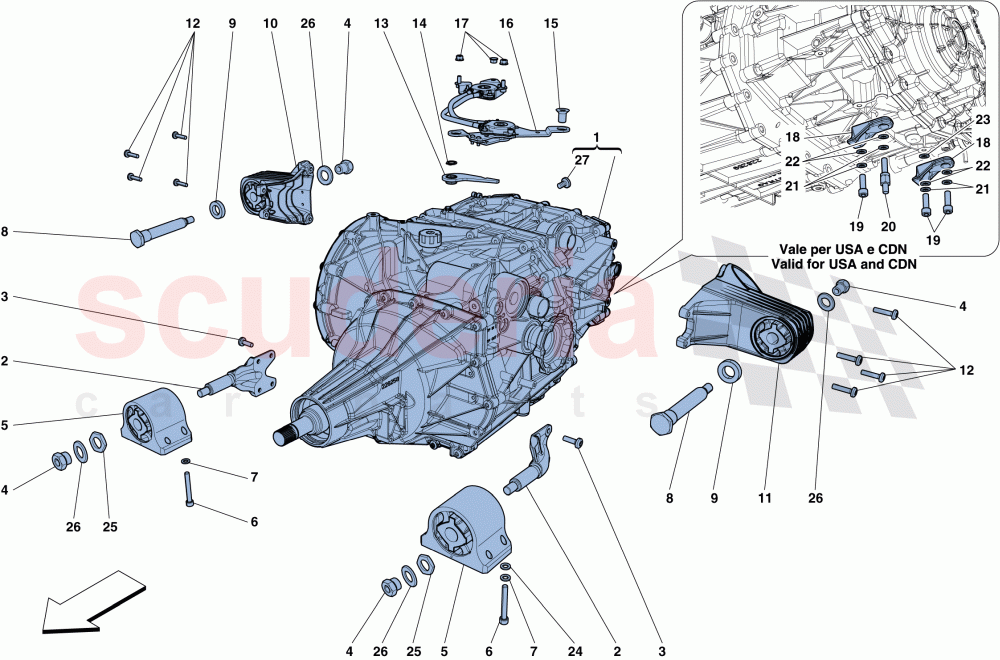

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	270501	Complete DCT Gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287404	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289318	BUSHING MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243075	GEARBOX MOUNTING BUSH PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266362	COMPL. RH REAR STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266364	COMPL. LH REAR STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243151	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248689	RETENTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306474	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266645	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287405	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260051	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263679	FUEL LEVEL PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	270501	Complete DCT Gearbox	270501 Complete DCT Gearbox	-	1	Enquire
3	247856	SCREW	247856 SCREW M8 X 1.25 X 25	-	8	Enquire
4	287404	NUT	287404 NUT	-	4	Enquire
5	289318	BUSHING MOUNTING	289318 BUSHING MOUNTING	-	2	Enquire
6	14308924	SCREW	14308924 SCREW M8 X 60	-	8	Enquire
7	986899	WASHER	986899 WASHER	-	8	Enquire
8	243075	GEARBOX MOUNTING BUSH PIN	243075 GEARBOX MOUNTING BUSH PIN	-	2	Enquire
9	243122	SPACER	243122 SPACER	-	2	Enquire
10	266362	COMPL. RH REAR STRUT	266362 COMPL. RH REAR STRUT	-	1	Enquire
11	266364	COMPL. LH REAR STRUT	266364 COMPL. LH REAR STRUT	-	1	Enquire
12	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	-	8	Enquire
13	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	-	1	Enquire
14	11066176	SEEGER RING	11066176 SEEGER RING	-	1	Enquire
15	243151	SCREW	243151 SCREW M12 X 1.25 X 20	-	2	Enquire
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
18	248689	RETENTION BRACKET	248689 RETENTION BRACKET Applicable for USA, CDN, USA LIGHT	-	2	Enquire
19	14306474	SCREW	14306474 SCREW Applicable for USA, CDN, USA LIGHT	-	3	Enquire
20	266645	STUD BOLT	266645 STUD BOLT Applicable for USA, CDN, USA LIGHT	-	1	Enquire
21	12638524	WASHER	12638524 WASHER Applicable for USA, CDN, USA LIGHT	-	4	Enquire
22	12601374	WASHER	12601374 WASHER Applicable for USA, CDN, USA LIGHT	-	4	Enquire
23	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM Applicable for USA, CDN, USA LIGHT	-	2	Enquire
24	84653800	WASHER	84653800 WASHER No longer supplied	-	8	Enquire
25	287405	SPACER	287405 SPACER	-	4	Enquire
26	260051	WASHER	260051 WASHER No longer supplied	-	4	Enquire
27	263679	FUEL LEVEL PLUG	263679 FUEL LEVEL PLUG	-	1	Enquire
