REAR SHIELDS

Find Your Part

Ferrari F8 Tributo USA - REAR SHIELDS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
909606 REAR UNDERBODY SHIELD $706.01 To Order
922369 COMPL. REAR UNDERBODY SHIELD $6,474.54 To Order
Photo Part No Description Price (each) Stock
768520 RH REAR LATERAL DAM $120.33 To Order
Photo Part No Description Price (each) Stock
768518 LH REAR LATERAL DAM $120.33 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12640624 WASHER $0.16 To Order
Photo Part No Description Price (each) Stock
762216 COMPL. RH ENGINE AIR VENT DUCT $134.77 To Order
Photo Part No Description Price (each) Stock
762226 COMPL. LH ENGINE AIR VENT DUCT $134.77 To Order
Photo Part No Description Price (each) Stock
13290024 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
14642294 RIVET $0.70 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $6.18 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $6.18 To Order
Photo Part No Description Price (each) Stock
782030 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD $200.67 To Order
911776 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD $3,544.91 To Order
880045 COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD $3,553.52 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
782040 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD $200.67 To Order
782017 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD $3,676.12 To Order
813260 COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD $3,550.65 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
878660 COMPL. LOWER FASTENER BRACKET FOR RH ENGINE COMPARTMENT SHIELD $42.98 To Order
Photo Part No Description Price (each) Stock
878661 COMPL. LOWER FASTENER BRACKET FOR LH ENGINE COMPARTMENT SHIELD $42.98 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.47 To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW M5 X 40 $0.57 To Order
Photo Part No Description Price (each) Stock
85797600 SPECIAL SCREW $30.36 To Order
Photo Part No Description Price (each) Stock
14042177 NUT $1.09 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
86921700 COMPL. CENTRAL COSMETIC SHIELD $44.91 To Order
86935100 COMPL. CENTRAL COSMETIC SHIELD $1,347.85 To Order
70006751 COMPL. CENTRAL COSMETIC SHIELD $10,881.35 To Order
Photo Part No Description Price (each) Stock
917799 SERIAL NUMBER PLATE $120.33 To Order
Photo Part No Description Price (each) Stock
915271 SCREW $1.31 To Order
Photo Part No Description Price (each) Stock
87546300 COMPL. ENGINE BUFFER $224.63 To Order
Photo Part No Description Price (each) Stock
13027024 SCREW M6 X 16MM $0.21 To Order
Photo Part No Description Price (each) Stock
10523401 WASHER $0.44 To Order
Photo Part No Description Price (each) Stock
907054 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD $94.59 To Order
826052 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD $2,150.15 To Order
70006752 COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
62769800 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
880465 RH BRAKE AIR INTAKE $129.00 To Order
Photo Part No Description Price (each) Stock
880475 LH BRAKE AIR INTAKE $133.17 To Order
Photo Part No Description Price (each) Stock
825854 FRONT SEAL FOR LATERAL SHIELD $34.43 To Order
Photo Part No Description Price (each) Stock
86553700 LATERAL SEAL FOR LATERAL SHIELD $92.71 To Order
Photo Part No Description Price (each) Stock
768645 TYPE A PLATE FOR PIN $0.47 To Order
768645 TYPE A PLATE FOR PIN $0.47 To Order
View All

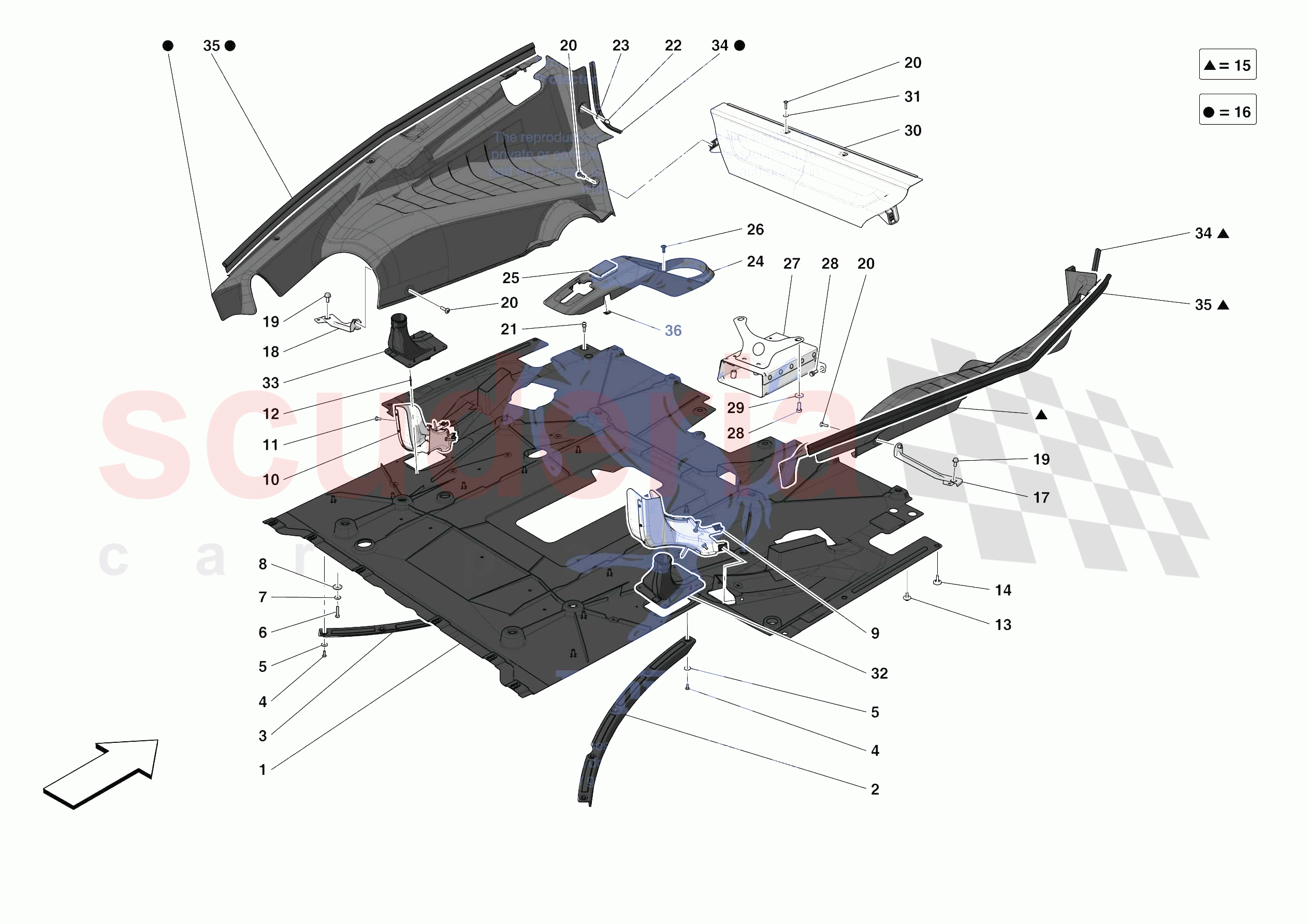

REAR SHIELDS of Ferrari Ferrari F8 Tributo USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 909606
REAR UNDERBODY SHIELD 		$706.01 1
0001 922369
COMPL. REAR UNDERBODY SHIELD
Carbon version 		$6,474.54 1
0002 768520
RH REAR LATERAL DAM 		$120.33 1
0003 768518
LH REAR LATERAL DAM 		$120.33 1
0004 85833900
SCREW
M5 X 16
ARRIVING SOON 		$0.36 10
0005 12643724
WASHER 		$0.06 (88% off) 10
0006 231620
SCREW
M6 X 20 X 22 		$0.32 (8.6% off) 4
0007 11197774
WASHER 		$0.06 (80% off) 4
0008 12640624
WASHER 		$0.16 (44.8% off) 4
0009 762216
COMPL. RH ENGINE AIR VENT DUCT 		$134.77 1
0010 762226
COMPL. LH ENGINE AIR VENT DUCT 		$134.77 1
0011 13290024
SCREW
M6 X 14 		$0.44 (2.2% off) 6
0012 14642294
RIVET 		$0.70 8
0013 880041
Allen Head Bolt M6 X 26
M6 X 20 		$6.18 11
0014 880041
Allen Head Bolt M6 X 26
M6 X 22 		$6.18 6
0015 782030
COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD 		$200.67 1
0015 911776
COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD
Naked weave carbon engine comp. shields 		$3,544.91 1
0015 880045
COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD
Naked weave carbon engine lid subframe 		$3,553.52 1
0015 70006747
COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD
Version in coloured naked weave carbon - Engine comp. shields in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0015 70006748
COMPL. RH ENGINE COMPARTMENT COSMETIC SHIELD
Version in coloured naked weave carbon - Engine lid subframe in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0016 782040
COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD 		$200.67 1
0016 782017
COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD
Naked weave carbon engine comp. shields 		$3,676.12 1
0016 813260
COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD
Naked weave carbon engine lid subframe 		$3,550.65 1
0016 70006749
COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD
Version in coloured naked weave carbon - Engine comp. shields in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0016 70006750
COMPL. LH ENGINE COMPARTMENT COSMETIC SHIELD
Version in coloured naked weave carbon - Engine lid subframe in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0017 878660
COMPL. LOWER FASTENER BRACKET FOR RH ENGINE COMPARTMENT SHIELD 		$42.98 1
0018 878661
COMPL. LOWER FASTENER BRACKET FOR LH ENGINE COMPARTMENT SHIELD 		$42.98 1
0019 16296934
SCREW 6 X 14MM
M6 X 14 		$0.47 4
0020 88831000
GRUB SCREW M5 X 40
M5 X 14 		$0.57 12
0021 85797600
SPECIAL SCREW
M5 		$30.36 2
0022 14042177
NUT 		$1.09 2
0023 62769800
WASHER 		$0.23 (23.3% off) 14
0024 86921700
COMPL. CENTRAL COSMETIC SHIELD 		$44.91 1
0024 86935100
COMPL. CENTRAL COSMETIC SHIELD
Naked weave carbon engine comp. shields; Carbon 		$1,347.85 1
0024 70006751
COMPL. CENTRAL COSMETIC SHIELD
Version in coloured naked weave carbon - Naked weave carbon engine comp. shields - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		$10,881.35 1
0025 917799
SERIAL NUMBER PLATE 		$120.33 1
0026 915271
SCREW
M6 X 15 		$1.31 2
0027 87546300
COMPL. ENGINE BUFFER 		$224.63 1
0028 13027024
SCREW M6 X 16MM
M6 X 14 		$0.21 (79% off) 4
0029 10523401
WASHER 		$0.44 4
0030 907054
COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD 		$94.59 1
0030 826052
COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD
Naked weave carbon engine comp. shields 		$2,150.15 1
0030 70006752
COMPL. ENGINE COMPARTMENT UNDERSCREEN COSMETIC SHIELD
Version in coloured naked weave carbon - Naked weave carbon engine comp. shields - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0031 62769800
WASHER 		$0.23 (23.3% off) 4
0032 880465
RH BRAKE AIR INTAKE 		$129.00 1
0033 880475
LH BRAKE AIR INTAKE 		$133.17 1
0034 825854
FRONT SEAL FOR LATERAL SHIELD 		$34.43 2
0035 86553700
LATERAL SEAL FOR LATERAL SHIELD 		$92.71 2
0036 768645
TYPE A PLATE FOR PIN 		$0.47 2
0036 768645
TYPE A PLATE FOR PIN 		$0.47 2
