Ferrari F8 Tributo USA - LIFTING THE VEHICLE

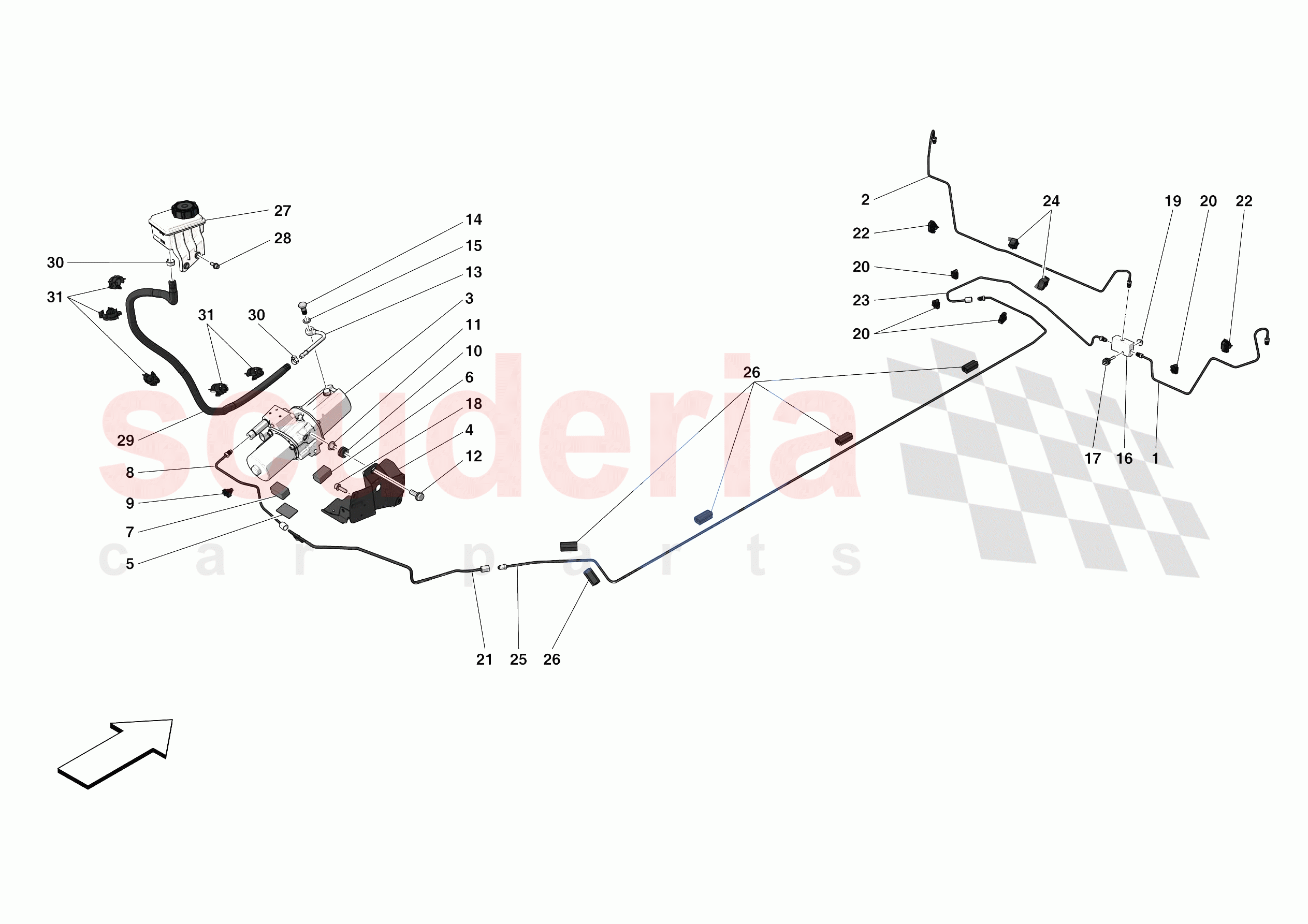

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	309626	FRONT RH LIFT SYSTEM RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309625	FRONT LH LIFT SYSTEM RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	844052	ELECTRIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342309	COMPL. LIFTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324747	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308993	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308995	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342361	PIPE FROM PUMP TO DISCONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256962	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255047	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255048	GROMMET SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	341976	LIFT SYSTEM RIGID FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259642	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260155	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	260257	DISTRIBUTOR BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268173	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249650	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	341974	REAR LIFT SYSTEM RIGID PIPE	Enquire	To Order
	866263	REAR LIFT SYSTEM RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	249782	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313416	RIGID UNDERBODY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301063	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315867	UNDERBODY LIFT SYSTEM RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326103	LIFT SYSTEM FILLER TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314594	FILLER LIFT SYSTEM HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	309626	FRONT RH LIFT SYSTEM RIGID PIPE	309626 FRONT RH LIFT SYSTEM RIGID PIPE	-	1	Enquire
0002	309625	FRONT LH LIFT SYSTEM RIGID PIPE	309625 FRONT LH LIFT SYSTEM RIGID PIPE	-	1	Enquire
0003	844052	ELECTRIC PUMP	844052 ELECTRIC PUMP	-	1	Enquire
0004	342309	COMPL. LIFTER BRACKET	342309 COMPL. LIFTER BRACKET	-	1	Enquire
0005	324747	BUSH	324747 BUSH	-	1	Enquire
0006	308993	BUSH	308993 BUSH	-	1	Enquire
0007	308995	BUSH	308995 BUSH	-	1	Enquire
0008	342361	PIPE FROM PUMP TO DISCONNECTOR	342361 PIPE FROM PUMP TO DISCONNECTOR	-	1	Enquire
0009	256962	CLIP	256962 CLIP D. 4.7 X 1	-	1	Enquire
0010	255047	CABLE GROMMET	255047 CABLE GROMMET D13	-	2	Enquire
0011	255048	GROMMET SHIM	255048 GROMMET SHIM	-	2	Enquire
0012	304224	SCREW	304224 SCREW M10 X 1.5 X 28	-	2	Enquire
0013	341976	LIFT SYSTEM RIGID FILLER PIPE	341976 LIFT SYSTEM RIGID FILLER PIPE	-	1	Enquire
0014	259642	HOSE	259642 HOSE	-	1	Enquire
0015	260155	GASKET	260155 GASKET	-	2	Enquire
0016	260257	DISTRIBUTOR BLOCK	260257 DISTRIBUTOR BLOCK	-	1	Enquire
0017	268173	BUSH	268173 BUSH	-	1	Enquire
0018	84317700	SCREW 8 X 30	84317700 SCREW 8 X 30 M8 X 25	-	2	Enquire
0019	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
0020	249650	CLIP	249650 CLIP	-	4	Enquire
0021	341974	REAR LIFT SYSTEM RIGID PIPE	341974 REAR LIFT SYSTEM RIGID PIPE Applies until depletion	-	1	Enquire
0021	866263	REAR LIFT SYSTEM RIGID PIPE	866263 REAR LIFT SYSTEM RIGID PIPE Applicable after depletion of 341974	-	1	Enquire
0022	249782	CLIP	249782 CLIP	-	2	Enquire
0023	313416	RIGID UNDERBODY PIPE	313416 RIGID UNDERBODY PIPE	-	1	Enquire
0024	301063	CLIP	301063 CLIP 1 compartment-	-	2	Enquire
0025	315867	UNDERBODY LIFT SYSTEM RIGID PIPE	315867 UNDERBODY LIFT SYSTEM RIGID PIPE	-	1	Enquire
0026	262737	RUBBER RETAINER	262737 RUBBER RETAINER	-	5	Enquire
0027	326103	LIFT SYSTEM FILLER TANK	326103 LIFT SYSTEM FILLER TANK	-	1	Enquire
0028	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	2	Enquire
0029	314594	FILLER LIFT SYSTEM HOSE	314594 FILLER LIFT SYSTEM HOSE	-	1	Enquire
0030	13432070	HOSE COLLAR	13432070 HOSE COLLAR D. 15.7	-	2	Enquire
0031	198273	CLIP	198273 CLIP	-	5	Enquire
