Ferrari F8 Tributo USA - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES

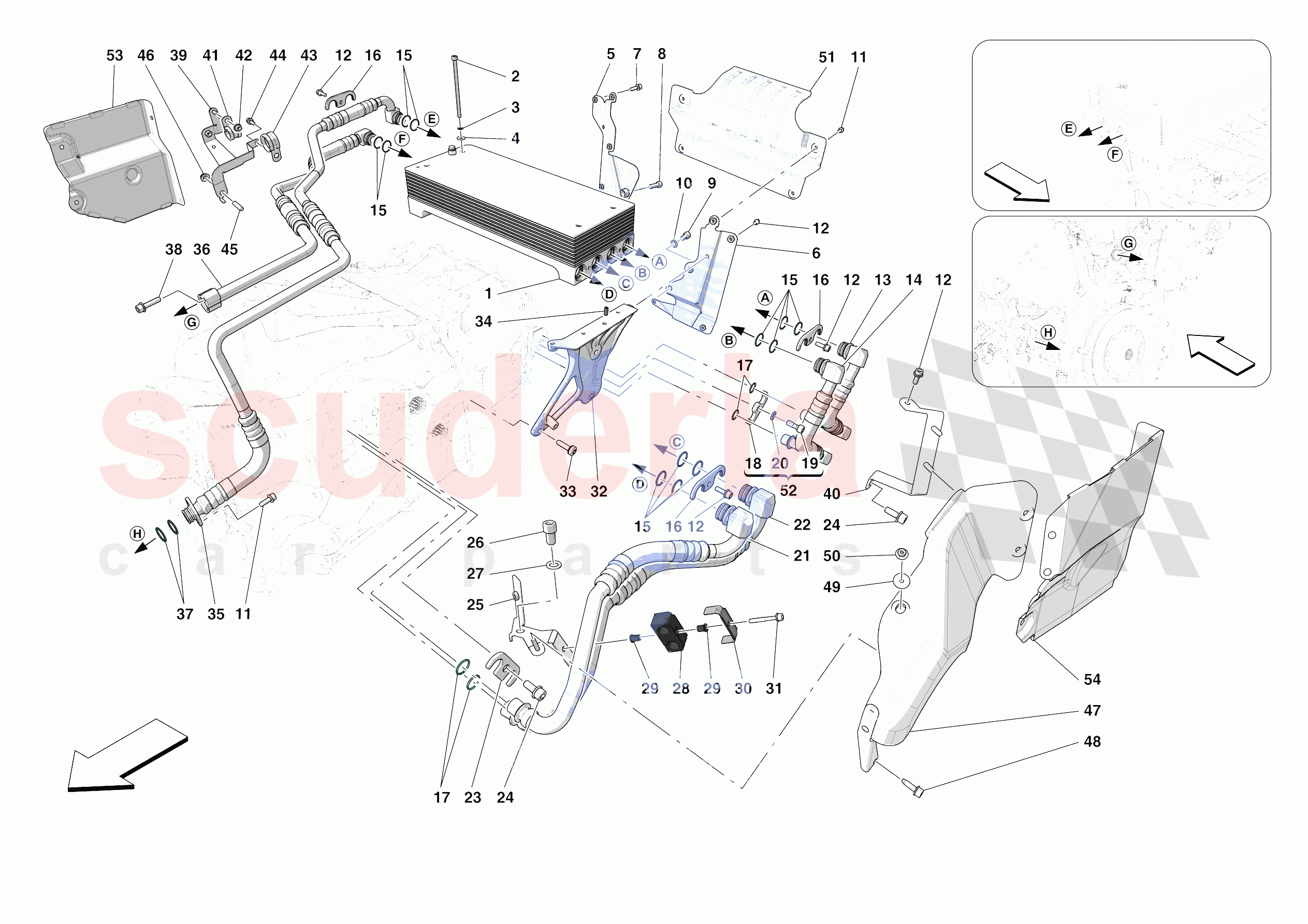

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
309825 HEAT EXCHANGER Enquire To Order
Photo Part No Description Price (each) Stock
14300224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604279 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12646624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
333003 WATER PIPE SHIELD BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
909463 GEARBOX OIL PIPES SHIELD BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
14307524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14360024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12604574 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
767049 OIL RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
767048 OIL DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
166656 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
309168 FORK Enquire To Order
Photo Part No Description Price (each) Stock
254644 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
253632 FORK Enquire To Order
Photo Part No Description Price (each) Stock
253465 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
986899 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
767038 OIL DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
767043 OIL RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
287096 FORK Enquire To Order
Photo Part No Description Price (each) Stock
248471 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
314654 OIL PIPE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14360524 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127498 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
243397 RETAINER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
243399 BUSH Enquire To Order
Photo Part No Description Price (each) Stock
243398 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
231624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
340541 LH BRACKET FOR SINGLE OIL HEAT EXCHANGER Enquire To Order
843552 RH SINGLE OIL HEAT EXCHANGER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
216576 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14603370 SPRING PIN Enquire To Order
Photo Part No Description Price (each) Stock
767036 WATER DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
884676 WATER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
205416 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
879405 RH SINGLE OIL HEAT EXCHANGER SHIELDS MOUNTING BRACKET. Enquire To Order
Photo Part No Description Price (each) Stock
332899 LH SINGLE OIL HEAT EXCHANGER SHIELD MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14040614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
10442190 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
83182500 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
322829 LH SINGLE OIL HEAT EXCHANGER FRONT HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12648978 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
333008 REAR SINGLE OIL HEAT EXCHANGER HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
253631 FORK WITH CAPTIVE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
879345 FRONT RH SINGLE OIL HEAT EXCHANGER HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
879779 LH SINGLE OIL HEAT EXCHANGER REAR HEAT SHIELD Enquire To Order
View All
GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES of Ferrari Ferrari F8 Tributo USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 309825
HEAT EXCHANGER 		- 1 Enquire
0002 14300224
SCREW
M6 X 100 		- 4 Enquire
0003 12604279
WASHER 		- 4 Enquire
0004 12646624
WASHER 		- 4 Enquire
0005 333003
WATER PIPE SHIELD BRACKET 		- 1 Enquire
0006 909463
GEARBOX OIL PIPES SHIELD BRACKET 		- 1 Enquire
0007 248334
SCREW M6 X 14MM
M6 X 16 		- 6 Enquire
0008 14307524
SCREW
M10 X 30 		- 1 Enquire
0009 14360024
SCREW 		- 2 Enquire
0010 12604574
WASHER 		- 2 Enquire
0011 248334
SCREW M6 X 14MM
M6 X 16 		- 6 Enquire
0012 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 8 Enquire
0013 767049
OIL RETURN PIPE 		- 1 Enquire
0014 767048
OIL DELIVERY PIPE 		- 1 Enquire
0015 166656
O-RING 		- 12 Enquire
0016 309168
FORK 		- 3 Enquire
0017 254644
O-RING 		- 4 Enquire
0018 253632
FORK
After depletion order compl. pos. 253631; Applies until depletion 		- 1 Enquire
0019 253465
SCREW
No longer supplied; M8 X 22 		- 1 Enquire
0020 986899
WASHER 		- 1 Enquire
0021 767038
OIL DELIVERY PIPE 		- 1 Enquire
0022 767043
OIL RETURN PIPE 		- 1 Enquire
0023 287096
FORK 		- 1 Enquire
0024 248471
SCREW
M8 X 20 		- 1 Enquire
0025 314654
OIL PIPE MOUNTING BRACKET 		- 1 Enquire
0026 14360524
SCREW 		- 1 Enquire
0027 127498
WASHER 		- 1 Enquire
0028 243397
RETAINER BLOCK 		- 3 Enquire
0029 243399
BUSH 		- 6 Enquire
0030 243398
PLATE 		- 3 Enquire
0031 231624
SCREW
M6 X 45 		- 3 Enquire
0032 340541
LH BRACKET FOR SINGLE OIL HEAT EXCHANGER 		- 1 Enquire
0032 843552
RH SINGLE OIL HEAT EXCHANGER BRACKET 		- 1 Enquire
0033 216576
SCREW
M8 X 30 		- 6 Enquire
0034 14603370
SPRING PIN 		- 2 Enquire
0035 767036
WATER DELIVERY PIPE 		- 1 Enquire
0036 884676
WATER RETURN PIPE 		- 1 Enquire
0037 205416
GASKET 		- 2 Enquire
0038 231620
SCREW
M6 X 25 		- 1 Enquire
0039 879405
RH SINGLE OIL HEAT EXCHANGER SHIELDS MOUNTING BRACKET. 		- 1 Enquire
0040 332899
LH SINGLE OIL HEAT EXCHANGER SHIELD MOUNTING BRACKET 		- 1 Enquire
0041 10441690
BRACKET WITH SHEATH
D. 18 		- 1 Enquire
0042 14040614
NUT 		- 1 Enquire
0043 10442190
BRACKET WITH SHEATH 		- 1 Enquire
0044 83182500
SCREW
M6 X 18 		- 1 Enquire
0045 13516824
STUD BOLT 		- 1 Enquire
0046 14059311
NUT 		- 1 Enquire
0047 322829
LH SINGLE OIL HEAT EXCHANGER FRONT HEAT SHIELD 		- 1 Enquire
0048 11568124
SCREW
M5 X 20 		- 1 Enquire
0049 12648978
WASHER 		- 1 Enquire
0050 14059290
FLANGED NUT M6 		- 3 Enquire
0051 333008
REAR SINGLE OIL HEAT EXCHANGER HEAT SHIELD 		- 1 Enquire
0052 253631
FORK WITH CAPTIVE SCREW 		- 1 Enquire
0053 879345
FRONT RH SINGLE OIL HEAT EXCHANGER HEAT SHIELD 		- 1 Enquire
0054 879779
LH SINGLE OIL HEAT EXCHANGER REAR HEAT SHIELD 		- 1 Enquire
