Anti-Theft System

Ferrari F8 Tributo Europe RH

Find Your Part

Ferrari F8 Tributo Europe RH - ANTI-THEFT SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
336779 COMPL. ANTI-THEFT SYSTEM SIREN $152.73 To Order
Photo Part No Description Price (each) Stock
333337 GSM MICROPHONE $192.54 To Order
Photo Part No Description Price (each) Stock
328097 PASSIVE START ECU $369.04 IN STOCK
328098 PASSIVE START ECU $369.04 To Order
Photo Part No Description Price (each) Stock
315027 PASSIVE START ECU MOUNTING BRACKET $25.66 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
11625824 SCREW $0.39 IN STOCK
Photo Part No Description Price (each) Stock
343201 GLONASS SWITCH $1,877.36 To Order
Photo Part No Description Price (each) Stock
792528 ERA GLONASS SWITCH SURROUND $67.38 To Order
Photo Part No Description Price (each) Stock
795930 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
293416 ANTI-LIFT SENSOR $442.82 To Order
Photo Part No Description Price (each) Stock
16285127 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
332825 GLONASS SPEAKER $48.12 To Order
Photo Part No Description Price (each) Stock
88822200 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
900756 KIN FOR PASSIVE START SYSTEM $154.03 IN STOCK
900756 KIN FOR PASSIVE START SYSTEM $154.03 IN STOCK
Photo Part No Description Price (each) Stock
14303324 SCREW $0.15 IN STOCK
Photo Part No Description Price (each) Stock
310778 PASSIVE START ANTENNA $14.08 To Order
322184 PASSIVE START ANTENNA $59.91 To Order
Photo Part No Description Price (each) Stock
334966 ERA GLONASS ECU BRACKET $188.53 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
68700800 CLIP $1.00 To Order
Photo Part No Description Price (each) Stock
332824 GLONASS GSM ANTENNA $58.74 To Order
Photo Part No Description Price (each) Stock
332823 GLONASS GPS ANTENNA $58.74 To Order
Photo Part No Description Price (each) Stock
255515 BUSH $2.07 IN STOCK
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
824398 RF ANTENNA $42.29 To Order
Photo Part No Description Price (each) Stock
909564 START DISABLE WIRING HARNESS Enquire To Order
982069 START DISABLE WIRING HARNESS $35.28 To Order
Photo Part No Description Price (each) Stock
328976 KEY AND BLOCK KIT $1,412.03 To Order
329045 KEY AND BLOCK KIT $1,412.03 To Order
Photo Part No Description Price (each) Stock
6326163 SECRET CARD LABEL FOR KEYS $2.74 To Order
Photo Part No Description Price (each) Stock
328403 KEYLESS KEY KIT $962.74 To Order
328404 KEYLESS KEY KIT $962.74 To Order
Photo Part No Description Price (each) Stock
330644 GLONASS ECU Enquire To Order
818431 GLONASS ECU Enquire To Order
818431 GLONASS ECU Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
824396 TCU ECALL / SVR $2,278.51 To Order
Photo Part No Description Price (each) Stock
84801200 ADHESIVE STRIP $8.66 To Order
Photo Part No Description Price (each) Stock
824397 DRIVER CARD $304.57 To Order
View All

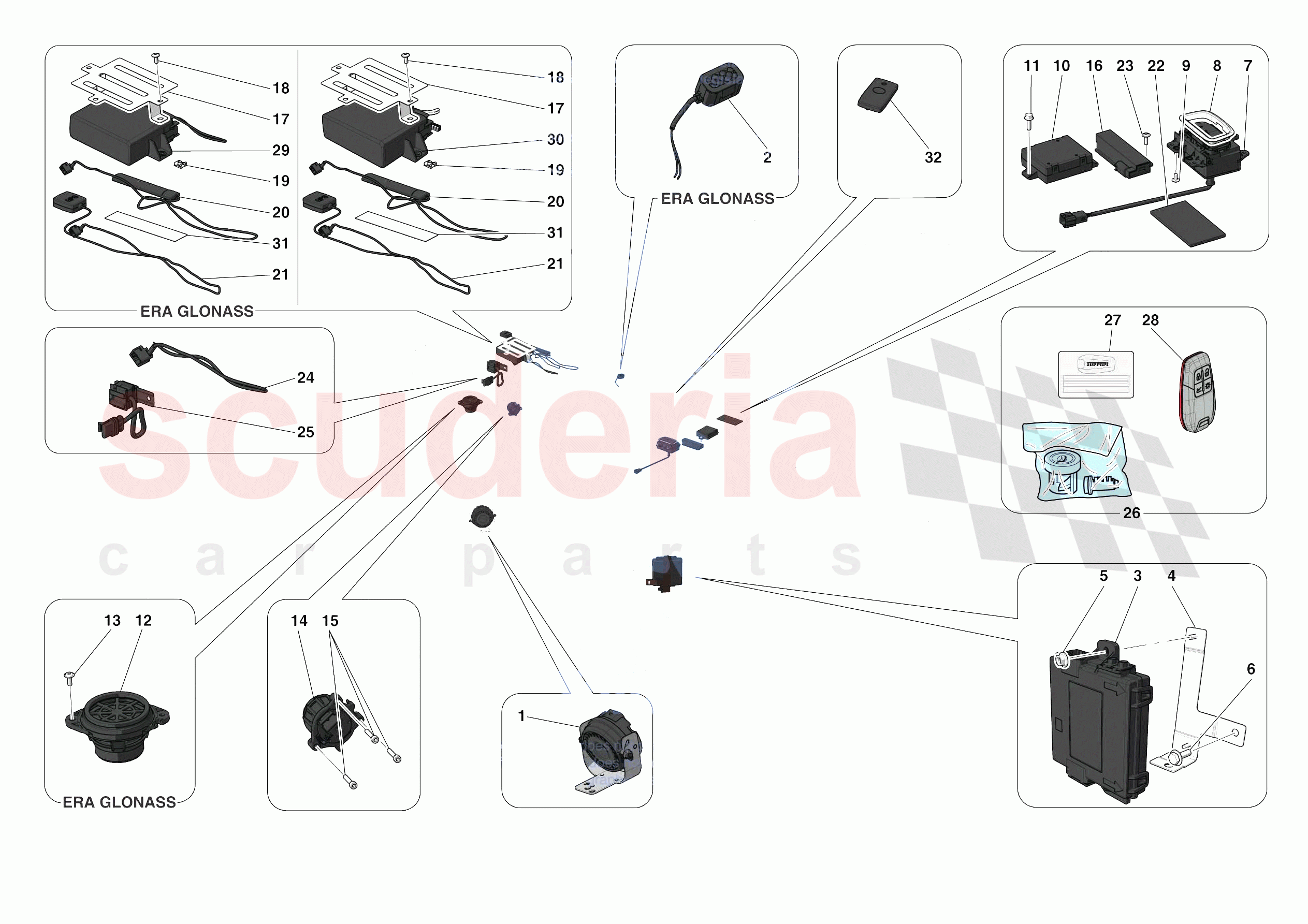

ANTI-THEFT SYSTEM of Ferrari Ferrari F8 Tributo Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 336779
COMPL. ANTI-THEFT SYSTEM SIREN 		$152.73 1
0002 333337
GSM MICROPHONE
Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$192.54 1
0003 328097
PASSIVE START ECU
IN STOCK 		$369.04 1
0003 328098
PASSIVE START ECU 		$369.04 1
0004 315027
PASSIVE START ECU MOUNTING BRACKET 		$25.66 1
0005 14059290
FLANGED NUT M6
IN STOCK 		$1.43 2
0006 11625824
SCREW
M6 X 18
IN STOCK 		$0.39 (61% off) 2
0007 343201
GLONASS SWITCH
Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$1,877.36 1
0008 792528
ERA GLONASS SWITCH SURROUND
Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$67.38 1
0009 795930
SCREW
M4 X 8 		- 4 Enquire
0010 293416
ANTI-LIFT SENSOR 		$442.82 1
0011 16285127
SCREW
M5 X 16
IN STOCK 		$0.58 4
0012 332825
GLONASS SPEAKER
Applicable for ERA GLONASS system - Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$48.12 1
0013 88822200
SCREW
M4 X 10
IN STOCK 		$0.70 2
0014 900756
KIN FOR PASSIVE START SYSTEM
IN STOCK 		$154.03 1
0014 900756
KIN FOR PASSIVE START SYSTEM
IN STOCK 		$154.03 1
0015 14303324
SCREW
M4 X 20
IN STOCK 		$0.15 (66.7% off) 3
0016 310778
PASSIVE START ANTENNA 		$14.08 3
0016 322184
PASSIVE START ANTENNA 		$59.91 1
0017 334966
ERA GLONASS ECU BRACKET 		$188.53 1
0018 85833900
SCREW
Version with SVR satellite alarm system with or without card; M5 X 14
IN STOCK 		$0.36 8
0019 68700800
CLIP 		$1.00 2
0020 332824
GLONASS GSM ANTENNA 		$58.74 1
0021 332823
GLONASS GPS ANTENNA 		$58.74 1
0022 255515
BUSH
100 X 50 mm
IN STOCK 		$2.07 2
0023 85833900
SCREW
M5 X 14
IN STOCK 		$0.36 8
0024 824398
RF ANTENNA
Version with SVR satellite alarm system with card 		$42.29 1
0025 909564
START DISABLE WIRING HARNESS
Version with SVR satellite alarm system with or without card 		- 1 Enquire
0025 982069
START DISABLE WIRING HARNESS
Version with SVR satellite alarm system with or without card 		$35.28 1
0026 328976
KEY AND BLOCK KIT
Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key 		$1,412.03 1
0026 329045
KEY AND BLOCK KIT
Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key 		$1,412.03 1
0027 6326163
SECRET CARD LABEL FOR KEYS 		$2.74 1
0028 328403
KEYLESS KEY KIT 		$962.74 1
0028 328404
KEYLESS KEY KIT 		$962.74 1
0029 330644
GLONASS ECU
Applicable for ERA GLONASS system- -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; No longer supplied - Replaced by 960231; Unprogrammed 		- 1 Enquire
0029 818431
GLONASS ECU
Applicable for ERA GLONASS system- -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; No longer supplied - Replaced by 908022; Unprogrammed 		- 1 Enquire
0029 818431
GLONASS ECU
Unprogrammed 		- 1 Enquire
0029 908022
GLONASS ECU
Scheduled - Applicable for ERA GLONASS system- -Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets 		$3,355.20 1
0030 824396
TCU ECALL / SVR
Version with SVR satellite alarm system with or without card 		$2,278.51 1
0031 84801200
ADHESIVE STRIP 		$8.66 1
0032 824397
DRIVER CARD
Version with SVR satellite alarm system with card - Request ASM authorisation 		$304.57 1
