Name: REAR WHEELHOUSE
Rating: 4.1 (1 reviews)

View All

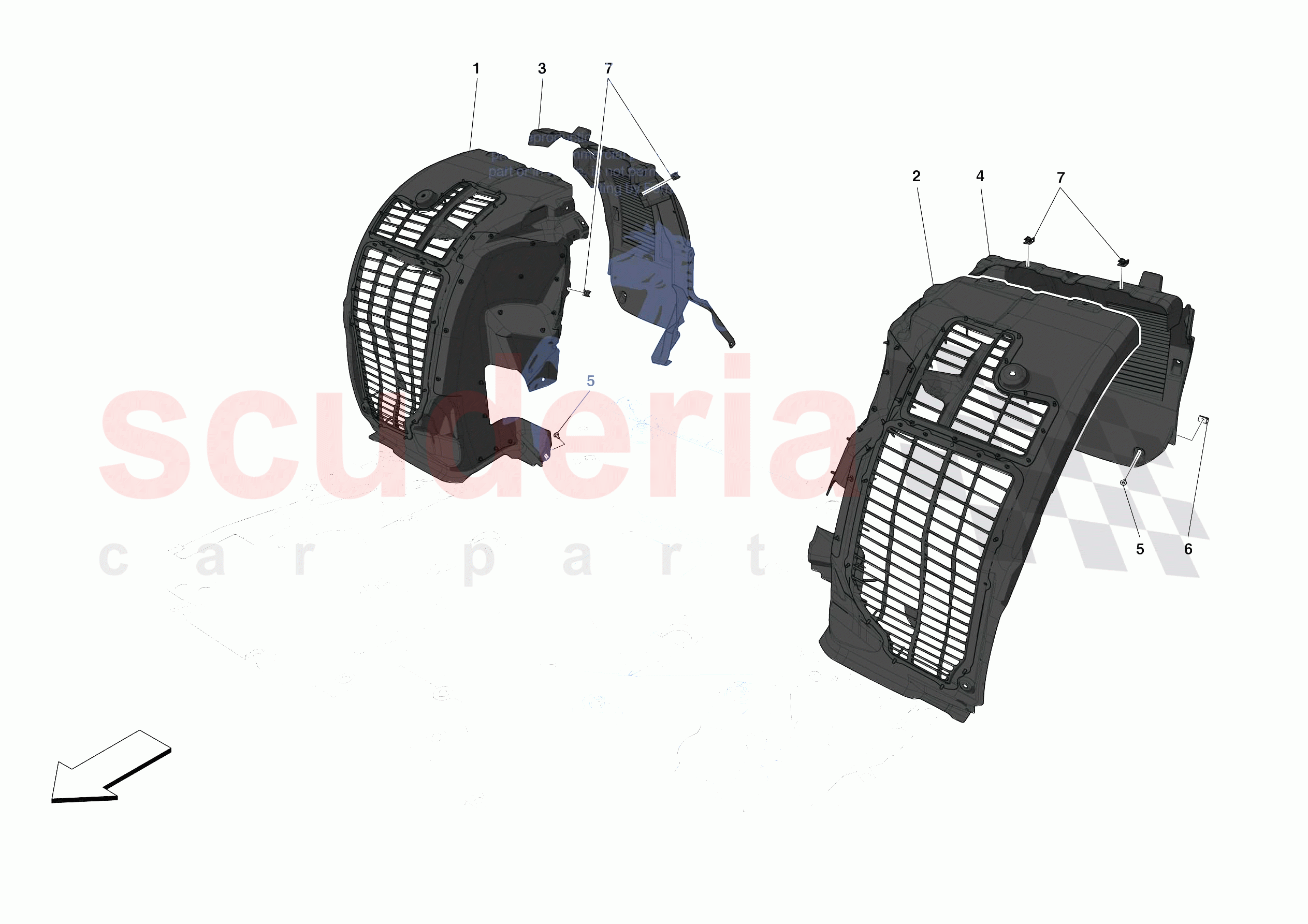

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	88164800	UNDERSTRAY SCREW M6 X 15	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	14189071	BRACKET FOR SCREW	$0.76	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	881103	COMPL. RH REAR WHEELHOUSE	881103 COMPL. RH REAR WHEELHOUSE Also order wheelhouse 881108 - Applicable for Brazil and Korea	$966.92	1
0001	89270100	COMPL. RH REAR WHEELHOUSE	89270100 COMPL. RH REAR WHEELHOUSE Also order wheelhouse 89268800 - Not for Brazil and Korea	$715.26	1
0002	881108	COMPL. LH REAR WHEELHOUSE	881108 COMPL. LH REAR WHEELHOUSE Also order wheelhouse 881103 - Applicable for Brazil and Korea	$966.92	1
0002	89268800	COMPL. LH REAR WHEELHOUSE	89268800 COMPL. LH REAR WHEELHOUSE Also order wheelhouse 89270100 - Not for Brazil and Korea	$715.26	1
0003	861978	RH REAR GRAVEL GUARD	861978 RH REAR GRAVEL GUARD Applicable for Brazil and Korea	$145.69	1
0003	907009	RH REAR GRAVEL GUARD	907009 RH REAR GRAVEL GUARD Not for Brazil and Korea	$383.22	1
0004	861979	LH REAR GRAVEL GUARD	861979 LH REAR GRAVEL GUARD Applicable for Brazil and Korea	$145.69	1
0004	907010	LH REAR GRAVEL GUARD	907010 LH REAR GRAVEL GUARD Not for Brazil and Korea	$370.87	1
0005	88164800	UNDERSTRAY SCREW M6 X 15	88164800 UNDERSTRAY SCREW M6 X 15 M6 X 14	$0.81	34
0006	14189071	BRACKET FOR SCREW	14189071 BRACKET FOR SCREW M6	$0.76 MSRP: ~~1.49~~ (49% off)	4
0006	14189071	BRACKET FOR SCREW	14189071 BRACKET FOR SCREW M6	$0.76 MSRP: ~~1.49~~ (49% off)	2
0007	14189071	BRACKET FOR SCREW	14189071 BRACKET FOR SCREW M6	$0.76 MSRP: ~~1.49~~ (49% off)	4
