INTERCOOLER of Ferrari Ferrari F8 Tributo Europe RH

View All

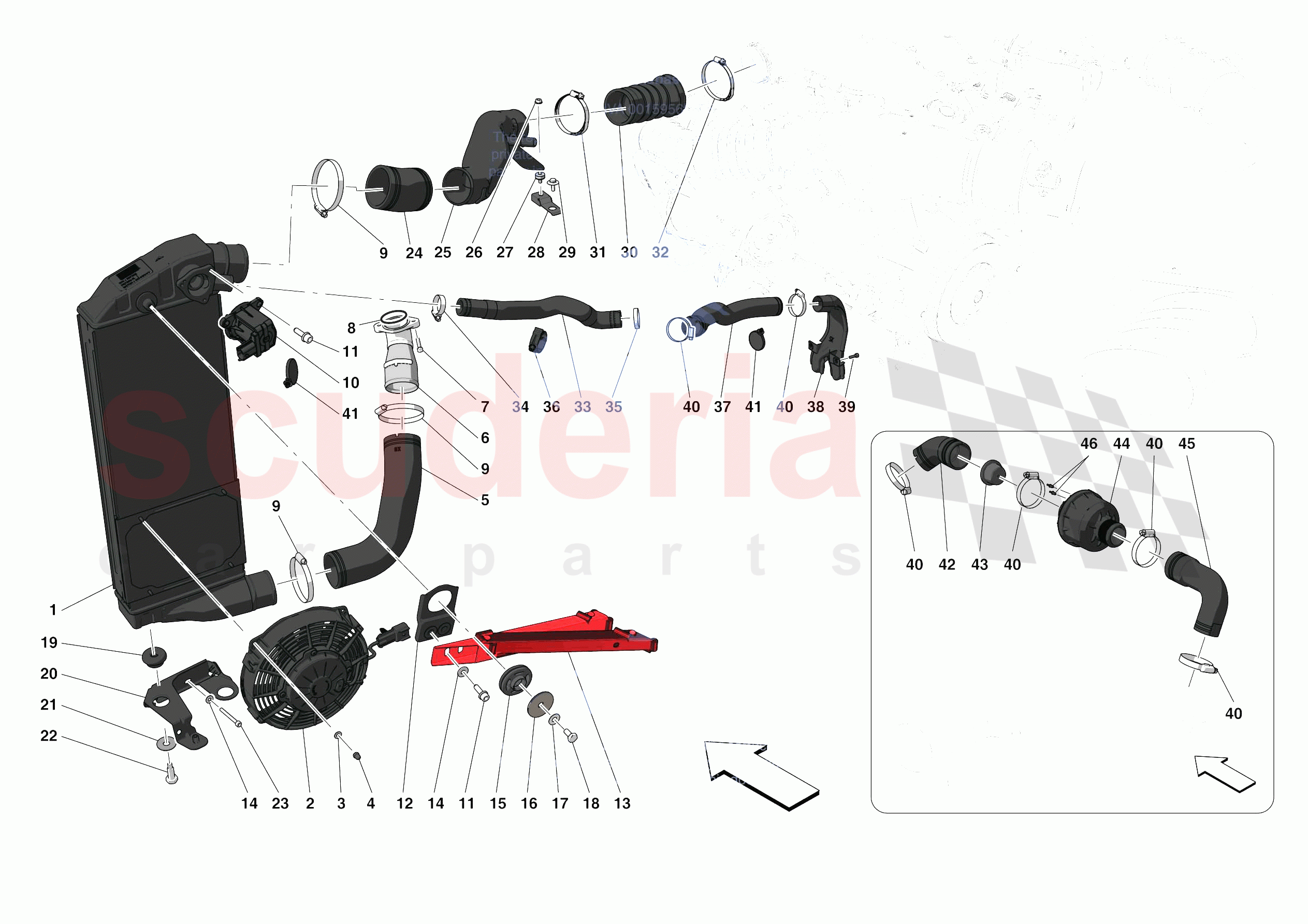

Ferrari F8 Tributo Europe RH - INTERCOOLER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	748562	LH INTERCOOLER	Enquire	To Order
	748559	RH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319950	ELECTRIC FAN FOR INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14446624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054048	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	816925	LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	Enquire	To Order
	816925	LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	Enquire	To Order
	816924	RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	317449	HOSE CONNECTOR WITH FLANGE, LH SIDE	Enquire	To Order
	317448	HOSE CONNECTOR WITH FLANGE, RH SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	132829	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	859764	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315495	DUMP-VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	781216	UPPER INTERCOOLER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772080	LH INTERCOOLER UPPER TRELLIS	Enquire	To Order
	772069	RH INTERCOOLER UPPER TRELLIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290938	INTERCOOLER FASTENER RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66121400	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	290935	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	794445	LOWER FASTENER BRACKET FOR LH INTERCOOLER	Enquire	To Order
	794444	LOWER FASTENER BRACKET FOR RH INTERCOOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316040	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304824	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	337903	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	814108	LH PIPE FROM INTERCOOLER TO THROTTLE BODY	Enquire	To Order
	761298	RH PIPE FROM INTERCOOLER TO THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	239829	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	897058	HIGH PRESSURE PIPE ADJUSTER BRACKET	Enquire	To Order
	775075	HIGH PRESSURE PIPE ADJUSTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318185	CONNECTOR HOSE ON THROTTLE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311609	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	908630	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	337911	RUBBER PIPE FOR LH DUMP VALVE	Enquire	To Order
	337910	RUBBER PIPE FOR RH DUMP VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	178053	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	224271	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	821185	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	316687	COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325077	LH COIL COOLING PIPE	Enquire	To Order
	325076	RH COIL COOLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	896499	HOSE FROM SOUND GENERATOR TO MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898750	REDUCER FOR RESONATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310096	SOUND GENERATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	896500	HOSE FROM INTAKE DUCT TO RESONATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314100	RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	748562	LH INTERCOOLER	748562 LH INTERCOOLER	-	1	Enquire
0001	748559	RH INTERCOOLER	748559 RH INTERCOOLER	-	1	Enquire
0002	319950	ELECTRIC FAN FOR INTERCOOLER	319950 ELECTRIC FAN FOR INTERCOOLER	-	2	Enquire
0003	14446624	WASHER	14446624 WASHER	-	8	Enquire
0004	14054048	NUT	14054048 NUT	-	8	Enquire
0005	816925	LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	816925 LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	-	1	Enquire
0005	816925	LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	816925 LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	-	1	Enquire
0005	816924	RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	816924 RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	-	1	Enquire
0005	816924	RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	816924 RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	-	1	Enquire
0006	317449	HOSE CONNECTOR WITH FLANGE, LH SIDE	317449 HOSE CONNECTOR WITH FLANGE, LH SIDE	-	1	Enquire
0006	317448	HOSE CONNECTOR WITH FLANGE, RH SIDE	317448 HOSE CONNECTOR WITH FLANGE, RH SIDE	-	1	Enquire
0007	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	4	Enquire
0008	132829	O-RING	132829 O-RING	-	2	Enquire
0009	859764	SCREW COLLAR	859764 SCREW COLLAR	-	8	Enquire
0010	315495	DUMP-VALVE	315495 DUMP-VALVE	-	2	Enquire
0011	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	10	Enquire
0012	781216	UPPER INTERCOOLER FASTENER BRACKET	781216 UPPER INTERCOOLER FASTENER BRACKET	-	2	Enquire
0013	772080	LH INTERCOOLER UPPER TRELLIS	772080 LH INTERCOOLER UPPER TRELLIS	-	1	Enquire
0013	772069	RH INTERCOOLER UPPER TRELLIS	772069 RH INTERCOOLER UPPER TRELLIS	-	1	Enquire
0014	12646624	WASHER	12646624 WASHER	-	8	Enquire
0015	290938	INTERCOOLER FASTENER RUBBER BUSH	290938 INTERCOOLER FASTENER RUBBER BUSH	-	2	Enquire
0016	66121400	WASHER	66121400 WASHER	-	2	Enquire
0017	12643778	WASHER	12643778 WASHER	-	2	Enquire
0018	10902024	SCREW	10902024 SCREW M6 X 12	-	2	Enquire
0019	290935	BUSH	290935 BUSH	-	4	Enquire
0020	794445	LOWER FASTENER BRACKET FOR LH INTERCOOLER	794445 LOWER FASTENER BRACKET FOR LH INTERCOOLER	-	1	Enquire
0020	794444	LOWER FASTENER BRACKET FOR RH INTERCOOLER	794444 LOWER FASTENER BRACKET FOR RH INTERCOOLER	-	1	Enquire
0021	13578801	WASHER	13578801 WASHER	-	4	Enquire
0022	316040	SCREW	316040 SCREW	-	4	Enquire
0023	14304824	SCREW	14304824 SCREW L. 55 mm	-	4	Enquire
0024	337903	HOSE	337903 HOSE	-	2	Enquire
0025	814108	LH PIPE FROM INTERCOOLER TO THROTTLE BODY	814108 LH PIPE FROM INTERCOOLER TO THROTTLE BODY	-	1	Enquire
0025	761298	RH PIPE FROM INTERCOOLER TO THROTTLE BODY	761298 RH PIPE FROM INTERCOOLER TO THROTTLE BODY	-	1	Enquire
0026	14040614	NUT	14040614 NUT	-	2	Enquire
0027	239829	VIBRATION DAMPER	239829 VIBRATION DAMPER	-	2	Enquire
0028	897058	HIGH PRESSURE PIPE ADJUSTER BRACKET	897058 HIGH PRESSURE PIPE ADJUSTER BRACKET Applies until depletion	-	2	Enquire
0028	775075	HIGH PRESSURE PIPE ADJUSTER BRACKET	775075 HIGH PRESSURE PIPE ADJUSTER BRACKET Applicable after depletion of 897058	-	2	Enquire
0029	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	-	2	Enquire
0030	318185	CONNECTOR HOSE ON THROTTLE BODY	318185 CONNECTOR HOSE ON THROTTLE BODY	-	2	Enquire
0031	311609	COLLAR	311609 COLLAR	-	2	Enquire
0032	908630	COLLAR	908630 COLLAR	-	2	Enquire
0033	337911	RUBBER PIPE FOR LH DUMP VALVE	337911 RUBBER PIPE FOR LH DUMP VALVE	-	1	Enquire
0033	337910	RUBBER PIPE FOR RH DUMP VALVE	337910 RUBBER PIPE FOR RH DUMP VALVE	-	1	Enquire
0034	178053	CLAMP	178053 CLAMP	-	2	Enquire
0035	224271	CLAMP	224271 CLAMP	-	2	Enquire
0036	821185	CLIP	821185 CLIP	-	2	Enquire
0037	316687	COILED PIPE	316687 COILED PIPE	-	2	Enquire
0038	325077	LH COIL COOLING PIPE	325077 LH COIL COOLING PIPE	-	1	Enquire
0038	325076	RH COIL COOLING PIPE	325076 RH COIL COOLING PIPE	-	1	Enquire
0039	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	4	Enquire
0040	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	8	Enquire
0041	303385	CLIP	303385 CLIP 170 mm	-	2	Enquire
0042	896499	HOSE FROM SOUND GENERATOR TO MEMBRANE	896499 HOSE FROM SOUND GENERATOR TO MEMBRANE	-	1	Enquire
0043	898750	REDUCER FOR RESONATOR	898750 REDUCER FOR RESONATOR	-	1	Enquire
0044	310096	SOUND GENERATOR	310096 SOUND GENERATOR	-	1	Enquire
0045	896500	HOSE FROM INTAKE DUCT TO RESONATOR	896500 HOSE FROM INTAKE DUCT TO RESONATOR	-	1	Enquire
0046	314100	RIVET	314100 RIVET	-	2	Enquire
