Ferrari F8 Tributo Europe RH - GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
309825 HEAT EXCHANGER $5,275.90 To Order
Photo Part No Description Price (each) Stock
14300224 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
12604279 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12646624 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
333003 WATER PIPE SHIELD BRACKET $59.35 To Order
Photo Part No Description Price (each) Stock
909463 GEARBOX OIL PIPES SHIELD BRACKET $78.61 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
14307524 SCREW $1.20 IN STOCK
Photo Part No Description Price (each) Stock
14360024 SCREW $0.75 To Order
Photo Part No Description Price (each) Stock
12604574 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
767049 OIL RETURN PIPE $304.86 To Order
Photo Part No Description Price (each) Stock
767048 OIL DELIVERY PIPE $319.07 To Order
Photo Part No Description Price (each) Stock
166656 O-RING $0.47 IN STOCK
Photo Part No Description Price (each) Stock
309168 FORK $30.47 To Order
Photo Part No Description Price (each) Stock
254644 O-RING $0.41 IN STOCK
Photo Part No Description Price (each) Stock
253632 FORK $43.02 To Order
Photo Part No Description Price (each) Stock
253465 SCREW $36.21 To Order
Photo Part No Description Price (each) Stock
986899 WASHER $6.34 To Order
Photo Part No Description Price (each) Stock
767038 OIL DELIVERY PIPE $320.90 To Order
Photo Part No Description Price (each) Stock
767043 OIL RETURN PIPE $304.86 To Order
Photo Part No Description Price (each) Stock
287096 FORK $93.05 To Order
Photo Part No Description Price (each) Stock
248471 SCREW $1.09 To Order
Photo Part No Description Price (each) Stock
314654 OIL PIPE MOUNTING BRACKET $36.89 To Order
Photo Part No Description Price (each) Stock
14360524 SCREW $1.47 To Order
Photo Part No Description Price (each) Stock
127498 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
243397 RETAINER BLOCK $17.63 To Order
Photo Part No Description Price (each) Stock
243399 BUSH $0.75 IN STOCK
Photo Part No Description Price (each) Stock
243398 PLATE $14.10 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.44 IN STOCK
Photo Part No Description Price (each) Stock
340541 LH BRACKET FOR SINGLE OIL HEAT EXCHANGER $272.77 To Order
843552 RH SINGLE OIL HEAT EXCHANGER BRACKET $272.77 To Order
Photo Part No Description Price (each) Stock
216576 SCREW $0.75 IN STOCK
Photo Part No Description Price (each) Stock
14603370 SPRING PIN $0.18 To Order
Photo Part No Description Price (each) Stock
767036 WATER DELIVERY PIPE $577.64 To Order
Photo Part No Description Price (each) Stock
884676 WATER RETURN PIPE $433.23 To Order
Photo Part No Description Price (each) Stock
205416 GASKET $0.39 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
879405 RH SINGLE OIL HEAT EXCHANGER SHIELDS MOUNTING BRACKET. $44.91 To Order
Photo Part No Description Price (each) Stock
332899 LH SINGLE OIL HEAT EXCHANGER SHIELD MOUNTING BRACKET $30.44 To Order
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $2.07 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.15 IN STOCK
Photo Part No Description Price (each) Stock
10442190 BRACKET WITH SHEATH $0.73 IN STOCK
Photo Part No Description Price (each) Stock
83182500 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.47 To Order
Photo Part No Description Price (each) Stock
14059311 FLANGED NUT M8 X 1.25 $0.29 IN STOCK
Photo Part No Description Price (each) Stock
322829 LH SINGLE OIL HEAT EXCHANGER FRONT HEAT SHIELD $208.58 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
12648978 WASHER $0.55 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
333008 REAR SINGLE OIL HEAT EXCHANGER HEAT SHIELD $118.72 To Order
Photo Part No Description Price (each) Stock
253631 FORK WITH CAPTIVE SCREW $51.33 To Order
Photo Part No Description Price (each) Stock
879345 FRONT RH SINGLE OIL HEAT EXCHANGER HEAT SHIELD $176.49 To Order
Photo Part No Description Price (each) Stock
879779 LH SINGLE OIL HEAT EXCHANGER REAR HEAT SHIELD $176.49 To Order
View All

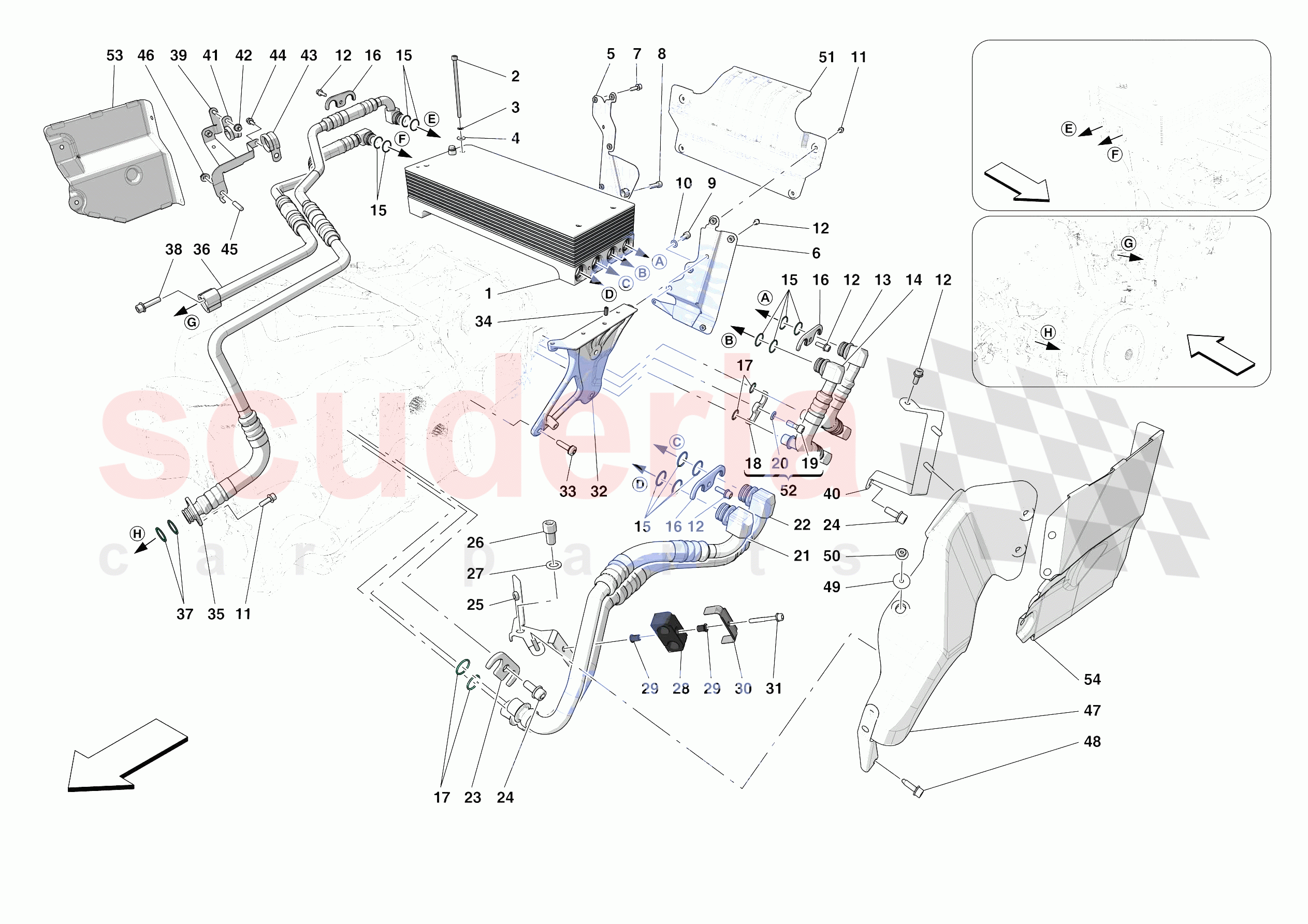

GEARBOX OIL HEAT EXCHANGER AND PIPES - HEAT EXCHANGER AND REAR PIPES of Ferrari Ferrari F8 Tributo Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 309825
HEAT EXCHANGER 		$5,275.90 1
0002 14300224
SCREW
M6 X 100 		$0.99 4
0003 12604279
WASHER 		$0.06 4
0004 12646624
WASHER 		$0.21 (27.6% off) 4
0005 333003
WATER PIPE SHIELD BRACKET 		$59.35 1
0006 909463
GEARBOX OIL PIPES SHIELD BRACKET 		$78.61 1
0007 248334
SCREW
M6 X 16 		$0.68 6
0008 14307524
SCREW
M10 X 30
IN STOCK 		$1.20 1
0009 14360024
SCREW 		$0.75 (79.7% off) 2
0010 12604574
WASHER 		$0.06 2
0011 248334
SCREW
M6 X 16 		$0.68 6
0012 231619
SCREW
M6 X 18
IN STOCK 		$0.31 8
0013 767049
OIL RETURN PIPE 		$304.86 1
0014 767048
OIL DELIVERY PIPE 		$319.07 1
0015 166656
O-RING
IN STOCK 		$0.47 12
0016 309168
FORK 		$30.47 3
0017 254644
O-RING
IN STOCK 		$0.41 (18% off) 4
0018 253632
FORK
After depletion order compl. pos. 253631; Applies until depletion 		$43.02 1
0019 253465
SCREW
No longer supplied; M8 X 22 		$36.21 1
0020 986899
WASHER 		$6.34 1
0021 767038
OIL DELIVERY PIPE 		$320.90 1
0022 767043
OIL RETURN PIPE 		$304.86 1
0023 287096
FORK 		$93.05 1
0024 248471
SCREW
M8 X 20 		$1.09 1
0025 314654
OIL PIPE MOUNTING BRACKET 		$36.89 1
0026 14360524
SCREW 		$1.47 1
0027 127498
WASHER
IN STOCK 		$0.15 (75% off) 1
0028 243397
RETAINER BLOCK 		$17.63 3
0029 243399
BUSH
IN STOCK 		$0.75 6
0030 243398
PLATE 		$14.10 3
0031 231624
SCREW
M6 X 45
IN STOCK 		$0.44 3
0032 340541
LH BRACKET FOR SINGLE OIL HEAT EXCHANGER 		$272.77 1
0032 843552
RH SINGLE OIL HEAT EXCHANGER BRACKET 		$272.77 1
0033 216576
SCREW
M8 X 30
IN STOCK 		$0.75 6
0034 14603370
SPRING PIN 		$0.18 2
0035 767036
WATER DELIVERY PIPE 		$577.64 1
0036 884676
WATER RETURN PIPE 		$433.23 1
0037 205416
GASKET 		$0.39 2
0038 231620
SCREW
M6 X 25
IN STOCK 		$0.32 (8.6% off) 1
0039 879405
RH SINGLE OIL HEAT EXCHANGER SHIELDS MOUNTING BRACKET. 		$44.91 1
0040 332899
LH SINGLE OIL HEAT EXCHANGER SHIELD MOUNTING BRACKET 		$30.44 1
0041 10441690
BRACKET WITH SHEATH
D. 18 		$2.07 1
0042 14040614
NUT
IN STOCK 		$0.15 1
0043 10442190
BRACKET WITH SHEATH
IN STOCK 		$0.73 (67.6% off) 1
0044 83182500
SCREW
M6 X 18 		- 1 Enquire
0045 13516824
STUD BOLT 		$0.47 (62.4% off) 1
0046 14059311
FLANGED NUT M8 X 1.25
IN STOCK 		$0.29 (42% off) 1
0047 322829
LH SINGLE OIL HEAT EXCHANGER FRONT HEAT SHIELD 		$208.58 1
0048 11568124
SCREW
M5 X 20
IN STOCK 		$0.96 1
0049 12648978
WASHER
IN STOCK 		$0.55 1
0050 14059290
FLANGED NUT M6
IN STOCK 		$1.43 3
0051 333008
REAR SINGLE OIL HEAT EXCHANGER HEAT SHIELD 		$118.72 1
0052 253631
FORK WITH CAPTIVE SCREW 		$51.33 1
0053 879345
FRONT RH SINGLE OIL HEAT EXCHANGER HEAT SHIELD 		$176.49 1
0054 879779
LH SINGLE OIL HEAT EXCHANGER REAR HEAT SHIELD 		$176.49 1
