REAR SUSPENSION - ARMS

Find Your Part

Ferrari F8 Spider Europe RH - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
843923 LH REAR HUB CARRIER $2,650.78 To Order
843963 COMPL. RH REAR HUB CARRIER $2,650.78 To Order
Photo Part No Description Price (each) Stock
299534 LH REAR JOINT BRACKET $415.69 To Order
299535 RH REAR JOINT BRACKET $529.50 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
336026 ABS SENSOR $76.57 To Order
Photo Part No Description Price (each) Stock
896443 COMPL. LOWER LH REAR ARM Enquire To Order
911176 LH LOWER REAR ARM $1,139.25 To Order
896445 COMPL. LOWER RH REAR ARM Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
238063 NUT $4.17 To Order
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $192.54 To Order
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $17.63 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $33.39 To Order
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW $25.85 To Order
Photo Part No Description Price (each) Stock
14507987 PLUG $1.83 To Order
Photo Part No Description Price (each) Stock
295792 COMPL. REAR UPPER ARM $754.15 To Order
Photo Part No Description Price (each) Stock
816274 WASHER $1.94 To Order
Photo Part No Description Price (each) Stock
302406 THREADED ROD $2.43 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.26 To Order
Photo Part No Description Price (each) Stock
203666 NUT $0.94 To Order
Photo Part No Description Price (each) Stock
14496721 WASHER $0.10 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
245161 TIE ROD REAR SUSPENSION $336.95 To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 To Order
Photo Part No Description Price (each) Stock
104114 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
262544 ADJUSTER SHIM $9.50 To Order
262545 ADJUSTER SHIM $9.50 To Order
262546 ADJUSTER SHIM $9.50 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
262544 ADJUSTER SHIM $9.50 To Order
238693 ADJUSTMENT SHIM $5.77 To Order
238881 CAMBER SPACER 1.5MM $5.77 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
316888 CLIP $0.24 To Order
Photo Part No Description Price (each) Stock
259265 COMPL. REAR LH MOTION SENSOR $218.81 To Order
259266 REAR RH MOTION SENSOR $226.10 To Order
Photo Part No Description Price (each) Stock
216973 BALL JOINT $3.55 To Order
Photo Part No Description Price (each) Stock
229653 POTENTIOMETER LINK $41.49 To Order
Photo Part No Description Price (each) Stock
259569 LH REAR BRACKET $24.05 To Order
260444 RH REAR BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
217456 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.71 To Order
Photo Part No Description Price (each) Stock
216973 BALL JOINT $3.55 To Order
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 To Order
View All

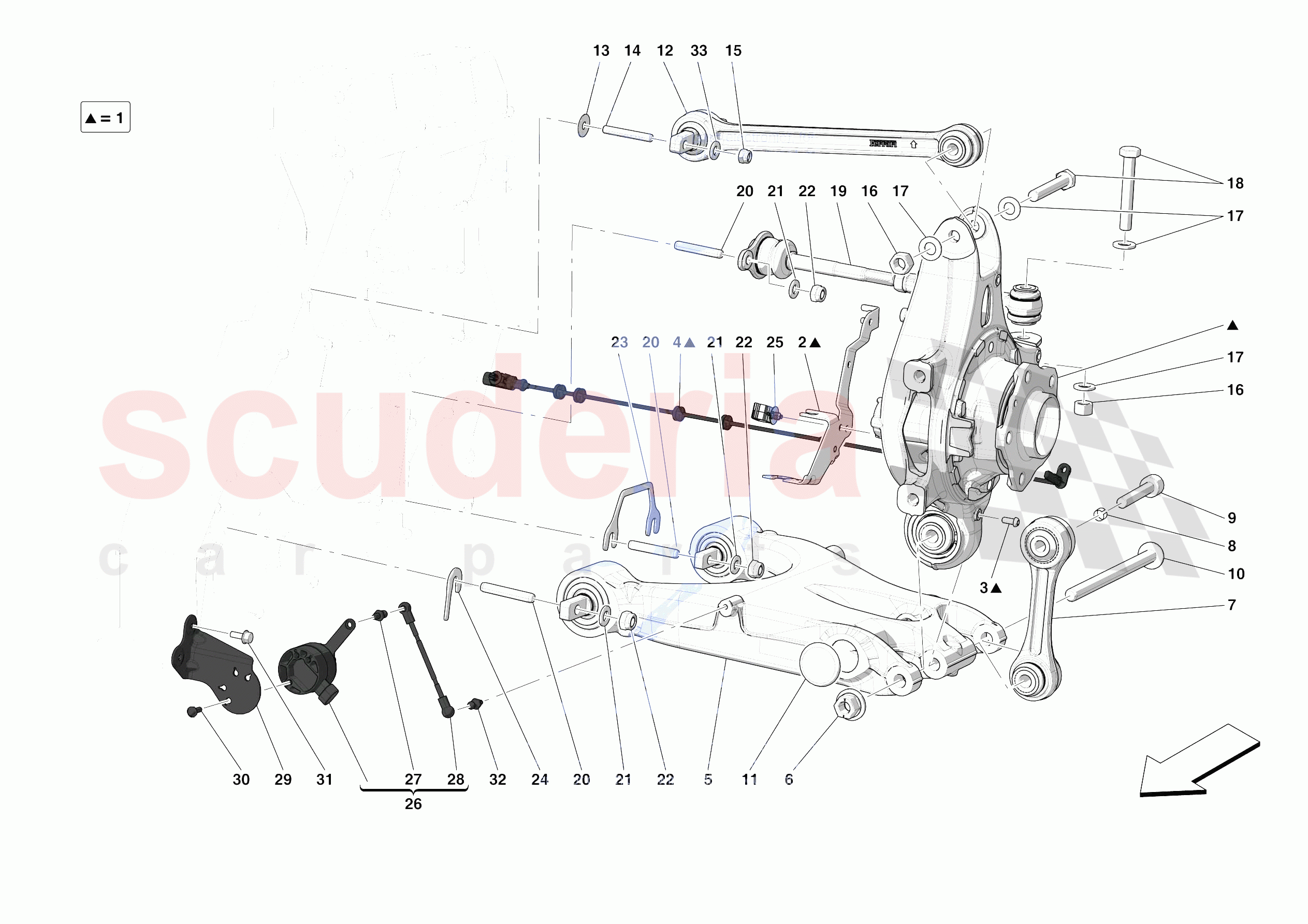

REAR SUSPENSION - ARMS of Ferrari Ferrari F8 Spider Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 843923
LH REAR HUB CARRIER 		$2,650.78 1
0001 843963
COMPL. RH REAR HUB CARRIER 		$2,650.78 1
0002 299534
LH REAR JOINT BRACKET 		$415.69 1
0002 299535
RH REAR JOINT BRACKET 		$529.50 1
0003 250657
SCREW
M6 X 14 		$7.60 6
0004 336026
ABS SENSOR 		$76.57 2
0005 896443
COMPL. LOWER LH REAR ARM
No longer supplied - Replaced by 911176 		- 1 Enquire
0005 911176
LH LOWER REAR ARM 		$1,139.25 1
0005 896445
COMPL. LOWER RH REAR ARM
No longer supplied - Replaced by 911175 		- 1 Enquire
0005 911175
RH REAR LOWER ARM 		$1,139.25 1
0006 238063
NUT 		$4.17 (24.2% off) 2
0007 259688
ANTI-ROTATION LINKAGE 		$192.54 2
0008 222956
COMPENSATOR RING 		$17.63 2
0009 238258
SCREW
M12 X 1.25 X 75 		$33.39 2
0010 238656
SPECIAL SCREW
M14 X 1.5 X 210 		$25.85 (5.6% off) 2
0011 14507987
PLUG 		$1.83 (25.3% off) 4
0012 295792
COMPL. REAR UPPER ARM 		$754.15 2
0013 816274
WASHER 		$1.94 4
0014 302406
THREADED ROD 		$2.43 4
0015 104030
NUT 		$0.26 (74% off) 4
0016 203666
NUT 		$0.94 (53% off) 4
0017 14496721
WASHER 		$0.10 8
0018 15541434
SCREW
M12 X 1.25 X 80 		$2.12 (28.9% off) 4
0019 245161
TIE ROD REAR SUSPENSION 		$336.95 (25.1% off) 2
0020 264528
THREADED ROD 		$3.94 12
0021 14496624
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$0.06 16
0022 104114
NUT 		$0.41 (18% off) 12
0023 262544
ADJUSTER SHIM
Th. 0.5 mm 		$9.50 2
0023 262545
ADJUSTER SHIM
Th. 1 mm 		$9.50 2
0023 262546
ADJUSTER SHIM
Th. 1.5 mm 		$9.50 2
0023 262539
ADJUSTER SHIM
Th. 2 mm 		$9.50 2
0023 262540
ADJUSTER SHIM
Th. 2.5 mm 		$9.50 2
0023 262541
ADJUSTER SHIM
Th. 3 mm 		$9.50 2
0023 262542
ADJUSTER SHIM
Th. 3.5 mm 		$9.50 2
0023 262543
ADJUSTER SHIM
Th. 4 mm 		$9.50 2
0024 262544
ADJUSTER SHIM
Th. 0.5 mm 		$9.50 4
0024 238693
ADJUSTMENT SHIM
Th. 1 mm 		$5.77 (7.7% off) 4
0024 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm 		$5.77 (6.2% off) 4
0024 238694
ADJUSTMENT SHIM
Th. 2 mm 		$5.59 (9.1% off) 4
0024 238882
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.59 (10.6% off) 4
0024 238883
ADJUSTMENT SHIM
Th. 3 mm 		$5.59 (10.6% off) 4
0024 238884
ADJUSTMENT SHIM
Th. 3.5 mm 		$5.59 (10.6% off) 4
0024 238885
CAMBER SPACER 4MM
Th. 4 mm 		$5.77 (7.7% off) 4
0025 316888
CLIP 		$0.24 4
0026 259265
COMPL. REAR LH MOTION SENSOR 		$218.81 1
0026 259266
REAR RH MOTION SENSOR 		$226.10 1
0027 216973
BALL JOINT 		$3.55 (21.1% off) 2
0028 229653
POTENTIOMETER LINK
L. 115 mm 		$41.49 (29.2% off) 2
0029 259569
LH REAR BRACKET 		$24.05 1
0029 260444
RH REAR BRACKET 		$24.05 1
0030 217456
SCREW
M5 X 16 		$0.31 6
0031 86574700
SCREW
M6 X 16 		$0.71 4
0032 216973
BALL JOINT 		$3.55 (21.1% off) 2
0033 14496524
WASHER 		$0.11 (92.7% off) 4
