Ferrari F50 - PEDAL ASSY

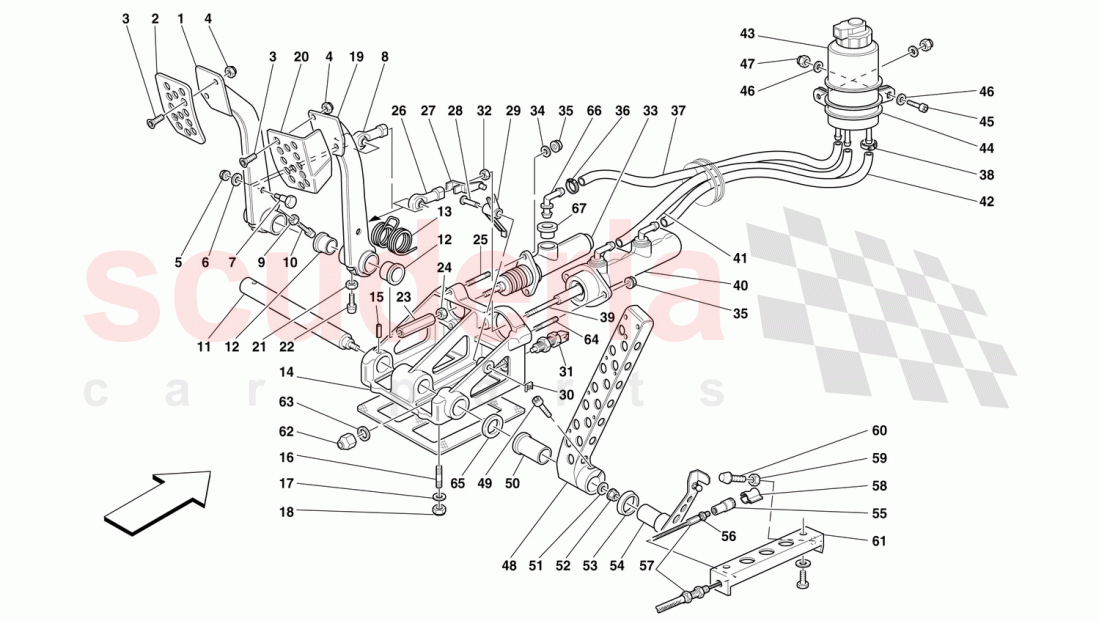

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	163236	CLUTCH PEDAL	$702.38	To Order

Photo	Part No	Description	Price (each)	Stock
	152847	CLUTCH PEDAL DRILLED PLATE	$81.82	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	130926	SCREW	$7.50	To Order

Photo	Part No	Description	Price (each)	Stock
	145482	BALL JOINT	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	312592	NUT	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	152620	PEDAL ADJUSTEMENT PIN	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	152562	PIN FOR PEDALS	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	128612	Bush pedal (As option Nr. 128613)	$42.69	To Order

Photo	Part No	Description	Price (each)	Stock
	152808	CLUTCH PEDAL BACK RETURNING SPRING	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	170083	PEDAL SUPPORT	$2,411.70	To Order

Photo	Part No	Description	Price (each)	Stock
	112166	FLEXIBLE PIN	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	12429524	STUD	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	163235	BRAKE PEDAL	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	152848	BRAKE PEDAL DRILLED PLATE	$150.82	To Order

Photo	Part No	Description	Price (each)	Stock
	312592	NUT	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	152620	PEDAL ADJUSTEMENT PIN	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	152565	SPACER	$51.33	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12429324	STUD	$15.66	To Order

Photo	Part No	Description	Price (each)	Stock
	145482	BALL JOINT	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	163560	SPACER	$13.10	To Order

Photo	Part No	Description	Price (each)	Stock
	152632	PIN	$8.09	To Order

Photo	Part No	Description	Price (each)	Stock
	152561	CONTROL LEVER FOR SWITCH	$117.12	To Order

Photo	Part No	Description	Price (each)	Stock
	68313900	PLATE	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	PUSHBUTTON SWITCH	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	175211	Clutch master cylinder	$339.17	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	154888	PIPE FROM TANK TO CLUTCH PUMP	$7.13	To Order

Photo	Part No	Description	Price (each)	Stock
	13423379	ELASTIC COLLAR	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	152564	BRAKE PUMP KNUCKLE	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	154995	BRAKES CONTROL PUMP	$258.63	To Order

Photo	Part No	Description	Price (each)	Stock
	154886	PIPE FROM TANK TO FRONT BRAKES PUMP	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	154887	PIPE FROM TANK TO REAR BRAKES PUMP	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	154884	OIL TANK	$38.14	To Order

Photo	Part No	Description	Price (each)	Stock
	154885	PUMP SUPPORT BRACKET	$22.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	SCREW	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	163557	ACCELERATOR PEDAL ASSEMBLY	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	141399	SCREW	$108.46	To Order

Photo	Part No	Description	Price (each)	Stock
	152566	SELF LUBRICATING BUSHING	$16.66	To Order

Photo	Part No	Description	Price (each)	Stock
	10730321	WASHER	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	157575	RING	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	164966	ACCELERATOR CONTROL LEVER	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	10123811	BALL JOINT HEAD	$38.49	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	154379	ACCELERATOR CABLE	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	174001	SPRING CLIP	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	312592	NUT	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	152620	PEDAL ADJUSTEMENT PIN	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	164600	SUPPORT FOR ACCELERATOR CABLE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	168981	COUNTER NUT	$9.16	To Order

Photo	Part No	Description	Price (each)	Stock
	12544574	WASHER	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	12429524	STUD	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	112128	DITTO THICKNESS mm. 1.0	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	184497	CONNECTOR	$44.22	To Order

Photo	Part No	Description	Price (each)	Stock
	175189	SEAT RING	$25.66	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	112127	DITTO THICKNESS mm. 0.9	112127 DITTO THICKNESS mm. 0.9 mm. 0,9	$0.29	1
-	112129	DITTO THICKNESS mm. 1.1	112129 DITTO THICKNESS mm. 1.1 mm. 1,1	$0.29	1
-	112130	DITTO THICKNESS mm. 1.2	112130 DITTO THICKNESS mm. 1.2 mm. 1,2	$0.79	1
-	112131	DITTO THICKNESS mm. 1.3	112131 DITTO THICKNESS mm. 1.3 mm. 1,3	$0.29	1
-	171351	WASHER THINCKNESS mm. 0,8	171351 WASHER THINCKNESS mm. 0,8 mm. 0,8	$15.48	1
-	170030	PEDAL ADJUSTEMENT PIN	170030 PEDAL ADJUSTEMENT PIN	$15.48	1
-	141399	SCREW	141399 SCREW	$108.46	1
-	169362	SCREW COLLAR	169362 SCREW COLLAR	$2.61	3
-	169430	CLUTCH CONTROL PUMP	169430 CLUTCH CONTROL PUMP	$228.37	1
-	68313900	PLATE	68313900 PLATE	$0.21	1
-	13543524	STUD BOLT	13543524 STUD BOLT	$4.80	4
-	170083	PEDAL SUPPORT	170083 PEDAL SUPPORT	$2,411.70	1
1	163236	CLUTCH PEDAL	163236 CLUTCH PEDAL	$702.38	1
2	152847	CLUTCH PEDAL DRILLED PLATE	152847 CLUTCH PEDAL DRILLED PLATE	$81.82	1
3	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	$1.10 MSRP: ~~1.45~~ (24.1% off)	4
4	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
5	14040711	NUT	14040711 NUT	$0.41	2
6	12638524	WASHER	12638524 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	2
7	130926	SCREW	130926 SCREW	$7.50	2
8	145482	BALL JOINT	145482 BALL JOINT	$67.38	1
9	312592	NUT	312592 NUT	$2.63	1
10	152620	PEDAL ADJUSTEMENT PIN	152620 PEDAL ADJUSTEMENT PIN	$64.17	1
11	152562	PIN FOR PEDALS	152562 PIN FOR PEDALS	$609.73	1
12	128612	Bush pedal (As option Nr. 128613)	128612 Bush pedal (As option Nr. 128613)	$42.69	4
13	152808	CLUTCH PEDAL BACK RETURNING SPRING	152808 CLUTCH PEDAL BACK RETURNING SPRING SPRING	$25.66 MSRP: ~~32.27~~ (20.5% off)	1
14	170083	PEDAL SUPPORT	170083 PEDAL SUPPORT Not as spare part now / Replaced by 170083	$2,411.70	1
15	112166	FLEXIBLE PIN	112166 FLEXIBLE PIN	$0.44	1
16	12429524	STUD	12429524 STUD Not as spare part now / Replaced by 13543524	$2.01	4
17	12638524	WASHER	12638524 WASHER	$0.06 MSRP: ~~0.25~~ (76% off)	4
18	14040711	NUT	14040711 NUT	$0.41	4
19	163235	BRAKE PEDAL	163235 BRAKE PEDAL	$641.82	1
20	152848	BRAKE PEDAL DRILLED PLATE	152848 BRAKE PEDAL DRILLED PLATE	$150.82	1
21	312592	NUT	312592 NUT	$2.63	2
22	152620	PEDAL ADJUSTEMENT PIN	152620 PEDAL ADJUSTEMENT PIN	$64.17	2
23	152565	SPACER	152565 SPACER	$51.33	1
24	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
25	12429324	STUD	12429324 STUD	$15.66	2
26	145482	BALL JOINT	145482 BALL JOINT	$67.38	1
27	163560	SPACER	163560 SPACER	$13.10	1
28	152632	PIN	152632 PIN	$8.09	1
29	152561	CONTROL LEVER FOR SWITCH	152561 CONTROL LEVER FOR SWITCH	$117.12	1
30	68313900	PLATE	68313900 PLATE Not as spare part now / Replaced by 14228076	$0.21	1
31	133555	PUSHBUTTON SWITCH	133555 PUSHBUTTON SWITCH	$38.69 MSRP: ~~43.35~~ (10.7% off)	1
32	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
33	175211	Clutch master cylinder	175211 Clutch master cylinder Not as spare part for "F50" now / Replace by 169430	$339.17 MSRP: ~~361.51~~ (6.2% off)	1
34	12601374	WASHER	12601374 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
35	14040711	NUT	14040711 NUT	$0.41	4
36	13432070	HOSE COLLAR	13432070 HOSE COLLAR Not as spare part for "F50" now / Replace by 169362	$0.57 MSRP: ~~1.07~~ (46.7% off)	3
37	154888	PIPE FROM TANK TO CLUTCH PUMP	154888 PIPE FROM TANK TO CLUTCH PUMP	$7.13	1
38	13423379	ELASTIC COLLAR	13423379 ELASTIC COLLAR	$0.10	3
39	152564	BRAKE PUMP KNUCKLE	152564 BRAKE PUMP KNUCKLE	$48.12	1
40	154995	BRAKES CONTROL PUMP	154995 BRAKES CONTROL PUMP	$258.63	1
41	154886	PIPE FROM TANK TO FRONT BRAKES PUMP	154886 PIPE FROM TANK TO FRONT BRAKES PUMP BRAKES PUMP	$7.33	1
42	154887	PIPE FROM TANK TO REAR BRAKES PUMP	154887 PIPE FROM TANK TO REAR BRAKES PUMP BRAKES PUMP	$6.26	1
43	154884	OIL TANK	154884 OIL TANK	$38.14	1
44	154885	PUMP SUPPORT BRACKET	154885 PUMP SUPPORT BRACKET	$22.51	1
45	14305324	SCREW	14305324 SCREW	$0.08	1
46	12639724	WASHER	12639724 WASHER	$0.05 MSRP: ~~0.50~~ (90% off)	2
47	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
48	163557	ACCELERATOR PEDAL ASSEMBLY	163557 ACCELERATOR PEDAL ASSEMBLY	$320.90	1
49	141399	SCREW	141399 SCREW Not as spare part now / Replace by 141399	$108.46	1
50	152566	SELF LUBRICATING BUSHING	152566 SELF LUBRICATING BUSHING	$16.66	1
51	10730321	WASHER	10730321 WASHER	$0.57 MSRP: ~~1.00~~ (43% off)	1
52	14040711	NUT	14040711 NUT	$0.41	1
53	157575	RING	157575 RING	$1.65	1
54	164966	ACCELERATOR CONTROL LEVER	164966 ACCELERATOR CONTROL LEVER	$208.58	1
55	10123811	BALL JOINT HEAD	10123811 BALL JOINT HEAD	$38.49	1
56	15896470	NUT	15896470 NUT	$7.33	1
57	154379	ACCELERATOR CABLE	154379 ACCELERATOR CABLE	$75.40	1
58	174001	SPRING CLIP	174001 SPRING CLIP	$0.75 MSRP: ~~1.00~~ (25% off)	1
59	312592	NUT	312592 NUT	$2.63	2
60	152620	PEDAL ADJUSTEMENT PIN	152620 PEDAL ADJUSTEMENT PIN Not as spare part for "F50" now / Replaced by 170030	$64.17	1
61	164600	SUPPORT FOR ACCELERATOR CABLE	164600 SUPPORT FOR ACCELERATOR CABLE CABLE	$72.19	1
62	168981	COUNTER NUT	168981 COUNTER NUT	$9.16	1
63	12544574	WASHER	12544574 WASHER	$2.29	1
64	12429524	STUD	12429524 STUD	$2.01	2
65	112128	DITTO THICKNESS mm. 1.0	112128 DITTO THICKNESS mm. 1.0 mm. 1,0	$0.11	1
66	184497	CONNECTOR	184497 CONNECTOR	$44.22 MSRP: ~~90.40~~ (51.1% off)	1
67	175189	SEAT RING	175189 SEAT RING	$25.66 MSRP: ~~29.23~~ (12.2% off)	1
