Ferrari F40 - Clutch and control

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
125456 Clutch housing, complete $6,468.23 To Order
Photo Part No Description Price (each) Stock
16044024 SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
125537 Dowel $4.88 To Order
Photo Part No Description Price (each) Stock
121797 Bush for bearing Enquire To Order
Photo Part No Description Price (each) Stock
121806 Inspection cover $33.99 To Order
Photo Part No Description Price (each) Stock
11000824 Stud -Q.ty 4 for USA- $7.25 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
114603 Timing reference bracket Enquire To Order
Photo Part No Description Price (each) Stock
10977624 SCREW $0.06 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
148604 THREADED UNION $109.57 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.36 To Order
Photo Part No Description Price (each) Stock
123865 Dowel $26.60 To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT $1.94 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
136568 Union $19.14 To Order
Photo Part No Description Price (each) Stock
152954 BLEED NIPPLE SCREW $6.37 To Order
Photo Part No Description Price (each) Stock
144259 Flexible hose $612.26 To Order
Photo Part No Description Price (each) Stock
123478 Clamp $4.36 To Order
Photo Part No Description Price (each) Stock
136807 Clutch Ø 8" 1/2 compl. $5,363.72 To Order
Photo Part No Description Price (each) Stock
13544231 Stud $15.30 To Order
Photo Part No Description Price (each) Stock
136813 Spacer (supplied only with unit 136807) Enquire To Order
Photo Part No Description Price (each) Stock
136811 Clutch disc $741.57 To Order
Photo Part No Description Price (each) Stock
136809 Ring (supplied only with unit 136807) Enquire To Order
Photo Part No Description Price (each) Stock
136812 Clutch disc $1,154.91 To Order
Photo Part No Description Price (each) Stock
136807 Clutch Ø 8" 1/2 compl. $5,363.72 To Order
Photo Part No Description Price (each) Stock
136810 Cover (supplied only with Enquire To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
133989 NUT $0.45 To Order
Photo Part No Description Price (each) Stock
70000568 Thrust bearing $702.38 To Order
Photo Part No Description Price (each) Stock
123359 Bush for bearing $685.02 To Order
Photo Part No Description Price (each) Stock
139440 Sealing ring $10.96 To Order
Photo Part No Description Price (each) Stock
139439 Sealing ring -Valid after $9.13 To Order
Photo Part No Description Price (each) Stock
123110 Safety ring $9.61 To Order
Photo Part No Description Price (each) Stock
10977521 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
123696 Plate $594.06 To Order
Photo Part No Description Price (each) Stock
123360 Sleeve for bush $1,166.74 To Order
Photo Part No Description Price (each) Stock
65928500 THREADED PLUG $24.47 To Order
Photo Part No Description Price (each) Stock
233118 O-RING D.6 X 2.2 $9.00 To Order
Photo Part No Description Price (each) Stock
121717 Pre load spring $16.29 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
13516624 STUD BOLT $0.32 To Order
Photo Part No Description Price (each) Stock
138680 Sealing ring $46.52 To Order
Photo Part No Description Price (each) Stock
121814 O-Ring $17.89 To Order
Photo Part No Description Price (each) Stock
123689 Clutch shaft $685.18 To Order
Photo Part No Description Price (each) Stock
126223 Bearing $150.80 To Order
Photo Part No Description Price (each) Stock
149576 Pipe $224.63 To Order
Photo Part No Description Price (each) Stock
149577 Bracket $8.70 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
139921 BLOCK $118.01 To Order
View All

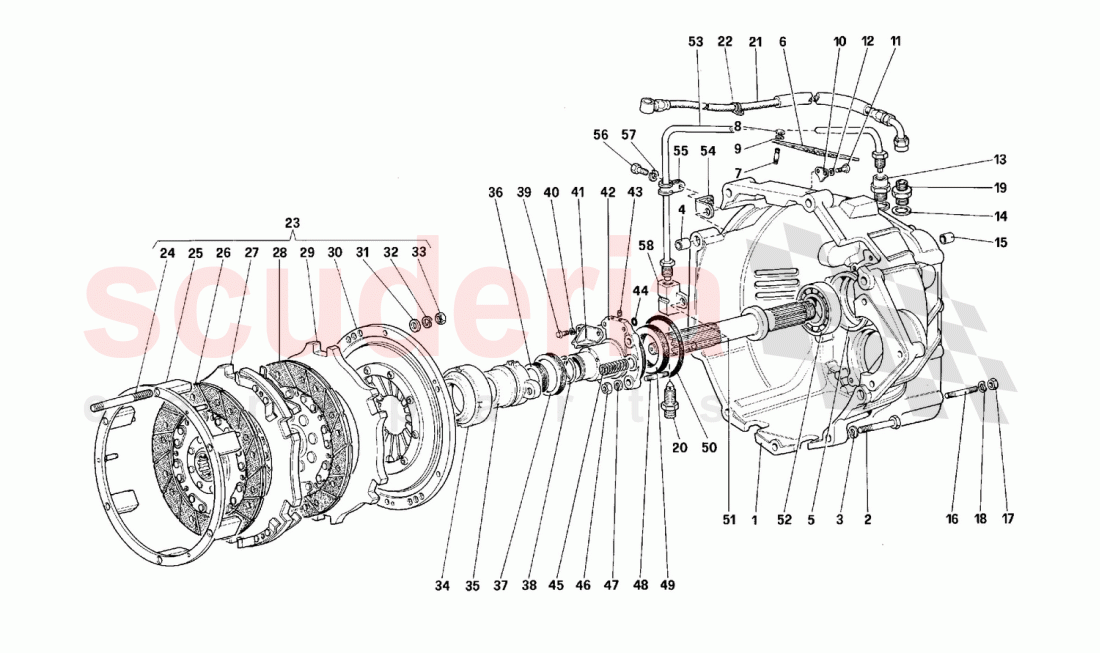

Clutch and control of Ferrari Ferrari F40 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 139439
Sealing ring -Valid after
depletion of 124674 		$9.13 (82.7% off) 1
- 11000924
Stud bolt
Not for USA 		$1.56 2
- 125456
Clutch housing, complete 		$6,468.23 1
1 125456
Clutch housing, complete
With assembly 125456 		$6,468.23 1
2 16044024
SCREW 		$0.37 (57.5% off) 3
3 12601374
WASHER 		$0.02 (92% off) 3
4 125537
Dowel 		$4.88 2
5 121797
Bush for bearing 		- 1 Enquire
6 121806
Inspection cover 		$33.99 1
7 11000824
Stud -Q.ty 4 for USA- 		$7.25 2
8 15896470
NUT 		$7.33 4
9 12604178
Washer 		- 4 Enquire
10 114603
Timing reference bracket 		- 1 Enquire
11 10977624
SCREW 		$0.06 2
12 127493
WASHER 		$0.06 (80% off) 2
13 148604
THREADED UNION 		$109.57 1
14 10261460
COPPER WASHER 16 X 24 X 1.5 		$0.36 (64% off) 2
15 123865
Dowel 		$26.60 2
16 13543424
STUD BOLT 		$1.94 12
17 14040711
NUT 		$0.41 12
18 12601374
WASHER 		$0.02 (92% off) 12
19 136568
Union 		$19.14 1
20 152954
BLEED NIPPLE SCREW 		$6.37 1
21 144259
Flexible hose 		$612.26 1
22 123478
Clamp 		$4.36 1
23 136807
Clutch Ø 8" 1/2 compl. 		$5,363.72 1
24 13544231
Stud 		$15.30 6
25 136813
Spacer (supplied only with unit 136807)
unit 136807) 		- 1 Enquire
26 136811
Clutch disc 		$741.57 1
27 136809
Ring (supplied only with unit 136807)
with unit 136807) 		- 1 Enquire
28 136812
Clutch disc 		$1,154.91 1
29 136807
Clutch Ø 8" 1/2 compl.
with unit 136807) 		$5,363.72 1
30 136810
Cover (supplied only with
unit 136807) 		- 1 Enquire
31 84653800
WASHER 		$5.75 6
32 127496
WASHER 		$0.06 (80% off) 6
33 133989
NUT 		$0.45 (55% off) 6
34 70000568
Thrust bearing 		$702.38 (12.2% off) 1
35 123359
Bush for bearing 		$685.02 (10.5% off) 1
36 139440
Sealing ring 		$10.96 (90.5% off) 1
37 139439
Sealing ring -Valid after
Valid till depletion 		$9.13 (82.7% off) 1
38 123110
Safety ring 		$9.61 (40.7% off) 1
39 10977521
SCREW 		$0.18 2
40 127493
WASHER 		$0.06 (80% off) 2
41 123696
Plate 		$594.06 1
42 123360
Sleeve for bush 		$1,166.74 (51.1% off) 1
43 65928500
THREADED PLUG 		$24.47 2
44 233118
O-RING D.6 X 2.2 		$9.00 2
45 121717
Pre load spring 		$16.29 (13.6% off) 2
46 14040711
NUT 		$0.41 4
47 127496
WASHER 		$0.06 (80% off) 4
48 13516624
STUD BOLT 		$0.32 4
49 138680
Sealing ring 		$46.52 (13.6% off) 1
50 121814
O-Ring 		$17.89 1
51 123689
Clutch shaft 		$685.18 1
52 126223
Bearing
(as option n. 137180) 		$150.80 (77.8% off) 1
53 149576
Pipe 		$224.63 1
54 149577
Bracket 		$8.70 1
55 10441290
BRACKET WITH SHEATH 		$0.57 (66.1% off) 1
56 10977524
SCREW 		$0.15 1
57 127494
WASHER 		$0.08 (88.2% off) 1
58 139921
BLOCK 		$118.01 1
