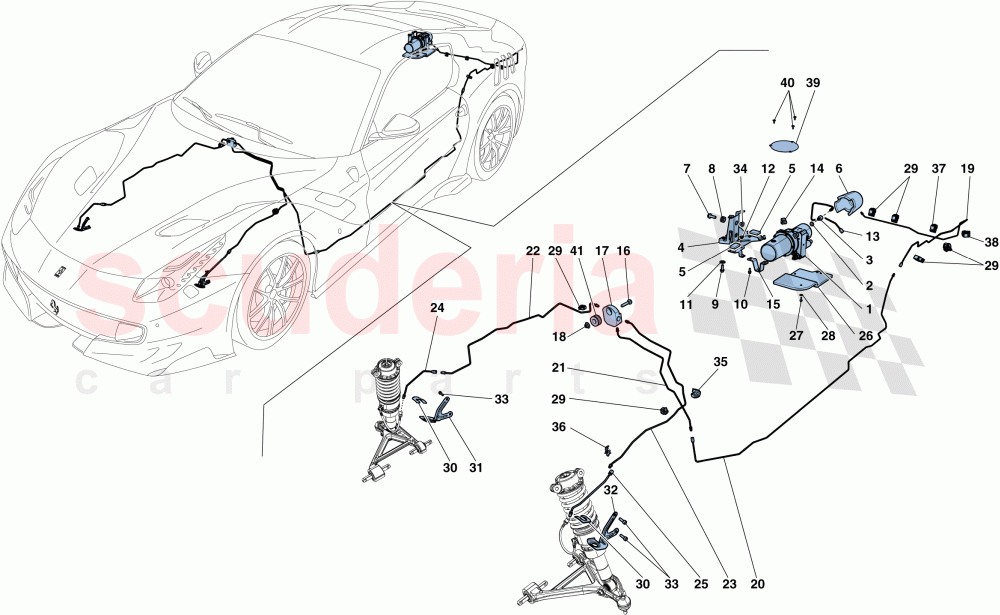

Ferrari F12 TDF - VEHICLE LIFT SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	284736	ELECTRIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256502	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254931	ADAPTER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285289	PUMP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264740	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285319	INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255047	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210246	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578305	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285265	PIPE FROM PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256962	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285314	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319661	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319349	LIFT SYSTEM DISTRIBUTOR BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319660	LIFT SYSTEM PIPE, REAR SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289483	UNDERBODY LIFT SYSTEM PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324559	PIPE FROM FRONT SECTION TO BLOCK	Enquire	To Order
	318609	PIPE FROM FRONT SECTION TO BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324561	PIPE FROM BLOCK TO RH FRONT WHEEL SECTION	Enquire	To Order
	318611	PIPE FROM BLOCK TO RH FRONT WHEEL SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324560	PIPE FROM BLOCK TO LH FRONT WHEEL SECTION	Enquire	To Order
	318610	PIPE FROM BLOCK TO LH FRONT WHEEL SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275450	PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289025	PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292748	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271902	FRONT RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271901	FRONT LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255048	GROMMET SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291408	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294205	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294206	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272640	COMPL. LIFT SYSTEM INSPECTION COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	267300	DAMPED MOUNT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	284736	ELECTRIC PUMP	284736 ELECTRIC PUMP	-	1	Enquire
2	256502	GASKET	256502 GASKET	-	1	Enquire
3	254931	ADAPTER SOCKET	254931 ADAPTER SOCKET	-	1	Enquire
4	285289	PUMP MOUNTING BRACKET	285289 PUMP MOUNTING BRACKET	-	1	Enquire
5	264740	BUSH	264740 BUSH 40 x 24 mm	-	2	Enquire
6	285319	INSULATION	285319 INSULATION	-	1	Enquire
7	304224	SCREW	304224 SCREW	-	2	Enquire
8	255047	CABLE GROMMET	255047 CABLE GROMMET	-	2	Enquire
9	210246	SCREW	210246 SCREW M8 X 25	-	2	Enquire
10	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
11	13578305	WASHER	13578305 WASHER	-	2	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
13	285265	PIPE FROM PUMP	285265 PIPE FROM PUMP	-	1	Enquire
14	256962	CLIP	256962 CLIP D. 4.7 X 1	-	1	Enquire
15	285314	BRACKET	285314 BRACKET	-	1	Enquire
16	319661	SCREW	319661 SCREW M6 X 30	-	1	Enquire
17	319349	LIFT SYSTEM DISTRIBUTOR BLOCK	319349 LIFT SYSTEM DISTRIBUTOR BLOCK	-	1	Enquire
18	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
19	319660	LIFT SYSTEM PIPE, REAR SECTION	319660 LIFT SYSTEM PIPE, REAR SECTION	-	1	Enquire
20	289483	UNDERBODY LIFT SYSTEM PIPE	289483 UNDERBODY LIFT SYSTEM PIPE	-	1	Enquire
21	324559	PIPE FROM FRONT SECTION TO BLOCK	324559 PIPE FROM FRONT SECTION TO BLOCK Applicable for GD	-	1	Enquire
21	318609	PIPE FROM FRONT SECTION TO BLOCK	318609 PIPE FROM FRONT SECTION TO BLOCK Not for GD	-	1	Enquire
22	324561	PIPE FROM BLOCK TO RH FRONT WHEEL SECTION	324561 PIPE FROM BLOCK TO RH FRONT WHEEL SECTION Applicable for GD	-	1	Enquire
22	318611	PIPE FROM BLOCK TO RH FRONT WHEEL SECTION	318611 PIPE FROM BLOCK TO RH FRONT WHEEL SECTION Not for GD	-	1	Enquire
23	324560	PIPE FROM BLOCK TO LH FRONT WHEEL SECTION	324560 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION Applicable for GD	-	1	Enquire
23	318610	PIPE FROM BLOCK TO LH FRONT WHEEL SECTION	318610 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION Not for GD	-	1	Enquire
24	275450	PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	275450 PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE	-	1	Enquire
25	289025	PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	289025 PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE	-	1	Enquire
26	292748	HEAT SHIELD	292748 HEAT SHIELD	-	1	Enquire
27	85833700	SCREW	85833700 SCREW M5 X 16	-	3	Enquire
28	860172	WASHER	860172 WASHER	-	3	Enquire
29	234284	CLIP	234284 CLIP 1 compartment	-	6	Enquire
30	116374	CLIP	116374 CLIP	-	2	Enquire
31	271902	FRONT RH BRACKET	271902 FRONT RH BRACKET	-	1	Enquire
32	271901	FRONT LH BRACKET	271901 FRONT LH BRACKET	-	1	Enquire
33	85833700	SCREW	85833700 SCREW M5 X 16	-	4	Enquire
34	255048	GROMMET SHIM	255048 GROMMET SHIM	-	2	Enquire
35	234285	CLIP	234285 CLIP 2 compartments	-	1	Enquire
36	291408	CLIP	291408 CLIP Not for GD	-	1	Enquire
37	294205	CLIP	294205 CLIP 1 compartment	-	1	Enquire
38	294206	CLIP	294206 CLIP 2 compartments	-	1	Enquire
39	272640	COMPL. LIFT SYSTEM INSPECTION COVER	272640 COMPL. LIFT SYSTEM INSPECTION COVER	-	1	Enquire
40	85833700	SCREW	85833700 SCREW	-	3	Enquire
41	267300	DAMPED MOUNT	267300 DAMPED MOUNT	-	1	Enquire
