STRUCTURES AND ELEMENTS, REAR OF VEHICLE

Find Your Part

Ferrari F12 TDF - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
319521 REAR SUBFRAME $14,448.39 To Order
Photo Part No Description Price (each) Stock
274204 RH LOWER REAR FLOOR CROSS-PIECE $946.70 To Order
Photo Part No Description Price (each) Stock
274205 LH LOWER REAR FLOOR CROSS-PIECE $946.70 To Order
Photo Part No Description Price (each) Stock
281779 LOWER RH REAR DIAGONAL BRACE $1,128.73 To Order
Photo Part No Description Price (each) Stock
281776 LOWER LH REAR DIAGONAL BRACE $1,267.62 To Order
Photo Part No Description Price (each) Stock
276702 COMPL. RH REAR SEAT BASE UPRIGHT $465.32 To Order
Photo Part No Description Price (each) Stock
276701 COMPL. LH REAR SEAT BASE UPRIGHT $465.32 To Order
Photo Part No Description Price (each) Stock
279618 REAR CROSS-PIECE OF FRONT STEP $355.54 To Order
Photo Part No Description Price (each) Stock
795781 REAR SHELF AND TANK COVER $2,049.82 To Order
Photo Part No Description Price (each) Stock
280180 COMPL. REAR CROSSPIECE OF REAR STEP $722.05 To Order
Photo Part No Description Price (each) Stock
281690 RH UPPER REAR CASTING $3,708.68 To Order
Photo Part No Description Price (each) Stock
281689 LH UPPER REAR CASTING $3,708.68 To Order
Photo Part No Description Price (each) Stock
276657 RH UPPER REAR DIAGONAL BRACE $362.64 To Order
Photo Part No Description Price (each) Stock
276656 LH UPPER REAR DIAGONAL BRACE $362.64 To Order
Photo Part No Description Price (each) Stock
273692 REAR RH STRUT $625.78 To Order
Photo Part No Description Price (each) Stock
273662 REAR LH STRUT $625.78 To Order
Photo Part No Description Price (each) Stock
281819 RH REAR STRUT FLANGE $141.19 To Order
Photo Part No Description Price (each) Stock
281818 LH REAR SPAR FLANGE $108.50 To Order
Photo Part No Description Price (each) Stock
281650 RH CENTRE REAR DIAGONAL BRACE $320.01 To Order
Photo Part No Description Price (each) Stock
281649 LH CENTRE REAR DIAGONAL BRACE $401.34 To Order
Photo Part No Description Price (each) Stock
318683 SERVICES TUB $2,267.28 To Order
Photo Part No Description Price (each) Stock
265936 REAR TORSION BAR MOUNTING BRACKET $27.26 To Order
Photo Part No Description Price (each) Stock
286499 RH LATERAL REAR BENCH PANEL $497.77 To Order
Photo Part No Description Price (each) Stock
286498 LH LATERAL REAR BENCH PANEL $497.77 To Order
Photo Part No Description Price (each) Stock
11343821 SCREW $1.15 To Order
239868 SCREW $16.65 To Order
16288724 SCREW $13.70 To Order
Photo Part No Description Price (each) Stock
128944 WASHER $3.18 To Order
Photo Part No Description Price (each) Stock
281654 RH UPPER STAY $497.41 To Order
Photo Part No Description Price (each) Stock
281653 LH UPPER STAY $497.41 To Order
Photo Part No Description Price (each) Stock
286410 INNER RH SILL FASTENER BRACKET $72.19 To Order
Photo Part No Description Price (each) Stock
286409 INNER LH SILL FASTENER BRACKET $72.19 To Order
Photo Part No Description Price (each) Stock
287666 RH REAR MOUNTING BRACKET $143.33 To Order
Photo Part No Description Price (each) Stock
287665 LH REAR MOUNTING BRACKET $143.33 To Order
Photo Part No Description Price (each) Stock
285864 LH FLEXIBLE REAR BRAKE MOUNTING BRACKET $141.19 To Order
285866 RH FLEXIBLE REAR BRAKE MOUNTING BRACKET $27.21 To Order
Photo Part No Description Price (each) Stock
285981 RH WHEEL BAY COVER $2,038.49 To Order
Photo Part No Description Price (each) Stock
285980 LH WHEEL BAY COVER $2,038.49 To Order
Photo Part No Description Price (each) Stock
284527 COMPL. REAR ACCELEROMETER FASTENER BRACKET $11.54 To Order
Photo Part No Description Price (each) Stock
87403800 CRASH-BOX CROSS MEMBER $1,669.97 To Order
88160300 CRASH-BOX CROSS MEMBER $2,320.75 To Order
Photo Part No Description Price (each) Stock
13046214 NUT $0.39 To Order
View All

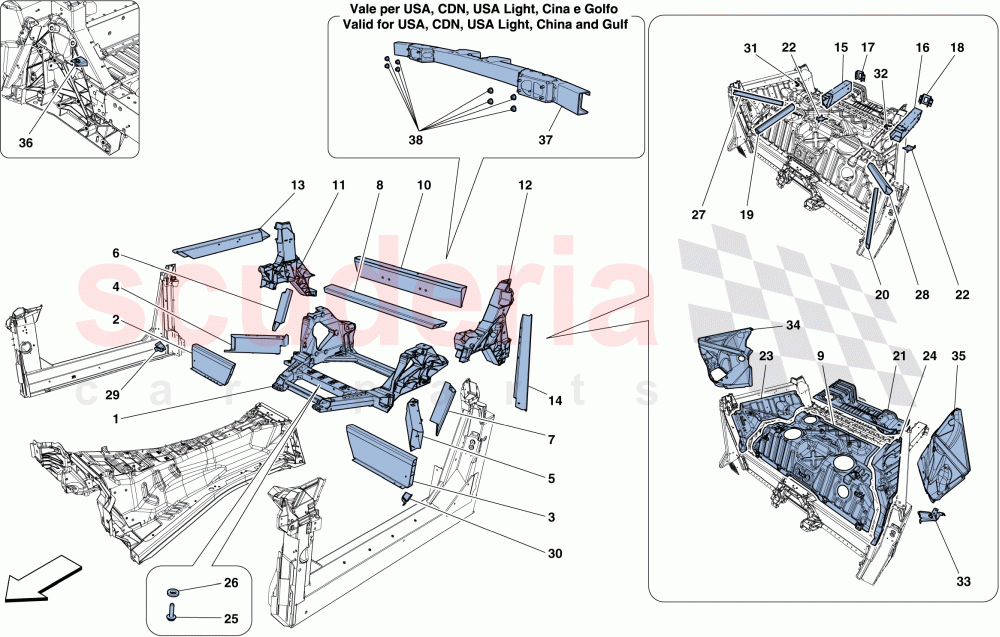

STRUCTURES AND ELEMENTS, REAR OF VEHICLE of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 319521
REAR SUBFRAME 		$14,448.39 1
2 274204
RH LOWER REAR FLOOR CROSS-PIECE 		$946.70 1
3 274205
LH LOWER REAR FLOOR CROSS-PIECE 		$946.70 1
4 281779
LOWER RH REAR DIAGONAL BRACE 		$1,128.73 1
5 281776
LOWER LH REAR DIAGONAL BRACE 		$1,267.62 1
6 276702
COMPL. RH REAR SEAT BASE UPRIGHT 		$465.32 1
7 276701
COMPL. LH REAR SEAT BASE UPRIGHT 		$465.32 1
8 279618
REAR CROSS-PIECE OF FRONT STEP 		$355.54 1
9 795781
REAR SHELF AND TANK COVER 		$2,049.82 1
10 280180
COMPL. REAR CROSSPIECE OF REAR STEP 		$722.05 1
11 281690
RH UPPER REAR CASTING 		$3,708.68 1
12 281689
LH UPPER REAR CASTING 		$3,708.68 1
13 276657
RH UPPER REAR DIAGONAL BRACE 		$362.64 1
14 276656
LH UPPER REAR DIAGONAL BRACE 		$362.64 1
15 273692
REAR RH STRUT 		$625.78 1
16 273662
REAR LH STRUT 		$625.78 (23.7% off) 1
17 281819
RH REAR STRUT FLANGE 		$141.19 1
18 281818
LH REAR SPAR FLANGE 		$108.50 1
19 281650
RH CENTRE REAR DIAGONAL BRACE 		$320.01 1
20 281649
LH CENTRE REAR DIAGONAL BRACE 		$401.34 1
21 318683
SERVICES TUB 		$2,267.28 1
22 265936
REAR TORSION BAR MOUNTING BRACKET 		$27.26 2
23 286499
RH LATERAL REAR BENCH PANEL 		$497.77 1
24 286498
LH LATERAL REAR BENCH PANEL 		$497.77 1
25 11343821
SCREW
M10 X 1.25 X 50; Fastening diagonal gearbox mount to tunnel casting 		$1.15 2
25 239868
SCREW
M12 X 1.75 X 45; Fastening lower rear diagonal brace 		$16.65 2
25 16288724
SCREW
M10 X40; Fastening upper rear suspension mount casting 		$13.70 2
26 128944
WASHER
Fastening diagonal gearbox mount to tunnel casting 		$3.18 2
27 281654
RH UPPER STAY 		$497.41 1
28 281653
LH UPPER STAY 		$497.41 1
29 286410
INNER RH SILL FASTENER BRACKET 		$72.19 1
30 286409
INNER LH SILL FASTENER BRACKET 		$72.19 1
31 287666
RH REAR MOUNTING BRACKET 		$143.33 1
32 287665
LH REAR MOUNTING BRACKET 		$143.33 1
33 285864
LH FLEXIBLE REAR BRAKE MOUNTING BRACKET 		$141.19 1
33 285866
RH FLEXIBLE REAR BRAKE MOUNTING BRACKET 		$27.21 1
34 285981
RH WHEEL BAY COVER 		$2,038.49 1
35 285980
LH WHEEL BAY COVER 		$2,038.49 1
36 284527
COMPL. REAR ACCELEROMETER FASTENER BRACKET 		$11.54 1
37 87403800
CRASH-BOX CROSS MEMBER
Applicable for CINA, GOLFO 		$1,669.97 1
37 88160300
CRASH-BOX CROSS MEMBER
Applicable for USA, CDN, USA LIGHT 		$2,320.75 1
38 13046214
NUT
Applicable for CINA, USA, CDN, GOLFO, USA LIGHT 		$0.39 8
