TUNNEL - SUBSTRUCTURE AND ACCESSORIES of Ferrari Ferrari F12 TDF

View All

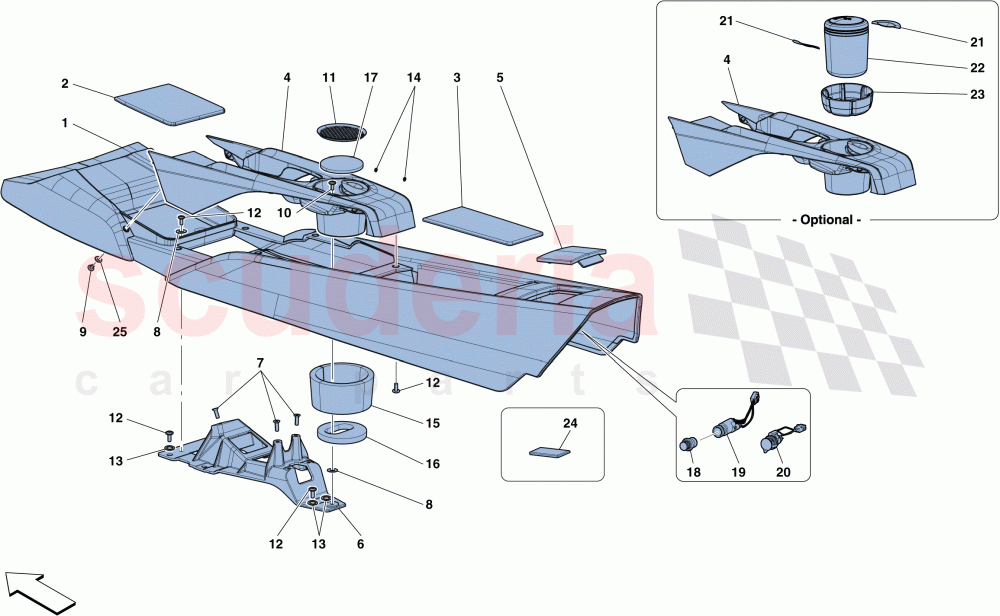

Ferrari F12 TDF - TUNNEL - SUBSTRUCTURE AND ACCESSORIES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87680000	COMPL. CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order
	87377812	COMPL. CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87379300	COMPL. FRONT TRAY LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87379900	COMPL. REAR UNIT TRAY LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87378300	COMPL. UPPER UNIT TRAY	Enquire	To Order
	87518700	COMPL. UPPER UNIT TRAY	Enquire	To Order
	87519300	COMPL. UPPER UNIT TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87680200	COMPL. CONSOLE UNIT TRAY COVER PANEL	Enquire	To Order
	87378700	COMPL. CONSOLE UNIT TRAY COVER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87380000	COSMETIC STRIP MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13311277	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85430300	CERAMIC WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84499100	CUP HOLDER TRAY BASE MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85430300	CERAMIC WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087476	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85280200	LATERAL CUP HOLDER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85280100	LOWER CUP HOLDER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85282600	INNER CUP HOLDER HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66704500	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	183271	CIGARETTE LIGHTER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215406	12 V SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85710800	PROTECTIVE FILM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83003500	ASHTRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85710700	ASHTRAY BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142798	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14446924	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	87680000	COMPL. CENTRE CONSOLE UNIT STRUCTURE	87680000 COMPL. CENTRE CONSOLE UNIT STRUCTURE INTP; Leather; STC1; STC2	-	1	Enquire
1	87377812	COMPL. CENTRE CONSOLE UNIT STRUCTURE	87377812 COMPL. CENTRE CONSOLE UNIT STRUCTURE INTA; Alcantara; STC1; STC2	-	1	Enquire
2	87379300	COMPL. FRONT TRAY LINER	87379300 COMPL. FRONT TRAY LINER INTA; Alcantara	-	1	Enquire
3	87379900	COMPL. REAR UNIT TRAY LINER	87379900 COMPL. REAR UNIT TRAY LINER	-	1	Enquire
4	87378300	COMPL. UPPER UNIT TRAY	87378300 COMPL. UPPER UNIT TRAY Version with telemetry and Apple Car Play	-	1	Enquire
4	87518700	COMPL. UPPER UNIT TRAY	87518700 COMPL. UPPER UNIT TRAY Version with Apple Car Play	-	1	Enquire
4	87519300	COMPL. UPPER UNIT TRAY	87519300 COMPL. UPPER UNIT TRAY	-	1	Enquire
5	87680200	COMPL. CONSOLE UNIT TRAY COVER PANEL	87680200 COMPL. CONSOLE UNIT TRAY COVER PANEL INTP; Leather	-	1	Enquire
5	87378700	COMPL. CONSOLE UNIT TRAY COVER PANEL	87378700 COMPL. CONSOLE UNIT TRAY COVER PANEL INTA; Alcantara	-	1	Enquire
6	87380000	COSMETIC STRIP MOUNTING BRACKET	87380000 COSMETIC STRIP MOUNTING BRACKET	-	1	Enquire
7	13311277	Screw	13311277 Screw M5 X 16	-	3	Enquire
8	85430300	CERAMIC WASHER	85430300 CERAMIC WASHER	-	6	Enquire
9	85833700	SCREW	85833700 SCREW M5 X 10; No longer supplied; Replaced by 14303224	-	2	Enquire
9	14302921	SCREW	14302921 SCREW M4 X 16	-	2	Enquire
10	85833700	SCREW	85833700 SCREW M5 X 12	-	1	Enquire
11	84499100	CUP HOLDER TRAY BASE MAT	84499100 CUP HOLDER TRAY BASE MAT	-	1	Enquire
12	85833700	SCREW	85833700 SCREW M5 X 14	-	21	Enquire
13	85430300	CERAMIC WASHER	85430300 CERAMIC WASHER	-	6	Enquire
14	11087476	SNAP RING	11087476 SNAP RING	-	4	Enquire
15	85280200	LATERAL CUP HOLDER HEAT SHIELD	85280200 LATERAL CUP HOLDER HEAT SHIELD	-	1	Enquire
16	85280100	LOWER CUP HOLDER HEAT SHIELD	85280100 LOWER CUP HOLDER HEAT SHIELD	-	1	Enquire
17	85282600	INNER CUP HOLDER HEAT SHIELD	85282600 INNER CUP HOLDER HEAT SHIELD	-	1	Enquire
18	66704500	CIGARETTE LIGHTER	66704500 CIGARETTE LIGHTER Applicable for smoker's kit	-	1	Enquire
19	183271	CIGARETTE LIGHTER SOCKET	183271 CIGARETTE LIGHTER SOCKET Applicable for smoker's kit	-	1	Enquire
20	215406	12 V SOCKET	215406 12 V SOCKET	-	1	Enquire
21	85710800	PROTECTIVE FILM	85710800 PROTECTIVE FILM Applicable for smoker's kit	-	2	Enquire
22	83003500	ASHTRAY	83003500 ASHTRAY Applicable for smoker's kit	-	1	Enquire
23	85710700	ASHTRAY BASE	85710700 ASHTRAY BASE Applicable for smoker's kit	-	1	Enquire
24	142798	RUBBER SHIM	142798 RUBBER SHIM	-	1	Enquire
25	14446924	WASHER	14446924 WASHER	-	2	Enquire
