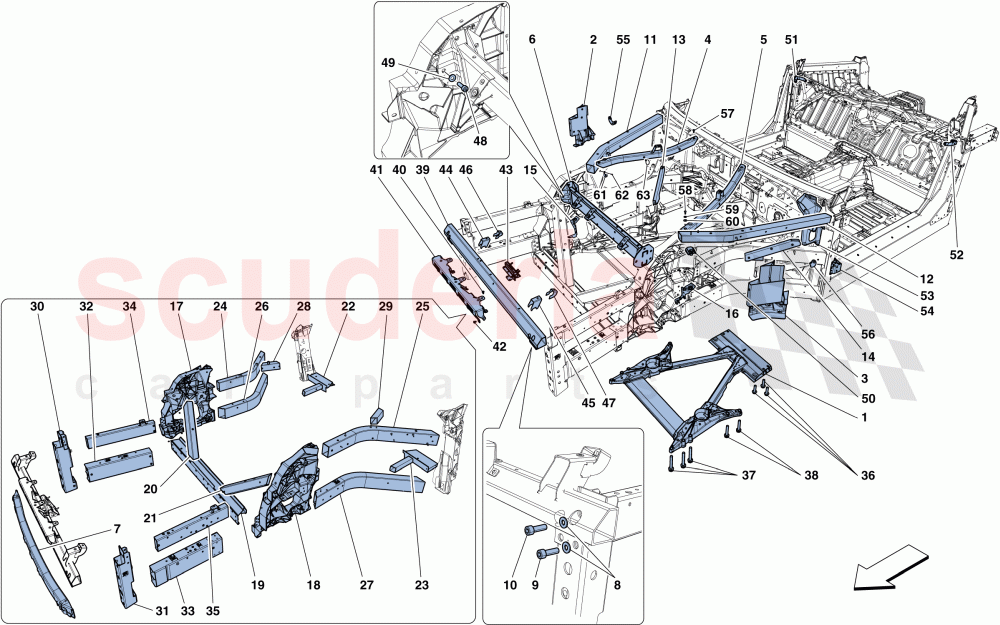

Ferrari F12 Berlinetta - STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985278223	ENGINE SUBFRAME	$14,686.87	To Order

Photo	Part No	Description	Price (each)	Stock
	279757	RH FRONT LOWER	$2,579.95	To Order

Photo	Part No	Description	Price (each)	Stock
	279756	LH FRONT LOWER	$2,899.49	To Order

Photo	Part No	Description	Price (each)	Stock
	278041	RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	$625.78	To Order
	289174	RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	$561.59	To Order

Photo	Part No	Description	Price (each)	Stock
	278040	LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	$625.78	To Order
	293657	LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	832844	COMPL. FRONT CROSS MEMBER	$759.72	To Order

Photo	Part No	Description	Price (each)	Stock
	12646704	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	278045	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$786.24	To Order
	293651	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$1,267.62	To Order

Photo	Part No	Description	Price (each)	Stock
	278044	LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$786.24	To Order
	293659	LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	270672	CONNECTION BETWEEN PILLAR AND RH FRONT LOWER	$199.18	To Order

Photo	Part No	Description	Price (each)	Stock
	270670	CONNECTION BETWEEN PILLAR AND LH FRONT LOWER	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	277853	LH FRONT SUSPENSION MOUNT CASTING	$9,146.19	To Order
	290886	LH FRONT SUSPENSION MOUNT CASTING	$9,144.59	To Order

Photo	Part No	Description	Price (each)	Stock
	277854	RH FRONT SUSPENSION MOUNT CASTING	$7,226.75	To Order
	290891	RH FRONT SUSPENSION MOUNT CASTING	$7,811.80	To Order

Photo	Part No	Description	Price (each)	Stock
	292301	FRONT SUBFRAME CROSS-MEMBER	$818.33	To Order

Photo	Part No	Description	Price (each)	Stock
	273384	RH FRONT DIAGONAL SUBFRAME BRACE	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	293665	LH FRONT DIAGONAL SUBFRAME BRACE	$573.36	To Order
	281312	LH FRONT DIAGONAL SUBFRAME BRACE	$301.00	To Order

Photo	Part No	Description	Price (each)	Stock
	292691	RH LOWER EXTRUSION	$320.90	To Order
	281627	LOWER RH EXTRUSION	$818.33	To Order

Photo	Part No	Description	Price (each)	Stock
	281628	LOWER LH EXTRUSION	$818.33	To Order
	292692	LH LOWER EXTRUSION	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	274299	RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	$1,251.57	To Order
	293653	RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	$573.36	To Order

Photo	Part No	Description	Price (each)	Stock
	274282	LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	$994.83	To Order
	291607	LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	273379	LOWER RH DIAGONAL FIREWALL BRACE	$867.91	To Order
	293717	LOWER RH DIAGONAL FIREWALL BRACE	$722.05	To Order

Photo	Part No	Description	Price (each)	Stock
	281551	LOWER LH DIAGONAL FIREWALL BRACE	$1,091.11	To Order
	293716	LOWER LH DIAGONAL FIREWALL BRACE	$722.05	To Order

Photo	Part No	Description	Price (each)	Stock
	276432	RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	$298.80	To Order

Photo	Part No	Description	Price (each)	Stock
	276429	LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	$320.90	To Order
	291615	LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	277806	RH FRONT CRASH BOX CROSS MEMBER STRUT	$1,219.48	To Order

Photo	Part No	Description	Price (each)	Stock
	281789	LH FRONT CRASH BOX CROSS MEMBER STRUT	$1,219.48	To Order

Photo	Part No	Description	Price (each)	Stock
	292357	RH LOWER FRONT STRUT	$930.65	To Order

Photo	Part No	Description	Price (each)	Stock
	281316	LH LOWER FRONT STRUT	$930.65	To Order

Photo	Part No	Description	Price (each)	Stock
	281813	RH UPPER FRONT STRUT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	281814	LH UPPER FRONT STRUT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	299582	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	271283	SCREW	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	277723	SCREW	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	84905800	FRONT BUMPER CROSS-MEMBER	$1,146.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14645690	RIVET	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	84315900	BUMPER SHELF CROSS MEMBER	$850.42	To Order

Photo	Part No	Description	Price (each)	Stock
	14645690	RIVET	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	84337900	LID LOCK FASTENER BRACKET	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	84926500	RH LATERAL BUMPER MOUNTING BRACKET	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	84926600	LH LATERAL BUMPER MOUNTING BRACKET	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	84904100	FRONT FASTENER BRACKET FOR RH ENGINE COMPARTMENT COVER	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	84904300	FRONT FASTENER BRACKET FOR LH ENGINE COMPARTMENT COVER	$372.69	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	284518	FRONT ACCELEROMETER FASTENER BRACKET	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	286137	BRACKET FOR RH BELT GUIDE	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	286136	BRACKET FOR LH BELT RETRACTOR	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	273894	LH OUTER FIREWALL ENDPIECE	$141.19	To Order
	273911	RH OUTER FIREWALL ENDPIECE	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	273220	LH FRONT DOOR LOWER HINGE MOUNTING	$497.41	To Order
	273211	RH FRONT DOOR LOWER HINGE MOUNTING	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	84931800	UPPER REAR BRACKET FOR RH FRONT FENDER	$11.15	To Order

Photo	Part No	Description	Price (each)	Stock
	84931900	UPPER REAR BRACKET FOR LH FRONT FENDER	$11.15	To Order

Photo	Part No	Description	Price (each)	Stock
	16044434	SCREW	$1.85	To Order
	16043634	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	16044334	SCREW	$8.14	To Order
	16043634	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	985278223	ENGINE SUBFRAME	985278223 ENGINE SUBFRAME	$14,686.87	1
2	279757	RH FRONT LOWER	279757 RH FRONT LOWER	$2,579.95	1
3	279756	LH FRONT LOWER	279756 LH FRONT LOWER	$2,899.49	1
4	278041	RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	278041 RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Not for GD	$625.78	1
4	289174	RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	289174 RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Applicable for GD	$561.59	1
5	278040	LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	278040 LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Not for GD	$625.78	1
5	293657	LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	293657 LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Applicable for GD	$433.23	1
7	832844	COMPL. FRONT CROSS MEMBER	832844 COMPL. FRONT CROSS MEMBER	$759.72	1
8	12646704	WASHER	12646704 WASHER	$0.11	8
9	13028734	SCREW	13028734 SCREW M8 X 25	$0.53 MSRP: ~~2.25~~ (76.4% off)	4
10	13028734	SCREW	13028734 SCREW M8 X 25	$0.53 MSRP: ~~2.25~~ (76.4% off)	4
11	278045	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	278045 RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE Not for GD	$786.24	1
11	293651	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	293651 RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE Applicable for GD	$1,267.62	1
12	278044	LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	278044 LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE Not for GD	$786.24	1
12	293659	LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	293659 LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE Applicable for GD	$433.23	1
13	270672	CONNECTION BETWEEN PILLAR AND RH FRONT LOWER	270672 CONNECTION BETWEEN PILLAR AND RH FRONT LOWER	$199.18	1
14	270670	CONNECTION BETWEEN PILLAR AND LH FRONT LOWER	270670 CONNECTION BETWEEN PILLAR AND LH FRONT LOWER	$256.72	1
17	277853	LH FRONT SUSPENSION MOUNT CASTING	277853 LH FRONT SUSPENSION MOUNT CASTING ; Not for GD	$9,146.19	1
17	290886	LH FRONT SUSPENSION MOUNT CASTING	290886 LH FRONT SUSPENSION MOUNT CASTING ; Applicable for GD	$9,144.59	1
18	277854	RH FRONT SUSPENSION MOUNT CASTING	277854 RH FRONT SUSPENSION MOUNT CASTING ; Not for GD	$7,226.75	1
18	290891	RH FRONT SUSPENSION MOUNT CASTING	290891 RH FRONT SUSPENSION MOUNT CASTING ; Applicable for GD	$7,811.80	1
19	292301	FRONT SUBFRAME CROSS-MEMBER	292301 FRONT SUBFRAME CROSS-MEMBER	$818.33	1
20	273384	RH FRONT DIAGONAL SUBFRAME BRACE	273384 RH FRONT DIAGONAL SUBFRAME BRACE	$372.69	1
21	293665	LH FRONT DIAGONAL SUBFRAME BRACE	293665 LH FRONT DIAGONAL SUBFRAME BRACE ; Applicable for GD	$573.36	1
21	281312	LH FRONT DIAGONAL SUBFRAME BRACE	281312 LH FRONT DIAGONAL SUBFRAME BRACE ; Not for GD	$301.00	1
22	292691	RH LOWER EXTRUSION	292691 RH LOWER EXTRUSION ; Applicable for GD	$320.90	1
22	281627	LOWER RH EXTRUSION	281627 LOWER RH EXTRUSION ; Not for GD	$818.33	1
23	281628	LOWER LH EXTRUSION	281628 LOWER LH EXTRUSION ; Not for GD	$818.33	1
23	292692	LH LOWER EXTRUSION	292692 LH LOWER EXTRUSION ; Applicable for GD	$320.90	1
24	274299	RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	274299 RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE ; Not for GD	$1,251.57	1
24	293653	RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	293653 RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE ; Applicable for GD	$573.36	1
25	274282	LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	274282 LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE ; Not for GD	$994.83	1
25	291607	LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	291607 LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE ; Applicable for GD	$497.41	1
26	273379	LOWER RH DIAGONAL FIREWALL BRACE	273379 LOWER RH DIAGONAL FIREWALL BRACE ; Not for GD	$867.91	1
26	293717	LOWER RH DIAGONAL FIREWALL BRACE	293717 LOWER RH DIAGONAL FIREWALL BRACE ; Applicable for GD	$722.05	1
27	281551	LOWER LH DIAGONAL FIREWALL BRACE	281551 LOWER LH DIAGONAL FIREWALL BRACE ; Not for GD	$1,091.11	1
27	293716	LOWER LH DIAGONAL FIREWALL BRACE	293716 LOWER LH DIAGONAL FIREWALL BRACE ; Applicable for GD	$722.05	1
28	276432	RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	276432 RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	$298.80	1
29	276429	LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	276429 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE ; Not for GD	$320.90	1
29	291615	LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	291615 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE ; Applicable for GD	$433.23	1
30	277806	RH FRONT CRASH BOX CROSS MEMBER STRUT	277806 RH FRONT CRASH BOX CROSS MEMBER STRUT	$1,219.48	1
31	281789	LH FRONT CRASH BOX CROSS MEMBER STRUT	281789 LH FRONT CRASH BOX CROSS MEMBER STRUT	$1,219.48	1
32	292357	RH LOWER FRONT STRUT	292357 RH LOWER FRONT STRUT	$930.65	1
33	281316	LH LOWER FRONT STRUT	281316 LH LOWER FRONT STRUT	$930.65	1
34	281813	RH UPPER FRONT STRUT	281813 RH UPPER FRONT STRUT	$224.63	1
35	281814	LH UPPER FRONT STRUT	281814 LH UPPER FRONT STRUT	$224.63	1
36	299582	SCREW	299582 SCREW M10 X 1.25 X 40	$1.36	6
37	271283	SCREW	271283 SCREW M10 X 1.25 X 70	$6.26	6
38	277723	SCREW	277723 SCREW M10 X 1.25 X 55	$6.26	4
39	84905800	FRONT BUMPER CROSS-MEMBER	84905800 FRONT BUMPER CROSS-MEMBER	$1,146.75	1
40	14645690	RIVET	14645690 RIVET	$0.34	7
41	84315900	BUMPER SHELF CROSS MEMBER	84315900 BUMPER SHELF CROSS MEMBER	$850.42	1
42	14645690	RIVET	14645690 RIVET	$0.34	11
43	84337900	LID LOCK FASTENER BRACKET	84337900 LID LOCK FASTENER BRACKET	$147.61	1
44	84926500	RH LATERAL BUMPER MOUNTING BRACKET	84926500 RH LATERAL BUMPER MOUNTING BRACKET	$97.86	1
45	84926600	LH LATERAL BUMPER MOUNTING BRACKET	84926600 LH LATERAL BUMPER MOUNTING BRACKET	$97.86	1
46	84904100	FRONT FASTENER BRACKET FOR RH ENGINE COMPARTMENT COVER	84904100 FRONT FASTENER BRACKET FOR RH ENGINE COMPARTMENT COVER	$372.69	1
47	84904300	FRONT FASTENER BRACKET FOR LH ENGINE COMPARTMENT COVER	84904300 FRONT FASTENER BRACKET FOR LH ENGINE COMPARTMENT COVER	$372.69	1
48	13028734	SCREW	13028734 SCREW M8 X 25	$0.53 MSRP: ~~2.25~~ (76.4% off)	8
49	84653800	WASHER	84653800 WASHER	$5.75	8
50	284518	FRONT ACCELEROMETER FASTENER BRACKET	284518 FRONT ACCELEROMETER FASTENER BRACKET	$10.89	2
51	286137	BRACKET FOR RH BELT GUIDE	286137 BRACKET FOR RH BELT GUIDE	$286.67	1
52	286136	BRACKET FOR LH BELT RETRACTOR	286136 BRACKET FOR LH BELT RETRACTOR	$286.67	1
53	273894	LH OUTER FIREWALL ENDPIECE	273894 LH OUTER FIREWALL ENDPIECE	$141.19	1
53	273911	RH OUTER FIREWALL ENDPIECE	273911 RH OUTER FIREWALL ENDPIECE	$141.19	1
54	273220	LH FRONT DOOR LOWER HINGE MOUNTING	273220 LH FRONT DOOR LOWER HINGE MOUNTING	$497.41	1
54	273211	RH FRONT DOOR LOWER HINGE MOUNTING	273211 RH FRONT DOOR LOWER HINGE MOUNTING	$497.41	1
55	84931800	UPPER REAR BRACKET FOR RH FRONT FENDER	84931800 UPPER REAR BRACKET FOR RH FRONT FENDER	$11.15	1
56	84931900	UPPER REAR BRACKET FOR LH FRONT FENDER	84931900 UPPER REAR BRACKET FOR LH FRONT FENDER	$11.15	1
57	16044434	SCREW	16044434 SCREW M8 X 60	$1.85	2
57	16043634	SCREW	16043634 SCREW M8 X 25	$0.23	2
58	16044334	SCREW	16044334 SCREW M8 X 55	$8.14	2
58	16043634	SCREW	16043634 SCREW M8 X 25	$0.23	2
59	84653800	WASHER	84653800 WASHER	$5.75	8
60	84653800	WASHER	84653800 WASHER	$5.75	8
61	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH	$0.70 MSRP: ~~1.70~~ (58.8% off)	3
62	231619	SCREW	231619 SCREW M6 X 18	$0.31	3
63	303385	CLIP	303385 CLIP	$0.31	1

GREENHOUSE

STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

STRUCTURES AND ELEMENTS, REAR OF VEHICLE

CHASSIS COMPLETION

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
