Ferrari Enzo - DASHBOARD

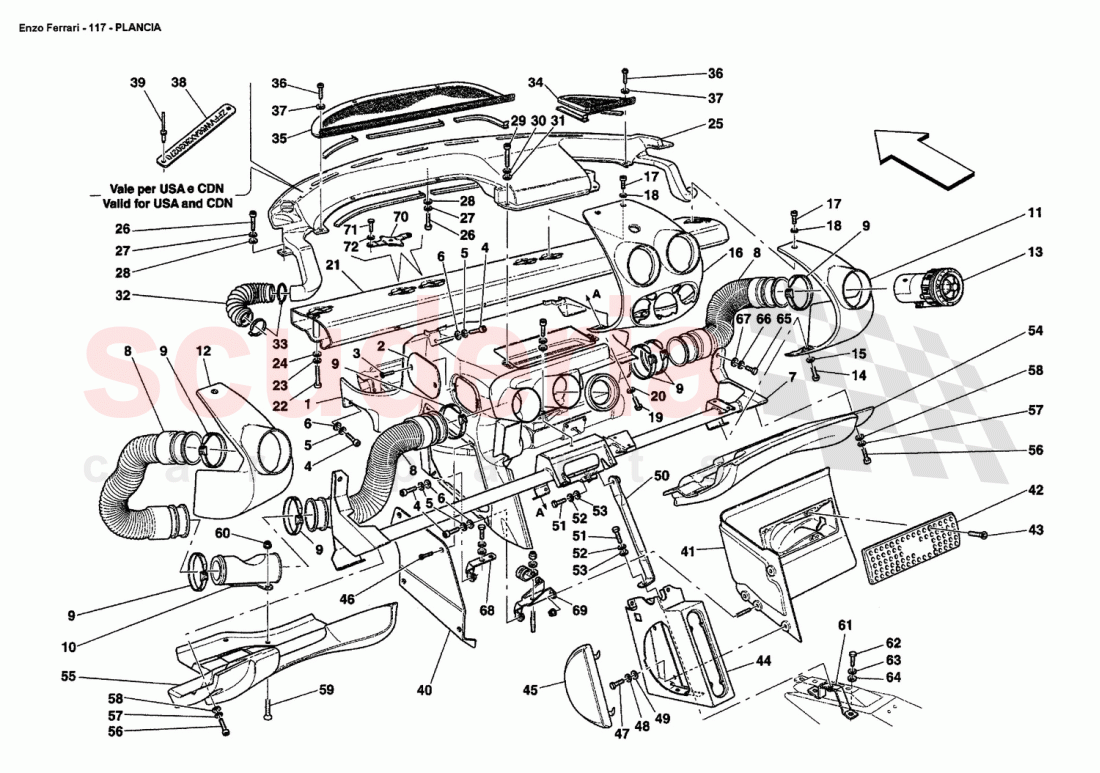

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66756100	HEATER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66756300	COVER FOR INSPECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13299477	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16132324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66582000	DASHBOARD FRAMEWORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67208400	AIR OUTLET WRINKLED HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196655	CLAMP.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67555100	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66849700	R.H. SIDE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66849800	L.H. SIDE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67382400	DASHBOARD AIR VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66849900	CENTRAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67254900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66577500	DASHBOARD CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66752000	AIR DIFFUSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644477	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13577724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67296900	WRINKLED HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105550	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66762500	R.H. NET COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66762600	L.H. NET COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67507900	CAR ID NUMER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14643590	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66756200	ACCELERATOR SIDE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66954800	FOOT REST FOR PASSENGER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66122200	FOOT REST TRIM RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65847800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66806000	CENTRAL CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	667939	KNEE PROTECT LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10979424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67198200	REINFORCEMENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	667569	PASSENGER SIDE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	667570	PILOT SIDE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644478	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67584100	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65253400	SCREW TBEI M 6X 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67198500	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66928400	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66955600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66953200	COVERS UPPER FIXING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	67056000	INSTRUMENT UPPER FIXING CLIP	67056000 INSTRUMENT UPPER FIXING CLIP	-	2	Enquire
-	667653	LINING	667653 LINING	-	1	Enquire
-	667654	LINING	667654 LINING	-	1	Enquire
-	668092	LINING	668092 LINING	-	1	Enquire
1	66756100	HEATER COVER	66756100 HEATER COVER	-	1	Enquire
2	66756300	COVER FOR INSPECTION	66756300 COVER FOR INSPECTION	-	1	Enquire
3	13299477	SCREW	13299477 SCREW	-	2	Enquire
4	16132324	SCREW	16132324 SCREW	-	5	Enquire
5	13577724	WASHER	13577724 WASHER	-	5	Enquire
6	12643724	WASHER	12643724 WASHER	-	5	Enquire
7	66582000	DASHBOARD FRAMEWORK	66582000 DASHBOARD FRAMEWORK	-	1	Enquire
8	67208400	AIR OUTLET WRINKLED HOSE	67208400 AIR OUTLET WRINKLED HOSE	-	3	Enquire
9	196655	CLAMP.	196655 CLAMP.	-	7	Enquire
10	67555100	SLEEVE	67555100 SLEEVE	-	1	Enquire
11	66849700	R.H. SIDE SHIELD	66849700 R.H. SIDE SHIELD	-	1	Enquire
12	66849800	L.H. SIDE SHIELD	66849800 L.H. SIDE SHIELD	-	1	Enquire
13	67382400	DASHBOARD AIR VENT	67382400 DASHBOARD AIR VENT	-	4	Enquire
14	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	4	Enquire
15	12643724	WASHER	12643724 WASHER	-	4	Enquire
16	66849900	CENTRAL COVER	66849900 CENTRAL COVER	-	1	Enquire
17	67254900	SCREW	67254900 SCREW	-	4	Enquire
18	12639724	WASHER	12639724 WASHER	-	4	Enquire
19	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	2	Enquire
20	12643724	WASHER	12643724 WASHER	-	2	Enquire
21	66577500	DASHBOARD CROSS MEMBER	66577500 DASHBOARD CROSS MEMBER	-	1	Enquire
22	231620	SCREW	231620 SCREW	-	2	Enquire
23	12643724	WASHER	12643724 WASHER	-	2	Enquire
24	12643724	WASHER	12643724 WASHER	-	2	Enquire
25	66752000	AIR DIFFUSER	66752000 AIR DIFFUSER	-	1	Enquire
26	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	3	Enquire
27	12644477	WASHER	12644477 WASHER	-	3	Enquire
28	12643724	WASHER	12643724 WASHER	-	3	Enquire
29	231620	SCREW	231620 SCREW	-	2	Enquire
30	13577724	WASHER	13577724 WASHER	-	2	Enquire
31	12643724	WASHER	12643724 WASHER	-	2	Enquire
32	67296900	WRINKLED HOSE	67296900 WRINKLED HOSE	-	2	Enquire
33	105550	CLAMP	105550 CLAMP	-	4	Enquire
34	66762500	R.H. NET COVER	66762500 R.H. NET COVER	-	1	Enquire
35	66762600	L.H. NET COVER	66762600 L.H. NET COVER	-	1	Enquire
36	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM	-	7	Enquire
37	62769800	WASHER	62769800 WASHER	-	7	Enquire
38	67507900	CAR ID NUMER PLATE	67507900 CAR ID NUMER PLATE Valid for USA	-	1	Enquire
39	14643590	RIVET	14643590 RIVET Valid for USA	-	2	Enquire
40	66756200	ACCELERATOR SIDE COVER	66756200 ACCELERATOR SIDE COVER	-	1	Enquire
41	66954800	FOOT REST FOR PASSENGER COVER	66954800 FOOT REST FOR PASSENGER COVER COVER	-	1	Enquire
42	66122200	FOOT REST TRIM RHD	66122200 FOOT REST TRIM RHD	-	1	Enquire
43	65847800	SCREW	65847800 SCREW	-	4	Enquire
44	66806000	CENTRAL CONSOLE	66806000 CENTRAL CONSOLE	-	1	Enquire
45	667939	KNEE PROTECT LINING	667939 KNEE PROTECT LINING	-	1	Enquire
46	14305234	SCREW	14305234 SCREW	-	4	Enquire
47	10979424	SCREW	10979424 SCREW	-	2	Enquire
48	12643724	WASHER	12643724 WASHER	-	2	Enquire
49	12643724	WASHER	12643724 WASHER	-	2	Enquire
50	67198200	REINFORCEMENT PIPE	67198200 REINFORCEMENT PIPE	-	1	Enquire
51	14306924	SCREW	14306924 SCREW	-	2	Enquire
52	14496524	WASHER	14496524 WASHER	-	2	Enquire
53	12601374	WASHER	12601374 WASHER	-	2	Enquire
54	667569	PASSENGER SIDE LINING	667569 PASSENGER SIDE LINING	-	1	Enquire
55	667570	PILOT SIDE LINING	667570 PILOT SIDE LINING	-	1	Enquire
56	14305234	SCREW	14305234 SCREW	-	8	Enquire
57	12644478	WASHER	12644478 WASHER	-	8	Enquire
58	67584100	WASHER	67584100 WASHER	-	8	Enquire
59	65253400	SCREW TBEI M 6X 25	65253400 SCREW TBEI M 6X 25	-	2	Enquire
60	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
61	67198500	LOWER BRACKET	67198500 LOWER BRACKET	-	1	Enquire
62	14306924	SCREW	14306924 SCREW	-	2	Enquire
63	14496524	WASHER	14496524 WASHER	-	2	Enquire
64	12601374	WASHER	12601374 WASHER	-	2	Enquire
65	14306924	SCREW	14306924 SCREW	-	2	Enquire
66	12601374	WASHER	12601374 WASHER	-	2	Enquire
67	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	2	Enquire
68	66928400	LOWER BRACKET	66928400 LOWER BRACKET	-	1	Enquire
69	66955600	BRACKET	66955600 BRACKET	-	1	Enquire
70	66953200	COVERS UPPER FIXING CLIP	66953200 COVERS UPPER FIXING CLIP	-	4	Enquire
71	13272011	SCREW	13272011 SCREW	-	12	Enquire
72	11181474	WASHER	11181474 WASHER	-	12	Enquire
