Front Suspension - Shock Absorber And Stabilizer Bar

Ferrari Enzo

Find Your Part

Ferrari Enzo - FRONT SUSPENSION - SHOCK ABSORBER AND STABILIZER BAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
186085 FRONT SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
185804 SUSPENSION SPRING Enquire To Order
Photo Part No Description Price (each) Stock
174725 RING NUT, SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
174726 THREADED RING NUT Enquire To Order
Photo Part No Description Price (each) Stock
174728 SHOCK ABSORBER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
187702 SPRING RETAINING UPPER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
157630 BALL JOINT Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
245623 UPPER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
181408 LOWER SPACER Enquire To Order
Photo Part No Description Price (each) Stock
149354 BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
194143 FLEXIBLE RING Enquire To Order
Photo Part No Description Price (each) Stock
197135 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock

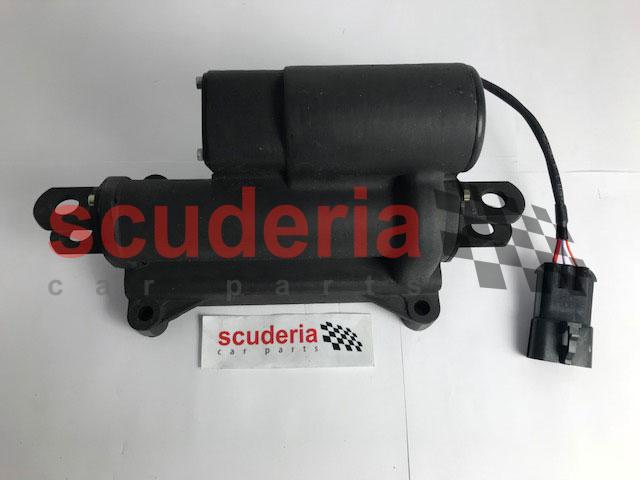

189930 Suspension Lift Motor Enquire To Order
Photo Part No Description Price (each) Stock
153320 PIN Enquire To Order
Photo Part No Description Price (each) Stock
133216 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14499304 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
189144 FIXING SMALL PLATE Enquire To Order
Photo Part No Description Price (each) Stock
192654 SHIELD AND SUPPORT TANK Enquire To Order
Photo Part No Description Price (each) Stock
192018 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
132876 NUT -As an alternative- Enquire To Order
Photo Part No Description Price (each) Stock
10732531 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
150082 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
169310 BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
148772 BALL JOINT PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
147985 NUT Enquire To Order
Photo Part No Description Price (each) Stock
195101 ANTI VIBRATIONS Enquire To Order
Photo Part No Description Price (each) Stock
10788714 NUT Enquire To Order
Photo Part No Description Price (each) Stock
186078 SHACKLE FOR STABILIZER BAR Enquire To Order
Photo Part No Description Price (each) Stock
11690914 NUT Enquire To Order
Photo Part No Description Price (each) Stock
169311 LOWER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
169309 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
151663 PIN Enquire To Order
Photo Part No Description Price (each) Stock
151662 ARM FOR STABILIZER BAR Enquire To Order
Photo Part No Description Price (each) Stock
149939 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT M8 FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
151642 BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
194693 FRONT ANTI ROLL BAR Enquire To Order
Photo Part No Description Price (each) Stock
197752 PROTECTION SHEATH Enquire To Order
View All

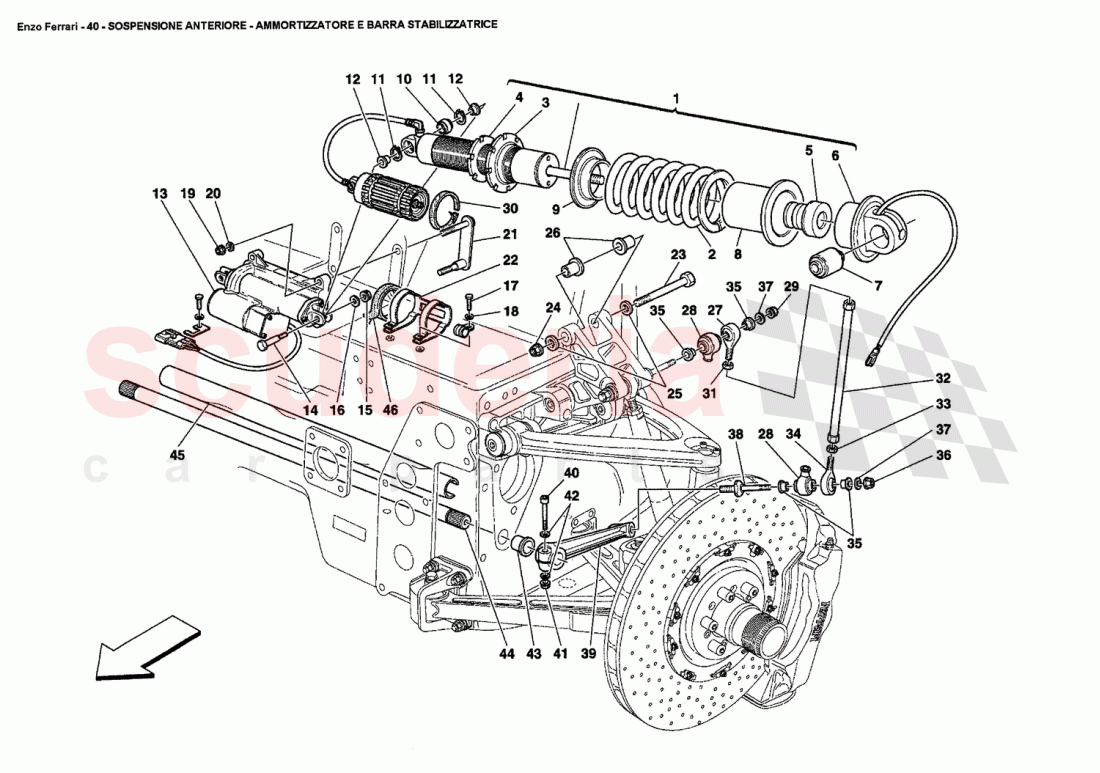

FRONT SUSPENSION - SHOCK ABSORBER AND STABILIZER BAR of Ferrari Ferrari Enzo Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 186085
FRONT SHOCK ABSORBER 		- 2 Enquire
2 185804
SUSPENSION SPRING 		- 2 Enquire
3 174725
RING NUT, SHOCK ABSORBER 		- 2 Enquire
4 174726
THREADED RING NUT 		- 2 Enquire
5 174728
SHOCK ABSORBER BUSHING 		- 2 Enquire
6 187702
SPRING RETAINING UPPER SPACER
SPACER 		- 2 Enquire
7 157630
BALL JOINT
ARRIVING SOON 		- 2 Enquire
8 245623
UPPER SPACER 		- 2 Enquire
9 181408
LOWER SPACER 		- 2 Enquire
10 149354
BALL JOINT 		- 2 Enquire
11 194143
FLEXIBLE RING 		- 4 Enquire
12 197135
BUSHING 		- 4 Enquire
13 189930
Suspension Lift Motor 		- 1 Enquire
14 153320
PIN 		- 2 Enquire
15 133216
NUT 		- 2 Enquire
16 12601474
WAVY WASHER 10MM 		- 2 Enquire
17 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER 		- 4 Enquire
18 14499304
WASHER 		- 4 Enquire
19 14040711
NUT M8 FLANGED 		- 4 Enquire
20 12638524
WASHER 		- 4 Enquire
21 189144
FIXING SMALL PLATE 		- 2 Enquire
22 192654
SHIELD AND SUPPORT TANK 		- 2 Enquire
23 192018
SCREW 		- 2 Enquire
24 132876
NUT -As an alternative- 		- 2 Enquire
25 10732531
WASHER 		- 4 Enquire
26 150082
BUSHING 		- 4 Enquire
27 169310
BALL JOINT 		- 2 Enquire
28 148772
BALL JOINT PROTECTION 		- 4 Enquire
29 147985
NUT 		- 2 Enquire
30 195101
ANTI VIBRATIONS 		- 4 Enquire
31 10788714
NUT 		- 2 Enquire
32 186078
SHACKLE FOR STABILIZER BAR
BAR 		- 2 Enquire
33 11690914
NUT 		- 2 Enquire
34 169311
LOWER BALL JOINT 		- 2 Enquire
35 169309
BUSHING 		- 8 Enquire
36 14040711
NUT M8 FLANGED 		- 2 Enquire
37 12638524
WASHER 		- 4 Enquire
38 151663
PIN 		- 2 Enquire
39 151662
ARM FOR STABILIZER BAR 		- 2 Enquire
40 149939
SCREW 		- 2 Enquire
41 14040711
NUT M8 FLANGED 		- 2 Enquire
42 12638524
WASHER 		- 4 Enquire
43 151642
BUSHING 		- 2 Enquire
44 194693
FRONT ANTI ROLL BAR 		- 1 Enquire
45 197752
PROTECTION SHEATH 		- 1 Enquire
