ELECTRONIC ACCELERATOR PEDAL of Ferrari Ferrari Enzo

View All

Ferrari Enzo - ELECTRONIC ACCELERATOR PEDAL

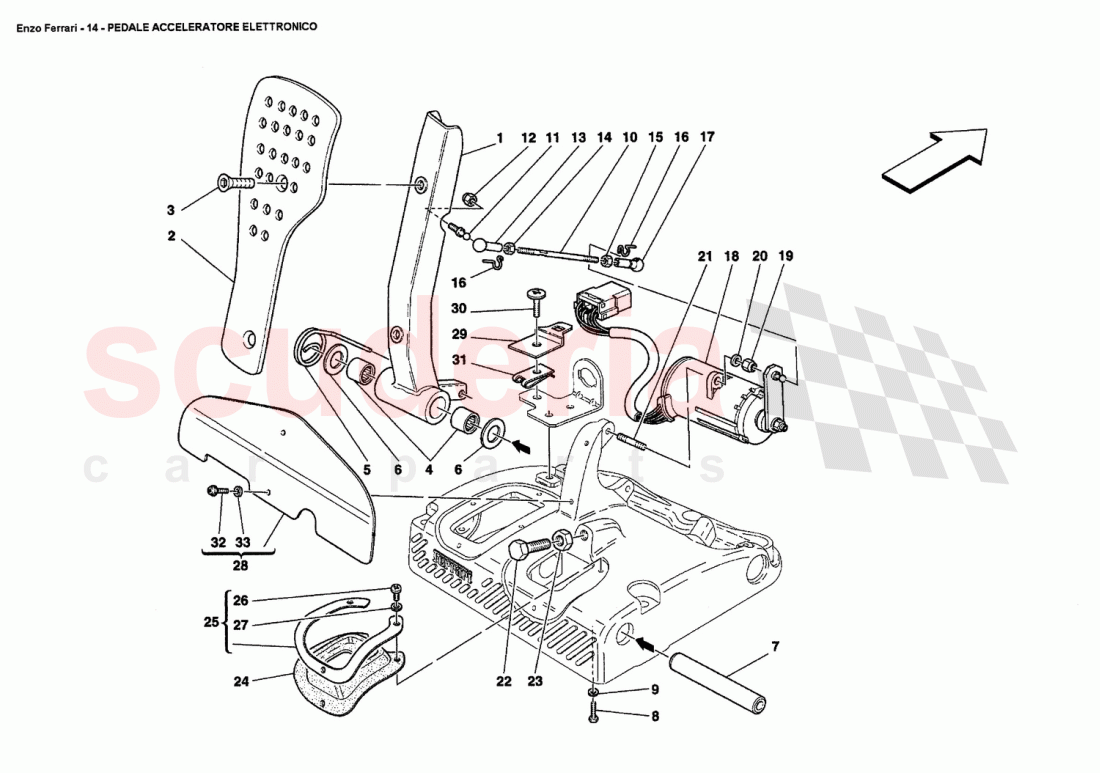

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	186047	ACCELERATOR PEDAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192618	ACCELERATOR PEDAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101677	ROLLER BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175351	PEDAL RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171468	ROLLER BEARING CAGE TRACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171466	ACCELERATOR COMMAND CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15151911	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173999	BALL-JOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105586	LEFT NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174001	SPRING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	174000	BALL-JOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170038	Accelerator Potentiometer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13586124	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186802	ACCLERATOR PEDAL BELLOWS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186800	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271872	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193121	AESTHETIC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170925	CONNECTOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14071914	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83851800	BRACKET FOR SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271872	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	193708	ACCELERATOR PEDAL COVER	193708 ACCELERATOR PEDAL COVER As an alternative /	-	1	Enquire
1	186047	ACCELERATOR PEDAL	186047 ACCELERATOR PEDAL	-	1	Enquire
2	192618	ACCELERATOR PEDAL COVER	192618 ACCELERATOR PEDAL COVER	-	1	Enquire
3	14441424	SCREW	14441424 SCREW	-	2	Enquire
4	101677	ROLLER BEARING	101677 ROLLER BEARING	-	2	Enquire
5	175351	PEDAL RETURN SPRING	175351 PEDAL RETURN SPRING	-	1	Enquire
6	84653800	WASHER	84653800 WASHER	-	2	Enquire
7	171468	ROLLER BEARING CAGE TRACK	171468 ROLLER BEARING CAGE TRACK	-	1	Enquire
8	10977724	SCREW	10977724 SCREW	-	1	Enquire
9	11181574	WASHER	11181574 WASHER	-	1	Enquire
10	171466	ACCELERATOR COMMAND CONNECTOR	171466 ACCELERATOR COMMAND CONNECTOR	-	1	Enquire
11	15151911	PIN	15151911 PIN	-	1	Enquire
12	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	1	Enquire
13	173999	BALL-JOINT HEAD	173999 BALL-JOINT HEAD	-	1	Enquire
14	15896470	NUT	15896470 NUT	-	1	Enquire
15	105586	LEFT NUT	105586 LEFT NUT	-	1	Enquire
16	174001	SPRING CLIP	174001 SPRING CLIP	-	2	Enquire
17	174000	BALL-JOINT HEAD	174000 BALL-JOINT HEAD	-	1	Enquire
18	170038	Accelerator Potentiometer	170038 Accelerator Potentiometer POTENTIOMETER	-	1	Enquire
19	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
20	12639724	WASHER	12639724 WASHER	-	2	Enquire
21	13586124	STUD	13586124 STUD	-	2	Enquire
22	16043634	SCREW	16043634 SCREW	-	1	Enquire
23	16102314	NUT	16102314 NUT	-	1	Enquire
24	186802	ACCLERATOR PEDAL BELLOWS	186802 ACCLERATOR PEDAL BELLOWS BELLOWS	-	1	Enquire
25	186800	PLATE	186800 PLATE	-	1	Enquire
26	13271872	SCREW	13271872 SCREW	-	3	Enquire
27	11181474	WASHER	11181474 WASHER	-	3	Enquire
28	193121	AESTHETIC SHIELD	193121 AESTHETIC SHIELD	-	1	Enquire
29	170925	CONNECTOR FASTENER BRACKET	170925 CONNECTOR FASTENER BRACKET	-	1	Enquire
30	14071914	SCREW	14071914 SCREW	-	1	Enquire

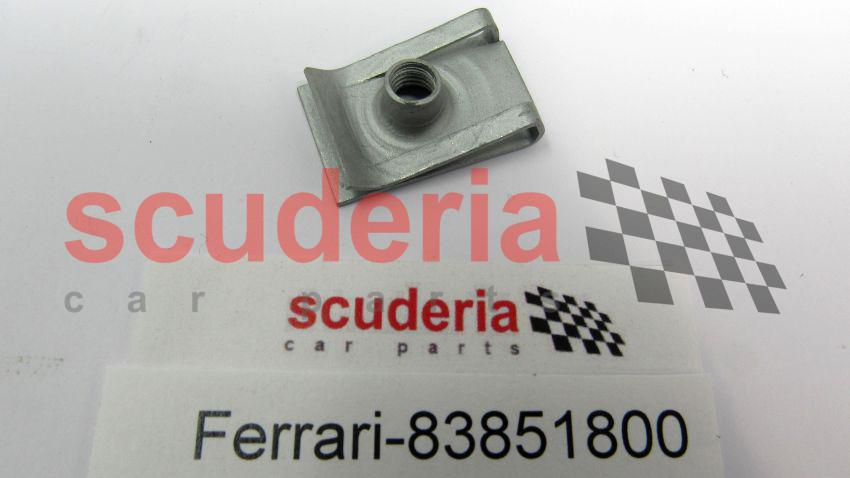

31	83851800	BRACKET FOR SCREW	83851800 BRACKET FOR SCREW	-	1	Enquire
32	13271872	SCREW	13271872 SCREW	-	2	Enquire
33	11181474	WASHER	11181474 WASHER	-	2	Enquire
