Name: FRONT SEATS - RACING SEAT
Rating: 5.0 (1 reviews)

FRONT SEATS - RACING SEAT of Ferrari Ferrari Daytona SP3 Europe

View All

Ferrari Daytona SP3 Europe - FRONT SEATS - RACING SEAT

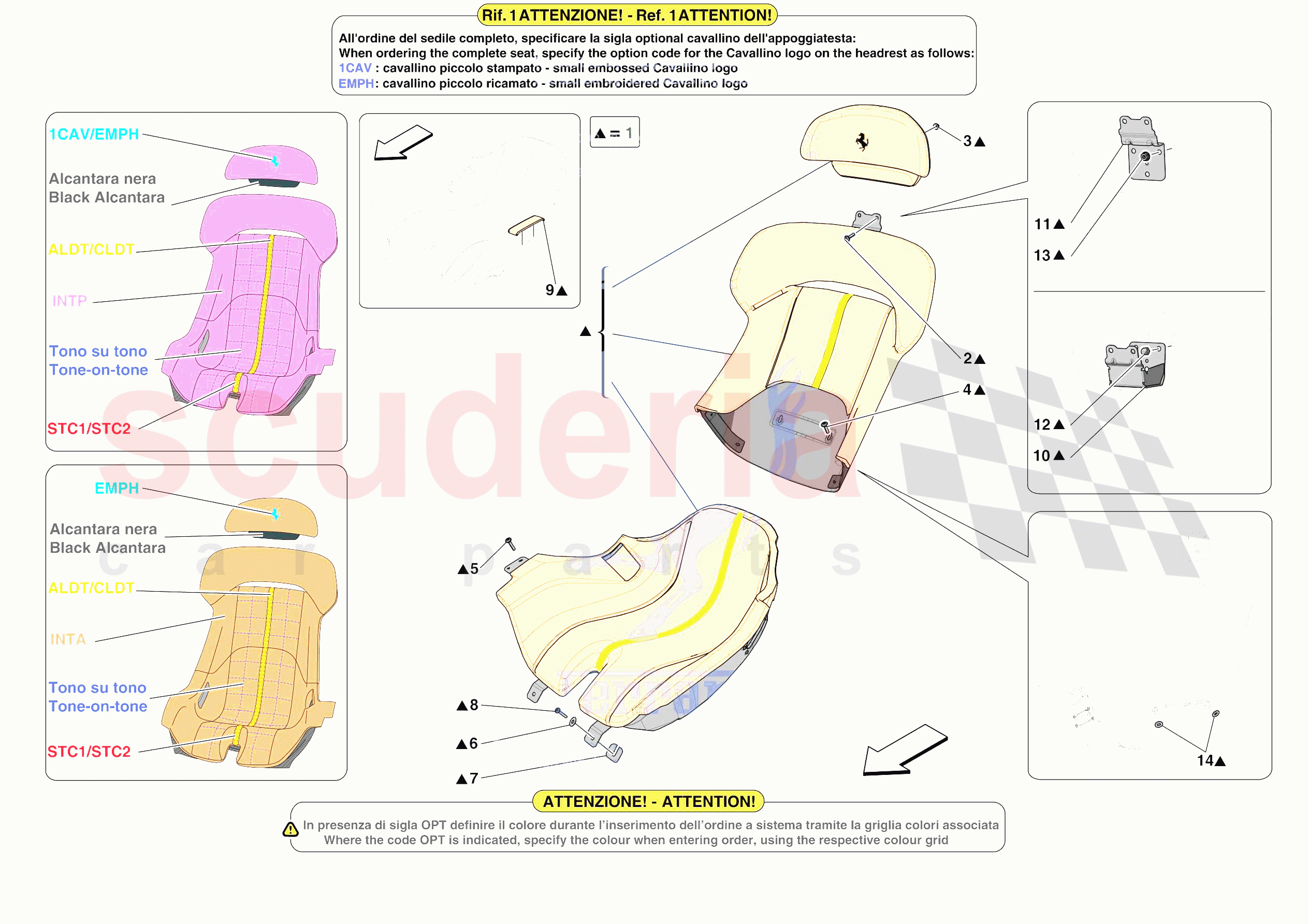

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	900956	COMPL. LH SEAT	Enquire	To Order
	950566	COMPL. LH SEAT	Enquire	To Order
	913753	COMPL. LH SEAT	Enquire	To Order

...and 69 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	80874100	SCREW	$1.10	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	80874100	SCREW	$1.10	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	89324200	WASHER	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	948852	LOWER SEAT SHIM	$12.17	To Order
	948853	LOWER SEAT SHIM	$17.18	To Order
	948854	LOWER SEAT SHIM	$20.05	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86276300	SCREW	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	797026	CENTRE SEAT INSERT	$415.69	To Order
	951504	CENTRE SEAT INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	976646	UPPER BACKREST BRACKET	$215.00	To Order
	976647	UPPER BACKREST BRACKET	$215.00	To Order
	976648	UPPER BACKREST BRACKET	$215.00	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	976650	UPPER BACKREST BRACKET	$94.59	To Order

Photo	Part No	Description	Price (each)	Stock
	987138	CAP NUT	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	987139	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	988464	SPACER	Enquire	To Order
	988470	SPACER	$20.24	To Order
	988472	SPACER	$20.24	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	900956	COMPL. LH SEAT	900956 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 25 degrees	-	1	Enquire
0001	950566	COMPL. LH SEAT	950566 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version; 25 degrees	-	1	Enquire
0001	913753	COMPL. LH SEAT	913753 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 25 degrees	-	1	Enquire
0001	944130	COMPL. LH SEAT	944130 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 25 degrees	-	1	Enquire
0001	950568	COMPL. LH SEAT	950568 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version; 25 degrees	-	1	Enquire
0001	944645	COMPL. LH SEAT	944645 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 25 degrees	-	1	Enquire
0001	788934	COMPL. LH SEAT	788934 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 25 degrees	-	1	Enquire
0001	950567	COMPL. LH SEAT	950567 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version; 25 degrees	-	1	Enquire
0001	913637	COMPL. LH SEAT	913637 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 25 degrees	-	1	Enquire
0001	944137	COMPL. LH SEAT	944137 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 25 degrees	-	1	Enquire
0001	950569	COMPL. LH SEAT	950569 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version; 25 degrees	-	1	Enquire
0001	944647	COMPL. LH SEAT	944647 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 25 degrees	-	1	Enquire
0001	900979	COMPL. LH SEAT	900979 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 27 degrees	-	1	Enquire
0001	950552	COMPL. LH SEAT	950552 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version; 27 degrees	-	1	Enquire
0001	913733	COMPL. LH SEAT	913733 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 27 degrees	-	1	Enquire
0001	944157	COMPL. LH SEAT	944157 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 27 degrees	-	1	Enquire
0001	950558	COMPL. LH SEAT	950558 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version; 27 degrees	-	1	Enquire
0001	944660	COMPL. LH SEAT	944660 COMPL. LH SEAT Medium - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 27 degrees	-	1	Enquire
0001	788941	COMPL. LH SEAT	788941 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 27 degrees	-	1	Enquire
0001	950555	COMPL. LH SEAT	950555 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version; 27 degrees	-	1	Enquire
0001	913652	COMPL. LH SEAT	913652 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 27 degrees	-	1	Enquire
0001	944165	COMPL. LH SEAT	944165 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 27 degrees	-	1	Enquire
0001	950559	COMPL. LH SEAT	950559 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version; 27 degrees	-	1	Enquire
0001	944663	COMPL. LH SEAT	944663 COMPL. LH SEAT Medium - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 27 degrees	-	1	Enquire
0001	900878	COMPL. LH SEAT	900878 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 27 degrees	-	1	Enquire
0001	950570	COMPL. LH SEAT	950570 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version; 27 degrees	-	1	Enquire
0001	913762	COMPL. LH SEAT	913762 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 27 degrees	-	1	Enquire
0001	944144	COMPL. LH SEAT	944144 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 27 degrees	-	1	Enquire
0001	950572	COMPL. LH SEAT	950572 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version; 27 degrees	-	1	Enquire
0001	944654	COMPL. LH SEAT	944654 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 27 degrees	-	1	Enquire
0001	788915	COMPL. LH SEAT	788915 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 27 degrees	-	1	Enquire
0001	950571	COMPL. LH SEAT	950571 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version; 27 degrees	-	1	Enquire
0001	913759	COMPL. LH SEAT	913759 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 27 degrees	-	1	Enquire
0001	944152	COMPL. LH SEAT	944152 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 27 degrees	-	1	Enquire
0001	950573	COMPL. LH SEAT	950573 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version; 27 degrees	-	1	Enquire
0001	944658	COMPL. LH SEAT	944658 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 27 degrees	-	1	Enquire
0001	900942	COMPL. LH SEAT	900942 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 29 degrees	-	1	Enquire
0001	950562	COMPL. LH SEAT	950562 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version; 29 degrees	-	1	Enquire
0001	913726	COMPL. LH SEAT	913726 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 29 degrees	-	1	Enquire
0001	944177	COMPL. LH SEAT	944177 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 29 degrees	-	1	Enquire
0001	950564	COMPL. LH SEAT	950564 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version; 29 degrees	-	1	Enquire
0001	944664	COMPL. LH SEAT	944664 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 29 degrees	-	1	Enquire
0001	788921	COMPL. LH SEAT	788921 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 29 degrees	$45,727.83	1
0001	950563	COMPL. LH SEAT	950563 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version; 29 degrees	$45,727.83	1
0001	913554	COMPL. LH SEAT	913554 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 29 degrees	-	1	Enquire
0001	944183	COMPL. LH SEAT	944183 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 29 degrees	-	1	Enquire
0001	950565	COMPL. LH SEAT	950565 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version; 29 degrees	-	1	Enquire
0001	944666	COMPL. LH SEAT	944666 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 29 degrees	-	1	Enquire
0001	900990	COMPL. LH SEAT	900990 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 32 degrees	-	1	Enquire
0001	950574	COMPL. LH SEAT	950574 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version; 32 degrees	-	1	Enquire
0001	913639	COMPL. LH SEAT	913639 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 32 degrees	-	1	Enquire
0001	944103	COMPL. LH SEAT	944103 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 32 degrees	-	1	Enquire
0001	950560	COMPL. LH SEAT	950560 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version; 32 degrees	-	1	Enquire
0001	944627	COMPL. LH SEAT	944627 COMPL. LH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 32 degrees	-	1	Enquire
0001	788945	COMPL. LH SEAT	788945 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 32 degrees	$40,460.74	1
0001	950556	COMPL. LH SEAT	950556 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version; 32 degrees	-	1	Enquire
0001	913583	COMPL. LH SEAT	913583 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 32 degrees	-	1	Enquire
0001	944118	COMPL. LH SEAT	944118 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 32 degrees	-	1	Enquire
0001	950561	COMPL. LH SEAT	950561 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version; 32 degrees	-	1	Enquire
0001	944641	COMPL. LH SEAT	944641 COMPL. LH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 32 degrees	-	1	Enquire
0001	901000	COMPL. RH SEAT	901000 COMPL. RH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 32 degrees	-	1	Enquire
0001	950554	COMPL. RH SEAT	950554 COMPL. RH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version; 32 degrees	-	1	Enquire
0001	913635	COMPL. RH SEAT	913635 COMPL. RH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 32 degrees	-	1	Enquire
0001	944111	COMPL. RH SEAT	944111 COMPL. RH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 32 degrees	-	1	Enquire
0001	950577	COMPL. RH SEAT	950577 COMPL. RH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version; 32 degrees	-	1	Enquire
0001	944632	COMPL. RH SEAT	944632 COMPL. RH SEAT Large - Leather - INTP - ALDT - CLDT - EMPH - 1CAV - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 32 degrees	-	1	Enquire
0001	788949	COMPL. RH SEAT	788949 COMPL. RH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Not for J-RHD; 32 degrees	$45,727.83	1
0001	950553	COMPL. RH SEAT	950553 COMPL. RH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version; 32 degrees	$45,727.83	1
0001	913749	COMPL. RH SEAT	913749 COMPL. RH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Gloss finish carbon version - Applicable for J-RHD; 32 degrees	-	1	Enquire
0001	944123	COMPL. RH SEAT	944123 COMPL. RH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Not for J-RHD; 32 degrees	-	1	Enquire
0001	950557	COMPL. RH SEAT	950557 COMPL. RH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version; 32 degrees	-	1	Enquire
0001	944643	COMPL. RH SEAT	944643 COMPL. RH SEAT Large - Alcantara - INTA - ALDT - CLDT - EMPH - STC1 - STC2 - Matte finish carbon version - Applicable for J-RHD; 32 degrees	-	1	Enquire
0002	80874100	SCREW ARRIVING SOON	80874100 SCREW M6 X 18 ARRIVING SOON	$1.10 MSRP: ~~1.25~~ (12% off)	3
0003	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$0.28 MSRP: ~~0.50~~ (44% off)	6
0004	86574700	SCREW	86574700 SCREW M6 X 16	$0.71	4
0005	80874100	SCREW ARRIVING SOON	80874100 SCREW M6 X 18 ARRIVING SOON	$1.10 MSRP: ~~1.25~~ (12% off)	3
0006	89324200	WASHER	89324200 WASHER	$0.66	4
0007	948852	LOWER SEAT SHIM	948852 LOWER SEAT SHIM Th. 0.5 mm	$12.17	4
0007	948853	LOWER SEAT SHIM	948853 LOWER SEAT SHIM Th. 2 mm	$17.18	4
0007	948854	LOWER SEAT SHIM	948854 LOWER SEAT SHIM Th. 3 mm	$20.05	4
0007	948855	LOWER SEAT SHIM	948855 LOWER SEAT SHIM Th. 4 mm	$22.92	4
0008	86276300	SCREW	86276300 SCREW M6 X 20	$3.91	4
0009	797026	CENTRE SEAT INSERT	797026 CENTRE SEAT INSERT INTP for leather colour selection; INTP	$415.69	1
0009	951504	CENTRE SEAT INSERT	951504 CENTRE SEAT INSERT INTA for colour selection of Alcantara; INTA	-	1	Enquire
0010	976646	UPPER BACKREST BRACKET	976646 UPPER BACKREST BRACKET Applicable for driver seat; Applicable for size M 25Â°	$215.00	1
0010	976647	UPPER BACKREST BRACKET	976647 UPPER BACKREST BRACKET Applicable for driver seat; Applicable for size M 27Â°	$215.00	1
0010	976648	UPPER BACKREST BRACKET	976648 UPPER BACKREST BRACKET Applicable for driver seat; Applicable for size L 27Â°	$215.00	1
0010	976649	UPPER BACKREST BRACKET	976649 UPPER BACKREST BRACKET Applicable for driver seat; Applicable for size L 29Â°	$215.00	1
0011	976650	UPPER BACKREST BRACKET	976650 UPPER BACKREST BRACKET Applicable for driver and passenger seats; Applicable for size L 32Â°	$94.59	1
0012	987138	CAP NUT	987138 CAP NUT Applicable for sizes M 25Â° M 27Â° L 27Â° L 29Â°	$0.81	3
0013	987139	NUT	987139 NUT Applicable for size L 32Â°	-	3	Enquire
0014	988464	SPACER	988464 SPACER Applicable for size M 25Â°	-	2	Enquire
0014	988470	SPACER	988470 SPACER Applicable for size L 27Â°	$20.24	2
0014	988472	SPACER	988472 SPACER Applicable for size L 29Â°	$20.24	2
