MANUAL DCT GEARBOX LOCK RELEASE CONTROL of Ferrari Ferrari California (2012-2014)

View All

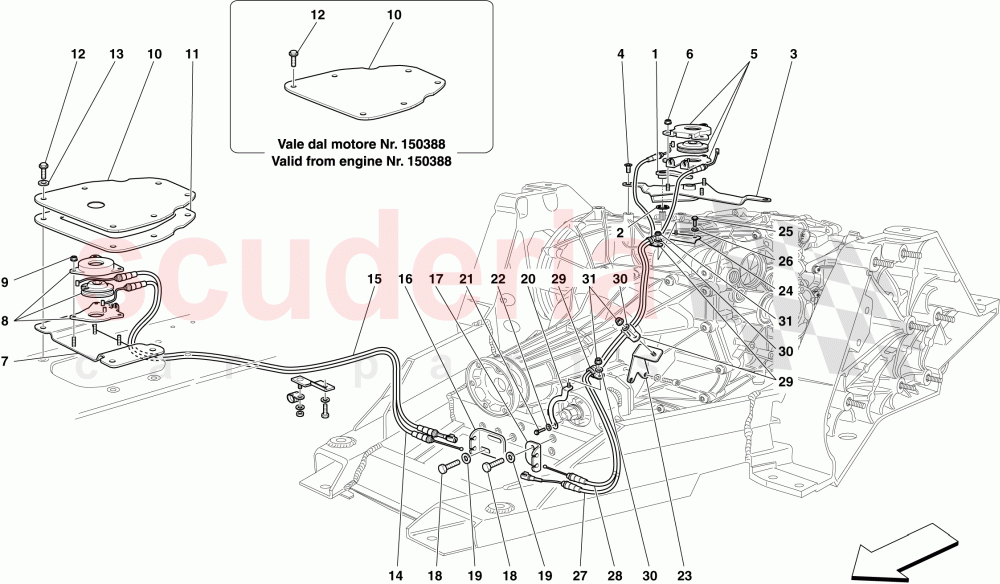

Ferrari California (2012-2014) - MANUAL DCT GEARBOX LOCK RELEASE CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243151	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252665	COMPL. RELEASE CARRIAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14048511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252543	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252665	COMPL. RELEASE CARRIAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14048511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251261	PLATE	Enquire	To Order
	245942	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251260	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256224	CAR SIDE LOCK CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256222	CAR SIDE RELEASE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252531	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250768	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253788	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253786	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253785	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043324	SCREW M8 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256223	CAR SIDE LOCK CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	256221	GEARBOX SIDE RELEASE CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	-	1	Enquire
2	11066176	SEEGER RING	11066176 SEEGER RING	-	1	Enquire
3	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	310524 COMPL. RELEASE CURSOR MOUNTING BRACKET	-	1	Enquire
4	243151	SCREW	243151 SCREW	-	2	Enquire
5	252665	COMPL. RELEASE CARRIAGE	252665 COMPL. RELEASE CARRIAGE Applicable up to engine No. 150387	-	1	Enquire
6	14048511	NUT	14048511 NUT Applicable up to engine No. 150387	-	3	Enquire
7	252543	BRACKET	252543 BRACKET Applicable up to engine No. 150387	-	1	Enquire
8	252665	COMPL. RELEASE CARRIAGE	252665 COMPL. RELEASE CARRIAGE Applicable up to engine No. 150387	-	1	Enquire
9	14048511	NUT	14048511 NUT Applicable up to engine No. 150387	-	3	Enquire
10	251261	PLATE	251261 PLATE Applicable up to engine No. 150387	-	1	Enquire
10	245942	PLATE	245942 PLATE Applicable from engine No. 150388	-	1	Enquire
11	251260	GASKET	251260 GASKET Applicable up to engine No. 150387	-	1	Enquire
12	10902424	SCREW	10902424 SCREW Applicable up to engine No. 150387	-	6	Enquire
12	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 Applicable from engine No. 150388	-	4	Enquire
13	14498801	WASHER	14498801 WASHER Applicable up to engine No. 150387	-	6	Enquire
14	256224	CAR SIDE LOCK CABLE	256224 CAR SIDE LOCK CABLE Applicable up to engine No. 150387	-	1	Enquire
15	256222	CAR SIDE RELEASE CABLE	256222 CAR SIDE RELEASE CABLE Applicable up to engine No. 150387	-	1	Enquire
16	252531	BRACKET	252531 BRACKET Applicable up to engine No. 150387	-	1	Enquire
17	250768	BRACKET	250768 BRACKET Applicable up to engine No. 150387	-	1	Enquire
18	81911600	SCREW	81911600 SCREW Applicable up to engine No. 150387	-	5	Enquire
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable up to engine No. 150387	-	5	Enquire
20	253788	BRACKET	253788 BRACKET Applicable up to engine No. 150387	-	1	Enquire
21	13026924	SCREW	13026924 SCREW Applicable up to engine No. 150387	-	1	Enquire
22	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 Applicable up to engine No. 150387	-	1	Enquire
23	253786	BRACKET	253786 BRACKET Applicable up to engine No. 150387	-	1	Enquire
24	253785	BRACKET	253785 BRACKET Applicable up to engine No. 150387	-	1	Enquire
25	16043324	SCREW M8 X 18	16043324 SCREW M8 X 18 Applicable up to engine No. 150387	-	1	Enquire
26	14499421	WASHER	14499421 WASHER Applicable up to engine No. 150387	-	1	Enquire
27	256223	CAR SIDE LOCK CABLE	256223 CAR SIDE LOCK CABLE Applicable up to engine No. 150387	-	1	Enquire
28	256221	GEARBOX SIDE RELEASE CABLE	256221 GEARBOX SIDE RELEASE CABLE Applicable up to engine No. 150387	-	1	Enquire
29	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH Applicable up to engine No. 150387	-	3	Enquire
30	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 No longer supplied	-	3	Enquire
31	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable up to engine No. 150387	-	3	Enquire
