Name: CENTRAL STRUCTURAL FRAMES AND SHEET PANELS
Rating: 5.0 (1 reviews)

View All

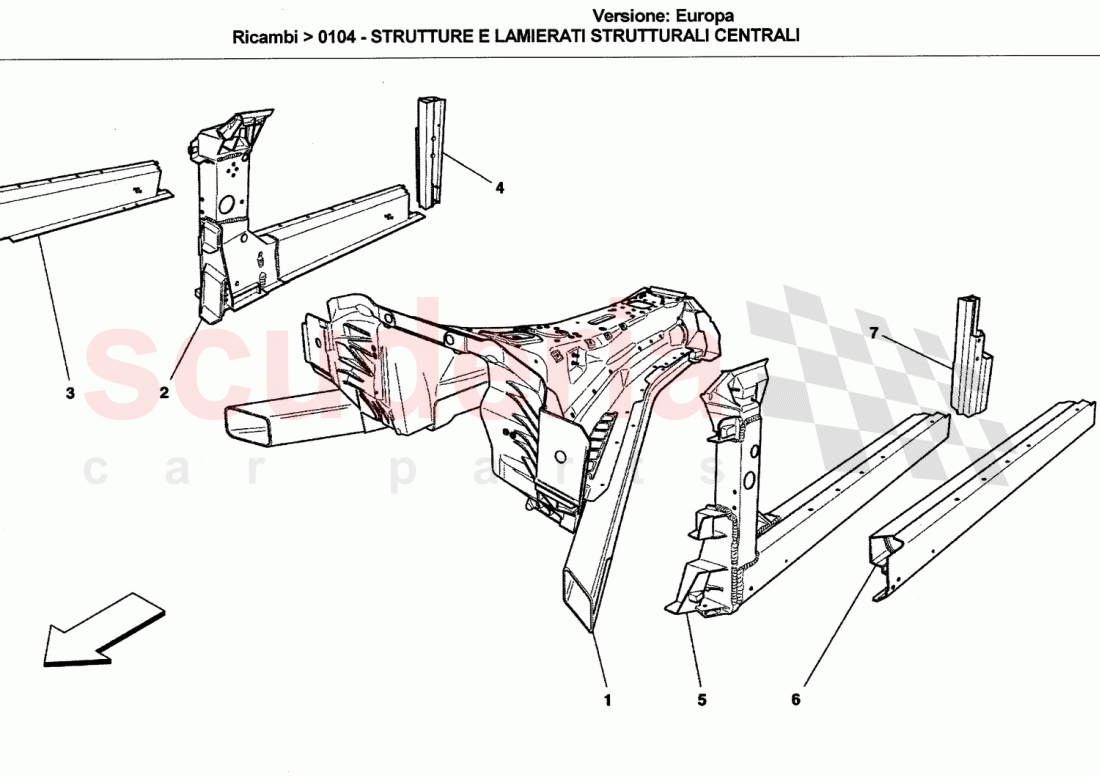

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985242174	RH. REAR VERTICAL ROD	$946.70	To Order

Photo	Part No	Description	Price (each)	Stock
	985261499	LH. CENTRAL SIDE SHIELD	$10,038.35	To Order

Photo	Part No	Description	Price (each)	Stock
	985261502	COMPLETE L.H. CROSS MEMBER	$4,253.77	To Order

Photo	Part No	Description	Price (each)	Stock
	985242175	LH. REAR VERTICAL ROD	$946.70	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	985256369	TUNNEL	985256369 TUNNEL	$8,063.09	1
1	985246967	TUNNEL	985246967 TUNNEL	$8,063.09	1
2	985261503	R.H. CENTRAL SIDEWALL	985261503 R.H. CENTRAL SIDEWALL	$10,038.35	1
2	985262123	R.H. CENTRAL SIDEWALL	985262123 R.H. CENTRAL SIDEWALL	$10,038.35	1
3	985262122	COMPLETE R.H. CROSS MEMBER	985262122 COMPLETE R.H. CROSS MEMBER	$7,422.86	1
3	985261506	COMPLETE R.H. CROSS MEMBER	985261506 COMPLETE R.H. CROSS MEMBER	$4,253.77	1
4	985242174	RH. REAR VERTICAL ROD	985242174 RH. REAR VERTICAL ROD	$946.70	1
5	985261499	LH. CENTRAL SIDE SHIELD	985261499 LH. CENTRAL SIDE SHIELD	$10,038.35	1
6	985261502	COMPLETE L.H. CROSS MEMBER	985261502 COMPLETE L.H. CROSS MEMBER	$4,253.77	1
7	985242175	LH. REAR VERTICAL ROD	985242175 LH. REAR VERTICAL ROD	$946.70	1
