TRASMISSION HOUSING FOR DCT GEARBOX of Ferrari Ferrari California (2008-2011)

View All

Ferrari California (2008-2011) - TRASMISSION HOUSING FOR DCT GEARBOX

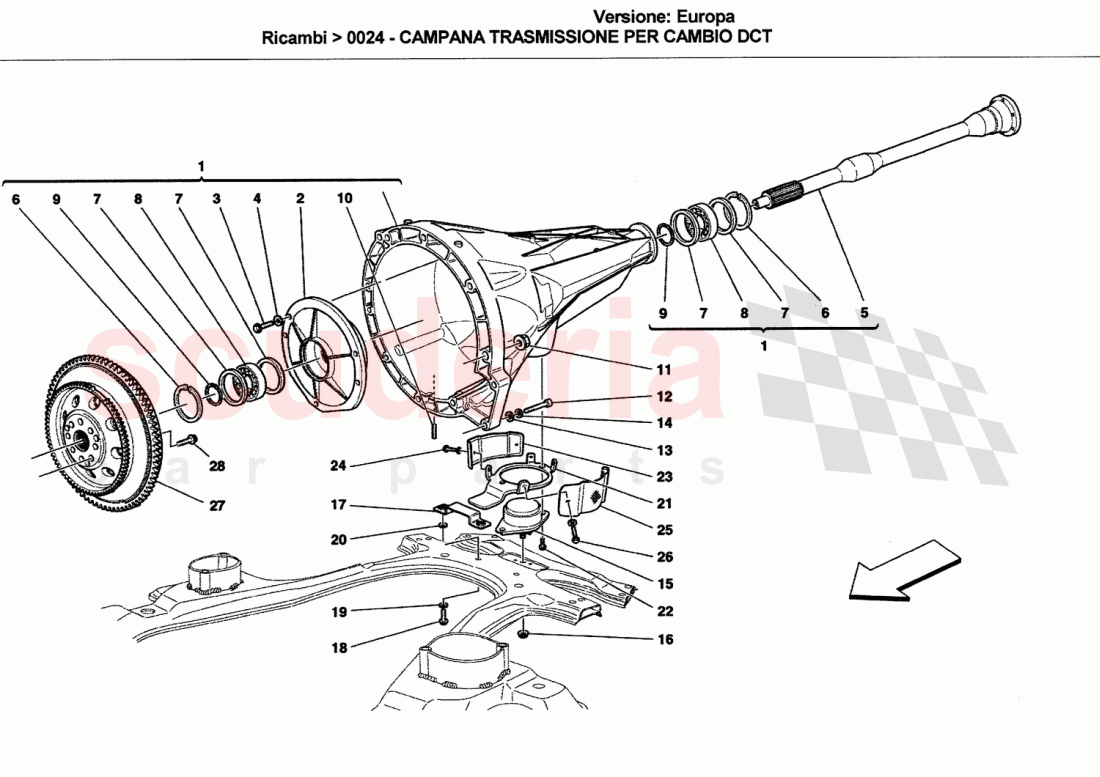

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	269701	COMPL. TRANSMISSION HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251921	TRANSMISSION HOUSING FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	259096	TRANSMISSION HOUSING SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11062474	SNAP RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	253627	RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	253629	COMPLETE BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11068874	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14309024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	270812	Elastic Bushing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177018	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	242080	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15970724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	249048	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246930	R.H. SHIELD FOR PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13833224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246931	L.H. SHIELD FOR PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13833224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285262	ENGINE DAMPER FLYWHEEL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	229907	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	269701	COMPL. TRANSMISSION HOUSING	269701 COMPL. TRANSMISSION HOUSING	-	1	Enquire
2	251921	TRANSMISSION HOUSING FLANGE	251921 TRANSMISSION HOUSING FLANGE	-	1	Enquire
3	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	-	3	Enquire
4	12638524	WASHER IN STOCK	12638524 WASHER IN STOCK	-	3	Enquire
5	259096	TRANSMISSION HOUSING SHAFT	259096 TRANSMISSION HOUSING SHAFT	-	1	Enquire
6	11062474	SNAP RING IN STOCK	11062474 SNAP RING IN STOCK	-	2	Enquire
7	253627	RING IN STOCK	253627 RING IN STOCK	-	4	Enquire
8	253629	COMPLETE BEARING	253629 COMPLETE BEARING	-	2	Enquire
9	11068874	SEEGER RING	11068874 SEEGER RING	-	2	Enquire
10	13543124	STUD BOLT IN STOCK	13543124 STUD BOLT IN STOCK	-	2	Enquire
11	14059421	NUT IN STOCK	14059421 NUT IN STOCK	-	8	Enquire
12	14309024	SCREW	14309024 SCREW	-	3	Enquire
13	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	-	3	Enquire
14	12638524	WASHER IN STOCK	12638524 WASHER IN STOCK	-	3	Enquire
15	270812	Elastic Bushing	270812 Elastic Bushing	-	1	Enquire
16	177018	NUT IN STOCK	177018 NUT IN STOCK	-	1	Enquire
17	242080	BRACKET	242080 BRACKET	-	1	Enquire
18	15970724	SCREW	15970724 SCREW	-	2	Enquire
19	127497	WASHER IN STOCK	127497 WASHER IN STOCK	-	2	Enquire
20	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	-	2	Enquire
21	249048	BRACKET	249048 BRACKET	-	1	Enquire
22	18754324	SCREW	18754324 SCREW	-	2	Enquire
23	246930	R.H. SHIELD FOR PAD	246930 R.H. SHIELD FOR PAD	-	1	Enquire
24	13833224	SCREW	13833224 SCREW	-	2	Enquire
25	246931	L.H. SHIELD FOR PAD	246931 L.H. SHIELD FOR PAD	-	1	Enquire
26	13833224	SCREW	13833224 SCREW	-	2	Enquire
27	285262	ENGINE DAMPER FLYWHEEL IN STOCK	285262 ENGINE DAMPER FLYWHEEL IN STOCK	-	1	Enquire
28	229907	SCREW	229907 SCREW	-	8	Enquire
