Name: FUEL TANK DOOR AND CONTROLS
Rating: 4.0 (1 reviews)

View All

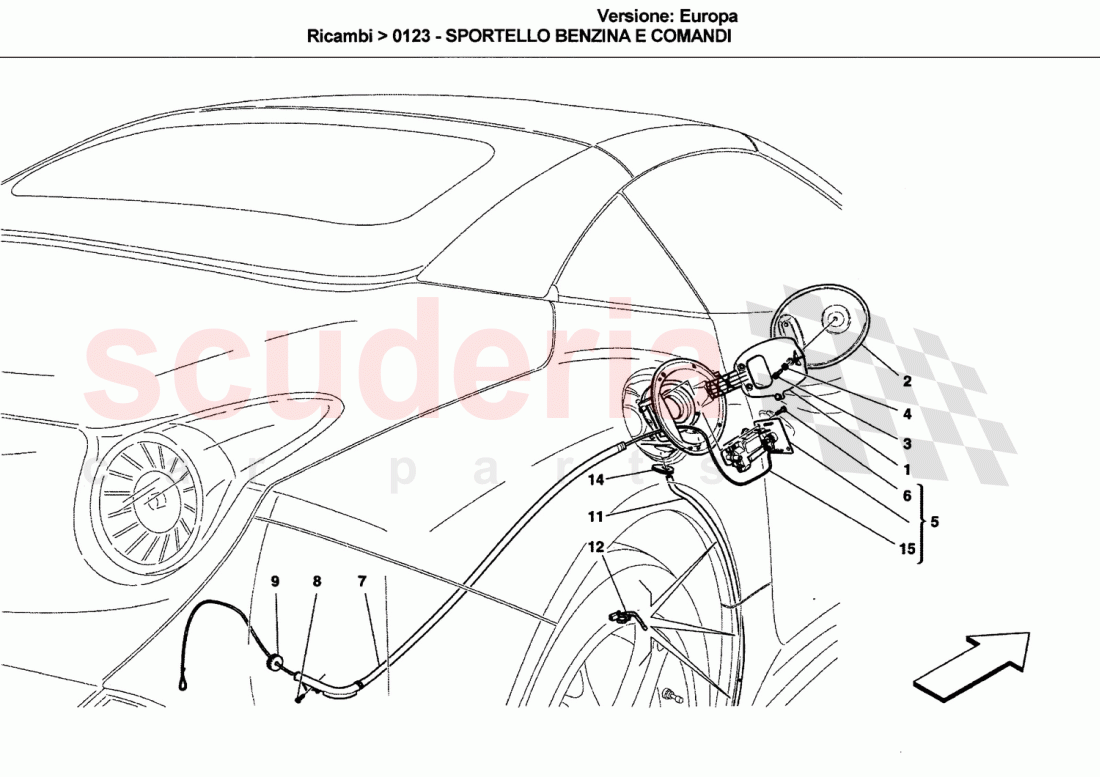

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80974500	FUEL PAN	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	80975410	FUEL INLET LID	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	69769900	ACTUATOR	$124.69	To Order

Photo	Part No	Description	Price (each)	Stock
	15689501	SCREW	$0.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	80672900	PIPE	$8.96	To Order

Photo	Part No	Description	Price (each)	Stock
	15690801	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	10396180	CABLE GROMMET	$2.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	80943900	FUEL DRAINING PIPE	$11.05	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	80665600	GASKET	$9.11	To Order

Photo	Part No	Description	Price (each)	Stock
	69948500	EMERGENCY CABLE	$19.24	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	80974500	FUEL PAN	80974500 FUEL PAN	$481.36	1
2	80975410	FUEL INLET LID	80975410 FUEL INLET LID	$65.77 MSRP: ~~106.64~~ (38.3% off)	1
3	88822200	SCREW IN STOCK	88822200 SCREW IN STOCK	$0.70	3
4	62769800	WASHER IN STOCK	62769800 WASHER IN STOCK	$0.23 MSRP: ~~0.30~~ (23.3% off)	3
5	69769900	ACTUATOR	69769900 ACTUATOR	$124.69 MSRP: ~~183.44~~ (32% off)	1
6	15689501	SCREW IN STOCK	15689501 SCREW IN STOCK	$0.28	2
7	80672900	PIPE	80672900 PIPE	$8.96	1
8	15690801	SCREW	15690801 SCREW	$0.18	1
9	10396180	CABLE GROMMET IN STOCK	10396180 CABLE GROMMET IN STOCK	$2.66	2
10	14569580	CLIP	14569580 CLIP	$0.29	2
11	80943900	FUEL DRAINING PIPE	80943900 FUEL DRAINING PIPE	$11.05	1
12	177553	CLAMP	177553 CLAMP	$0.44 MSRP: ~~1.25~~ (64.8% off)	3
13	80943900	FUEL DRAINING PIPE	80943900 FUEL DRAINING PIPE	$11.05	1
14	80665600	GASKET	80665600 GASKET	$9.11	1
15	69948500	EMERGENCY CABLE	69948500 EMERGENCY CABLE	$19.24	1

Fuel Tank Door And Controls

Ferrari California (2008-2011)
