Name: GEARBOX HOUSING
Rating: 4.5 (1 reviews)

GEARBOX HOUSING of Ferrari Ferrari California T

View All

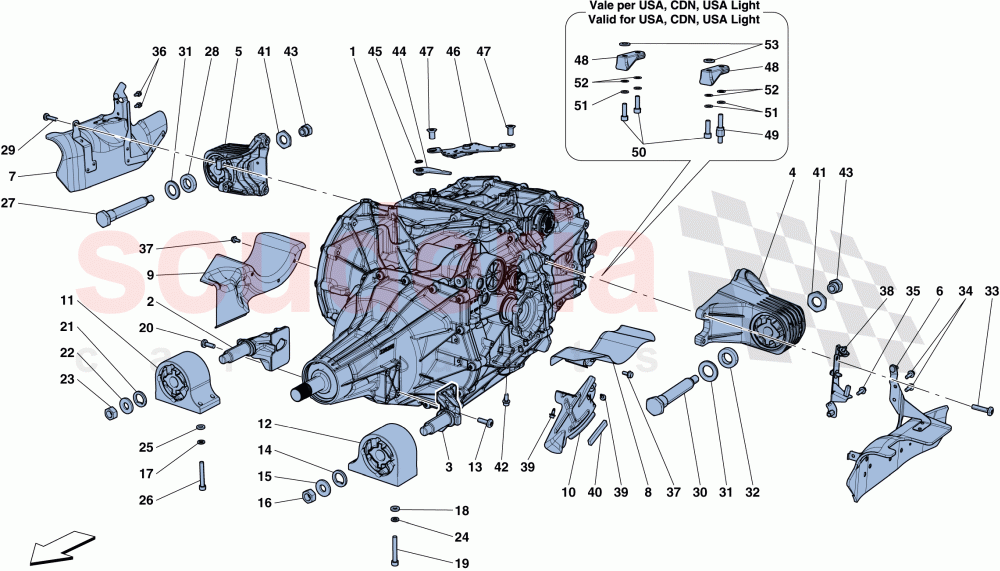

Ferrari California T - GEARBOX HOUSING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	293401	COMPL. DCT GEARBOX	$49,460.45	To Order

Photo	Part No	Description	Price (each)	Stock
	301074	RH FRONT DCT GEARBOX STRUT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	301073	LH FRONT DCT GEARBOX STRUT	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	274283	LH REAR GEARBOX MOUNTING STRUT	$2,114.33	To Order

Photo	Part No	Description	Price (each)	Stock
	274285	RH REAR GEARBOX MOUNTING STRUT	$2,114.33	To Order

Photo	Part No	Description	Price (each)	Stock
	282922	LH GEARBOX HEAT SHIELD	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	282637	RH GEARBOX HEAT SHIELD	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	248707	LH AXLE SHAFT HEAT SHIELD	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	248069	RH AXLE SHAFT HEAT SHIELD	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	248300	EPB CABLE HEAT SHIELD	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	300597	SPLIT WASHER	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	12164024	NUT	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12654424	WASHER	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	300597	SPLIT WASHER	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	12164024	NUT	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	12654424	WASHER	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	243075	GEARBOX MOUNTING BUSH PIN	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	$6.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	243075	GEARBOX MOUNTING BUSH PIN	$141.19	To Order

Photo	Part No	Description	Price (each)	Stock
	10731314	WASHER	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	$6.32	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	275751	BRACKET	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	260355	ADHESIVE SEAL	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	287405	SPACER	$11.67	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	287404	NUT	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	$70.21	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	$83.11	To Order

Photo	Part No	Description	Price (each)	Stock
	243151	SCREW	$6.32	To Order

Photo	Part No	Description	Price (each)	Stock
	266264	REAR IMPACT RETAINER BRACKET	$38.02	To Order

Photo	Part No	Description	Price (each)	Stock
	266645	STUD BOLT	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	14306474	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	293401	COMPL. DCT GEARBOX	293401 COMPL. DCT GEARBOX	$49,460.45	1
2	301074	RH FRONT DCT GEARBOX STRUT	301074 RH FRONT DCT GEARBOX STRUT	$224.63	1
3	301073	LH FRONT DCT GEARBOX STRUT	301073 LH FRONT DCT GEARBOX STRUT	$224.63	1
4	274283	LH REAR GEARBOX MOUNTING STRUT	274283 LH REAR GEARBOX MOUNTING STRUT	$2,114.33	1
5	274285	RH REAR GEARBOX MOUNTING STRUT	274285 RH REAR GEARBOX MOUNTING STRUT	$2,114.33	1
6	282922	LH GEARBOX HEAT SHIELD	282922 LH GEARBOX HEAT SHIELD	$186.33	1
7	282637	RH GEARBOX HEAT SHIELD	282637 RH GEARBOX HEAT SHIELD	$186.33	1
8	248707	LH AXLE SHAFT HEAT SHIELD	248707 LH AXLE SHAFT HEAT SHIELD	$75.40	1
9	248069	RH AXLE SHAFT HEAT SHIELD	248069 RH AXLE SHAFT HEAT SHIELD	$75.40	1
10	248300	EPB CABLE HEAT SHIELD	248300 EPB CABLE HEAT SHIELD	$50.15	1
13	247856	SCREW	247856 SCREW	$1.94	4
14	300597	SPLIT WASHER	300597 SPLIT WASHER	$19.24	1
15	12644924	WASHER	12644924 WASHER	$1.85	1
16	12164024	NUT	12164024 NUT	$1.65	1
17	986899	WASHER	986899 WASHER	$6.26	4
18	12654424	WASHER	12654424 WASHER	$0.50	4
19	14302234	SCREW	14302234 SCREW	$0.91	4
20	247856	SCREW	247856 SCREW	$1.94	4
21	300597	SPLIT WASHER	300597 SPLIT WASHER	$19.24	1
22	12644924	WASHER	12644924 WASHER	$1.85	1
23	12164024	NUT	12164024 NUT	$1.65	1
24	986899	WASHER	986899 WASHER	$6.26	4
25	12654424	WASHER	12654424 WASHER	$0.50	4
26	14302234	SCREW	14302234 SCREW	$0.91	4
27	243075	GEARBOX MOUNTING BUSH PIN	243075 GEARBOX MOUNTING BUSH PIN	$141.19	1
28	243122	SPACER	243122 SPACER	$6.32	1
29	14306634	SCREW	14306634 SCREW	$0.41	4
30	243075	GEARBOX MOUNTING BUSH PIN	243075 GEARBOX MOUNTING BUSH PIN	$141.19	1
31	10731314	WASHER	10731314 WASHER	$1.56	2
32	243122	SPACER	243122 SPACER	$6.32	1
33	14306634	SCREW	14306634 SCREW	$0.41	4
34	16286124	SCREW	16286124 SCREW	$0.37	2
35	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	$0.47	1
36	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
37	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM	$0.47	6
38	275751	BRACKET	275751 BRACKET	$54.46	1
39	85833900	SCREW ARRIVING SOON	85833900 SCREW ARRIVING SOON	$0.36	2
40	260355	ADHESIVE SEAL	260355 ADHESIVE SEAL	$5.58	1
41	287405	SPACER	287405 SPACER	$11.67	2
42	248471	SCREW	248471 SCREW	$1.07	2
43	287404	NUT	287404 NUT	$13.70	2
44	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	$70.21	1
45	11066176	SEEGER RING	11066176 SEEGER RING	$0.05	1
46	310524	COMPL. RELEASE CURSOR MOUNTING BRACKET	310524 COMPL. RELEASE CURSOR MOUNTING BRACKET	$83.11	1
47	243151	SCREW	243151 SCREW	$6.32	2
48	266264	REAR IMPACT RETAINER BRACKET	266264 REAR IMPACT RETAINER BRACKET Applicable for USA, CDN, USA LIGHT	$38.02	2
49	266645	STUD BOLT	266645 STUD BOLT Applicable for USA, CDN, USA LIGHT	$19.24	1
50	14306474	SCREW	14306474 SCREW Applicable for USA, CDN, USA LIGHT	$0.42	3
51	12638524	WASHER	12638524 WASHER Applicable for USA, CDN, USA LIGHT	$0.06 MSRP: ~~0.25~~ (76% off)	4
52	12601374	WASHER	12601374 WASHER Applicable for USA, CDN, USA LIGHT	$0.02 MSRP: ~~0.25~~ (92% off)	4
53	12601474	WASHER	12601474 WASHER Applicable for USA, CDN, USA LIGHT	$0.03	2
