SILENCERS of Ferrari Ferrari California T

View All

Ferrari California T - SILENCERS

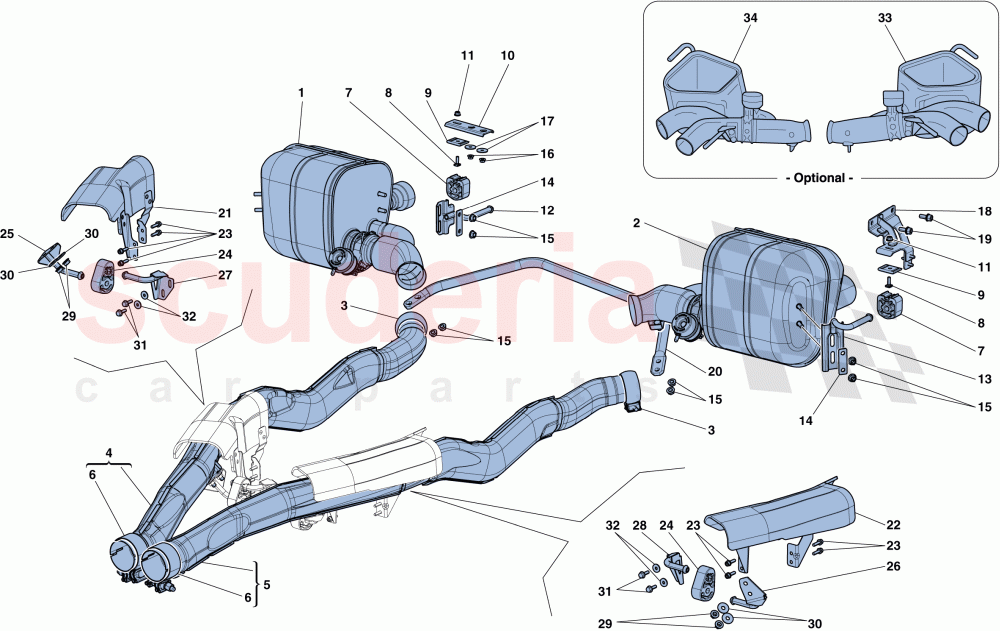

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	309364	REAR RH SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309363	REAR LH SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	229100	SPHERICAL CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300458	RH REAR EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300459	LH REAR EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296892	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289529	FLEXIBLE SILENCER MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283425	SQUARE HEADED SCREW M6 X 18.5MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240598	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310757	REAR SILENCER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307487	LH REAR BRACKET ON SILENCER	Enquire	To Order
	307486	RH REAR BRACKET ON SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298864	RH LATERAL BRACKET ON SILENCER	Enquire	To Order
	298865	LH LATERAL BRACKET ON SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240597	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	298860	RH LATERAL SILENCER FASTENER BRACKET	Enquire	To Order
	298861	LH LATERAL SILENCER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288137	SILENCER CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299967	RH FRONT GEARBOX HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299968	LH FRONT GEARBOX HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307258	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307531	REMOVABLE BRACKET ON RH REAR EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307530	REMOVABLE BRACKET ON LH REAR EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307533	RH EXTENSION FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307532	LH EXTENSION FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331928	COMPL. REAR RH SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331929	COMPL. REAR LH SILENCER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	309364	REAR RH SILENCER	309364 REAR RH SILENCER	-	1	Enquire
2	309363	REAR LH SILENCER	309363 REAR LH SILENCER	-	1	Enquire
3	229100	SPHERICAL CLAMP	229100 SPHERICAL CLAMP	-	2	Enquire
4	300458	RH REAR EXTENSION	300458 RH REAR EXTENSION	-	1	Enquire
5	300459	LH REAR EXTENSION	300459 LH REAR EXTENSION	-	1	Enquire
6	296892	CLAMP	296892 CLAMP	-	2	Enquire
7	289529	FLEXIBLE SILENCER MOUNTING BUSH	289529 FLEXIBLE SILENCER MOUNTING BUSH	-	4	Enquire
8	283425	SQUARE HEADED SCREW M6 X 18.5MM	283425 SQUARE HEADED SCREW M6 X 18.5MM	-	4	Enquire
9	240598	PLATE	240598 PLATE	-	4	Enquire
10	310757	REAR SILENCER FASTENER BRACKET	310757 REAR SILENCER FASTENER BRACKET	-	2	Enquire
11	14058421	NUT	14058421 NUT	-	4	Enquire
12	307487	LH REAR BRACKET ON SILENCER	307487 LH REAR BRACKET ON SILENCER	-	1	Enquire
12	307486	RH REAR BRACKET ON SILENCER	307486 RH REAR BRACKET ON SILENCER	-	1	Enquire
13	298864	RH LATERAL BRACKET ON SILENCER	298864 RH LATERAL BRACKET ON SILENCER	-	1	Enquire
13	298865	LH LATERAL BRACKET ON SILENCER	298865 LH LATERAL BRACKET ON SILENCER	-	1	Enquire
14	240597	PLATE	240597 PLATE	-	4	Enquire
15	14059311	NUT	14059311 NUT	-	12	Enquire
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
17	12648925	WASHER	12648925 WASHER	-	4	Enquire
18	298860	RH LATERAL SILENCER FASTENER BRACKET	298860 RH LATERAL SILENCER FASTENER BRACKET	-	1	Enquire
18	298861	LH LATERAL SILENCER FASTENER BRACKET	298861 LH LATERAL SILENCER FASTENER BRACKET	-	1	Enquire
19	248471	SCREW	248471 SCREW	-	4	Enquire
20	288137	SILENCER CROSS MEMBER	288137 SILENCER CROSS MEMBER	-	1	Enquire
21	299967	RH FRONT GEARBOX HEAT SHIELD	299967 RH FRONT GEARBOX HEAT SHIELD Applicable up to Ass. No. 130473	-	1	Enquire
22	299968	LH FRONT GEARBOX HEAT SHIELD	299968 LH FRONT GEARBOX HEAT SHIELD Applicable up to Ass. No. 130473	-	1	Enquire
23	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20; Applicable up to Ass. No. 130473	-	8	Enquire
23	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20; Applicable from Ass. No. 130474	-	4	Enquire
23	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22; No longer supplied; Replaced by 231618	-	8	Enquire
24	307258	BUSH	307258 BUSH	-	2	Enquire
25	307531	REMOVABLE BRACKET ON RH REAR EXTENSION	307531 REMOVABLE BRACKET ON RH REAR EXTENSION	-	1	Enquire
26	307530	REMOVABLE BRACKET ON LH REAR EXTENSION	307530 REMOVABLE BRACKET ON LH REAR EXTENSION	-	1	Enquire
27	307533	RH EXTENSION FASTENER BRACKET	307533 RH EXTENSION FASTENER BRACKET	-	1	Enquire
28	307532	LH EXTENSION FASTENER BRACKET	307532 LH EXTENSION FASTENER BRACKET	-	1	Enquire
29	14059311	NUT	14059311 NUT	-	4	Enquire
30	13578324	WASHER	13578324 WASHER	-	4	Enquire
31	81591700	SCREW	81591700 SCREW	-	4	Enquire
32	860172	WASHER	860172 WASHER	-	4	Enquire
33	331928	COMPL. REAR RH SILENCER	331928 COMPL. REAR RH SILENCER Special Handling Pack	-	1	Enquire
34	331929	COMPL. REAR LH SILENCER	331929 COMPL. REAR LH SILENCER Special Handling Pack	-	1	Enquire
