Name: ELECTRIC ROOF: HYDRAULICS
Rating: 4.9 (1 reviews)

View All

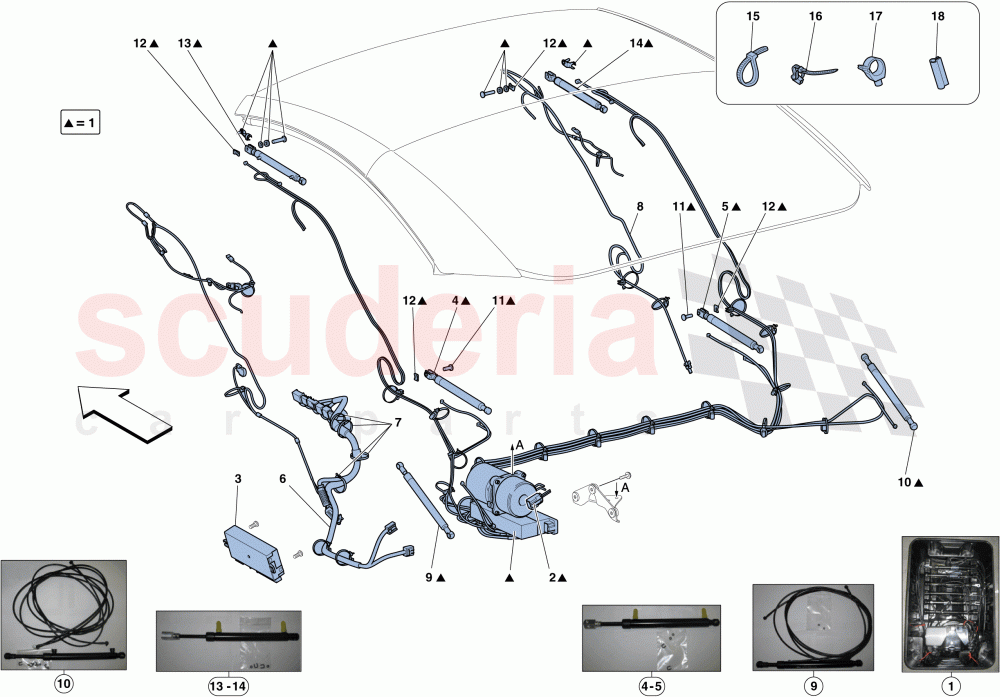

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	80414000	HYDRAULIC UNIT COMPL. WITH PIPES	$11,371.77	To Order

Photo	Part No	Description	Price (each)	Stock
	81307700	PUMP WITH VALVE UNIT	$8,409.68	To Order

Photo	Part No	Description	Price (each)	Stock
	81308000	CAPOTE CONTROL UNIT	$1,556.44	To Order

Photo	Part No	Description	Price (each)	Stock
	81859300	FRONT LH ROOF PISTON KIT	$2,260.86	To Order

Photo	Part No	Description	Price (each)	Stock
	81859400	FRONT RH ROOF PISTON KIT	$2,260.86	To Order

Photo	Part No	Description	Price (each)	Stock
	81976700	ROOF WIRING HARNESS	$1,203.43	To Order

Photo	Part No	Description	Price (each)	Stock
	81976800	STRIP	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	81976900	REAR SCREEN WIRING HARNESS	$126.75	To Order

Photo	Part No	Description	Price (each)	Stock
	81860800	L.H. TONNEAU COVER PISTON KIT	$2,260.86	To Order

Photo	Part No	Description	Price (each)	Stock
	81860900	R.H. TONNEAU COVER PISTON KIT	$2,260.86	To Order

Photo	Part No	Description	Price (each)	Stock
	81977100	SCREW	$7.73	To Order

Photo	Part No	Description	Price (each)	Stock
	81977200	CLIP	$3.61	To Order

Photo	Part No	Description	Price (each)	Stock
	81860200	REAR LH ROOF PISTON KIT	$2,260.86	To Order

Photo	Part No	Description	Price (each)	Stock
	81860400	REAR RH ROOF PISTON KIT	$2,260.86	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	67681200	GASKET	$4.10	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80414000	HYDRAULIC UNIT COMPL. WITH PIPES	80414000 HYDRAULIC UNIT COMPL. WITH PIPES	$11,371.77	1
2	81307700	PUMP WITH VALVE UNIT	81307700 PUMP WITH VALVE UNIT	$8,409.68	1
3	81308000	CAPOTE CONTROL UNIT	81308000 CAPOTE CONTROL UNIT	$1,556.44	1
4	81859300	FRONT LH ROOF PISTON KIT	81859300 FRONT LH ROOF PISTON KIT	$2,260.86	1
5	81859400	FRONT RH ROOF PISTON KIT	81859400 FRONT RH ROOF PISTON KIT	$2,260.86	1
6	81976700	ROOF WIRING HARNESS	81976700 ROOF WIRING HARNESS	$1,203.43	1
7	81976800	STRIP	81976800 STRIP	$0.79	-
8	81976900	REAR SCREEN WIRING HARNESS	81976900 REAR SCREEN WIRING HARNESS	$126.75	1
9	81860800	L.H. TONNEAU COVER PISTON KIT	81860800 L.H. TONNEAU COVER PISTON KIT	$2,260.86	1
10	81860900	R.H. TONNEAU COVER PISTON KIT	81860900 R.H. TONNEAU COVER PISTON KIT	$2,260.86	1
11	81977100	SCREW	81977100 SCREW	$7.73	2
12	81977200	CLIP	81977200 CLIP	$3.61	4
13	81860200	REAR LH ROOF PISTON KIT	81860200 REAR LH ROOF PISTON KIT	$2,260.86	1
14	81860400	REAR RH ROOF PISTON KIT	81860400 REAR RH ROOF PISTON KIT	$2,260.86	1
15	MC43254	CLAMP	MC43254 CLAMP	-	4	Enquire
16	177553	CLAMP	177553 CLAMP	$0.45 MSRP: ~~1.25~~ (64% off)	5
17	303385	CLIP	303385 CLIP	$0.31	5
18	67681200	GASKET	67681200 GASKET No longer supplied	$4.10	1
