Name: STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE
Rating: 5.0 (1 reviews)

View All

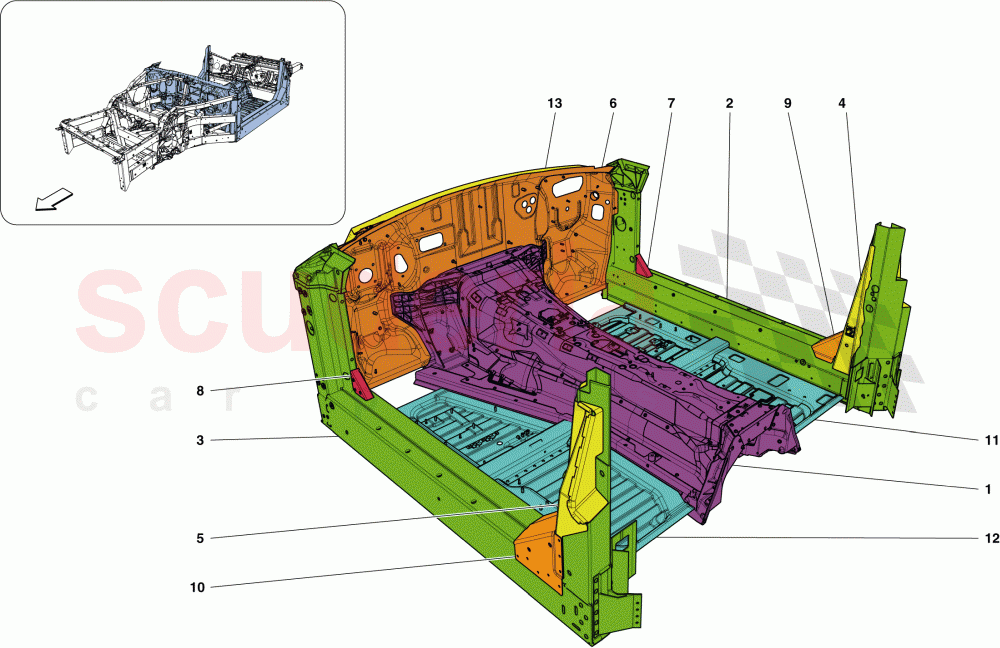

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	294374	COMPL. TUNNEL	$18,688.74	To Order

Photo	Part No	Description	Price (each)	Stock
	294370	COMPL. RH LATERAL MODULE	$15,997.83	To Order

Photo	Part No	Description	Price (each)	Stock
	289775	INTERNAL RH TRUSS	$802.28	To Order

Photo	Part No	Description	Price (each)	Stock
	289769	INTERNAL LH TRUSS	$802.28	To Order

Photo	Part No	Description	Price (each)	Stock
	288558	RH A-PILLAR TRUSS	$673.92	To Order

Photo	Part No	Description	Price (each)	Stock
	288557	LH A-PILLAR TRUSS	$673.92	To Order

Photo	Part No	Description	Price (each)	Stock
	279420	EXTERNAL RH B-PILLAR TRUSS	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	279417	EXTERNAL LH B-PILLAR TRUSS	$348.08	To Order

Photo	Part No	Description	Price (each)	Stock
	289203	COMPL. RH FLOOR PANEL	$1,010.88	To Order

Photo	Part No	Description	Price (each)	Stock
	289202	COMPL. LH FLOOR PANEL	$930.65	To Order

Photo	Part No	Description	Price (each)	Stock
	236992	COMPL. WINDSCREEN VALENCE PANEL	$930.65	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	294374	COMPL. TUNNEL	294374 COMPL. TUNNEL	$18,688.74	1
2	294370	COMPL. RH LATERAL MODULE	294370 COMPL. RH LATERAL MODULE	$15,997.83	1
3	297319	COMPL. LH LATERAL MODULE	297319 COMPL. LH LATERAL MODULE ; Not for GD	$15,997.83	1
3	301611	COMPL. LH LATERAL MODULE	301611 COMPL. LH LATERAL MODULE ; Applicable for GD	$15,997.83	1
4	289775	INTERNAL RH TRUSS	289775 INTERNAL RH TRUSS	$802.28	1
5	289769	INTERNAL LH TRUSS	289769 INTERNAL LH TRUSS	$802.28	1
6	294363	COMPL. FRONT FIREWALL	294363 COMPL. FRONT FIREWALL ; Not for GD	$802.28	1
6	295668	COMPL. FRONT FIREWALL	295668 COMPL. FRONT FIREWALL ; Applicable for GD	$914.60	1
7	288558	RH A-PILLAR TRUSS	288558 RH A-PILLAR TRUSS	$673.92	1
8	288557	LH A-PILLAR TRUSS	288557 LH A-PILLAR TRUSS	$673.92	1
9	279420	EXTERNAL RH B-PILLAR TRUSS	279420 EXTERNAL RH B-PILLAR TRUSS	$481.36	1
10	279417	EXTERNAL LH B-PILLAR TRUSS	279417 EXTERNAL LH B-PILLAR TRUSS	$348.08	1
11	289203	COMPL. RH FLOOR PANEL	289203 COMPL. RH FLOOR PANEL	$1,010.88	1
12	289202	COMPL. LH FLOOR PANEL	289202 COMPL. LH FLOOR PANEL	$930.65	1
13	236992	COMPL. WINDSCREEN VALENCE PANEL	236992 COMPL. WINDSCREEN VALENCE PANEL	$930.65	1

Structures And Elements, Centre Of Vehicle

Ferrari California T
