ANTI-THEFT SYSTEM of Ferrari Ferrari 812 Competizione Europe

View All

Ferrari 812 Competizione Europe - ANTI-THEFT SYSTEM

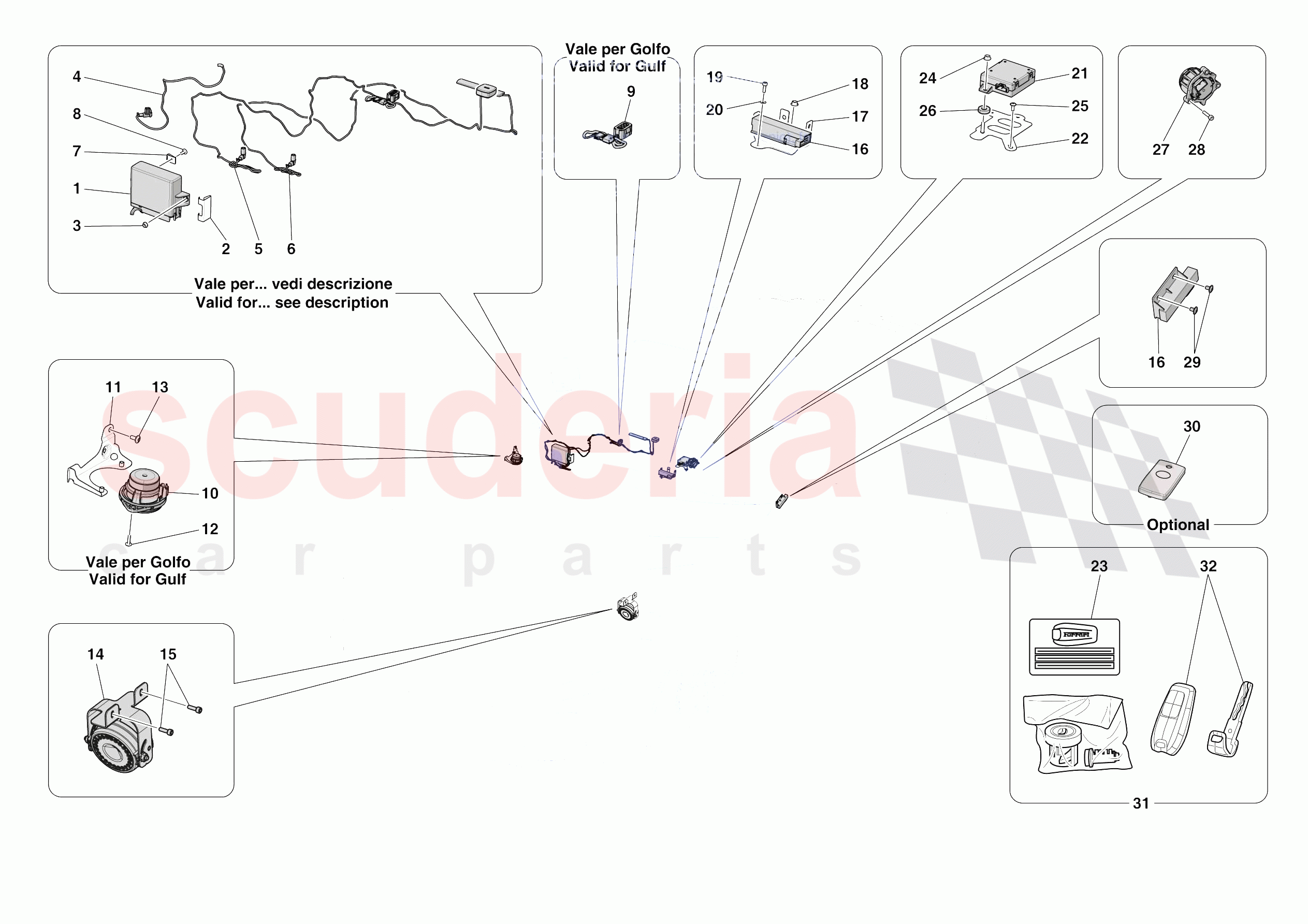

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	956025	E-CALL TCU	Enquire	To Order
	824396	TCU ECALL / SVR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336692	GLONASS ECU MOUNTING BRACKET	Enquire	To Order
	336692	GLONASS ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824398	RF ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336506	GLONASS GPS ANTENNA	Enquire	To Order
	336506	GLONASS GPS ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336507	GLONASS GSM ANTENNA	Enquire	To Order
	336507	GLONASS GSM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333337	GSM MICROPHONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332825	GLONASS SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89074000	GLONASS ECU SPEAKER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	826584	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330072	COMPL. ANTI-THEFT SYSTEM SIREN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310778	PASSIVE START ANTENNA	Enquire	To Order
	322184	PASSIVE START ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	341225	PASSIVE START ANTENNA FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	Enquire	To Order
	83750200	SCREW	Enquire	To Order
	14303123	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601074	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293416	ANTI-LIFT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330815	COMPL. ANTI-LIFT SENSOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6326163	SECRET CARD LABEL FOR KEYS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900756	KIN FOR PASSIVE START SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303324	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824397	DRIVER CARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328976	KEY AND BLOCK KIT	Enquire	To Order
	329045	KEY AND BLOCK KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328403	KEYLESS KEY KIT	Enquire	To Order
	328404	KEYLESS KEY KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	956025	E-CALL TCU	956025 E-CALL TCU Applicable for E-CALL system - Applicable for UAE only	-	1	Enquire
0001	824396	TCU ECALL / SVR	824396 TCU ECALL / SVR Version with SVR satellite alarm system with or without card	-	1	Enquire
0002	336692	GLONASS ECU MOUNTING BRACKET	336692 GLONASS ECU MOUNTING BRACKET Version with SVR satellite alarm system with or without card	-	1	Enquire
0002	336692	GLONASS ECU MOUNTING BRACKET	336692 GLONASS ECU MOUNTING BRACKET	-	1	Enquire
0003	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
0003	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
0004	824398	RF ANTENNA	824398 RF ANTENNA Version with satellite alarm system with card	-	1	Enquire
0005	336506	GLONASS GPS ANTENNA	336506 GLONASS GPS ANTENNA Version with SVR satellite alarm system with or without card	-	1	Enquire
0005	336506	GLONASS GPS ANTENNA	336506 GLONASS GPS ANTENNA	-	1	Enquire
0006	336507	GLONASS GSM ANTENNA	336507 GLONASS GSM ANTENNA Version with SVR satellite alarm system with or without card	-	1	Enquire
0006	336507	GLONASS GSM ANTENNA	336507 GLONASS GSM ANTENNA	-	1	Enquire
0007	68700800	CLIP	68700800 CLIP	-	1	Enquire
0007	68700800	CLIP	68700800 CLIP	-	1	Enquire
0008	85833700	SCREW	85833700 SCREW Version with SVR satellite alarm system with or without card; M5 X 14	-	1	Enquire
0008	85833700	SCREW	85833700 SCREW M5 X 14	-	1	Enquire
0009	333337	GSM MICROPHONE	333337 GSM MICROPHONE Applicable for E-CALL system - Applicable for UAE only	-	1	Enquire
0010	332825	GLONASS SPEAKER	332825 GLONASS SPEAKER Applicable for E-CALL system - Applicable for UAE only	-	1	Enquire
0011	89074000	GLONASS ECU SPEAKER MOUNTING BRACKET	89074000 GLONASS ECU SPEAKER MOUNTING BRACKET Applicable for E-CALL system - Applicable for UAE only	-	1	Enquire
0012	826584	SCREW	826584 SCREW M4 X 16	-	2	Enquire
0013	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
0014	330072	COMPL. ANTI-THEFT SYSTEM SIREN	330072 COMPL. ANTI-THEFT SYSTEM SIREN	-	1	Enquire
0015	85833700	SCREW	85833700 SCREW M5 X 16	-	2	Enquire
0016	310778	PASSIVE START ANTENNA	310778 PASSIVE START ANTENNA	-	4	Enquire
0016	322184	PASSIVE START ANTENNA	322184 PASSIVE START ANTENNA	-	1	Enquire
0017	341225	PASSIVE START ANTENNA FASTENER BRACKET	341225 PASSIVE START ANTENNA FASTENER BRACKET	-	1	Enquire
0018	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
0019	14303123	SCREW	14303123 SCREW M4 X 12	-	2	Enquire
0019	83750200	SCREW	83750200 SCREW M4 X 10	-	2	Enquire
0019	14303123	SCREW	14303123 SCREW M4 X 12	-	2	Enquire
0020	12601074	WASHER	12601074 WASHER	-	2	Enquire
0021	293416	ANTI-LIFT SENSOR	293416 ANTI-LIFT SENSOR	-	1	Enquire
0022	330815	COMPL. ANTI-LIFT SENSOR FASTENER BRACKET	330815 COMPL. ANTI-LIFT SENSOR FASTENER BRACKET	-	1	Enquire
0023	6326163	SECRET CARD LABEL FOR KEYS	6326163 SECRET CARD LABEL FOR KEYS	-	1	Enquire
0024	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
0025	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	2	Enquire
0026	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	2	Enquire
0027	900756	KIN FOR PASSIVE START SYSTEM	900756 KIN FOR PASSIVE START SYSTEM	-	1	Enquire
0028	14303324	SCREW	14303324 SCREW M4 X 20	-	3	Enquire
0029	85833700	SCREW	85833700 SCREW M5 X 8	-	6	Enquire
0030	824397	DRIVER CARD	824397 DRIVER CARD Version with satellite alarm system with card - Request ASM authorisation	-	1	Enquire
0031	328976	KEY AND BLOCK KIT	328976 KEY AND BLOCK KIT Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key	-	1	Enquire
0031	329045	KEY AND BLOCK KIT	329045 KEY AND BLOCK KIT Contains 2 keys, 2 barrels, 1 secret card and 1 keyless key	-	1	Enquire
0032	328403	KEYLESS KEY KIT	328403 KEYLESS KEY KIT	-	1	Enquire
0032	328404	KEYLESS KEY KIT	328404 KEYLESS KEY KIT	-	1	Enquire
