FRONT SUBSTRUCTURE of Ferrari Ferrari 812 Competizione Europe

View All

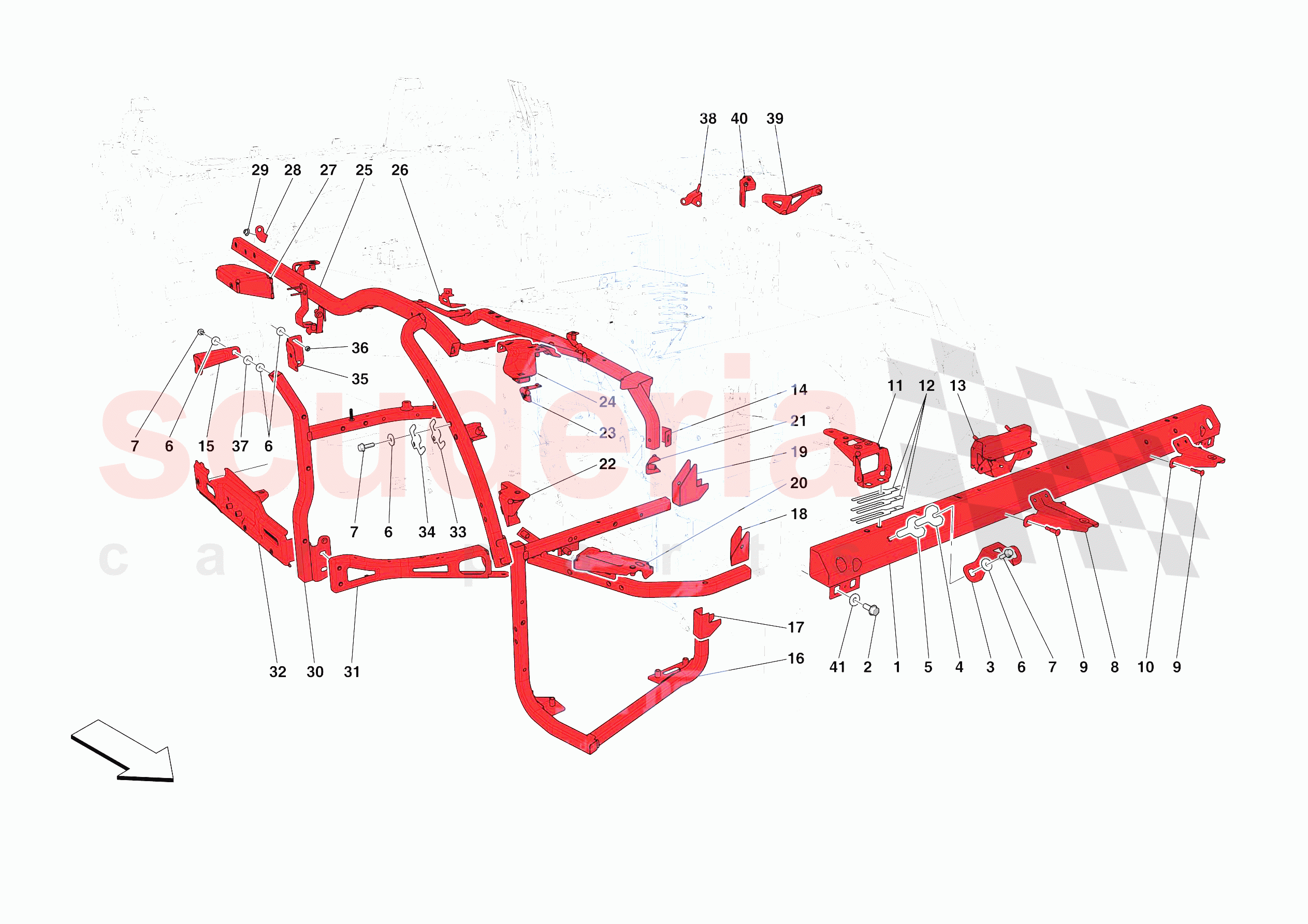

Ferrari 812 Competizione Europe - FRONT SUBSTRUCTURE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985971080	COMPL. FRONT BUMPER CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	903295	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791504	FRONT LID BUSH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88187600	ADJUSTMENT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88187400	ADJUSTMENT SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	790811	COMPL. FRONT BUMPER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14639791	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791600	COMPL. FRONT BUMPER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88186900	COMPL. LH TRIM PANEL FRONT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87549700	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84337900	LID LOCK FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89240200	FENDER MOUNTING TUBE ADJUSTMENT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	772578	RH FENDER LOWER FASTENER BRACKET	Enquire	To Order
	772580	LH FENDER LOWER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985965867	COMPL. RH FRONT SUBFRAME	Enquire	To Order
	985965653	COMPL. LH FRONT SUBFRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	965959	LOWER TUBE ADJUSTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	965961	RH UPPER TUBE ADJUSTER BRACKET	Enquire	To Order
	965960	LH UPPER TUBE ADJUSTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	966064	RH UPPER TUBE ADJUSTER BRACKET	Enquire	To Order
	966065	LH UPPER TUBE ADJUSTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	816894	RH HEADLAMP OUTER BRACKET	Enquire	To Order
	816891	LH HEADLAMP OUTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271344	COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	816896	RH HEADLIGHT INTERNAL BRACKET	Enquire	To Order
	816898	LH HEADLIGHT INTERNAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271348	COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	Enquire	To Order
	271346	COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980608	COMPL. RH FENDER AND HEADLIGHT FASTENER BRACKET	Enquire	To Order
	980611	COMPL. LH FENDER AND HEADLIGHT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985964689	COMPL. RH FRONT FENDER CARRIER TRELLIS	Enquire	To Order
	985965579	COMPL. LH FRONT FENDER CARRIER TRELLIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88187800	MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	Enquire	To Order
	88187700	MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88771400	RH LID BRACKET MOUNTING BRACKET	Enquire	To Order
	88771300	LH LID BRACKET MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84931800	UPPER REAR BRACKET FOR RH FRONT FENDER	Enquire	To Order
	84931900	UPPER REAR BRACKET FOR LH FRONT FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985965900	COMPL. RH TRELLIS PILLAR	Enquire	To Order
	985742745	COMPL. RH TRELLIS PILLAR	Enquire	To Order
	985964707	COMPL. LH TRELLIS PILLAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	985805761	COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER	Enquire	To Order
	985964698	COMPL. REAR TRELLIS CROSS BEAM FOR LH FRONT FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83033911	LOWER FASTENER BEAM FOR RH FENDER	Enquire	To Order
	83034011	LOWER FASTENER BEAM FOR LH FENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89143000	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89143100	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88504600	RH DOOR FENDER SIDE FASTENER BRACKET	Enquire	To Order
	88504500	LH DOOR FENDER SIDE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277276	REAR WINDSCREEN WIPER MOUNTING BRACKET	Enquire	To Order
	84859600	REAR WINDSCREEN WIPER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88939700	COMPL. WIPER AND BRAKE FLUID RESERVOIR BRACKET	Enquire	To Order
	85538000	FRONT WINDSCREEN WIPER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88242700	LH WINDSCREEN WIPER FASTENER BRACKET	Enquire	To Order
	88717700	COMPL. WINDSCREEN WIPER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	Enquire	To Order
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	985971080	COMPL. FRONT BUMPER CROSS MEMBER	985971080 COMPL. FRONT BUMPER CROSS MEMBER Request ASM authorisation	-	1	Enquire
0002	903295	SCREW	903295 SCREW M8 X 1.25 X 25	-	8	Enquire
0003	791504	FRONT LID BUSH BRACKET	791504 FRONT LID BUSH BRACKET	-	2	Enquire
0004	88187600	ADJUSTMENT SHIM	88187600 ADJUSTMENT SHIM Th. 0.5 mm	-	8	Enquire
0005	88187400	ADJUSTMENT SHIM	88187400 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0006	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	50	Enquire
0007	16286121	SCREW	16286121 SCREW M6 X 20	-	43	Enquire
0008	790811	COMPL. FRONT BUMPER FASTENER BRACKET	790811 COMPL. FRONT BUMPER FASTENER BRACKET	-	2	Enquire
0009	14639791	RIVET	14639791 RIVET	-	23	Enquire
0010	791600	COMPL. FRONT BUMPER FASTENER BRACKET	791600 COMPL. FRONT BUMPER FASTENER BRACKET	-	2	Enquire
0011	88186900	COMPL. LH TRIM PANEL FRONT FASTENER BRACKET	88186900 COMPL. LH TRIM PANEL FRONT FASTENER BRACKET	-	2	Enquire
0012	87549700	SHIM	87549700 SHIM Th. 1 mm	-	6	Enquire
0013	84337900	LID LOCK FASTENER BRACKET	84337900 LID LOCK FASTENER BRACKET	-	1	Enquire
0014	89240200	FENDER MOUNTING TUBE ADJUSTMENT BRACKET	89240200 FENDER MOUNTING TUBE ADJUSTMENT BRACKET	-	2	Enquire
0015	772578	RH FENDER LOWER FASTENER BRACKET	772578 RH FENDER LOWER FASTENER BRACKET	-	1	Enquire
0015	772580	LH FENDER LOWER FASTENER BRACKET	772580 LH FENDER LOWER FASTENER BRACKET	-	1	Enquire
0016	985965867	COMPL. RH FRONT SUBFRAME	985965867 COMPL. RH FRONT SUBFRAME	-	1	Enquire
0016	985965653	COMPL. LH FRONT SUBFRAME	985965653 COMPL. LH FRONT SUBFRAME	-	1	Enquire
0017	965959	LOWER TUBE ADJUSTER BRACKET	965959 LOWER TUBE ADJUSTER BRACKET	-	2	Enquire
0018	965961	RH UPPER TUBE ADJUSTER BRACKET	965961 RH UPPER TUBE ADJUSTER BRACKET	-	1	Enquire
0018	965960	LH UPPER TUBE ADJUSTER BRACKET	965960 LH UPPER TUBE ADJUSTER BRACKET	-	1	Enquire
0019	966064	RH UPPER TUBE ADJUSTER BRACKET	966064 RH UPPER TUBE ADJUSTER BRACKET	-	1	Enquire
0019	966065	LH UPPER TUBE ADJUSTER BRACKET	966065 LH UPPER TUBE ADJUSTER BRACKET	-	1	Enquire
0020	816894	RH HEADLAMP OUTER BRACKET	816894 RH HEADLAMP OUTER BRACKET	-	1	Enquire
0020	816891	LH HEADLAMP OUTER BRACKET	816891 LH HEADLAMP OUTER BRACKET	-	1	Enquire
0021	271344	COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	271344 COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	-	4	Enquire
0022	816896	RH HEADLIGHT INTERNAL BRACKET	816896 RH HEADLIGHT INTERNAL BRACKET	-	1	Enquire
0022	816898	LH HEADLIGHT INTERNAL BRACKET	816898 LH HEADLIGHT INTERNAL BRACKET	-	1	Enquire
0023	271348	COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	271348 COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	-	1	Enquire
0023	271346	COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	271346 COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	-	1	Enquire
0024	980608	COMPL. RH FENDER AND HEADLIGHT FASTENER BRACKET	980608 COMPL. RH FENDER AND HEADLIGHT FASTENER BRACKET	-	1	Enquire
0024	980611	COMPL. LH FENDER AND HEADLIGHT FASTENER BRACKET	980611 COMPL. LH FENDER AND HEADLIGHT FASTENER BRACKET	-	1	Enquire
0025	985964689	COMPL. RH FRONT FENDER CARRIER TRELLIS	985964689 COMPL. RH FRONT FENDER CARRIER TRELLIS	-	1	Enquire
0025	985965579	COMPL. LH FRONT FENDER CARRIER TRELLIS	985965579 COMPL. LH FRONT FENDER CARRIER TRELLIS	-	1	Enquire
0026	88187800	MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	88187800 MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	-	1	Enquire
0026	88187700	MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	88187700 MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	-	1	Enquire
0027	88771400	RH LID BRACKET MOUNTING BRACKET	88771400 RH LID BRACKET MOUNTING BRACKET	-	1	Enquire
0027	88771300	LH LID BRACKET MOUNTING BRACKET	88771300 LH LID BRACKET MOUNTING BRACKET	-	1	Enquire
0028	84931800	UPPER REAR BRACKET FOR RH FRONT FENDER	84931800 UPPER REAR BRACKET FOR RH FRONT FENDER	-	1	Enquire
0028	84931900	UPPER REAR BRACKET FOR LH FRONT FENDER	84931900 UPPER REAR BRACKET FOR LH FRONT FENDER	-	1	Enquire
0029	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
0030	985965900	COMPL. RH TRELLIS PILLAR	985965900 COMPL. RH TRELLIS PILLAR	-	1	Enquire
0030	985742745	COMPL. RH TRELLIS PILLAR	985742745 COMPL. RH TRELLIS PILLAR	-	1	Enquire
0030	985964707	COMPL. LH TRELLIS PILLAR	985964707 COMPL. LH TRELLIS PILLAR	-	1	Enquire
0030	985742742	COMPL. LH TRELLIS PILLAR	985742742 COMPL. LH TRELLIS PILLAR	-	1	Enquire
0031	985805761	COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER	985805761 COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER Request ASM authorisation	-	1	Enquire
0031	985964698	COMPL. REAR TRELLIS CROSS BEAM FOR LH FRONT FENDER	985964698 COMPL. REAR TRELLIS CROSS BEAM FOR LH FRONT FENDER Request ASM authorisation	-	1	Enquire
0032	83033911	LOWER FASTENER BEAM FOR RH FENDER	83033911 LOWER FASTENER BEAM FOR RH FENDER Request ASM authorisation	-	1	Enquire
0032	83034011	LOWER FASTENER BEAM FOR LH FENDER	83034011 LOWER FASTENER BEAM FOR LH FENDER Request ASM authorisation	-	1	Enquire
0033	89143000	SHIM	89143000 SHIM Th. 1 mm	-	6	Enquire
0034	89143100	SHIM	89143100 SHIM Th. 2 mm	-	6	Enquire
0035	88504600	RH DOOR FENDER SIDE FASTENER BRACKET	88504600 RH DOOR FENDER SIDE FASTENER BRACKET	-	1	Enquire
0035	88504500	LH DOOR FENDER SIDE FASTENER BRACKET	88504500 LH DOOR FENDER SIDE FASTENER BRACKET	-	1	Enquire
0036	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5	-	4	Enquire
0037	12647724	WASHER	12647724 WASHER	-	2	Enquire
0038	277276	REAR WINDSCREEN WIPER MOUNTING BRACKET	277276 REAR WINDSCREEN WIPER MOUNTING BRACKET	-	1	Enquire
0038	84859600	REAR WINDSCREEN WIPER MOUNTING BRACKET	84859600 REAR WINDSCREEN WIPER MOUNTING BRACKET	-	1	Enquire
0039	88939700	COMPL. WIPER AND BRAKE FLUID RESERVOIR BRACKET	88939700 COMPL. WIPER AND BRAKE FLUID RESERVOIR BRACKET	-	1	Enquire
0039	85538000	FRONT WINDSCREEN WIPER MOUNTING BRACKET	85538000 FRONT WINDSCREEN WIPER MOUNTING BRACKET	-	1	Enquire
0040	88242700	LH WINDSCREEN WIPER FASTENER BRACKET	88242700 LH WINDSCREEN WIPER FASTENER BRACKET	-	1	Enquire
0040	88717700	COMPL. WINDSCREEN WIPER MOUNTING BRACKET	88717700 COMPL. WINDSCREEN WIPER MOUNTING BRACKET	-	1	Enquire
0041	12642078	WASHER	12642078 WASHER	-	6	Enquire
0041	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	4	Enquire
