AIR FILTER, AIR INTAKE AND DUCTS of Ferrari Ferrari 812 Competizione Europe

View All

Ferrari 812 Competizione Europe - AIR FILTER, AIR INTAKE AND DUCTS

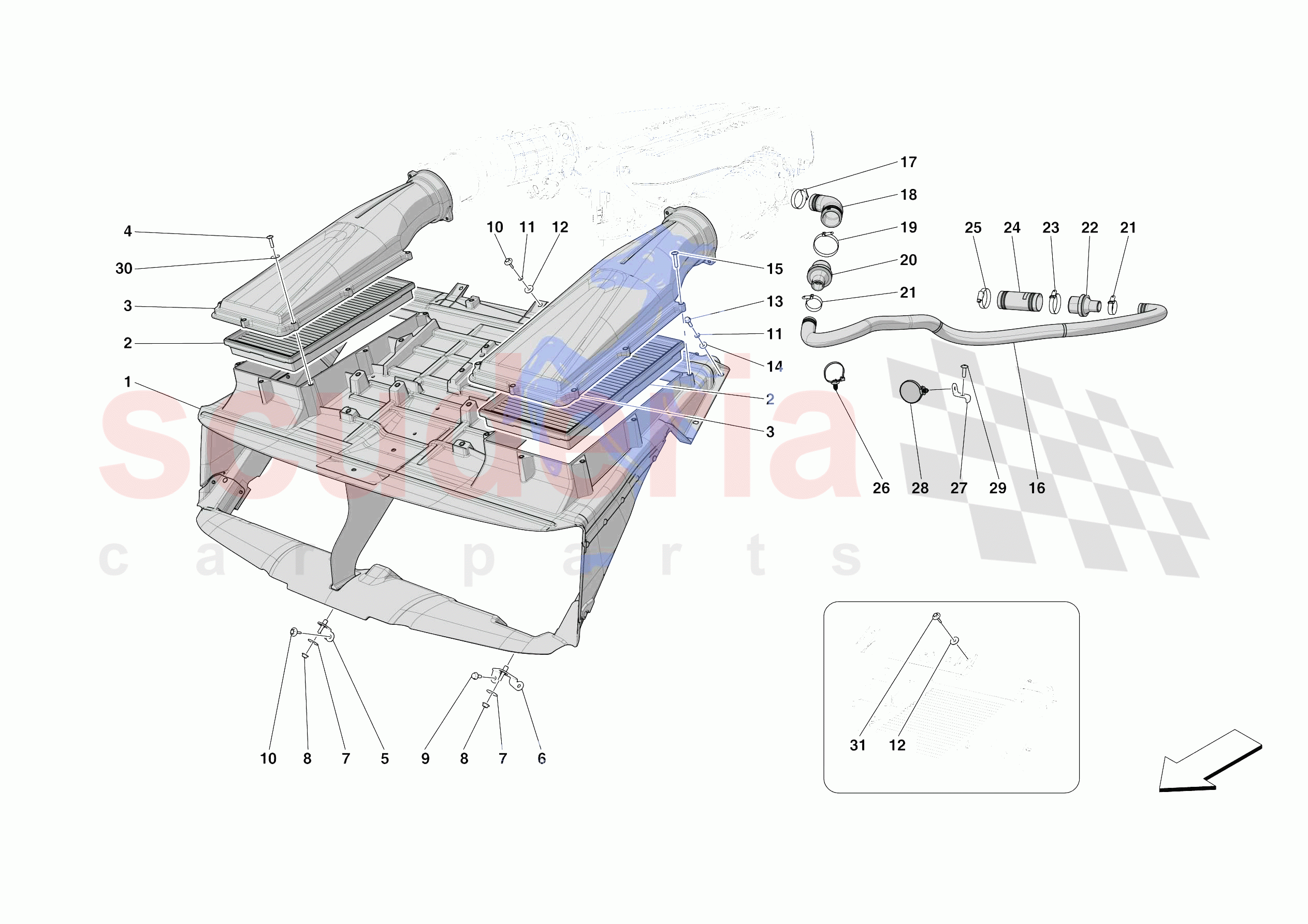

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	889842	ENGINE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	916868	AIR FILTER	Enquire	To Order
	916869	AIR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	978912	AIR FILTER COVER	Enquire	To Order
	985988	AIR FILTER COVER	Enquire	To Order
	70007452	AIR FILTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330024	RH DUCT MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330023	LH DUCT MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW M5 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15699804	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166467	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

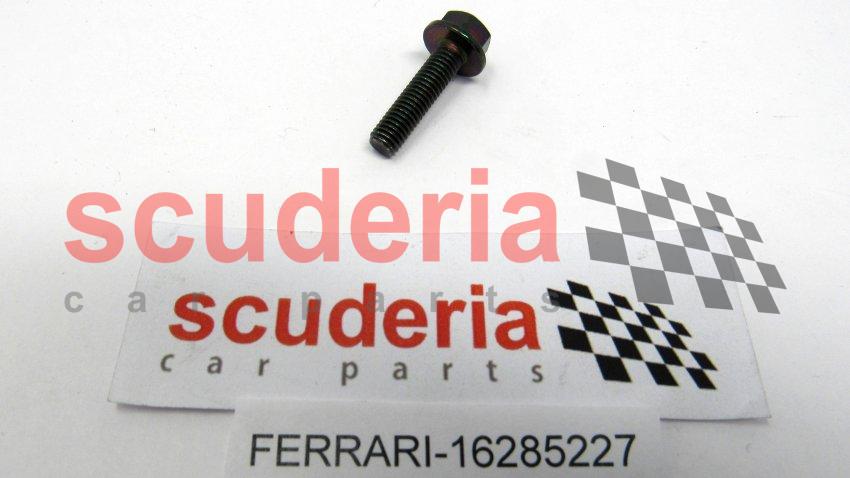

	16285227	SCREW M5 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	888692	LH COILED PIPE	Enquire	To Order
	858206	RH COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	811761	LH PIPE	Enquire	To Order
	811916	RH PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262116	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	792080	MEMBRANE HOLDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791963	COMPL. MEMBRANE HOLDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	914071	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	303339	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	809005	PIPE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86321000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	889842	ENGINE AIR DUCT	889842 ENGINE AIR DUCT	-	1	Enquire
0002	916868	AIR FILTER	916868 AIR FILTER Applicable for Chile	-	2	Enquire
0002	916869	AIR FILTER	916869 AIR FILTER Not applicable for Chile	-	2	Enquire
0003	978912	AIR FILTER COVER	978912 AIR FILTER COVER	-	2	Enquire
0003	985988	AIR FILTER COVER	985988 AIR FILTER COVER Applicable for carbon filter box cover	-	2	Enquire
0003	70007452	AIR FILTER COVER	70007452 AIR FILTER COVER Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - Applicable for carbon filter box cover - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	2	Enquire
0004	81591700	SCREW	81591700 SCREW M5 X 20	-	10	Enquire
0005	330024	RH DUCT MOUNTING BRACKET	330024 RH DUCT MOUNTING BRACKET	-	1	Enquire
0006	330023	LH DUCT MOUNTING BRACKET	330023 LH DUCT MOUNTING BRACKET	-	1	Enquire
0007	12643724	WASHER	12643724 WASHER D. 5 - 20 X 1.5	-	2	Enquire
0008	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
0009	16281827	SCREW M5 X 14	16281827 SCREW M5 X 14 M5 X 14	-	3	Enquire
0010	15699804	SCREW	15699804 SCREW M6 X 20	-	4	Enquire
0011	166467	WASHER	166467 WASHER	-	7	Enquire
0012	12643778	WASHER	12643778 WASHER 18 X 1.5	-	3	Enquire
0013	16285227	SCREW M5 X 20	16285227 SCREW M5 X 20 M5 X 20	-	5	Enquire
0014	62769800	WASHER	62769800 WASHER	-	6	Enquire
0015	88831000	GRUB SCREW	88831000 GRUB SCREW M5 X 25	-	4	Enquire
0016	888692	LH COILED PIPE	888692 LH COILED PIPE	-	1	Enquire
0016	858206	RH COILED PIPE	858206 RH COILED PIPE	-	1	Enquire
0017	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
0018	811761	LH PIPE	811761 LH PIPE	-	1	Enquire
0018	811916	RH PIPE	811916 RH PIPE	-	1	Enquire
0019	262116	COLLAR	262116 COLLAR	-	2	Enquire
0020	792080	MEMBRANE HOLDER PIPE	792080 MEMBRANE HOLDER PIPE	-	2	Enquire
0021	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	4	Enquire
0022	791963	COMPL. MEMBRANE HOLDER PIPE	791963 COMPL. MEMBRANE HOLDER PIPE	-	2	Enquire
0023	262114	COLLAR	262114 COLLAR	-	2	Enquire
0024	914071	PIPE	914071 PIPE	-	2	Enquire
0025	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	2	Enquire
0026	303339	CLIP	303339 CLIP	-	2	Enquire
0027	809005	PIPE MOUNTING BRACKET	809005 PIPE MOUNTING BRACKET	-	2	Enquire
0028	303385	CLIP	303385 CLIP 170 mm	-	8	Enquire
0029	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20 M6 X 20	-	2	Enquire
0030	86321000	WASHER	86321000 WASHER	-	14	Enquire
0031	85833700	SCREW	85833700 SCREW M5 X 16	-	1	Enquire
