CYLINDER HEADS - TIMING of Ferrari Ferrari 812 Competizione Europe

View All

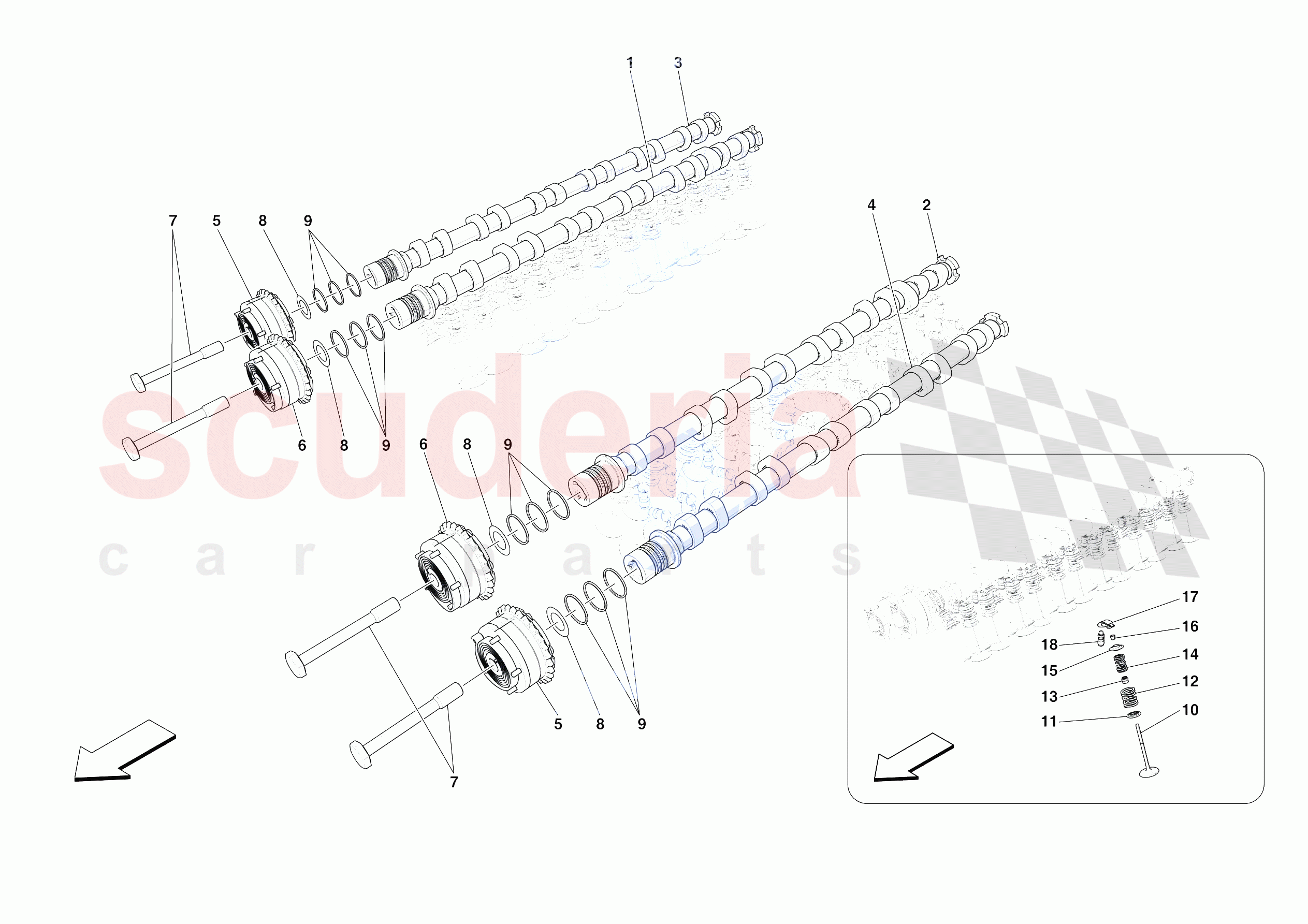

Ferrari 812 Competizione Europe - CYLINDER HEADS - TIMING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	831968	RH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831969	LH INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831970	RH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831971	LH EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254892	SCREW HEX HEAD M14 X 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197975	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	777849	INTAKE VALVE	Enquire	To Order
	911024	EXHAUST VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911028	LOWER VALVE SPRING CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910742	EXTERNAL VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899547	OIL SEAL FOR VALVE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910743	INTERNAL VALVE RETURN SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	776263	UPPER VALVE SPRING CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911027	PAD ROLLER FINGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	830096	TAPPET FOR ROLLER FINGER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	831968	RH INTAKE CAMSHAFT	831968 RH INTAKE CAMSHAFT	-	1	Enquire
0002	831969	LH INTAKE CAMSHAFT	831969 LH INTAKE CAMSHAFT	-	1	Enquire
0003	831970	RH EXHAUST CAMSHAFT	831970 RH EXHAUST CAMSHAFT	-	1	Enquire
0004	831971	LH EXHAUST CAMSHAFT	831971 LH EXHAUST CAMSHAFT	-	1	Enquire
0005	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	-	2	Enquire
0006	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	-	2	Enquire
0007	254892	SCREW HEX HEAD M14 X 15	254892 SCREW HEX HEAD M14 X 15 M14 X 1.5	-	4	Enquire
0008	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	-	4	Enquire
0009	197975	SEAL RING	197975 SEAL RING Also included in engine gasket set	-	12	Enquire
0010	777849	INTAKE VALVE	777849 INTAKE VALVE	-	24	Enquire
0010	911024	EXHAUST VALVE	911024 EXHAUST VALVE	-	24	Enquire
0011	911028	LOWER VALVE SPRING CAP	911028 LOWER VALVE SPRING CAP	-	48	Enquire
0012	910742	EXTERNAL VALVE RETURN SPRING	910742 EXTERNAL VALVE RETURN SPRING	-	48	Enquire
0013	899547	OIL SEAL FOR VALVE SEAL	899547 OIL SEAL FOR VALVE SEAL	-	48	Enquire
0014	910743	INTERNAL VALVE RETURN SPRING	910743 INTERNAL VALVE RETURN SPRING	-	48	Enquire
0015	776263	UPPER VALVE SPRING CAP	776263 UPPER VALVE SPRING CAP	-	48	Enquire
0016	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	-	96	Enquire
0017	911027	PAD ROLLER FINGER	911027 PAD ROLLER FINGER	-	48	Enquire
0018	830096	TAPPET FOR ROLLER FINGER	830096 TAPPET FOR ROLLER FINGER	-	48	Enquire
