Find Your Part

DOOR SEALS of Ferrari Ferrari 812 Competizione A USA

View All

Ferrari 812 Competizione A USA - DOOR SEALS

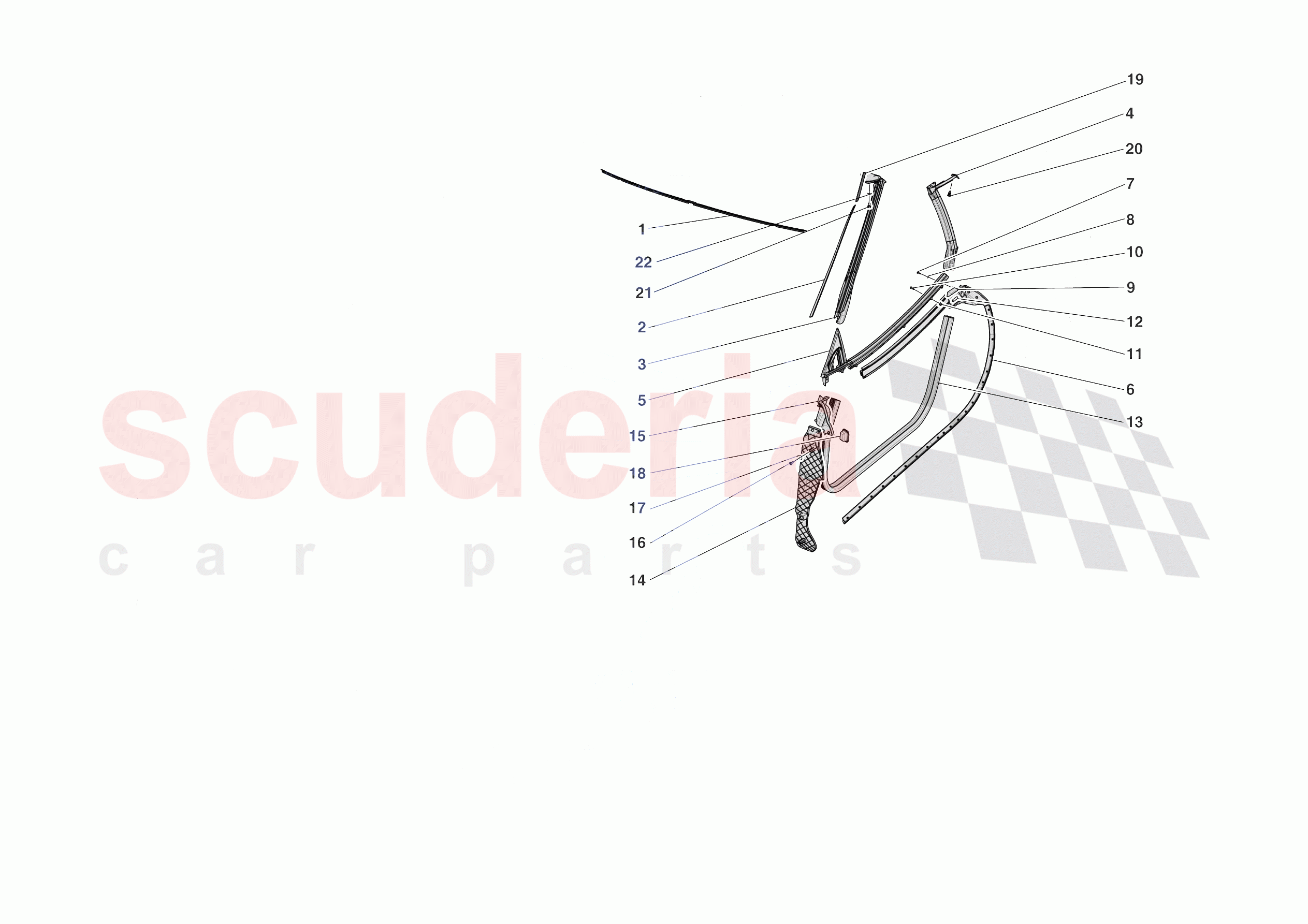

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	880283	NOLDER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84582900	ADHESIVE PAD FOR WINDSCREEN PERIMETER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	779327	COMPL. LH A-PILLAR SEAL	Enquire	To Order
	779331	COMPL. RH A-PILLAR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	871224	COMPL. LH QUARTERLIGHT SEAL	Enquire	To Order
	870769	COMPL. RH QUARTERLIGHT SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88059500	EXTERNAL LH WINDOW SCRAPER SEAL	Enquire	To Order
	88059600	EXTERNAL RH WINDOW SCRAPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	890463	INTERNAL LH WINDOW SCRAPER SEAL	Enquire	To Order
	890461	INTERNAL RH WINDOW SCRAPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824899	STUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689809	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67681200	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954919	LOWER DOOR PERIMETER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	899838	COMPL. LH DOOR JAMB SHIELD	Enquire	To Order
	899840	COMPL. RH DOOR JAMB SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980528	LH GASKET	Enquire	To Order
	980543	RH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW M5 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85058100	RECTANGULAR PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	939690	ROUND STUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	831372	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85617800	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	880283	NOLDER GASKET	880283 NOLDER GASKET	-	1	Enquire
0002	84582900	ADHESIVE PAD FOR WINDSCREEN PERIMETER SEAL	84582900 ADHESIVE PAD FOR WINDSCREEN PERIMETER SEAL	-	2	Enquire
0003	779327	COMPL. LH A-PILLAR SEAL	779327 COMPL. LH A-PILLAR SEAL	-	1	Enquire
0003	779331	COMPL. RH A-PILLAR SEAL	779331 COMPL. RH A-PILLAR SEAL	-	1	Enquire
0004	871224	COMPL. LH QUARTERLIGHT SEAL	871224 COMPL. LH QUARTERLIGHT SEAL	-	1	Enquire
0004	870769	COMPL. RH QUARTERLIGHT SEAL	870769 COMPL. RH QUARTERLIGHT SEAL	-	1	Enquire
0005	88059500	EXTERNAL LH WINDOW SCRAPER SEAL	88059500 EXTERNAL LH WINDOW SCRAPER SEAL	-	1	Enquire
0005	88059600	EXTERNAL RH WINDOW SCRAPER SEAL	88059600 EXTERNAL RH WINDOW SCRAPER SEAL	-	1	Enquire
0006	890463	INTERNAL LH WINDOW SCRAPER SEAL	890463 INTERNAL LH WINDOW SCRAPER SEAL	-	1	Enquire
0006	890461	INTERNAL RH WINDOW SCRAPER SEAL	890461 INTERNAL RH WINDOW SCRAPER SEAL	-	1	Enquire
0007	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 15	-	2	Enquire
0008	62769800	WASHER	62769800 WASHER D. 5.15 - 11 X 1	-	2	Enquire
0009	824899	STUFFER	824899 STUFFER	-	2	Enquire
0010	15689809	SCREW	15689809 SCREW D4.2 X 19	-	14	Enquire
0011	14115885	BLOCK	14115885 BLOCK	-	14	Enquire
0012	67681200	GASKET	67681200 GASKET	-	2	Enquire
0013	954919	LOWER DOOR PERIMETER SEAL	954919 LOWER DOOR PERIMETER SEAL	-	2	Enquire
0014	899838	COMPL. LH DOOR JAMB SHIELD	899838 COMPL. LH DOOR JAMB SHIELD	-	1	Enquire
0014	899840	COMPL. RH DOOR JAMB SHIELD	899840 COMPL. RH DOOR JAMB SHIELD	-	1	Enquire
0015	980528	LH GASKET	980528 LH GASKET	-	1	Enquire
0015	980543	RH GASKET	980543 RH GASKET	-	1	Enquire
0016	16281827	SCREW M5 X 14	16281827 SCREW M5 X 14 M5 X 14	-	4	Enquire
0017	12643724	WASHER	12643724 WASHER D. 5 - 20 X 1.5	-	4	Enquire
0018	85058100	RECTANGULAR PLUG	85058100 RECTANGULAR PLUG	-	2	Enquire
0019	939690	ROUND STUFFER	939690 ROUND STUFFER	-	2	Enquire
0020	831372	BUTTON	831372 BUTTON	-	2	Enquire
0021	795930	SCREW	795930 SCREW M4 X 8	-	2	Enquire
0022	85617800	WASHER	85617800 WASHER	-	2	Enquire
