Name: ENGINE COVERS
Rating: 4.0 (1 reviews)

ENGINE COVERS of Ferrari Ferrari 812 Competizione A USA

View All

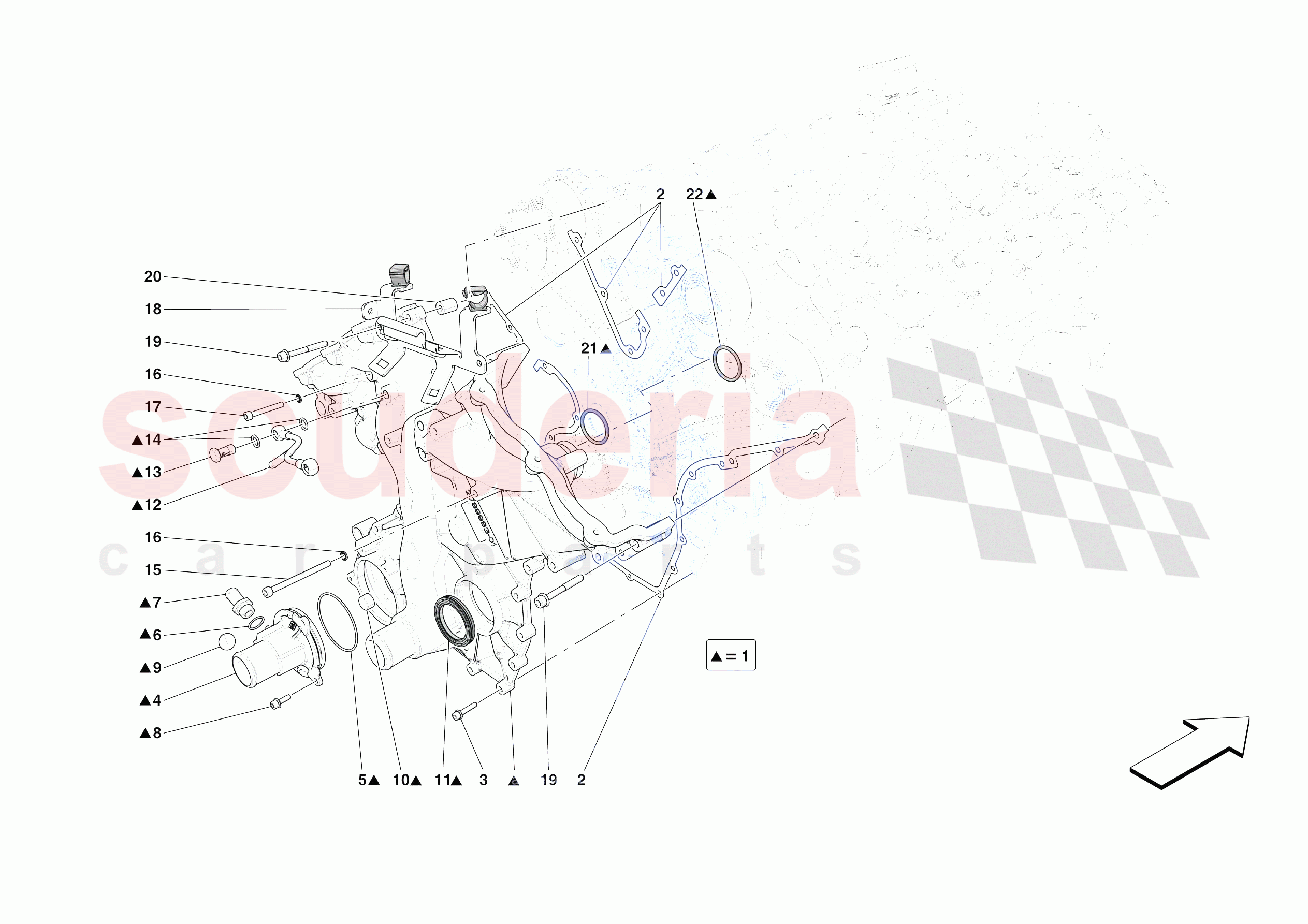

Ferrari 812 Competizione A USA - ENGINE COVERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	895127	TIMING SYSTEM COVER COMPL. WITH WATER	$4,225.82	To Order
	989869	TIMING SYSTEM COVER COMPL. WITH WATER	$4,189.98	To Order

Photo	Part No	Description	Price (each)	Stock
	316502	GASKET BETWEEN CRANKCASE AND FRONT COVER	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	288787	WATER PUMP COVER	$60.76	To Order

Photo	Part No	Description	Price (each)	Stock
	253797	GASKET	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	11270550	O-RING	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	253823	CONNECTOR	$120.75	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	10159001	PLUG	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	210359	GASKET	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	931307198	COMPL. WATER DRAIN PIPE	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	211847	HOSE	$166.55	To Order

Photo	Part No	Description	Price (each)	Stock
	10260960	GASKET	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	10589624	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	216292	GASKET	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14305924	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	833402	COMPL. MOUNTING BRACKET	$75.95	To Order
	948056	COMPL. MOUNTING BRACKET	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	281356	SPACER	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	289278	O-RING	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	$1.70	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	895127	TIMING SYSTEM COVER COMPL. WITH WATER	895127 TIMING SYSTEM COVER COMPL. WITH WATER Applies until depletion	$4,225.82	1
0001	989869	TIMING SYSTEM COVER COMPL. WITH WATER	989869 TIMING SYSTEM COVER COMPL. WITH WATER Applicable after depletion of 895127	$4,189.98	1
0002	316502	GASKET BETWEEN CRANKCASE AND FRONT COVER	316502 GASKET BETWEEN CRANKCASE AND FRONT COVER Also included in engine gasket set	$60.96	1
0003	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	12
0004	288787	WATER PUMP COVER	288787 WATER PUMP COVER	$60.76	1
0005	253797	GASKET	253797 GASKET	$6.26	1
0006	11270550	O-RING	11270550 O-RING	$1.07	1
0007	253823	CONNECTOR	253823 CONNECTOR	$120.75	1
0008	231619	SCREW	231619 SCREW M6 X 18	$0.31	3
0009	10159001	PLUG	10159001 PLUG Applies until depletion	$0.47	1
0010	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$3.32 MSRP: ~~4.17~~ (20.4% off)	1
0011	210359	GASKET	210359 GASKET Also included in engine gasket set	$43.31	1
0012	931307198	COMPL. WATER DRAIN PIPE	931307198 COMPL. WATER DRAIN PIPE	$286.67	1
0013	211847	HOSE	211847 HOSE	$166.55	2
0014	10260960	GASKET	10260960 GASKET	$0.16	4
0015	10589624	SCREW	10589624 SCREW M6 X 80	$0.31	4
0016	216292	GASKET	216292 GASKET Also included in engine gasket set	$4.15	6
0017	14305924	SCREW	14305924 SCREW M6 X 45	$0.18	2
0018	833402	COMPL. MOUNTING BRACKET	833402 COMPL. MOUNTING BRACKET	$75.95	1
0018	948056	COMPL. MOUNTING BRACKET	948056 COMPL. MOUNTING BRACKET	$75.95	1
0019	231625	SCREW	231625 SCREW M6 X 50	$0.65	11
0020	281356	SPACER	281356 SPACER	$3.13	1
0021	289278	O-RING	289278 O-RING	$3.32	1
0022	183010	O-RING	183010 O-RING	$1.70 MSRP: ~~2.89~~ (41.2% off)	2
