LIGHTING SYSTEMS of Ferrari Ferrari 812 Competizione A Europe

View All

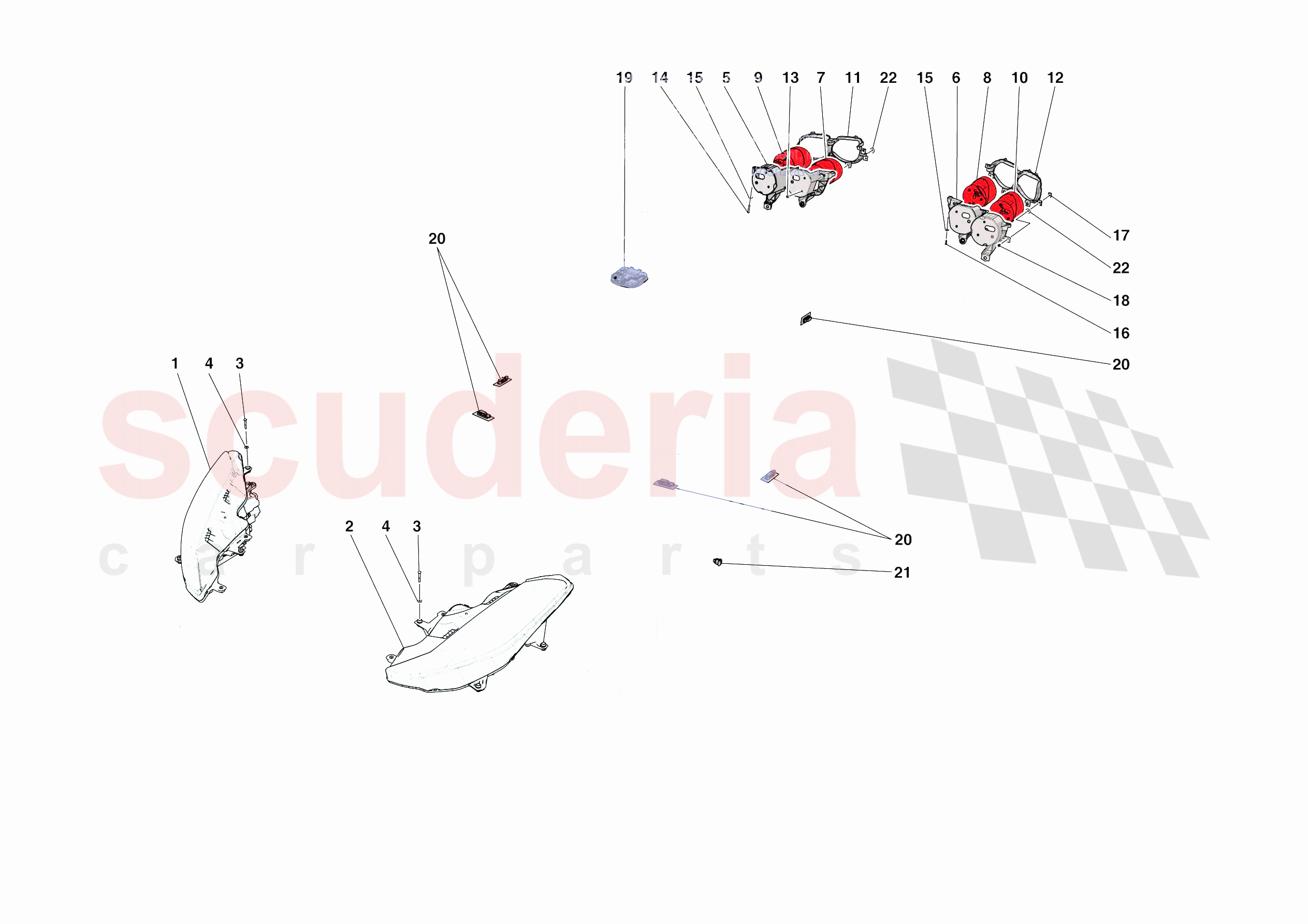

Ferrari 812 Competizione A Europe - LIGHTING SYSTEMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	336583	RH HEADLAMP	$3,496.39	To Order
	338313	RH HEADLAMP	$3,496.39	To Order
	338309	RH HEADLAMP	$3,007.67	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	338315	LH HEADLAMP	$3,496.39	To Order
	336579	LH HEADLAMP	$3,496.39	To Order
	325609	LH HEADLAMP	$2,944.45	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	10903287	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	806191	RH TAIL LIGHT CARRIER	$105.74	To Order

Photo	Part No	Description	Price (each)	Stock
	806193	LH TAIL LIGHT CARRIER	$105.74	To Order

Photo	Part No	Description	Price (each)	Stock
	322257	INNER RH TAILLIGHT	$816.53	To Order

Photo	Part No	Description	Price (each)	Stock
	322258	INNER LH TAILLIGHT	$816.53	To Order

Photo	Part No	Description	Price (each)	Stock
	317207	OUTER RH TAILLIGHT	$765.88	To Order
	325107	OUTER RH TAIL LIGHT	$778.85	To Order

Photo	Part No	Description	Price (each)	Stock
	317208	OUTER LH TAILLIGHT	$765.88	To Order
	325108	OUTER LH TAILLIGHT	$778.85	To Order

Photo	Part No	Description	Price (each)	Stock
	834535	COMPL. RH TAILLIGHT SURROUND	$215.00	To Order

Photo	Part No	Description	Price (each)	Stock
	834543	COMPL. LH TAILLIGHT SURROUND	$215.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	86495500	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	86276300	SCREW	$3.91	To Order

Photo	Part No	Description	Price (each)	Stock
	83851800	BRACKET FOR SCREW	$0.88	To Order
	68700800	CLIP	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	869390	FRONT LIGHT UNIT	$1,690.03	To Order
	869388	FRONT LIGHT UNIT	$1,275.75	To Order

Photo	Part No	Description	Price (each)	Stock
	974896	LUGGAGE COMPARTMENT LIGHT	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	317211	SIDE TURN INDICATOR	$104.28	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	$0.15	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	336583	RH HEADLAMP	336583 RH HEADLAMP Adaptive headlamps	$3,496.39	1
0001	338313	RH HEADLAMP	338313 RH HEADLAMP Adaptive headlamps	$3,496.39	1
0001	338309	RH HEADLAMP	338309 RH HEADLAMP	$3,007.67	1
0001	336571	RH HEADLAMP	336571 RH HEADLAMP Adaptive headlamps	$3,470.86	1
0001	325610	RH HEADLAMP	325610 RH HEADLAMP	$2,944.45	1
0001	336577	RH HEADLAMP	336577 RH HEADLAMP	$3,016.17	1
0002	338315	LH HEADLAMP	338315 LH HEADLAMP Adaptive headlamps	$3,496.39	1
0002	336579	LH HEADLAMP	336579 LH HEADLAMP Adaptive headlamps	$3,496.39	1
0002	325609	LH HEADLAMP	325609 LH HEADLAMP	$2,944.45	1
0002	336575	LH HEADLAMP	336575 LH HEADLAMP	$3,016.17	1
0002	338311	LH HEADLAMP	338311 LH HEADLAMP	$3,007.67	1
0002	336569	LH HEADLAMP	336569 LH HEADLAMP Adaptive headlamps	$3,594.85	1
0003	10903287	SCREW	10903287 SCREW M6 X 40	$0.73	8
0004	12643778	BLACK WASHER D.6.45-18X1.5	12643778 BLACK WASHER D.6.45-18X1.5	$0.28 MSRP: ~~0.50~~ (44% off)	8
0005	806191	RH TAIL LIGHT CARRIER	806191 RH TAIL LIGHT CARRIER	$105.74	1
0006	806193	LH TAIL LIGHT CARRIER	806193 LH TAIL LIGHT CARRIER	$105.74	1
0007	322257	INNER RH TAILLIGHT	322257 INNER RH TAILLIGHT	$816.53	1
0008	322258	INNER LH TAILLIGHT	322258 INNER LH TAILLIGHT	$816.53	1
0009	317207	OUTER RH TAILLIGHT	317207 OUTER RH TAILLIGHT	$765.88	1
0009	325107	OUTER RH TAIL LIGHT	325107 OUTER RH TAIL LIGHT	$778.85	1
0010	317208	OUTER LH TAILLIGHT	317208 OUTER LH TAILLIGHT	$765.88	1
0010	325108	OUTER LH TAILLIGHT	325108 OUTER LH TAILLIGHT	$778.85	1
0011	834535	COMPL. RH TAILLIGHT SURROUND	834535 COMPL. RH TAILLIGHT SURROUND	$215.00	1
0012	834543	COMPL. LH TAILLIGHT SURROUND	834543 COMPL. LH TAILLIGHT SURROUND	$215.00	1
0013	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	18
0014	86495500	SCREW	86495500 SCREW M6 X 40	$0.47	5
0015	68040000	WASHER	68040000 WASHER	$0.15	11
0016	86276300	SCREW	86276300 SCREW M6 X 20	$3.91	4
0017	83851800	BRACKET FOR SCREW	83851800 BRACKET FOR SCREW	$0.88	14
0017	68700800	CLIP	68700800 CLIP	$1.09	14
0018	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 14 ARRIVING SOON	$0.36	12
0019	869390	FRONT LIGHT UNIT	869390 FRONT LIGHT UNIT Applicable for UAE only	$1,690.03	1
0019	869388	FRONT LIGHT UNIT	869388 FRONT LIGHT UNIT Not for UAE	$1,275.75	1
0020	974896	LUGGAGE COMPARTMENT LIGHT	974896 LUGGAGE COMPARTMENT LIGHT	$64.17	4
0021	317211	SIDE TURN INDICATOR	317211 SIDE TURN INDICATOR	$104.28	2
0022	12647724	WASHER	12647724 WASHER D. 5.50 - 15 X 1	$0.15	12
