Gearbox And Fasteners

Ferrari 812 Competizione A Europe

Find Your Part

Ferrari 812 Competizione A Europe - GEARBOX AND FASTENERS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
956856 COMPL. DCT GEARBOX Enquire To Order
Photo Part No Description Price (each) Stock
266364 COMPL. LH REAR STRUT Enquire To Order
266362 COMPL. RH REAR STRUT Enquire To Order
Photo Part No Description Price (each) Stock
14306634 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
753432 GEARBOX MOUNTING BUSH PIN Enquire To Order
Photo Part No Description Price (each) Stock
10731314 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
243122 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
331997 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12164424 NUT Enquire To Order
Photo Part No Description Price (each) Stock
263583 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
16286124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
294603 LH GEARBOX HEAT SHIELD Enquire To Order
272274 RH GEARBOX HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
14040611 NUT Enquire To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
958190 LH AXLE SHAFT HEAT SHIELD Enquire To Order
931307993 RH AXLE SHAFT HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
248471 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
301073 LH FRONT DCT GEARBOX STRUT Enquire To Order
301074 RH FRONT DCT GEARBOX STRUT Enquire To Order
Photo Part No Description Price (each) Stock
247856 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
319482 COMPL. LH BUSHING MOUNT Enquire To Order
319484 COMPL. RH BUSHING MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
12164024 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12644924 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
300597 SPLIT WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14302234 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
986899 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12654424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
326174 LH FRONT MOUNT HEAT SHIELD Enquire To Order
326173 RH FRONT MOUNT HEAT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
248689 RETENTION BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
266645 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
14306474 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12638524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
70005055 GL5 OIL LEVEL PLUG Enquire To Order
Photo Part No Description Price (each) Stock
70004679 OIL DRAIN PLUG Enquire To Order
Photo Part No Description Price (each) Stock
70005056 ATF OIL LEVEL PLUG KIT Enquire To Order
View All

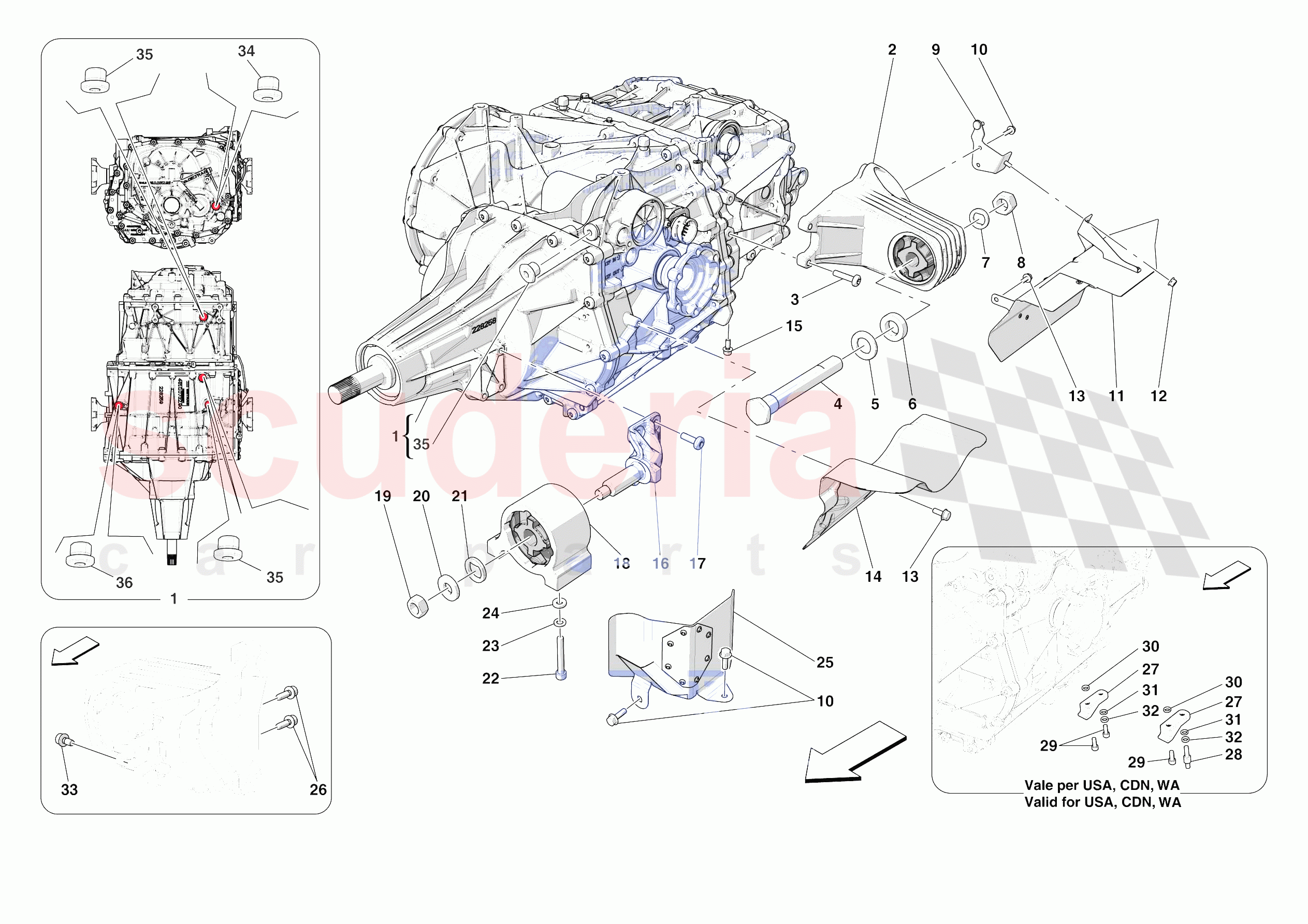

GEARBOX AND FASTENERS of Ferrari Ferrari 812 Competizione A Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 956856
COMPL. DCT GEARBOX
Request ASM authorisation 		- 1 Enquire
0002 266364
COMPL. LH REAR STRUT 		- 1 Enquire
0002 266362
COMPL. RH REAR STRUT 		- 1 Enquire
0003 14306634
SCREW
M8 X 1.25 X 35 		- 8 Enquire
0004 753432
GEARBOX MOUNTING BUSH PIN 		- 2 Enquire
0005 10731314
WASHER 		- 2 Enquire
0006 243122
SPACER 		- 2 Enquire
0007 331997
WASHER 		- 2 Enquire
0008 12164424
NUT 		- 2 Enquire
0009 263583
BRACKET 		- 1 Enquire
0010 16286124
SCREW
M6 X 20 		- 7 Enquire
0011 294603
LH GEARBOX HEAT SHIELD 		- 1 Enquire
0011 272274
RH GEARBOX HEAT SHIELD 		- 1 Enquire
0012 14040611
NUT 		- 1 Enquire
0013 16296934
SCREW 6 X 14MM
M6 X 14 		- 7 Enquire
0014 958190
LH AXLE SHAFT HEAT SHIELD 		- 1 Enquire
0014 931307993
RH AXLE SHAFT HEAT SHIELD 		- 1 Enquire
0015 248471
SCREW
M8 X 20 		- 2 Enquire
0016 301073
LH FRONT DCT GEARBOX STRUT 		- 1 Enquire
0016 301074
RH FRONT DCT GEARBOX STRUT 		- 1 Enquire
0017 247856
SCREW
M8 X 1.25 X 25 		- 8 Enquire
0018 319482
COMPL. LH BUSHING MOUNT 		- 1 Enquire
0018 319484
COMPL. RH BUSHING MOUNT 		- 1 Enquire
0019 12164024
NUT 		- 2 Enquire
0020 12644924
WASHER 		- 2 Enquire
0021 300597
SPLIT WASHER 		- 2 Enquire
0022 14302234
SCREW
M8 X 55 		- 8 Enquire
0023 986899
WASHER 		- 8 Enquire
0024 12654424
WASHER 		- 8 Enquire
0025 326174
LH FRONT MOUNT HEAT SHIELD 		- 1 Enquire
0025 326173
RH FRONT MOUNT HEAT SHIELD 		- 1 Enquire
0026 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 2 Enquire
0027 248689
RETENTION BRACKET 		- 2 Enquire
0028 266645
STUD BOLT 		- 1 Enquire
0029 14306474
SCREW
M8 X 25 		- 3 Enquire
0030 12601474
WAVY WASHER 10MM 		- 2 Enquire
0031 12601374
WASHER 		- 4 Enquire
0032 12638524
WASHER
D. 8.15 -15 X 1.5 		- 6 Enquire
0033 248334
SCREW M6 X 14MM
M6 X 12 		- 1 Enquire
0034 70005055
GL5 OIL LEVEL PLUG 		- 1 Enquire
0035 70004679
OIL DRAIN PLUG 		- 4 Enquire
0036 70005056
ATF OIL LEVEL PLUG KIT 		- 1 Enquire
