AIR INTAKE of Ferrari Ferrari 812 Superfast/GTS

View All

Ferrari 812 Superfast/GTS - AIR INTAKE

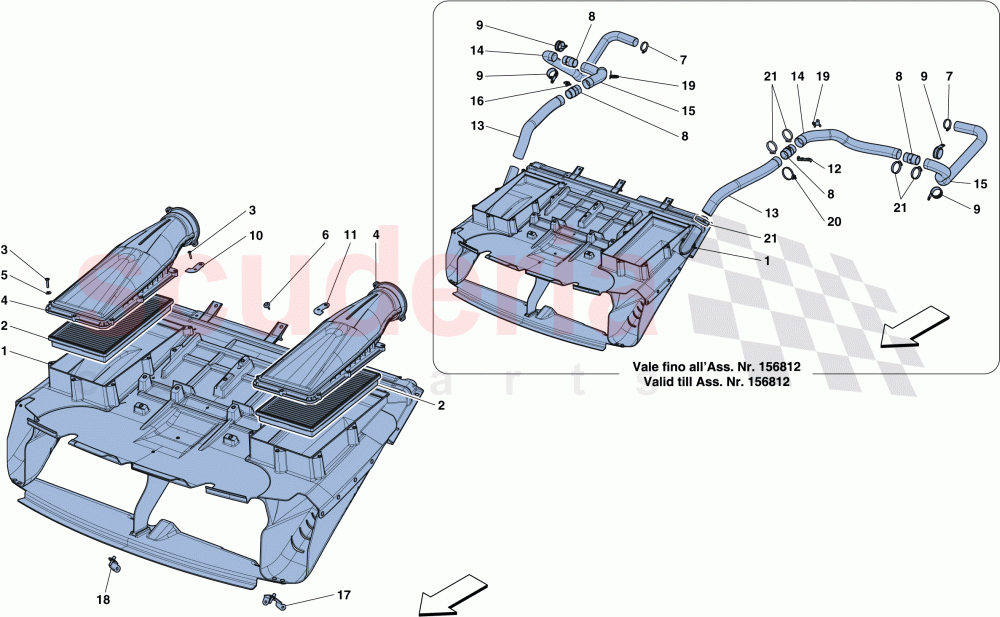

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	823879	AIR DUCT	Enquire	To Order
	823866	AIR DUCT	Enquire	To Order
	342366	AIR DUCT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	223039	Air Filter	Enquire	ARRIVING SOON
	842754	AIR FILTER	Enquire	ARRIVING SOON
	842754	AIR FILTER	Enquire	ARRIVING SOON

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	88831000	GRUB SCREW	Enquire	To Order
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333295	AIR FILTER COVER	Enquire	To Order
	333296	AIR FILTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86321000	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15699804	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	270296	MEMBRANE HOLDER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175119	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338528	RH FASTENER BRACKET	Enquire	To Order
	338620	RH FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338529	LH FASTENER BRACKET	Enquire	To Order
	338624	LH FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336067	LH RESONATOR PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339297	COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339296	COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293051	COILED PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336066	RH RESONATOR PIPE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330023	LH DUCT MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330024	RH DUCT MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336068	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	COLLAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	823879	AIR DUCT	823879 AIR DUCT Applicable for EU GS, AUS, CINA, USA, CDN, GOLFO, UK, USA LIGHT; Applicable from Ass. No. 156813	-	1	Enquire
1	823866	AIR DUCT	823866 AIR DUCT Not for EU GS, AUS, CINA, USA, CDN, GOLFO, UK, USA LIGHT; Applicable from Ass. No. 156813	-	1	Enquire
1	342366	AIR DUCT	342366 AIR DUCT Applicable for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable up to Ass. No. 156812	-	1	Enquire
1	340702	AIR DUCT	340702 AIR DUCT Not for CINA, USA, CDN, GOLFO, USA LIGHT; Applicable up to Ass. No. 156812	-	1	Enquire
2	223039	Air Filter ARRIVING SOON	223039 Air Filter Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775 ARRIVING SOON	-	2	Enquire
2	842754	AIR FILTER ARRIVING SOON	842754 AIR FILTER Applicable for EU GS, AUS, UK; Applicable from Ass. No. 152776 ARRIVING SOON	-	2	Enquire
2	842754	AIR FILTER ARRIVING SOON	842754 AIR FILTER Applicable for USA, CDN, USA LIGHT ARRIVING SOON	-	2	Enquire
2	223039	Air Filter ARRIVING SOON	223039 Air Filter Not for EU GS, AUS, USA, CDN, UK, USA LIGHT ARRIVING SOON	-	2	Enquire
3	88831000	GRUB SCREW	88831000 GRUB SCREW M5 X 25	-	4	Enquire
3	81591700	SCREW	81591700 SCREW M5 X 20	-	10	Enquire
4	333295	AIR FILTER COVER	333295 AIR FILTER COVER	-	2	Enquire
4	333296	AIR FILTER COVER	333296 AIR FILTER COVER Applicable for carbon filter box cover	-	2	Enquire
5	86321000	WASHER	86321000 WASHER Applicable for carbon filter box cover	-	12	Enquire
6	15699804	SCREW	15699804 SCREW	-	4	Enquire
7	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM Applicable up to Ass. No. 156812 ARRIVING SOON	-	2	Enquire
8	270296	MEMBRANE HOLDER PIPE	270296 MEMBRANE HOLDER PIPE D. 38; Applicable up to Ass. No. 156812	-	4	Enquire
9	175119	BRACKET WITH SHEATH	175119 BRACKET WITH SHEATH Applicable up to Ass. No. 156812	-	4	Enquire
10	338528	RH FASTENER BRACKET	338528 RH FASTENER BRACKET	-	1	Enquire
10	338620	RH FASTENER BRACKET	338620 RH FASTENER BRACKET Applicable for carbon filter box cover	-	1	Enquire
11	338529	LH FASTENER BRACKET	338529 LH FASTENER BRACKET	-	1	Enquire
11	338624	LH FASTENER BRACKET	338624 LH FASTENER BRACKET Applicable for carbon filter box cover	-	1	Enquire
12	336067	LH RESONATOR PIPE FASTENER BRACKET	336067 LH RESONATOR PIPE FASTENER BRACKET Applicable up to Ass. No. 156812	-	1	Enquire
13	339297	COILED PIPE	339297 COILED PIPE Applicable up to Ass. No. 156812	-	2	Enquire
14	339296	COILED PIPE	339296 COILED PIPE Applicable up to Ass. No. 156812	-	2	Enquire
15	293051	COILED PIPE	293051 COILED PIPE Applicable up to Ass. No. 156812	-	2	Enquire
16	336066	RH RESONATOR PIPE FASTENER BRACKET	336066 RH RESONATOR PIPE FASTENER BRACKET Applicable up to Ass. No. 156812	-	1	Enquire
17	330023	LH DUCT MOUNTING BRACKET	330023 LH DUCT MOUNTING BRACKET	-	1	Enquire
18	330024	RH DUCT MOUNTING BRACKET	330024 RH DUCT MOUNTING BRACKET	-	1	Enquire
19	336068	BRACKET	336068 BRACKET Applicable up to Ass. No. 156812	-	2	Enquire
20	303385	CLIP	303385 CLIP Applicable up to Ass. No. 156812	-	8	Enquire
21	262114	COLLAR	262114 COLLAR Applicable up to Ass. No. 156812	-	10	Enquire
