Ferrari 812 Superfast/GTS - STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

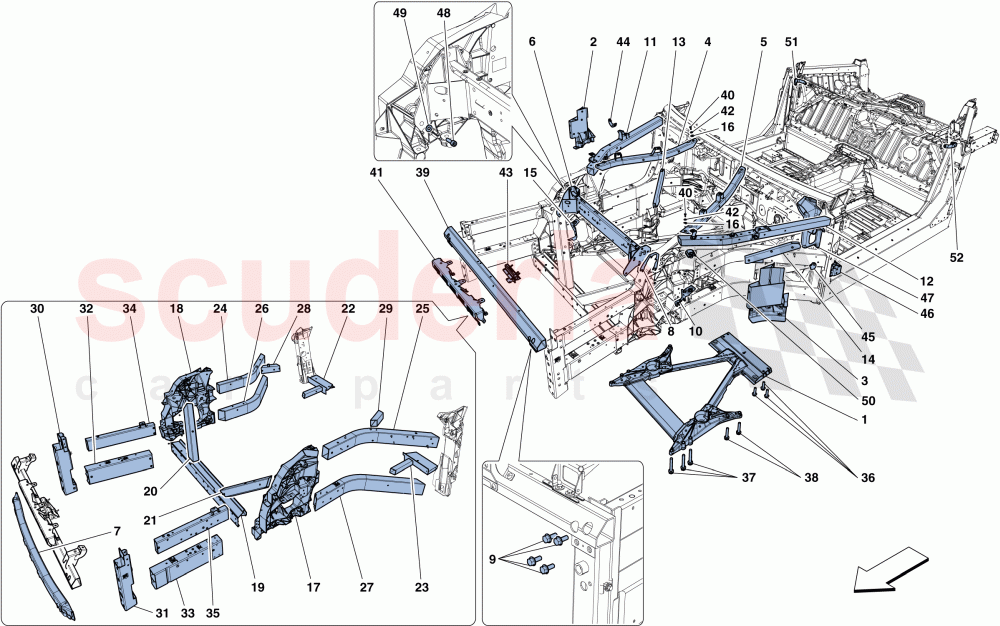

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985278223	ENGINE SUBFRAME	$14,686.87	To Order

Photo	Part No	Description	Price (each)	Stock
	279757	RH FRONT LOWER	$2,579.95	To Order

Photo	Part No	Description	Price (each)	Stock
	279756	LH FRONT LOWER	$2,899.49	To Order

Photo	Part No	Description	Price (each)	Stock
	334389	RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	$516.03	To Order
	743705	RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	$946.06	To Order

Photo	Part No	Description	Price (each)	Stock
	334384	LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	$533.34	To Order

Photo	Part No	Description	Price (each)	Stock
	320985	REMOVABLE STRUT TOWER CONNECTOR CROSS-MEMBER	$1,467.35	To Order

Photo	Part No	Description	Price (each)	Stock
	832844	COMPL. FRONT CROSS MEMBER	$759.72	To Order

Photo	Part No	Description	Price (each)	Stock
	330337	STRUT TOWER CONNECTOR CROSS MEMBER SPACER	$215.00	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.79	To Order

Photo	Part No	Description	Price (each)	Stock
	326912	LH FRONT BRAKE BRACKET	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	336498	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$902.97	To Order
	330097	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$620.80	To Order

Photo	Part No	Description	Price (each)	Stock
	330901	LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$620.80	To Order

Photo	Part No	Description	Price (each)	Stock
	270672	CONNECTION BETWEEN PILLAR AND RH FRONT LOWER	$199.18	To Order

Photo	Part No	Description	Price (each)	Stock
	270670	CONNECTION BETWEEN PILLAR AND LH FRONT LOWER	$256.72	To Order

Photo	Part No	Description	Price (each)	Stock
	326916	RH FRONT BRAKE BRACKET	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	322303	LH FRONT SUSPENSION MOUNT CASTING	$17,777.44	To Order

Photo	Part No	Description	Price (each)	Stock
	322309	RH FRONT SUSPENSION MOUNT CASTING	$17,777.44	To Order

Photo	Part No	Description	Price (each)	Stock
	321040	FRONT SUBFRAME CROSS-MEMBER	$846.53	To Order

Photo	Part No	Description	Price (each)	Stock
	325875	RH FRONT DIAGONAL SUBFRAME BRACE	$902.97	To Order

Photo	Part No	Description	Price (each)	Stock
	321031	LH FRONT DIAGONAL SUBFRAME BRACE	$180.57	To Order

Photo	Part No	Description	Price (each)	Stock
	281627	LOWER RH EXTRUSION	$818.33	To Order
	292691	RH LOWER EXTRUSION	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	281628	LOWER LH EXTRUSION	$818.33	To Order
	292692	LH LOWER EXTRUSION	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	327883	RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	$406.66	To Order
	336411	RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	$902.97	To Order

Photo	Part No	Description	Price (each)	Stock
	274282	LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	$994.83	To Order
	336350	LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	$688.05	To Order

Photo	Part No	Description	Price (each)	Stock
	293717	LOWER RH DIAGONAL FIREWALL BRACE	$722.05	To Order
	273379	LOWER RH DIAGONAL FIREWALL BRACE	$867.91	To Order

Photo	Part No	Description	Price (each)	Stock
	281551	LOWER LH DIAGONAL FIREWALL BRACE	$1,091.11	To Order
	293716	LOWER LH DIAGONAL FIREWALL BRACE	$722.05	To Order

Photo	Part No	Description	Price (each)	Stock
	276432	RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	$298.80	To Order

Photo	Part No	Description	Price (each)	Stock
	276429	LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	$320.90	To Order
	291615	LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	$433.23	To Order

Photo	Part No	Description	Price (each)	Stock
	330038	RH FRONT CRASH BOX CROSS MEMBER STRUT	$541.79	To Order

Photo	Part No	Description	Price (each)	Stock
	985330036	LH FRONT CRASH BOX CROSS MEMBER STRUT	$1,556.44	To Order

Photo	Part No	Description	Price (each)	Stock
	330509	RH LOWER FRONT STRUT	$519.23	To Order

Photo	Part No	Description	Price (each)	Stock
	330504	LH LOWER FRONT STRUT	$452.08	To Order

Photo	Part No	Description	Price (each)	Stock
	334341	RH UPPER FRONT STRUT	$180.57	To Order

Photo	Part No	Description	Price (each)	Stock
	334339	LH UPPER FRONT STRUT	$180.57	To Order

Photo	Part No	Description	Price (each)	Stock
	299582	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	271283	SCREW	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	277723	SCREW	$6.26	To Order

Photo	Part No	Description	Price (each)	Stock
	88186400	FRONT BUMPER CROSS-MEMBER	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	16044434	SCREW	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	88186600	BUMPER SHELF CROSS MEMBER	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	84337900	LID LOCK FASTENER BRACKET	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	84931800	UPPER REAR BRACKET FOR RH FRONT FENDER	$11.15	To Order

Photo	Part No	Description	Price (each)	Stock
	84931900	UPPER REAR BRACKET FOR LH FRONT FENDER	$11.15	To Order

Photo	Part No	Description	Price (each)	Stock
	273220	LH FRONT DOOR LOWER HINGE MOUNTING	$497.41	To Order
	273211	RH FRONT DOOR LOWER HINGE MOUNTING	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	273909	LH OUTER FIREWALL ENDPIECE	$215.00	To Order
	273911	RH OUTER FIREWALL ENDPIECE	$141.19	To Order
	273908	RH OUTER FIREWALL ENDPIECE	$215.00	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	284518	FRONT ACCELEROMETER FASTENER BRACKET	$10.89	To Order

Photo	Part No	Description	Price (each)	Stock
	286137	BRACKET FOR RH BELT GUIDE	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	286136	BRACKET FOR LH BELT RETRACTOR	$286.67	To Order

View All

STRUCTURES AND ELEMENTS, FRONT OF VEHICLE of Ferrari Ferrari 812 Superfast/GTS

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	985278223	ENGINE SUBFRAME	985278223 ENGINE SUBFRAME	$14,686.87	1
	2	279757	RH FRONT LOWER	279757 RH FRONT LOWER	$2,579.95	1
	3	279756	LH FRONT LOWER	279756 LH FRONT LOWER	$2,899.49	1
	4	334389	RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	334389 RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Not for GD	$516.03	1
	4	743705	RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	743705 RH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE Applicable for GD	$946.06	1
	5	334384	LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	334384 LH INTERNAL ENGINE COMPARTMENT DIAGONAL BRACE	$533.34	1
	6	320985	REMOVABLE STRUT TOWER CONNECTOR CROSS-MEMBER	320985 REMOVABLE STRUT TOWER CONNECTOR CROSS-MEMBER	$1,467.35	1
	7	832844	COMPL. FRONT CROSS MEMBER	832844 COMPL. FRONT CROSS MEMBER	$759.72	1
	8	330337	STRUT TOWER CONNECTOR CROSS MEMBER SPACER	330337 STRUT TOWER CONNECTOR CROSS MEMBER SPACER	$215.00	2
	9	13839224	SCREW	13839224 SCREW M8 X 20	$2.79	8
	10	326912	LH FRONT BRAKE BRACKET	326912 LH FRONT BRAKE BRACKET	$20.84	1
	11	336498	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	336498 RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE Applicable for GD	$902.97	1
	11	330097	RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	330097 RH UPPER EXTERNAL DIAGONAL FIREWALL BRACE Not for GD	$620.80	1
	12	330901	LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	330901 LH UPPER EXTERNAL DIAGONAL FIREWALL BRACE	$620.80	1
	13	270672	CONNECTION BETWEEN PILLAR AND RH FRONT LOWER	270672 CONNECTION BETWEEN PILLAR AND RH FRONT LOWER	$199.18	1
	14	270670	CONNECTION BETWEEN PILLAR AND LH FRONT LOWER	270670 CONNECTION BETWEEN PILLAR AND LH FRONT LOWER	$256.72	1
	15	326916	RH FRONT BRAKE BRACKET	326916 RH FRONT BRAKE BRACKET	$20.84	1
	16	84653800	WASHER	84653800 WASHER	$5.75	8
	17	322303	LH FRONT SUSPENSION MOUNT CASTING	322303 LH FRONT SUSPENSION MOUNT CASTING	$17,777.44	1
	18	322309	RH FRONT SUSPENSION MOUNT CASTING	322309 RH FRONT SUSPENSION MOUNT CASTING	$17,777.44	1
	19	321040	FRONT SUBFRAME CROSS-MEMBER	321040 FRONT SUBFRAME CROSS-MEMBER	$846.53	1
	20	325875	RH FRONT DIAGONAL SUBFRAME BRACE	325875 RH FRONT DIAGONAL SUBFRAME BRACE	$902.97	1
	21	321031	LH FRONT DIAGONAL SUBFRAME BRACE	321031 LH FRONT DIAGONAL SUBFRAME BRACE	$180.57	1
	22	281627	LOWER RH EXTRUSION	281627 LOWER RH EXTRUSION ; Not for GD	$818.33	1
	22	292691	RH LOWER EXTRUSION	292691 RH LOWER EXTRUSION ; Applicable for GD	$320.90	1
	23	281628	LOWER LH EXTRUSION	281628 LOWER LH EXTRUSION ; Not for GD	$818.33	1
	23	292692	LH LOWER EXTRUSION	292692 LH LOWER EXTRUSION ; Applicable for GD	$320.90	1
	24	327883	RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	327883 RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE ; Not for GD	$406.66	1
	24	336411	RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	336411 RH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE ; Applicable for GD	$902.97	1
	25	274282	LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	274282 LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE ; Not for GD	$994.83	1
	25	336350	LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE	336350 LH CENTRAL EXTERNAL DIAGONAL FIREWALL BRACE ; Applicable for GD	$688.05	1
	26	293717	LOWER RH DIAGONAL FIREWALL BRACE	293717 LOWER RH DIAGONAL FIREWALL BRACE ; Applicable for GD	$722.05	1
	26	273379	LOWER RH DIAGONAL FIREWALL BRACE	273379 LOWER RH DIAGONAL FIREWALL BRACE ; Not for GD	$867.91	1
	27	281551	LOWER LH DIAGONAL FIREWALL BRACE	281551 LOWER LH DIAGONAL FIREWALL BRACE ; Not for GD	$1,091.11	1
	27	293716	LOWER LH DIAGONAL FIREWALL BRACE	293716 LOWER LH DIAGONAL FIREWALL BRACE ; Applicable for GD	$722.05	1
	28	276432	RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	276432 RH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	$298.80	1
	29	276429	LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	276429 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE ; Not for GD	$320.90	1
	29	291615	LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE	291615 LH CENTRAL INTERNAL DIAGONAL FIREWALL BRACE ; Applicable for GD	$433.23	1
	30	330038	RH FRONT CRASH BOX CROSS MEMBER STRUT	330038 RH FRONT CRASH BOX CROSS MEMBER STRUT	$541.79	1
	31	985330036	LH FRONT CRASH BOX CROSS MEMBER STRUT	985330036 LH FRONT CRASH BOX CROSS MEMBER STRUT	$1,556.44	1
	32	330509	RH LOWER FRONT STRUT	330509 RH LOWER FRONT STRUT	$519.23	1
	33	330504	LH LOWER FRONT STRUT	330504 LH LOWER FRONT STRUT	$452.08	1
	34	334341	RH UPPER FRONT STRUT	334341 RH UPPER FRONT STRUT	$180.57	1
	35	334339	LH UPPER FRONT STRUT	334339 LH UPPER FRONT STRUT	$180.57	1
	36	299582	SCREW	299582 SCREW M10 X 1.25 X 40	$1.36	6
	37	271283	SCREW	271283 SCREW M10 X 1.25 X 70	$6.26	6
	38	277723	SCREW	277723 SCREW M10 X 1.25 X 55	$6.26	4
	39	88186400	FRONT BUMPER CROSS-MEMBER	88186400 FRONT BUMPER CROSS-MEMBER	$208.58	1
	40	16044434	SCREW	16044434 SCREW M8 X 60	$1.85	2
	41	88186600	BUMPER SHELF CROSS MEMBER	88186600 BUMPER SHELF CROSS MEMBER	$133.17	1
	42	84653800	WASHER	84653800 WASHER	$5.75	8
	43	84337900	LID LOCK FASTENER BRACKET	84337900 LID LOCK FASTENER BRACKET	$147.61	1
	44	84931800	UPPER REAR BRACKET FOR RH FRONT FENDER	84931800 UPPER REAR BRACKET FOR RH FRONT FENDER	$11.15	1
	45	84931900	UPPER REAR BRACKET FOR LH FRONT FENDER	84931900 UPPER REAR BRACKET FOR LH FRONT FENDER	$11.15	1
	46	273220	LH FRONT DOOR LOWER HINGE MOUNTING	273220 LH FRONT DOOR LOWER HINGE MOUNTING	$497.41	1
	46	273211	RH FRONT DOOR LOWER HINGE MOUNTING	273211 RH FRONT DOOR LOWER HINGE MOUNTING	$497.41	1
	47	273909	LH OUTER FIREWALL ENDPIECE	273909 LH OUTER FIREWALL ENDPIECE Applicable from Ass. No. 156813	$215.00	1
	47	273911	RH OUTER FIREWALL ENDPIECE	273911 RH OUTER FIREWALL ENDPIECE Applicable up to Ass. No. 156812	$141.19	1
	47	273908	RH OUTER FIREWALL ENDPIECE	273908 RH OUTER FIREWALL ENDPIECE Applicable from Ass. No. 156813	$215.00	1
	47	273894	LH OUTER FIREWALL ENDPIECE	273894 LH OUTER FIREWALL ENDPIECE Applicable up to Ass. No. 156812	$141.19	1
	48	13028734	SCREW	13028734 SCREW M8 X 25	$0.53 MSRP: ~~2.25~~ (76.4% off)	8
	49	84653800	WASHER	84653800 WASHER	$5.75	8
	50	284518	FRONT ACCELEROMETER FASTENER BRACKET	284518 FRONT ACCELEROMETER FASTENER BRACKET	$10.89	2
	51	286137	BRACKET FOR RH BELT GUIDE	286137 BRACKET FOR RH BELT GUIDE	$286.67	1
	52	286136	BRACKET FOR LH BELT RETRACTOR	286136 BRACKET FOR LH BELT RETRACTOR	$286.67	1

STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

STRUCTURES AND ELEMENTS, FRONT OF VEHICLE

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

STRUCTURES AND ELEMENTS, REAR OF VEHICLE

STRUCTURES AND ELEMENTS, REAR OF VEHICLE

CHASSIS COMPLETION

CHASSIS COMPLETION

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
