AC SYSTEM - FREON PIPES

Find Your Part

Ferrari 612 Sessanta - AC SYSTEM - FREON PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
199479 AC CONDENSER $1,215.05 To Order
Photo Part No Description Price (each) Stock
199486 RH LOWER BRACKET $72.19 To Order
Photo Part No Description Price (each) Stock
199488 LH LOWER BRACKET $44.91 To Order
Photo Part No Description Price (each) Stock
199485 RH UPPER BRACKET $97.86 To Order
Photo Part No Description Price (each) Stock
199487 LH UPPER BRACKET $67.38 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.94 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14084111 NUT $0.05 To Order
Photo Part No Description Price (each) Stock
165136 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
67851700 TUBE FASTENING BRACKET $32.08 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.57 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.55 To Order
Photo Part No Description Price (each) Stock
66982800 GAS PIPE FROM CONDENSER TO FILTER $545.55 To Order
Photo Part No Description Price (each) Stock
66374400 PRESSURE SWITCH $240.67 To Order
Photo Part No Description Price (each) Stock
67085100 GAS FILTER $57.59 To Order
Photo Part No Description Price (each) Stock
67001100 DEHYDRATOR FILTER MOUNTING BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
67444300 TUBE FASTENING BRACKET $18.62 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.94 To Order
Photo Part No Description Price (each) Stock
13506704 WASHER $0.55 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.55 To Order
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $770.19 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.94 To Order
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.65 To Order
Photo Part No Description Price (each) Stock
11193274 WASHER $0.03 To Order
Photo Part No Description Price (each) Stock
68392000 O-RING $13.14 To Order
Photo Part No Description Price (each) Stock
68392100 O-RING $6.68 To Order
Photo Part No Description Price (each) Stock
66309600 O-RING $2.06 To Order
Photo Part No Description Price (each) Stock
68392700 O-RING $5.66 To Order
Photo Part No Description Price (each) Stock
66309700 O-RING $11.73 To Order
Photo Part No Description Price (each) Stock
66309400 O-RING A/C SYSTEM $18.20 To Order
Photo Part No Description Price (each) Stock
66309500 O-RING $18.20 To Order
Photo Part No Description Price (each) Stock
66309800 O-RING $4.52 To Order
Photo Part No Description Price (each) Stock
68392800 O-RING $2.06 To Order
Photo Part No Description Price (each) Stock
139512 BRACKET WITH SHEATH $2.53 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
65708600 SPACER BUSHING $7.52 To Order
Photo Part No Description Price (each) Stock
145543 CLIP $0.21 To Order
Photo Part No Description Price (each) Stock
67851300 BRACKET FASTENER PLATE $129.96 To Order
Photo Part No Description Price (each) Stock
67851200 REAR PIPE RETAINER BRACKET $20.05 To Order
Photo Part No Description Price (each) Stock
67851100 FRONT PIPE RETAINER BRACKET $17.63 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
67851600 TUBE FASTENING BRACKET $40.11 To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH $1.77 To Order
138478 BRACKET WITH SHEATH $5.36 To Order
183642 BRACKET WITH SHEATH $22.63 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
View All

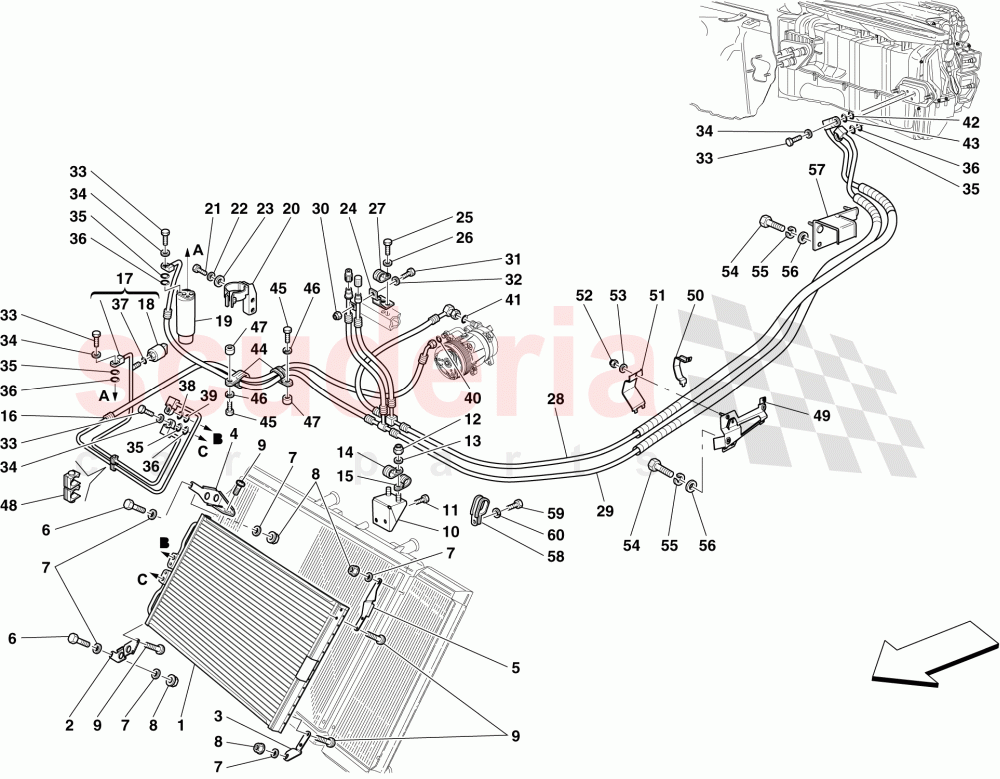

AC SYSTEM - FREON PIPES of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
