Ferrari 599 GTO - INJECTION - IGNITION SYSTEM

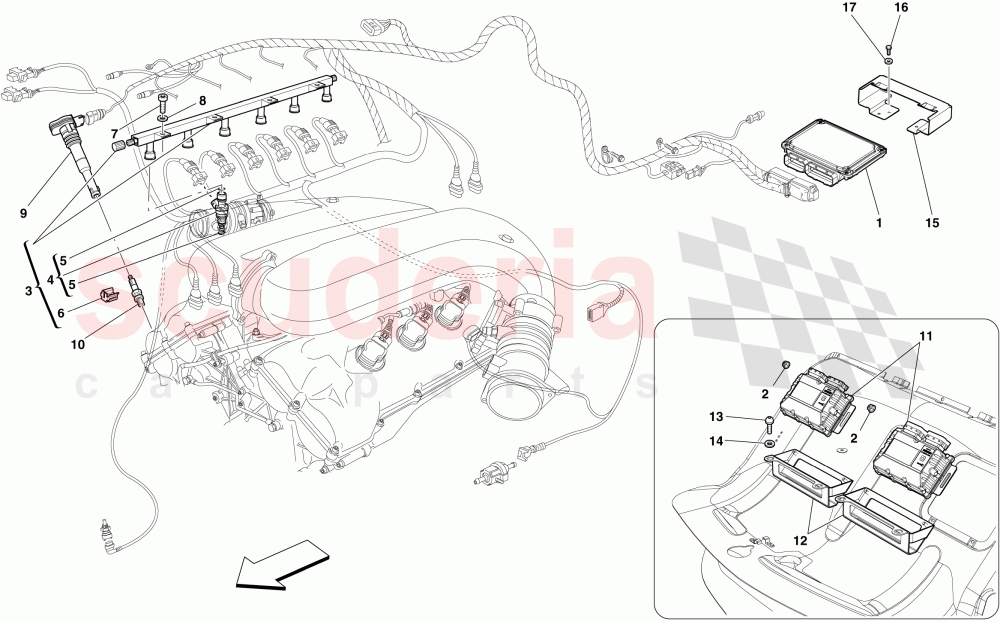

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	255386	IGNITION ECU	Enquire	To Order
	263134	IGNITION ECU	Enquire	To Order
	268317	IGNITION ECU	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216361	COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	Enquire	To Order
	216362	COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	213635	ELECTRO-INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144730	INJECTORS RETENTION CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	192637	Spark Plug NGK	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	259808	IONISING SYSTEM ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255371	IONISING ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62940900	Allen Head Screw M6 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12647724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247873	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13506704	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	255386	IGNITION ECU	255386 IGNITION ECU Not for Taiwan and Russia; Not for USA, CDN	-	2	Enquire
1	263134	IGNITION ECU	263134 IGNITION ECU Applicable for USA, CDN	-	2	Enquire
1	268317	IGNITION ECU	268317 IGNITION ECU Applicable for Russia	-	2	Enquire
1	268319	IGNITION ECU	268319 IGNITION ECU Applicable for Taiwan	-	2	Enquire
1	268316	IGNITION ECU	268316 IGNITION ECU Applicable for J	-	2	Enquire
1	268318	IGNITION ECU	268318 IGNITION ECU Applicable for USA LIGHT	-	2	Enquire
2	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
3	216361	COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	216361 COMPLETE RH FUEL PIPE WITH ELECTROINJECTORS	-	1	Enquire
3	216362	COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	216362 COMPLETE LH FUEL PIPE WITH ELECTROINJECTORS	-	1	Enquire
4	213635	ELECTRO-INJECTOR	213635 ELECTRO-INJECTOR	-	6	Enquire
5	133902	O-Ring	133902 O-Ring	-	24	Enquire
6	144730	INJECTORS RETENTION CLIP	144730 INJECTORS RETENTION CLIP	-	12	Enquire
7	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	-	8	Enquire
8	12601374	WASHER	12601374 WASHER	-	8	Enquire
9	317312	GASKET	317312 GASKET High end	-	12	Enquire
10	192637	Spark Plug NGK ARRIVING SOON	192637 Spark Plug NGK ARRIVING SOON	-	12	Enquire
11	259808	IONISING SYSTEM ECU	259808 IONISING SYSTEM ECU	-	2	Enquire
12	255371	IONISING ECU BRACKET	255371 IONISING ECU BRACKET	-	2	Enquire
13	62940900	Allen Head Screw M6 x 15	62940900 Allen Head Screw M6 x 15	-	4	Enquire
14	12647724	WASHER	12647724 WASHER	-	4	Enquire
15	247873	BRACKET	247873 BRACKET	-	2	Enquire
16	10977624	SCREW	10977624 SCREW	-	6	Enquire
17	13506704	WASHER	13506704 WASHER	-	6	Enquire
