Rear Exhaust System

Ferrari 575M Maranello

Find Your Part

Ferrari 575M Maranello - REAR EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181794 CENTRAL MUFFLER $2,007.06 To Order
181794 CENTRAL MUFFLER $2,007.06 To Order
Photo Part No Description Price (each) Stock
156967 MUFFLER BUFFER FOR SUPPORT $57.07 To Order
Photo Part No Description Price (each) Stock
16044324 SCREW $0.36 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12642078 WASHER $0.94 To Order
Photo Part No Description Price (each) Stock
154016 SPACER $30.71 To Order
Photo Part No Description Price (each) Stock
184953 SPACER $5.71 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
114748 Nut $15.35 IN STOCK
Photo Part No Description Price (each) Stock
154116 BRACKET $5.54 To Order
Photo Part No Description Price (each) Stock
191421 REAR SUPPORT $43.89 To Order
Photo Part No Description Price (each) Stock
181795 R.H. EXHAUST EXTENSION $1,112.59 To Order
Photo Part No Description Price (each) Stock
181796 L.H. EXHAUST EXTENSION $1,097.95 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
12642078 WASHER $0.94 To Order
Photo Part No Description Price (each) Stock
154110 OUTER SUPPORT $75.40 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
154116 BRACKET $5.54 To Order
Photo Part No Description Price (each) Stock
156968 Muffler Buffer for Support $128.81 To Order
Photo Part No Description Price (each) Stock
161548 L. H. INNER SUPPORT $135.29 To Order
161549 R. H. INNER SUPPORT $105.94 To Order
Photo Part No Description Price (each) Stock
154016 SPACER $30.71 To Order
Photo Part No Description Price (each) Stock
16287524 SCREW $1.38 IN STOCK
Photo Part No Description Price (each) Stock
181798 LH. REAR SILENCER $2,034.89 To Order
200998 LH. REAR SILENCER $6,273.54 To Order
212806 L.H. REAR SILENCER $4,903.18 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
114748 Nut $15.35 IN STOCK
Photo Part No Description Price (each) Stock
170041 GASKET $57.07 To Order
Photo Part No Description Price (each) Stock
170029 COMPLETE L.H. BY-PASS VALVE $1,192.28 To Order
170028 COMPLETE R.H. BY-PASS VALVE $1,380.07 To Order
Photo Part No Description Price (each) Stock
174314 FRONT HEAT PROTECTION SHIELD $50.84 To Order
Photo Part No Description Price (each) Stock
174316 CLAMP $5.59 IN STOCK
Photo Part No Description Price (each) Stock
188910 REAR HEAT PROTECTION SHIELD $304.86 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14048327 NUT $0.96 To Order
Photo Part No Description Price (each) Stock
200995 R.H. EXHAUST EXTENSION $2,247.39 To Order
Photo Part No Description Price (each) Stock
200996 L.H. EXHAUST EXTENSION $2,247.39 To Order
Photo Part No Description Price (each) Stock
202393 FRONT HEAT PROTECTION SHIELD $385.09 To Order
Photo Part No Description Price (each) Stock
67972900 STUD $9.11 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 IN STOCK
View All

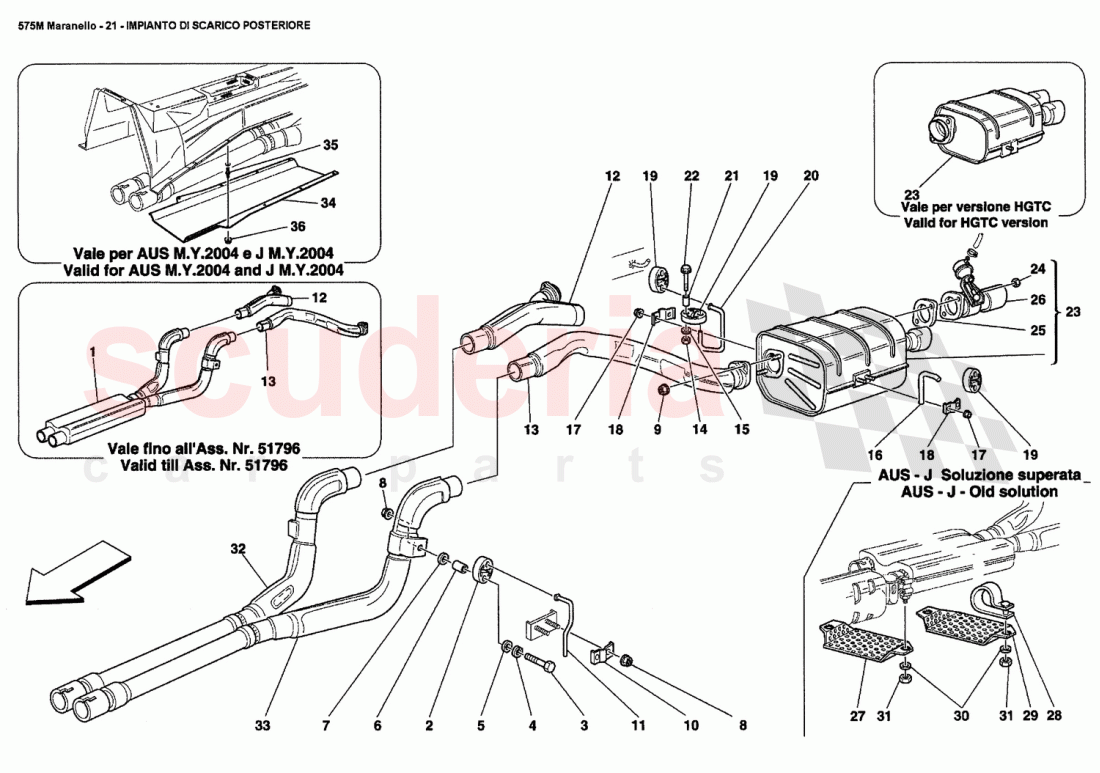

REAR EXHAUST SYSTEM of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 181794
CENTRAL MUFFLER 		$2,007.06 1
1 181794
CENTRAL MUFFLER
Valid till Ass. Nr. 51796 		$2,007.06 1
2 156967
MUFFLER BUFFER FOR SUPPORT 		$57.07 2
3 16044324
SCREW 		$0.36 (20% off) 2
4 127496
WASHER 		$0.06 (80% off) 2
5 12642078
WASHER 		$0.94 2
6 154016
SPACER 		$30.71 2
7 184953
SPACER 		$5.71 2
8 14058519
FLANGED NUT M8 X 8
IN STOCK 		$0.23 (75.8% off) 2
9 114748
Nut
IN STOCK 		$15.35 4
10 154116
BRACKET 		$5.54 (12.5% off) 2
11 191421
REAR SUPPORT 		$43.89 2
12 181795
R.H. EXHAUST EXTENSION 		$1,112.59 1
13 181796
L.H. EXHAUST EXTENSION 		$1,097.95 1
14 14058519
FLANGED NUT M8 X 8
IN STOCK 		$0.23 (75.8% off) 2
15 12642078
WASHER 		$0.94 4
16 154110
OUTER SUPPORT 		$75.40 2
17 14058519
FLANGED NUT M8 X 8
IN STOCK 		$0.23 (75.8% off) 8
18 154116
BRACKET 		$5.54 (12.5% off) 4
19 156968
Muffler Buffer for Support 		$128.81 (12% off) 6
20 161548
L. H. INNER SUPPORT 		$135.29 1
20 161549
R. H. INNER SUPPORT 		$105.94 1
21 154016
SPACER 		$30.71 2
22 16287524
SCREW
IN STOCK 		$1.38 2
23 181798
LH. REAR SILENCER 		$2,034.89 1
23 200998
LH. REAR SILENCER 		$6,273.54 1
23 212806
L.H. REAR SILENCER 		$4,903.18 (7.9% off) 1
23 181797
R.H. REAR SILENCER
Valid till Ass. Nr.51796 		$1,995.00 1
23 200997
R.H. REAR SILENCER
Valid from Ass. Nr.51797 		$2,858.02 1
23 212805
R.H. REAR SILENCER
Versione HGTC 		$4,273.26 (19.8% off) 1
24 114748
Nut
IN STOCK 		$15.35 4
25 170041
GASKET 		$57.07 2
26 170029
COMPLETE L.H. BY-PASS VALVE 		$1,192.28 1
26 170028
COMPLETE R.H. BY-PASS VALVE 		$1,380.07 1
27 174314
FRONT HEAT PROTECTION SHIELD
Valid for AUS and J / Not for M.Y. 2004 		$50.84 1
28 174316
CLAMP
IN STOCK 		$5.59 2
29 188910
REAR HEAT PROTECTION SHIELD
Wnt for 1UI V OHCtA. 		$304.86 1
30 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
31 14048327
NUT 		$0.96 4
32 200995
R.H. EXHAUST EXTENSION 		$2,247.39 1
33 200996
L.H. EXHAUST EXTENSION 		$2,247.39 1
34 202393
FRONT HEAT PROTECTION SHIELD
Valid for AUS M.Y. 2004 and J M.Y. 2004 		$385.09 1
35 67972900
STUD 		$9.11 8
36 14059211
NUT
IN STOCK 		$0.06 8
