REAR STRUCTURES AND COMPONENTS of Ferrari Ferrari 550 Barchetta

View All

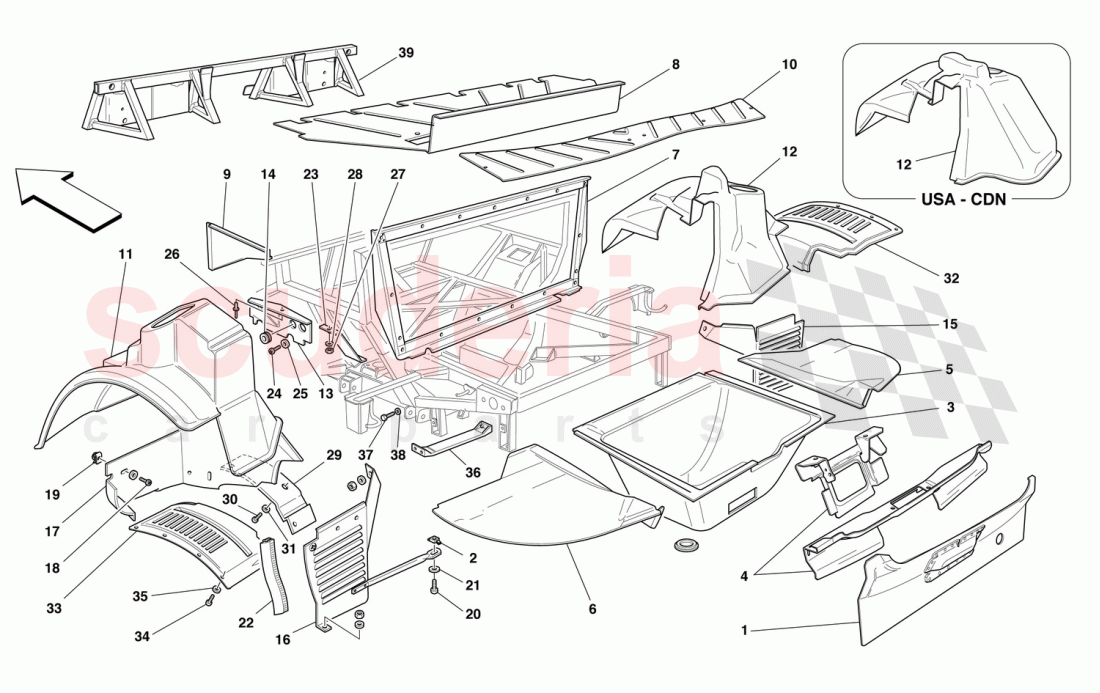

Ferrari 550 Barchetta - REAR STRUCTURES AND COMPONENTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	66382300	REAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14197890	CAGE NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64554700	SPARE WHEEL STEP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66841400	COMPLETE STAMPED REAR PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64578500	R.H. LATERAL TRUNK BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64578600	L.H. LATERAL TRUNK BOTTOM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64659900	FRAME FOR SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66330300	PANEL FOR BAGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64557700	SHIELD FOR R.H. WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66330700	TAIL REAR WINDOW CROSSPIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64576200	COMPLETE LH REAR WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66611700	COMPLETE RH REAR WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65236500	DOOR FOR PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10396880	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64650700	R.H. REAR GRAVEL GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64650800	L.H. REAR GRAVEL GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64887300	FRONT GRAVEL GUARD FOR LH REAR WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276470	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276477	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65260100	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65374700	L.H. HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276477	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15624311	HEXAGONAL RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64711700	DOOR FOR L.H. REAR SIDE-MARKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688375	SELF-TAPPING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64576100	R.H. WHEELHOUSE DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64576300	L.H. WHEELHOUSE DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13276477	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170507	MOVABLE CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66841300	ROLL-BAR TRELLIS BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65915200	R.H. WHEELHOUSE DOOR	65915200 R.H. WHEELHOUSE DOOR Valid for USA and CDN	-	1	Enquire
-	64711600	DOOR FOR R.H. REAR SIDE-MARKER	64711600 DOOR FOR R.H. REAR SIDE-MARKER	-	1	Enquire
-	65374800	R.H. HEAT SHIELD	65374800 R.H. HEAT SHIELD	-	1	Enquire
-	64887400	FRONT GRAVEL GUARD FOR RH REAR WHEEL	64887400 FRONT GRAVEL GUARD FOR RH REAR WHEEL REAR WHEEL	-	1	Enquire
-	66381800	COMPLETE RH REAR WHEELHOUSE	66381800 COMPLETE RH REAR WHEELHOUSE WHEELHOUSE / Valid for USA and CDN	-	1	Enquire
-	65424600	FRAME FOR SHIELD	65424600 FRAME FOR SHIELD Valid for GD	-	1	Enquire
-	64557800	SHIELD FOR L.H. WHEELHOUSE	64557800 SHIELD FOR L.H. WHEELHOUSE	-	1	Enquire
-	65939000	R.H. LATERAL TRUNK BOTTOM	65939000 R.H. LATERAL TRUNK BOTTOM Valid for USA and CDN	-	1	Enquire
1	66382300	REAR PANEL	66382300 REAR PANEL	-	1	Enquire
2	14197890	CAGE NUT	14197890 CAGE NUT	-	4	Enquire
3	64554700	SPARE WHEEL STEP	64554700 SPARE WHEEL STEP	-	1	Enquire
4	66841400	COMPLETE STAMPED REAR PANEL	66841400 COMPLETE STAMPED REAR PANEL PANEL	-	1	Enquire
5	64578500	R.H. LATERAL TRUNK BOTTOM	64578500 R.H. LATERAL TRUNK BOTTOM Not for USA and CDN	-	1	Enquire
6	64578600	L.H. LATERAL TRUNK BOTTOM	64578600 L.H. LATERAL TRUNK BOTTOM	-	1	Enquire
7	64659900	FRAME FOR SHIELD	64659900 FRAME FOR SHIELD Not for GD	-	1	Enquire
8	66330300	PANEL FOR BAGS	66330300 PANEL FOR BAGS	-	1	Enquire
9	64557700	SHIELD FOR R.H. WHEELHOUSE	64557700 SHIELD FOR R.H. WHEELHOUSE	-	1	Enquire
10	66330700	TAIL REAR WINDOW CROSSPIECE	66330700 TAIL REAR WINDOW CROSSPIECE	-	1	Enquire
11	64576200	COMPLETE LH REAR WHEELHOUSE	64576200 COMPLETE LH REAR WHEELHOUSE WHEELHOUSE	-	1	Enquire
12	66611700	COMPLETE RH REAR WHEELHOUSE	66611700 COMPLETE RH REAR WHEELHOUSE WHEELHOUSE / Not for USA and CDN	-	1	Enquire
13	65236500	DOOR FOR PIPES	65236500 DOOR FOR PIPES	-	1	Enquire
14	10396880	CABLE GROMMET	10396880 CABLE GROMMET	-	2	Enquire
15	64650700	R.H. REAR GRAVEL GUARD	64650700 R.H. REAR GRAVEL GUARD	-	1	Enquire
16	64650800	L.H. REAR GRAVEL GUARD	64650800 L.H. REAR GRAVEL GUARD	-	1	Enquire
17	64887300	FRONT GRAVEL GUARD FOR LH REAR WHEEL	64887300 FRONT GRAVEL GUARD FOR LH REAR WHEEL REAR WHEEL	-	1	Enquire
18	13276470	SCREW M6 X 20	13276470 SCREW M6 X 20	-	8	Enquire
19	62766300	CLIP	62766300 CLIP	-	8	Enquire
20	13276477	SCREW	13276477 SCREW	-	12	Enquire
21	12643724	WASHER	12643724 WASHER	-	12	Enquire
22	65260100	GASKET	65260100 GASKET	-	2	Enquire
23	65374700	L.H. HEAT SHIELD	65374700 L.H. HEAT SHIELD	-	1	Enquire
24	13276477	SCREW	13276477 SCREW	-	2	Enquire
25	12643724	WASHER	12643724 WASHER	-	2	Enquire
26	15624311	HEXAGONAL RIVET	15624311 HEXAGONAL RIVET	-	1	Enquire
27	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	8	Enquire
28	12638124	WASHER	12638124 WASHER	-	8	Enquire
29	64711700	DOOR FOR L.H. REAR SIDE-MARKER	64711700 DOOR FOR L.H. REAR SIDE-MARKER	-	1	Enquire
30	15688375	SELF-TAPPING SCREW	15688375 SELF-TAPPING SCREW	-	6	Enquire
31	62769800	WASHER	62769800 WASHER	-	6	Enquire
32	64576100	R.H. WHEELHOUSE DOOR	64576100 R.H. WHEELHOUSE DOOR Not for USA and CDN	-	1	Enquire
33	64576300	L.H. WHEELHOUSE DOOR	64576300 L.H. WHEELHOUSE DOOR	-	1	Enquire
34	13276477	SCREW	13276477 SCREW	-	15	Enquire
35	12643724	WASHER	12643724 WASHER	-	15	Enquire
36	170507	MOVABLE CROSS MEMBER	170507 MOVABLE CROSS MEMBER	-	1	Enquire
37	16043224	SCREW	16043224 SCREW	-	4	Enquire
38	127496	WASHER	127496 WASHER	-	4	Enquire
39	66841300	ROLL-BAR TRELLIS BRACKET	66841300 ROLL-BAR TRELLIS BRACKET	-	1	Enquire
